Pyroscience MUX2 Manual de usuario

Micromanipulator MUX2

Micromanipulator with motorized x- and

z-axis

USER MANUAL

www.pyroscience.com

MUX2 | User Manual

Micromanipulator MUX2

Micromanipulator with motorized x- and

z-axis

Document Version 1.4

The MUX2 is provided by:

PyroScience GmbH

Hubertusstrasse 35

52064 Aachen

Germany

Phone +49 (0)241 5183 2210

Fax +49 (0)241 5183 2299

Email info@pyroscience.com

Web www.pyroscience.com

Registered: Aachen HRB 17329, Germany

MUX2 | User Manual
© PyroScience GmbH 3
TABLE OF CONTENT
1Introduction.....................................................................................................................................4
1.1 Packing List........................................................................................................................................4
1.2 Overview ............................................................................................................................................5
2Safety Guidelines............................................................................................................................6
3Installation and Operation ...........................................................................................................8
3.1 Assembly and Mounting ...............................................................................................................8
3.2 Power Supply and Manual Motor Control..........................................................................11
3.3 Computer-Controlled Operation.............................................................................................13
4Maintenance ................................................................................................................................. 14
5Technical Specifications............................................................................................................. 16


MUX2 | User Manual

1INTRODUCTION

The Micromanipulator MUX2 has been developed within the last decade in close

cooperation with leading scientists, who are specialized in microsensor measurements.

Please read carefully this manual before starting to use the device.

1.1 Packing List

Please check that all following items are included in your package:

•Micromanipulator base with motor unit for x-axis

•Micromanipulator base with motor unit for z-axis

•Mounting screws

•Power supply with exchangeable international plugs

•Data cable with adapter plug and USB connector

•Adapter for mounting of thin microsensors

Figure 1: Overview of the parts included in the package. Note that the exact appearance of

some delivered items might differ to this photograph.

MUX2 | User Manual

1.2 Overview

The Micromanipulator MUX2 has been developed for performing automized microprofile

measurements with microsensors. It consists of a compact manual micromanipulator for

the x-, y-, and z-axis, supplemented with a high-precision motorized slides (0.1 µm

resolution) for x-axis (left-right) and the z-axis (up-down). Versatile control software is

provided by PyroScience as freeware. If no computer is connected, the motorized slide

can be operated by a control knobs integrated the motor housings. For best operation

conditions, the micromanipulator MUX2 should be mounted on the Heavy Stand HS1

from PyroScience. Alternatively, it can be mounted on any flat surface providing a M6

mounting hole.

MUX2 | User Manual

2SAFETY GUIDELINES

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING TO WORK

WITH THIS DEVICE

•Before connecting the device to the mains voltage, please ensure that the operating

voltage stated on the power supply corresponds to the mains voltage.

•Ensure that the device is only operated under the climatic conditions specified in

the chapter "Technical Specifications" in this instruction manual.

•Maintenance, modifications and repair work must only be carried out by a suitable,

qualified technician, trained by PyroScience.

•If there is any reason to assume that the instrument can no longer be employed

without a risk (especially regarding any electrical parts), it must be set aside and

appropriately marked to prevent any further use.

•The safety of the user may be endangered, e.g. if the instrument a) is visibly

damaged, b) no longer operates as specified, c) has been stored under adverse

conditions for a longer period.

•If there is any problem, contact PyroScience and send the micromanipulator back

for repair.

•The user has to ensure the following laws and guidelines:

oEEC directives for protective labor legislation

oNational protective labor legislation

oSafety regulations for accident prevention

•This device is not protected against water spray

•This device is not water-proof

•This device must not be used under environmental conditions which cause water

condensation

•This device must not be opened

MUX2 | User Manual

THIS DEVICE MAY ONLY BE OPERATED BY QUALIFIED PERSONAL:

This device is only intended for use in the laboratory by qualified personal

according to this instruction manual and these safety guidelines!

Keep this device out of the reach of children!

Keep away from moving parts of the device!

This device is not intended for medical or military purposes!

MUX2 | User Manual

3Installation and Operation

PRECAUTION: The Micromanipulator MUX2 comprises high-precision mechanics

which can easily be damaged by improper or harsh treatment. Handle with care!

3.1 Assembly and Mounting

Please follow these steps for assembling the Micromanipulator MUX2:

1. Position the 4 mounting holes of the

micromanipulator head on top of the 4

mounting threads (red circles) in the

micromanipulator base. If the 4

mounting holes are hidden by the motor

slide, you can turn the lead screw of the

slide manually until all 4 holes are

visible as shown in the image

2. Fasten the micromanipulator head

with the 4 screws to the

micromanipulator base. The screws and

an appropriate tool are included in the

package.

MUX2 | User Manual

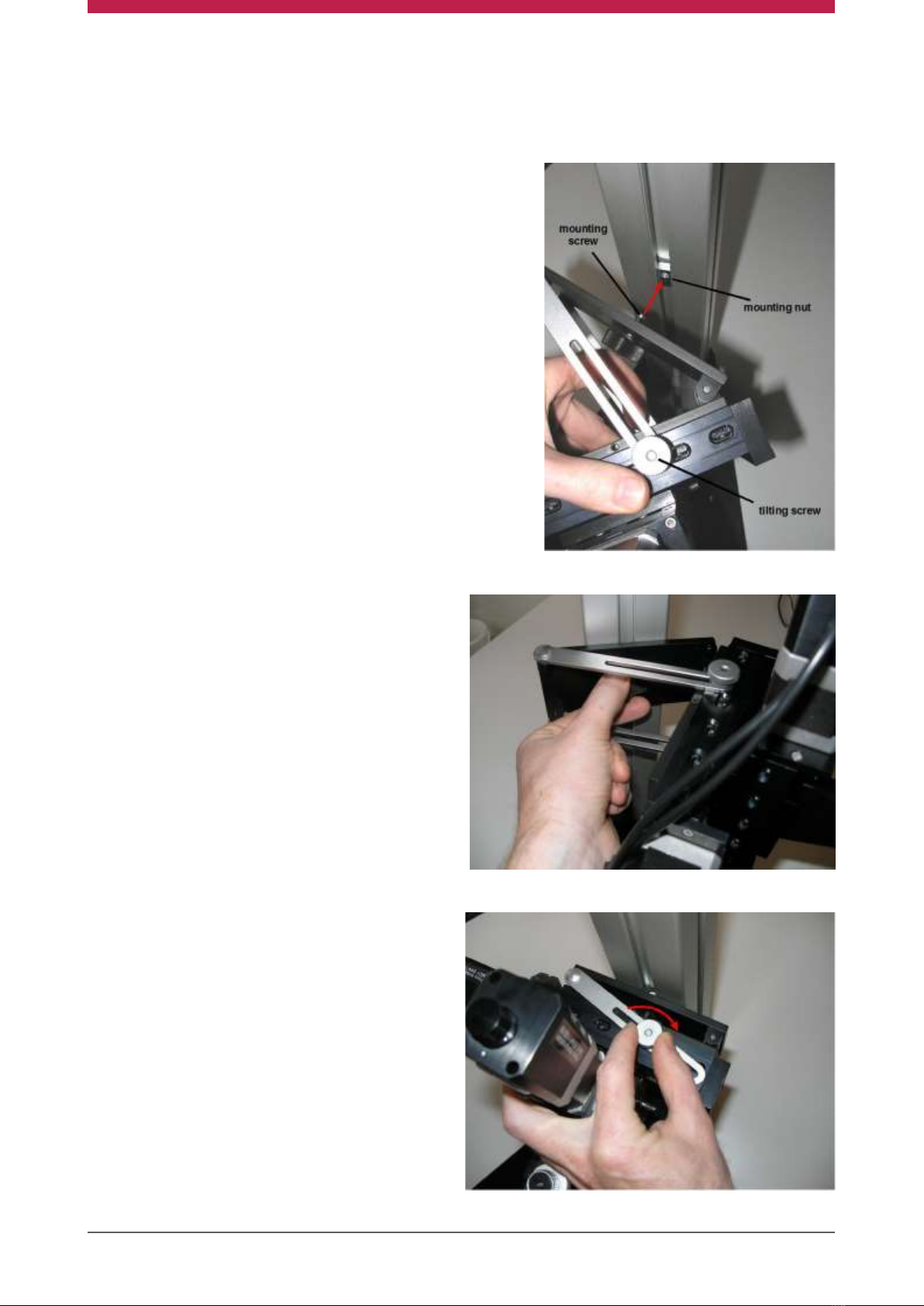

3. Release the tilting screws and open the tilting

mechanism. Screw the mounting screw carefully into

the mounting nut of the Heavy Stand HS1 (if the

spring-loaded mounting nut is not exactly centred

within the groove, move it back into position with

your fingers).

4. Fasten the mounting screw.

5. Fasten the tilting screws.

MUX2 | User Manual

6. Microsensors with diameters from 6.5 mm to 12

mm can be mounted directly to the sensor mount.

7. For mounting microsensors with diameters from

0.5 mm up to 3 mm use the included adapter for

thin microsensors. The adapter can hold two thin

microsensors simultaneously.

PRECAUTION: The motor exerts considerable forces when moving. Keep any

parts of your body (especially fingers and hairs!) out of the mechanics!
