Pyle PWPSB2402 Manual de usuario

24”PoweredATV/UTVSoundbarSystem

Built-in Class D Stereo PowerAmplifier

with Wireless BT Streaming and LED Lights

PWPSB2402

www.PyleUSA.com

Parts List

Button Function

Non-slip rubber pad (130 x 48 x 4mm)

Non-slip rubber pad (140 x 48 x 3mm)

Non-slip rubber pad (140 x 48 x 2mm)

Upper clamp

M6x60mm screw

Non-slip spring washer for M6 screw

4 PCS

2 PCS

8 PCS

①

②

③

④

⑤

⑥

⑦

Play/Pause: Short press

Switching BT /Aux In mode

BT Name: “PyleUSA”

Volume up:

Short press for increasing by scale

Long press for continuously increasing

Volume down:

Short press for decreasing by scale

Long press for continuously decreasing

Switching LED colors

(Red / blue / purple / 3

Prevoious Song (Back): Short press

Next Song (Forward): Short press

⑧

www.PyleUSA.com 3

Installation

Step 1

Once you’ve determined the mounting bar size, wrap the proper size non-slip rubber pad

around the bar to prevent it from being scratched by the ring. Refer to the chart above for

appropriate rubber pad size.

Step 2

Place the clamp pad over the bar.

Step 3

Ensure that the clamp’s screw holes are aligned with the clamp base’s screw holes and insert M6

x 60mm screws with M6 spring washers into the holes. Tighten the srews. Do not overtighten.

Step 4

Installation is now complete.

Step 1 Step 2

Step 3 Step 4

①②

③

④

⑤

www.PyleUSA.com

Wireless BT Pairing & Connection

Power

Press and hold for 3 seconds to power ON and OFF, when powered ON, the background led will

be white.

BT Pairing

1. Turn ON the BT, and search for “PyleUSA” to be paired. While waiting for being connected,

the BT indicator light will be ashing as blue. No password needed.

2. When BT is connected, the BT indicator led will be blue constantly.

AUX-IN

Short press the SRC button for switching to Aux-In mode, the indicator led will turn green.

Auto Connection

1. When the device is out of receiving distance range, the BT will disconnect automatically, and

the BT indicator led will be ashing as blue.

2. When the device is back to the receiving distance range within 10 minutes, the BT will be

connected automatically, and the BT indicator led lights constantly.

3. If within 10 minutes the device does not connect to the BT, then it needs to re-do BT

connection steps.

4. If other device occupies the BT connection within 10 minutes, then its needs to re-do BT

connection steps.

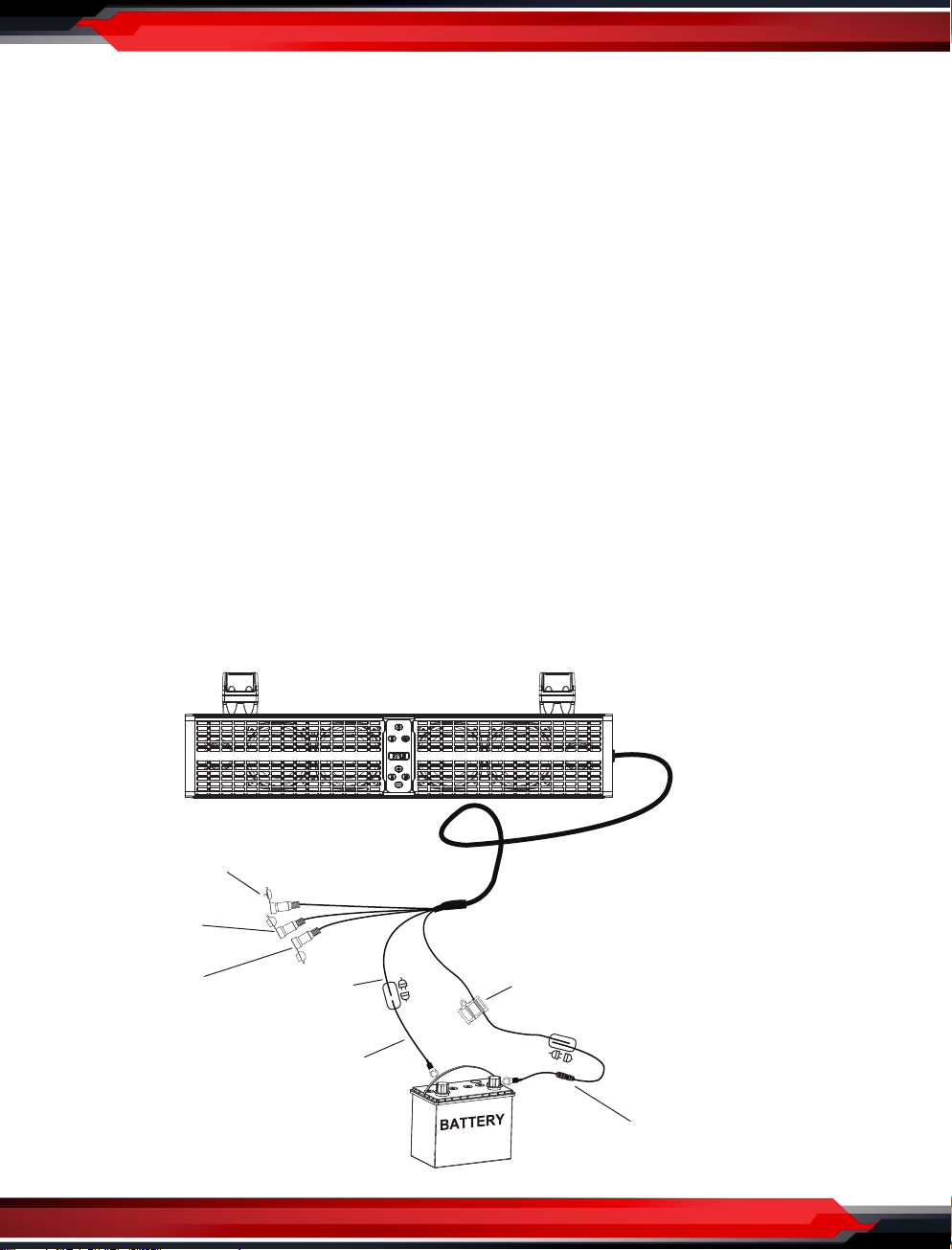

Wire Diagram

AUX IN

White RCA

LINE OUT L

Red RCA

LINE OUT R -Black Fuse: 10A

+Red

DC12V(+)

Recommended wiring

with fuse (parts is included)

DC12V (-)

Grounded to metal chassis

Recommended wiring

(parts is included)

www.PyleUSA.com 5

Features:

· Built-in Class D Stereo Power Amplier

· (4) 3.5” Mid-bass Drivers with Y35 Ferrite Magnets

· Forward-ring Speakers for Maximum SPL and Sound Staging

· (2) 1” PEI Dome Tweeters

· Built-in BT Technology

· Supports A2DP Audio Streaming

· 3.5mm Auxiliary Input

· RCA Output for a Second Sound Bar, Subwoofer, Amplier, or Powered Speakers

· Built-in LED lights (Red, Blue, Purple)

· LED Modes: Solid Color, Pulsating

· Marine Rated with Rugged Weatherproof Exterior

· IPX6 Waterproong/Weatherproong

· Weather Resistant Grill and Hardware

Wireless BT Connectivity:

· Wireless Music Streaming Ability

· Quick & Hassle-Free Device Pairing

· Works with All of Your Favorite BT-Enabled Devices

(Smartphones, Tablets, Laptops, Computers, etc.)

What's in the Box:

· (1) 24’’-inch Powered Soundbar

· (2) 5.5’’x 1.9’’ x 0.08’’ -inches Rubber Pad

· (2) 5.5’’x 1.9’’ x 0.12’’ -inches Rubber Pad

· (4) 5.5’’x 1.9’’ x 0.16’’ -inches Rubber Pads

Technical Specs:

· Power Supply: 40 Watts RMS/80 Watts Peak

· Construction Materials: Polypropylene Mica Cone, Butyl Rubber Surround

· BT Range: 30’+ ft.

· Aluminum Clamp System Fits 1.5”- 2”Bars

· Frequency Response: 20Hz-20KHz

· Speaker Size: 3.67’’ x 3.67’’ x1.99’’ -inches

· Tweeters: 1'' -inch

· Product Dimensions (L x W x H): 23.4’’x 4.5’’ x 6.85’’ -inches

· Wireless BT version 5.0

· Wireless BT Network Name: ‘PyleUSA’

· (1) Screw Bag

· (2) Aluminum Upper Clamps

· (1) Audio Connection Cable, 3.5mm

Questions? Issues?

We are here to help!

Phone: (1) 718-535-1800

Email: suppor[email protected]
