INSTRUCTION MANUAL

PLMT56 Light Meter

www.pyleaudio.com

TABLE OF CONTENTS

1. FEATURES

2. SPECIFICATIONS

3. PANEL DESCRIPTION

4. OPERATING INSTRUCTION

5. BATTERY REPLACEMENT

1. FEATURES

3 –1/2digit LCD display with low battery indication.

Easy to use with single function switch operating, pocket

size and light weight.

Light measuring levers ranging from 0.01 lux to 50,000

lux.

2000 lux: reading x 10; 50,000lux: reading x 100

2. SPECIFICATIONS

Display: 1999 counts LCD display with low battery indication.

Over-range: “1” mark indication.

Low battery indication: The “BAT” is displayed when the

battery voltage drops below the

operating level.

Measurement rate: 1.5 times per second, nominal.

Storage temperature: -10℃to 60℃(14℉to 140℉) at<80%

relative humidity

Power: One standard 12V, A23 battery.

Photo Detector Dimensions: 115 x 60 x 27mm

Dimensions: 188 x 64.5 x 24.5mm

Weight: 160g

Light

Measuring Range: 200, 2000, 20,000lux (20,000lux range

reading x 10) and 50,000lux (50,000lux range reading x 100)

Overrate Display: Highest digit of “1” is displayed.

Accuracy: ±5%rdg + 10 dgts (<10,000 lux)

±10%rdg + 10 dgts (>10,000 lux)

(calibrated to standard incandescent lam,2856 k).

Repeatability:±2%.

Temperature Characteristic: ±0.1%/℃.

Photo detector: One silicon photo diode with filter.

3. PANELDESCRIPTION

1. LCD display: 3 – 1/2digit LCD display with low battery

“BAT” indication.

2. Power / Function / Range Switch: Turn power on (or off) and

select measurement function and ranges.

3. Photo Detector: Long life silicon photo diode inside.

4.OPERATING INSTRUCTION

Measuring Light

1. Turn the Power/function/range Switch to select the “lux” scale

and set the range to desired (“lux”, “x10 lux” or x 100 lux)

range.

2. Remove the photo detector to light source in a horizontal

position.

3. Read the illuminance nominal from the LCD display.

4. Over-range: If the instrument only display one “1” in the

M.S.D. the input signal is too strong, and a higher range

should be selected.

5. When the measurement is completed. Replace the photo

detector from the light source.

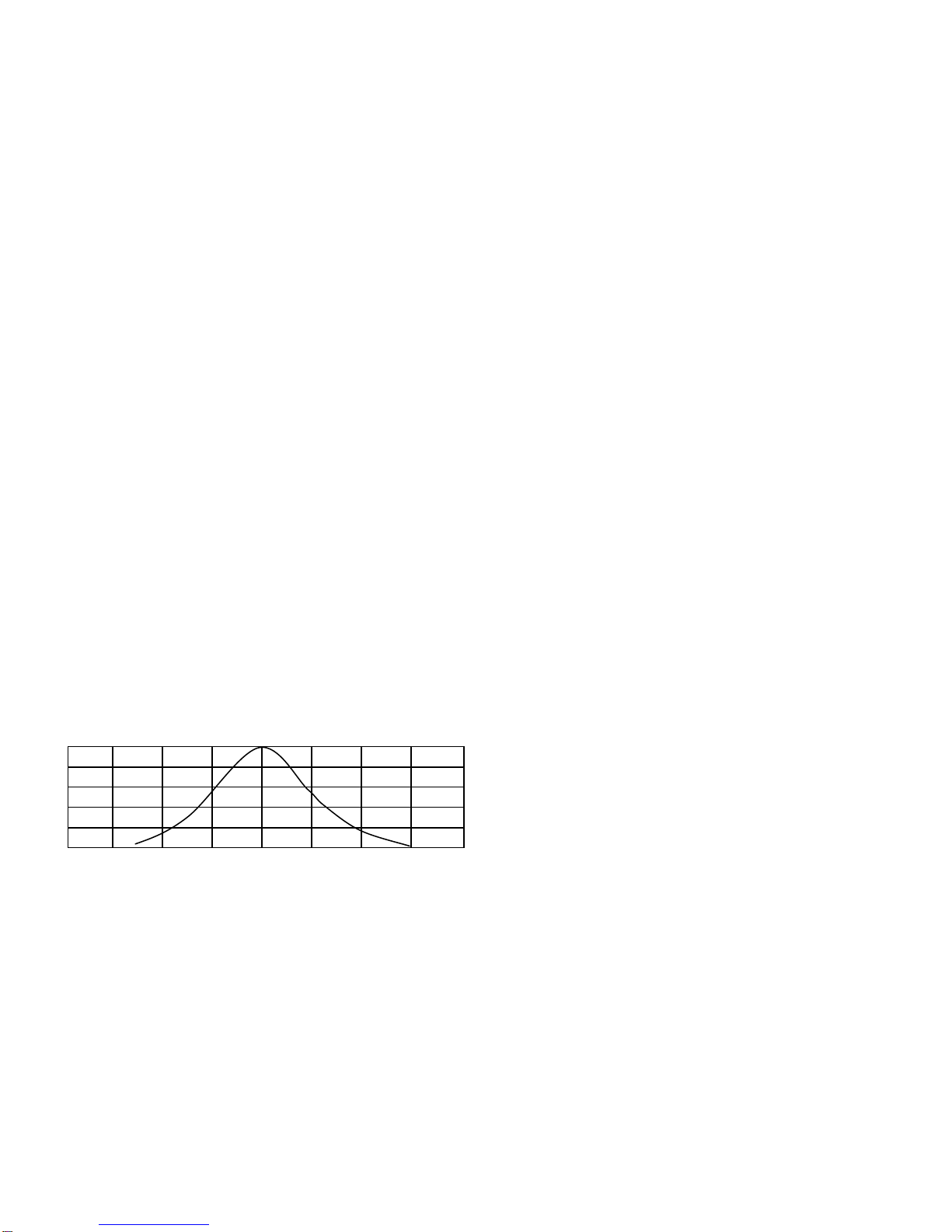

6. Spectral sensitivity characteristic: To the detector, the applied

photo diode with filters makes the spectral sensitivity

characteristic almost meet C.I.E. (International Commission

on Illumination) photopia curve V (λ) as the following chart

described.

100%(Relative Sensitivity) Spectral Sensitivity

80% V(λ)

60%

40%

20%

400 500 600 700

Wavelength (nm)

7. Recommended Illumination:

Locations

*Office

Conference, Reception room.

Clerical work

Typing drafting

*Factory

Packing work, Entrance passage

Visual work at production line

Inspection work

Electronic parts assembly line

*Hotel

Public room. Cloakroom

Reception, Cashier

*Store

Indoors Stairs Corridor

Show window, Packing table

Forefront of show window

*Hospital

Sickroom, Warehouse

Medical Examination room

Operating room

Emergency Treatment

*School

Auditorium, Indoor Gymnasium

Class room

Laboratory Library Drafting room

Lux

200 ~ 750

700 ~ 1,500

1000 ~ 2,000

150 ~ 300

300 ~ 750

750 ~ 1,500

1500 ~ 3,000

100 ~ 200

200 ~ 1,000

150 ~ 200

750 ~ 1,500

1500 ~ 3,000

100 ~ 200

300 ~ 750

750 ~ 1,500

100 ~ 300

200 ~ 750

500 ~ 1,500

5. BATTERY REPLACEMENT

If the sign “BAT” appears on the LCD display, it indicates that

the battery should be replaced. Remove screws on the back cover

and open the case. Replace the exhausted battery with new

battery.

(1 x 12V battery A23 or equivalent)
