PUTCO RAM 1500 Manual

`DESCRIPTION QTY

Molle Side Plate 1

Single-Flange Side Mounting Brackets 2

Double-Flange Side Mounting Brackets 2

M6 Torx-Head Bolt 12

5/16” Well Nut 8

8-32 X 3/4” Philip’s Head Screw 8

Congratulations on your purchase of a high quality PUTCO®product. Should

you need any application or technical assistance, feel free to call us at:

Monday-Friday 8:00am - 5:00pm (Central Standard Time)

Contact your PUTCO®dealer for other quality accessories.

1952XXI-SP

1-800-247-3974

PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION

AND CHECK TO SEE THAT ALL PARTS ARE INCLUDED

CONTENT LIST

REQUIRED TOOLS

INSTRUCTION GUIDE

RAM 1500

PHILLIPS SCREWDRIVER T30 TORX DRIVER

SIDE PANEL

MOLLE Panels Instruction Guide

1

2

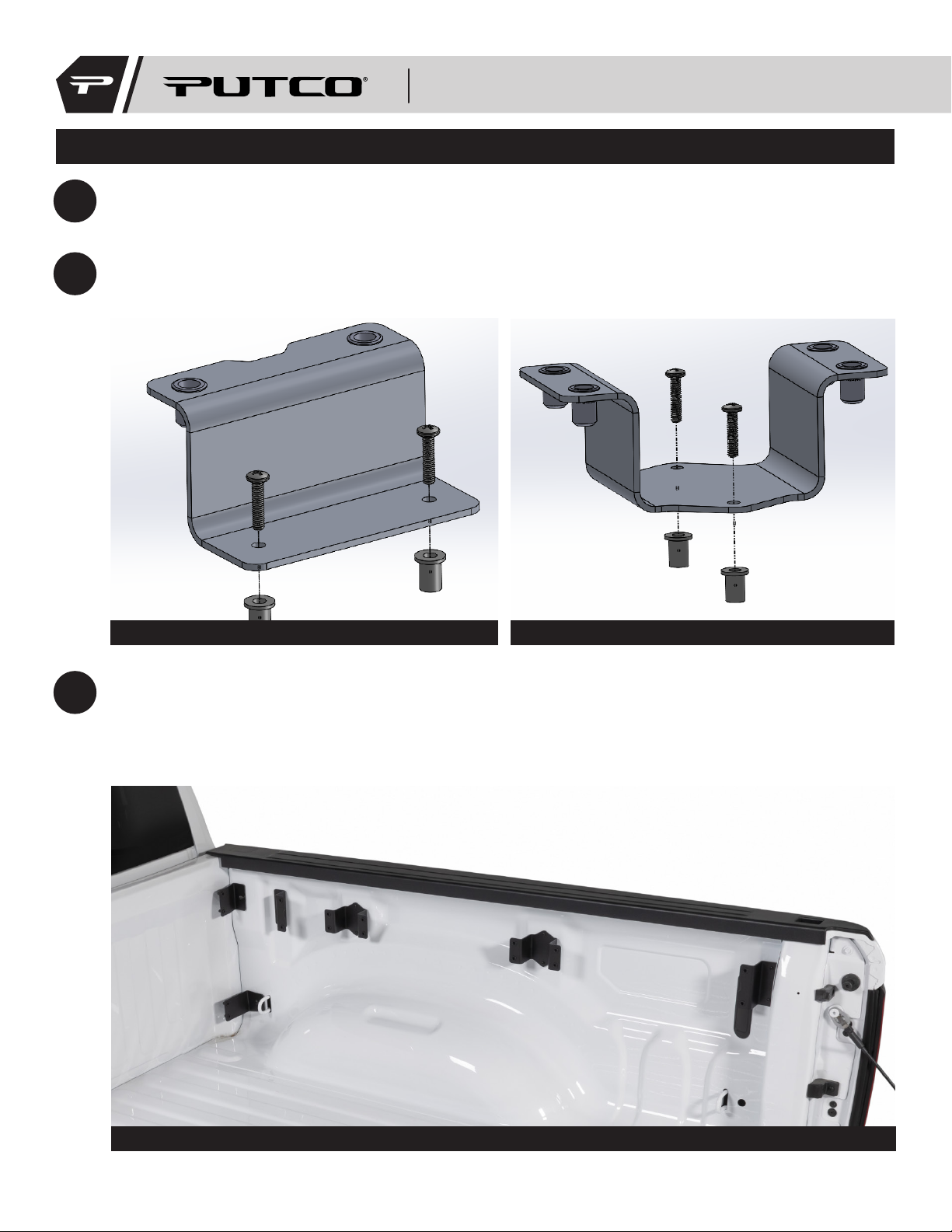

Begin by gathering all four of the Single-Flange Side Mounting Brackets and all four of the

Double-Flange Side Mounting Brackets.

Loosely assemble two 5/16” Well Nuts and two Philip’s Head Screws onto each of these brackets

as shown.

INSTALLATION INSTRUCTIONS

1952XXI-SP

3Your Light-Duty Ram has hex-shaped holes in the bedsides that will be used to mount the Molle

Side Plates. The Double-Flange Brackets mount to the middle sets of holes, and the Single-

Flange Brackets mount to the outer sets of holes, as shown. Fasten the brackets to the bed by

inserting the Well Nuts into the hex-shaped holes, then tighten the Philip’s Head Screws until the

Well Nuts are snug in the hex-shaped holes, but do not overtighten.

Single-Flange Bracket Double-Flange Bracket

Light Duty Ram with All Brackets Installed

MOLLE Panels Instruction Guide

5Now that everything is installed, ensure that all fasteners have been tightened until snug, but do

not overtighten.

1952XXI-SP

4Fasten the side plate to its brackets using the provided M6 Torx-head screws and a T30 Torx

driver.

Your new MOLLE Panel is now

successfully installed on your

vehicle!

Completed Molle Panel kit for Light Duty Ram
