PureLink UX Series Instrucciones de instalación
Technical Support Guide
UX Series
Technical Support Guide
HDMI 2.0 Integrated Matrix Switcher
UX Series
Designed in Germany
© 2016 PureLink GmbH All rights reserved.
Technical Support Guide
UX Series
2
1. Important Facts............................................................................................................................................................................ 3
1.1 UX Series Important facts............................................................................................................................................... 3
1.2 Other important facts...................................................................................................................................................... 3
2. Basic troubleshooting ................................................................................................................................................................. 4
2.1 Symptoms .......................................................................................................................................................................... 4
2.2 Probable cause ................................................................................................................................................................. 4
2.3 Troubleshooting ............................................................................................................................................................... 4
3. EDID Information ......................................................................................................................................................................... 9
3.1 EDID Settings .................................................................................................................................................................... 9
3.2 External EDID .................................................................................................................................................................... 9
3.3 Internal EDID ...................................................................................................................................................................11
Table Of Contents
Technical Support Guide
UX Series
3
1.1 UX series matrix important facts
• UX matrix supports HDMI 2.0, HDR, and HDCP 2.2.
• UX matrix supports resolution up to 4K@50/60Hz (4:4:4 pixel format).
• Default EDID on the UX matrix is 4K@60Hz (4:2:0 bitstream)
• UX matrix is not a scaling unit (1080p source will output 1080p despite the display being a 4K
capable display and 4K source many not display video/audio if the display is not capable of 4K.)
1.2 Other important facts
• There are three kinds of HDMI 2.0 support sources and devices by maximum supported resolution.
1. Maximum resolution up to 4K@60Hz (4:4:4).
2. Maximum resolution up to 4K@60Hz (4:2:0).
3. Maximum resolution up to 4K@30Hz (4:4:4).
Please refer to their manual.
• Some sources and displays may not support HDR. Please refer to their manual.
• If the display does not support certain audio format, there may be audio issues such as lip sync.
Please refer to their manual.
• HDbaseT does not support 4K@60Hz (4:4:4) -18 Gbps and only supports up to 4K@60Hz
(4:2:0) - 10.2 Gbps.
1. Important Facts
Technical Support Guide
UX Series
4
2.1 Symptoms
• No Pictures
• Blinking Picture
• Wrong Color Output
• Wrong Resolution Output
2.2 Common probable cause
• Source does not support the resolution/or the function is turned o.
• Display does not support the resolution/or the function is turned o
• The cables are not connected properly or damaged
• The routing is incorrect
• EDID does not match
• Display does not support HDCP 2.2
NOTE: If you don’t have power or LCD screen is not on, please contact us at
2.3 Troubleshooting
Pressing each inputs will show the status of the following:
1. Video timing
2. AV Link Mode( Color space )
3. HDCP Status
4. EDID Timing (EDID currently used)
5. EDID M. Name (EDID currently saved)
6. E. Audio. Fmt (Audio Format)
Pressing each outputs will show the status of the following:
1. Out timing(video out timing)
2. Output mode(HDCP mode)
3. EDID timing
4. EDID M. name (EDID of the display)
5. E. Audio. fmt (audio format)
NOTE: Please test the unit after each step has been processed.
2. Basic troubleshooting
Technical Support Guide
UX Series
5
1. Check all the cable connections including the power supply adapter.
• Make sure all of the cables are working properly.
2. Check all input/output channel settings and make sure they are routed as intended
Routed 1 to 1
Incoming signal is 1920x1080p @ 60Hz for Input 1
3. Press the input button and check if the incoming signal is correct.
• If the source is outputting 1920x1080p @ 60Hz, it will show 1920@1080p @
60Hz on the LCD screen.
• If the resolution on the LCD screen is dierent or not correct, power cycle the
source and the UX matrix.
• If the issue still remains, save the proper EDID (internal/external) to the input.
(Refer to Page 9 -12)
Technical Support Guide
UX Series
6
4. Press the input button until EDID Timing page is shown on the LCD screen.
• If the EDID timing is dierent or not correct, please save the proper (internal/external) EDID to the input.
(Refer to Page 9 -12)
3840x2160p @ 60Hz is the current EDID saved on input 1
Video out timing is 1920x1080p @ 60Hz on output 1
5. Press the output button and check the output timing.
• If the input is passing 1920x1080p @ 60Hz, output will pass 1920x1080p @ 60Hz.
• If the output timing is dierent or no correct, power cycle the source and the UX matrix.
6. EDID Merge
• This function will acquire EDID information from the connected displays and will retrieve the lowest
resolution from those displays to the input(s) of your selection.
• Select Menu -> EDID Set -> EDID Merge
Technical Support Guide
UX Series
7

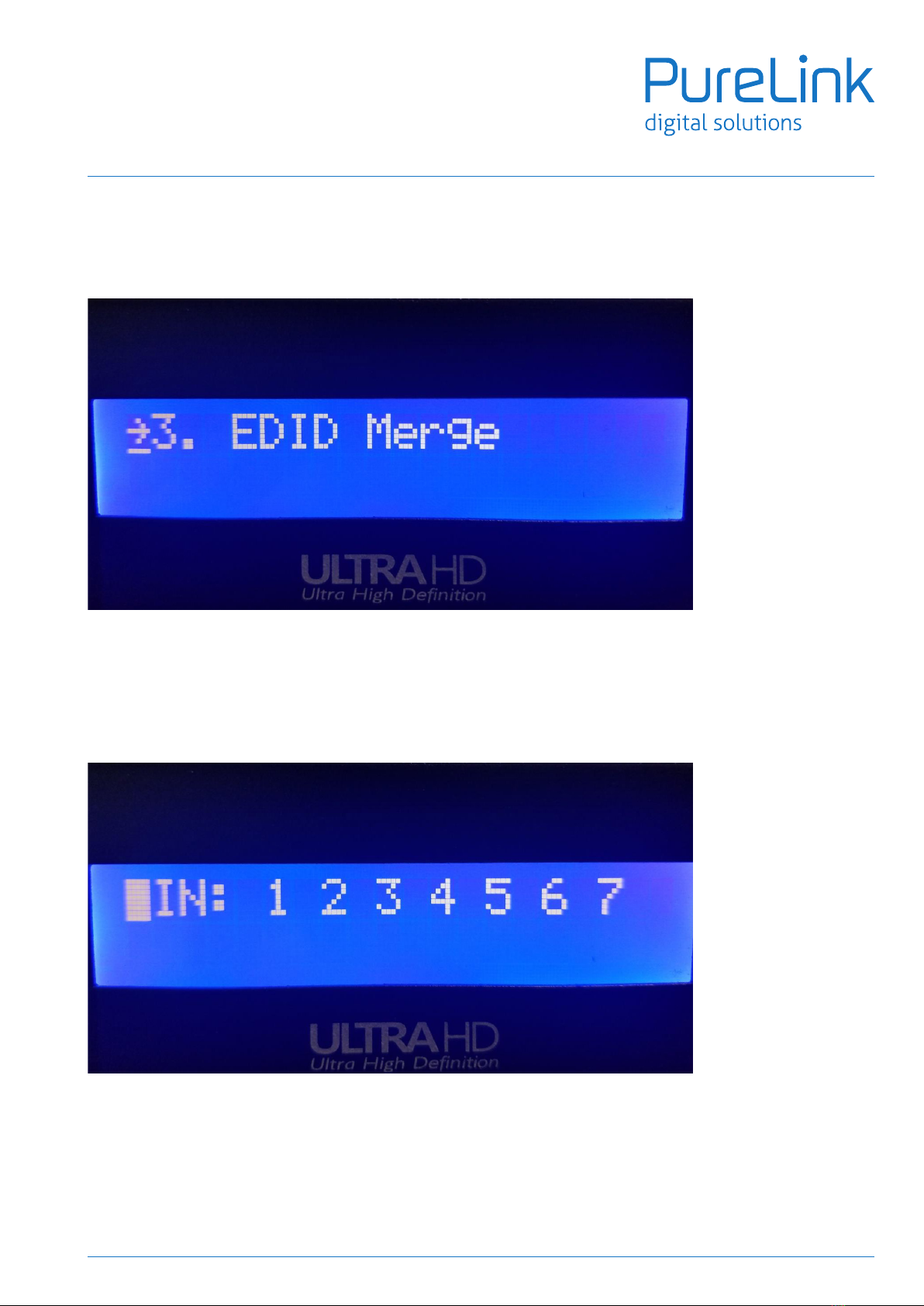

EDIC Merge function
Input 1 through 7 is selected
• Select the input(s) that are required and press enter.
Technical Support Guide
UX Series
8
The load was successful on the input 1 ~ 7. 8 was not selected during the process therefore,
it will not show P or F
7. Power cycle the UX matrix.
8. Factory Reset - This function will restore to original factory settings.
Only perform factory reset when the issue remained after taking these steps
• Select Menu -> Factory Reset and press enter.
Factory Reset function
If the issue still remains, please contact PureLink tech Support at info@purelink.de for further assistance
• Letter P will appear under the inputs if they are successfully loaded.
(F will appear if it is not successful. Repeat the step if F appears)
Technical Support Guide
UX Series
9
EDID Set Function
3.1 EDID settings
EDID stands for Extended Display Identication Data. EDID is an industry standard for AV Source and Display
devices which automatically communicates manufacturer specication and data between devices. This allows
your AV source to send the best compatible signal data to your screen, TV or projector to ensure the best possib-
le picture results.
EDID data includes manufacturer and specication data including:
• Brand
• Product Code
• Date of Manufacture
• Video Input Type
• Horizontal and Vertical Size
• Supported features
• Colour characteristics
• Timing information
3.2 Saving External EDID
This function acquires the default EDID of the display to the input of your selection.
1. Select Menu - > 1. EDID Set and press enter.
2. Select 1. External EDID and press Enter
3. EDID Information
Technical Support Guide
UX Series
10
Select Output will appear once External EDID is selected
Output 1 is selected which has a 1920x1080p @ 60Hz as a default EDID and
the inputs are selected to save the EDID
3. Select the output that is connected to the display, select the input that requires the EDID to be saved
and press enter.
