Punktal PK-MA320 Manual de usuario
key
board control
plate
fuse
High
volt age
diod e
magnetron
highvoltagetransfomer
highvoltagecapacity
Circuit Diagram
PK-MA320
MICROONDAS
520mmX430mmX290mm
220V~50Hz
PK-MA320
900W

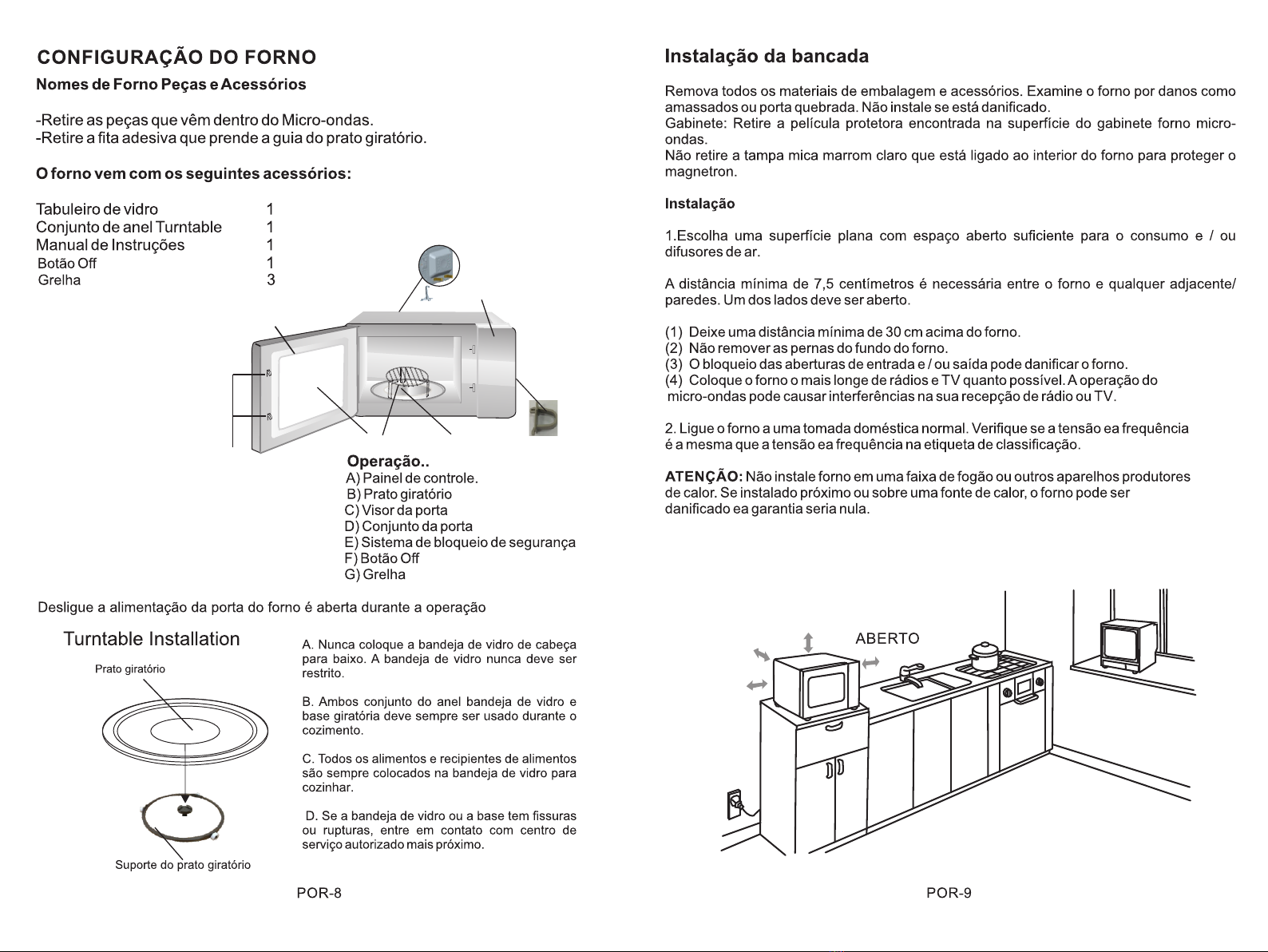

7.5CM
30CM
7.5CM
A
C
D
E
F
B
G
F

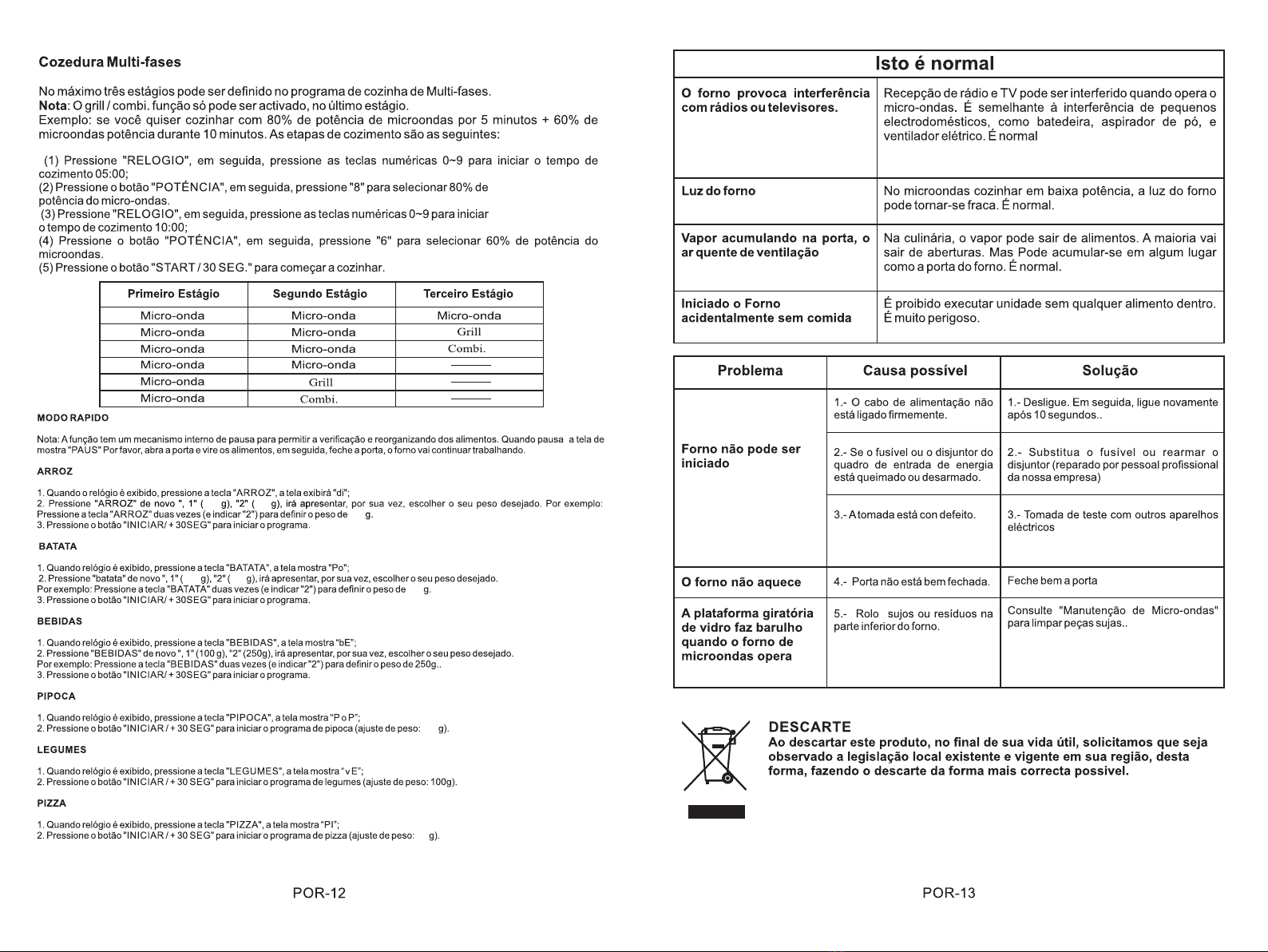

Palomitas
de Maíz
INICIO
+30 Seg
PAUSA
BORRAR
ENÚ RÁPIDO
Cena Tubérculos Bebidas
Vegetales Pizza
UNCIONES
Reloj
Hora
Grill
Combi.
M
F

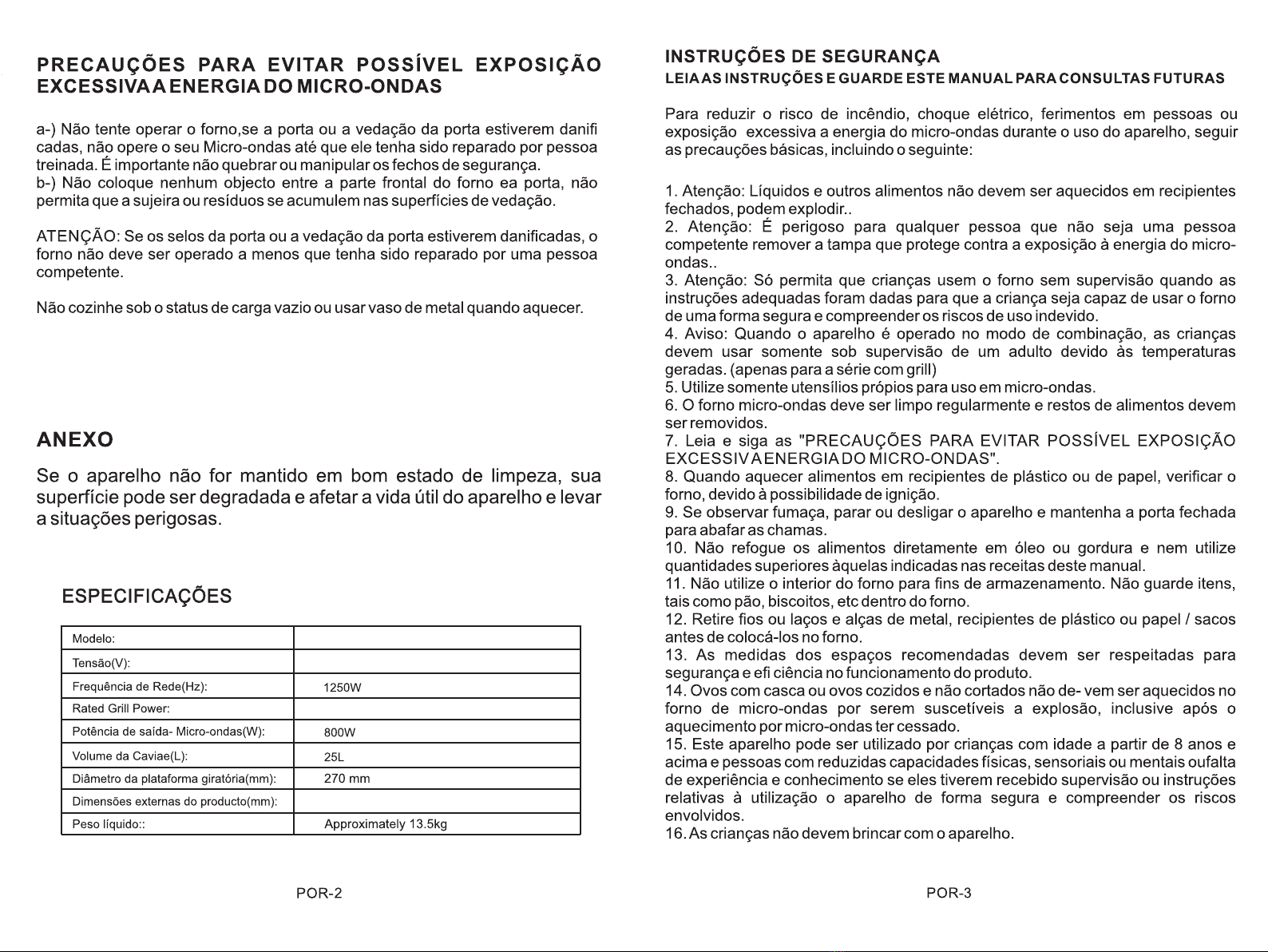

PRECAUÇÕES PARA EVITAR POSSÍVEL EXPOSIÇÃO EXCESSIVA A ENERGIA DO MICROONDAS
255 340
340
100 250
250
120
90
key
board control
plate
fuse
High
voltage
diode
magnetron
highvoltagetransfomer
highvoltagecapacity
Circuit Diagram
PK-MA320
MICROONDAS
Specifications
Model:
Rated Voltage
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
PK-MA320
220V~50Hz
1250W
800W
25L
270 mm
520mmX430mmX290mm
Approximately 13.5kg
EN-2
Rated Grill Power: 900W
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, injury to persons or exposure to excessive
microwave oven energy when using your appliance, follow basic precautions,
including the following:
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy. It is important not to break or tamper with the
safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated
until it has been repaired by a competent person.
(d) Do not cook under empty load status or use metal vessel when heating.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface could be
degraded and affect the lifespan of the apparatus and lead to a dangerous situation.
1. Warning: Liquids and other foods must not be heated in sealed containers since they
are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to remove a cover
which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate
instructions have been given so that the child is able to use the oven in a safe way
and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should
only use under adult supervision due to the temperatures generated. (only for grill
series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAU-TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the
possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in
order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread,
cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags
before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions
provided.
14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave
ovens since they may explode, even after microwave heating has ended.
15.This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.
16.Children shall not play with the appliance.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
EN-3
EN-5
20. Use this appliance only for its intended uses as described in manual. Do not use
corrosive chemicals or vapors in this
appliance. This oven is especially designed to heat. It is not designed for industrial or
laboratory use.
21. If the supply cord is damaged, it must be replaced by the manufacturer, its service
22. Do not store or use this appliance outdoors.
23. Do not use this oven near water, in a wet basement or near a swimming pool.
24. The temperature of accessible surfaces may be high when the appliance is operating.
The surfaces are liable to get hot
during use. Keep cord away from heated surface, and do not cover any vents on the
oven.
25. Do not let cord hang over edge of table or counter.
26. Failure to maintain the oven in a clean condition could lead to deterioration of the
surface that could adversely affect the life of the appliance and possibly result in a
hazardous situation.
27. The contents of feeding bottles and baby food jars shall be stirred or shaken and the
temperature checked before consumption, in order to avoid burns.
28. Microwave heating of beverages can result in delayed eruptive boiling; therefore
take care when handling the container.
29. The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
30. Children should be supervised to ensure that they do not play with the appliance.
31. The microwave oven shall not be placed in a cabinet unless it has been tested in a
cabinet.
32. Appliances should be forbidden to be operated by means of an external timer or separate
remote-control system.
33. The door or the outer surface may get hot when the appliance is operating.
34. The rear surface of appliance shall be placed against a wall.
1.Take care not to spill water on the glass floor during or immediately after grilling
as it may crack.
2.Be sure to use an oven glove when loading and unloading the oven.
3.Be careful not to press the viewing window when loading or unloading the oven.
4.Do not place items on the oven as the top of the cabinet gets very hot when grilling.
The oven surface, air vents and door will be very hot during and after grill cooking,
do not touch them in case of injury.
5.The heater gets on or gets off periodically during grilling.
6.The utensils will be very hot during cooking. DO NOT touch the heater of the oven.
7.Do not use steam to clean the oven.
8.The grill function of this oven is designed in accordance with the grill rack.
9.When the appliance is operated in the combination mode, children should only use
the oven under adult supervision due to the temperatures generated.
WARNING

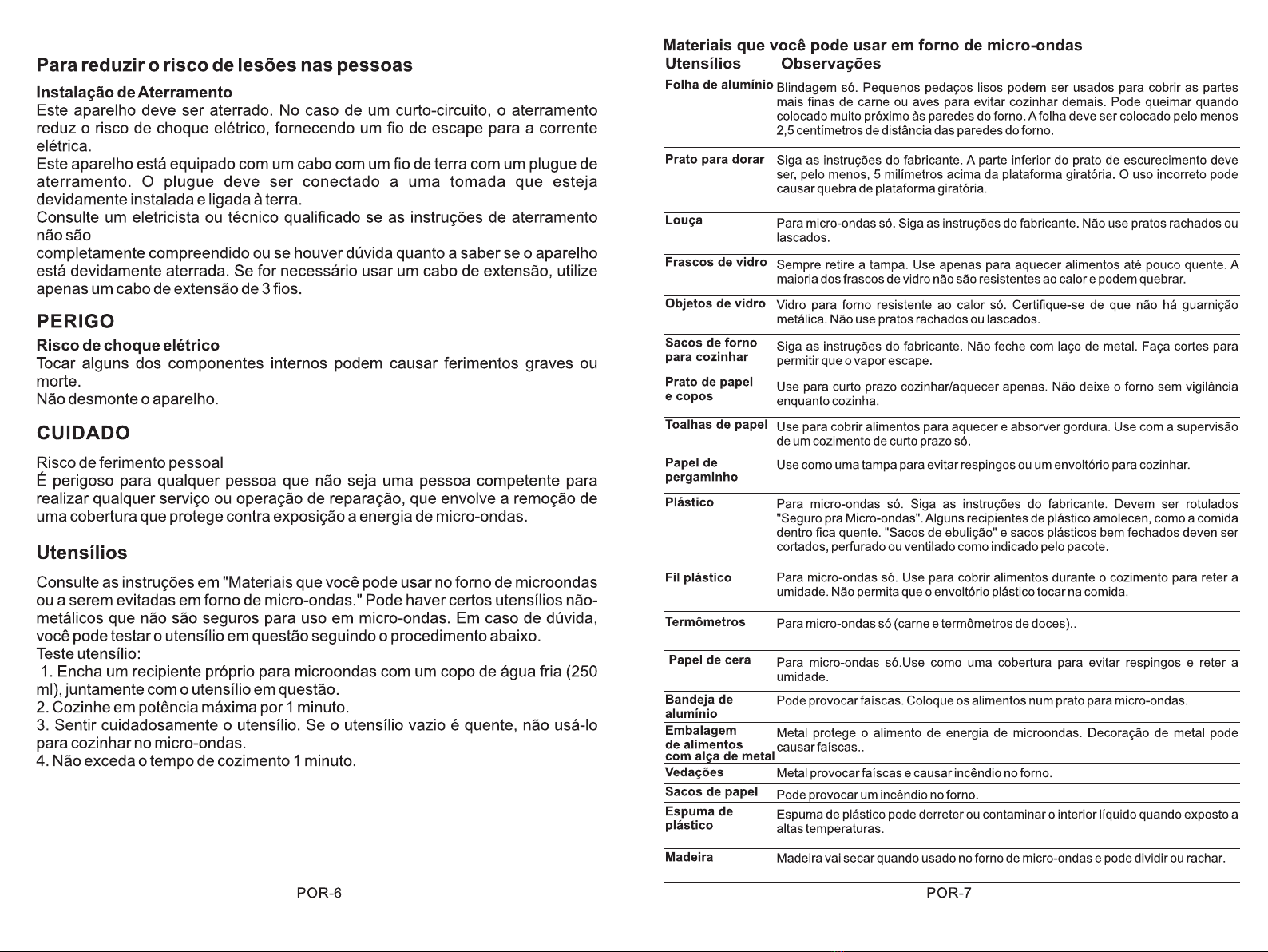

Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet
until appliance is properly installed and grounded.
WARNING
EN-4
35.This appliance is intended to be used in household and similar applications
such as.
(1)staff kitchen areas in shops, offices and other working environments;
(2)farm houses and by clients in hotels, motels and other residential type environments;
(3)bed and breakfast type environments;
(4)catering and similar non-retail applications.

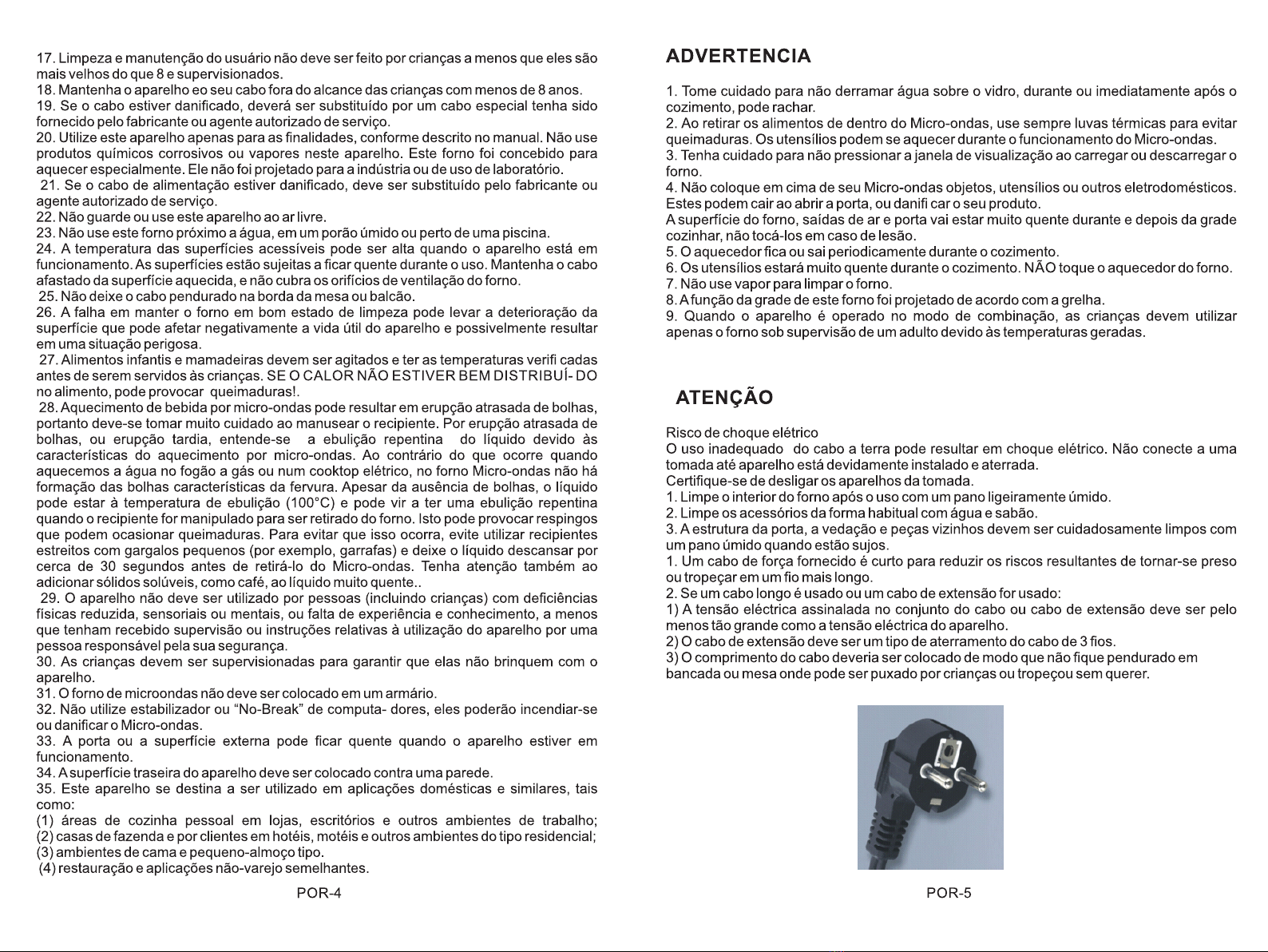

17.Cleaning and user maintenance shall not be made by children unless they are older
than 8 and supervised.
18.Keep the appliance and its cord out of reach of children less than 8 years.
19.If the supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or ist service agent.
1. A short power-supply cord is provided to reduce the risks resulting
from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
1) The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the
counter top or tabletop where it can be pulled on by children or
tripped over unintentionally.
Be sure to unplug the appliance from the power supply.
1.Clean the inside of the oven after using with a slightly damp cloth.
2.Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighboring parts must be cleaned carefully with a damp
cloth when they are dirty.
