Pump Alarm Cellular Alarm Manual de usuario
1. If you haven’t already done so, please activate your unit. You’ll visit www.PumpAlarm.com/activate,
then enter your unit’s 6 digit alphanumeric unit number followed by your billing information. The unit
number is found at the top of your unit. After completing the form, we will generate the phone number
for your unit. Once you receive your number, please save it as a contact in your mobile device. We like to
simply name ours Cellular Alarm.
2. Remove (4) screws, lift lid and install (4) AAA Alkaline batteries. You can also use non-rechargeable
lithium batteries. Observe battery polarity. Negative end of the battery touches the spring in each holder.
Reinstall the lid.
3. Mount the Cellular Alarm unit to the sump pump discharge pipe about 4 ft above basin cover. Use two
of the included mounting straps. Unit can also be wall mounted.
4. Connect your choice of sensor into one of the inputs on the bottom of the unit. We recommend using
the float switch for sump pump applications and the digital water sensor for floor or drain applications.
5. Plug A/C adapter into a 120 VAC power outlet and then connect the power plug into the jack on the
Cellular Alarm. Turn the On/Off switch to On.
6. Once the status light turns solid green, press and hold the “Push to Test/Hold to Configure” button for
3 seconds. Unit will chirp twice and status light will blink red & green. This will get the unit ready to
receive text messages from your cell phone. In the next step, you will configure the unit by sending it text
message commands.

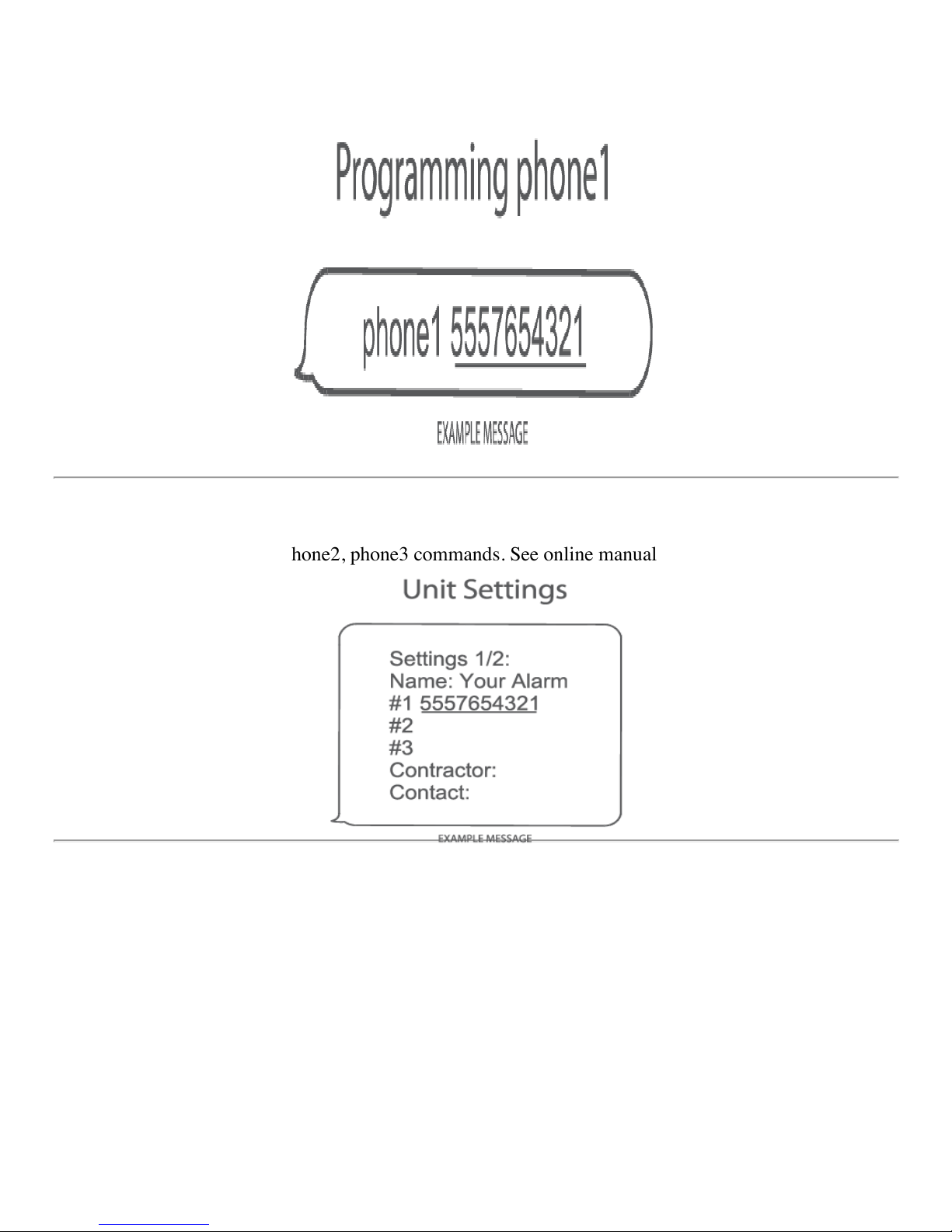

7. Create and send a text message to the unit phone number that you saved in step 1 using the following
format: phone1_space_5555555555 (where 555555555 is replaced by your 10-digit phone number). This
phone number is saved to position #1, and will receive a text message from your unit when an alarm is
triggered.
8. If successful, the unit will chirp twice and you will receive a text message to the phone number you just
entered. If you want notifications to additional phones, you can repeat this process with up to two
additional phones, using the phone2, phone3 commands. See online manual if this step is not successful.
9. Name the Cellular Water Alarm again by texting the unit using the following format:
Name{space}John Doe Residence.
10. If successful, the unit will chirp twice and you will receive a text message with the current settings.
See online manual if this step is not successful.
11. (Optional Contractor Setup)- Your PitBoss allows you to configure a contractor name with associated
contact information. When configured, PitBoss appends this information to the end of alarm notifications
(input alarms and power loss) so you know who to call in an emergency. To configure the contractor
name, text the unit using the following format: Contractor{space} Mike’s Plumbing.
12.If successful, the unit will chirp twice and you will receive a text message with the current settings.
See online manual if this step is not successful.
13.(Optional Contractor Setup)- To configure the contractor’s contact phone number, text the unit using
the following format: Contact{space}
14.If successful, the unit will chirp twice and you will recive a text message with the current settings. See
online manual if this step is not successful.
15.Installation and configuration are now complete. Press and hold the “Push to Test/Hold to Cofigure”
button for 3 seconds. Unit will chirp twice and status light will go to solid green. This will take your unit
out of configuration mode.
16.Test your Cellular Water Alarm by pressing and releasing the “Push to Test” button. The unit will
chirp one time and send a text notification to all numbers that have been added. See online manual if this
step is not successful.
Important: Test your sensors by submerging them into a cup of water. This will trigger the unit to
sound an audible alarm and send a text notification to all phone numbers. Test the battery backup
system by unplugging the A/C power adapter from the unit. All phone numbers programmed into
the unit will receive the text notification.
