Pulsar AWZ516 Manual de usuario

AWZ516

v.2.1

PC1

Time relay module.

Edition: 5 from 01.03.2018 EN*

Supersedes the edition: 4 from 15.01.2015

Features:

10 ÷ 16V DC power supply

18 time-logic programs

The range of measured times: up to 100 hours

High precision time measurements

High load capacity of relay contacts

LED display

Three function buttons

Activated by plus "S +" or mass "S-"

Reset input activated by mass "R-"

Optical indication of power supply and relay output status

The possibility of implementing additional time-logic programs

Warranty - 2 year from the production date

TABLE OF CONTENTS.

1. General description. .......................................................................................................................................1

2. Components arrangement. ............................................................................................................................2

3. Programming the time module......................................................................................................................3

4. Preview - the parameters of currently set program.....................................................................................4

5. Previewing the status.....................................................................................................................................4

6. Timer programs...............................................................................................................................................5

7. Programming example. ................................................................................................................................10

The time module is factory set to PR0 program mode with active REL relay.

1. General description.

The PC1 time module is a transceiver allowing execution of time-logic programs. The device is

characterized by versatility, high accuracy of the measured time based on the crystal oscillator and the possibility

of its precise and repeatable adjustment. The relay can be used to extend short control impulses, e.g. controlling

the operation locks, electromagnetic jumpers, bistable control, etc. The relay is used in automation and control

circuits and access control projects, with logical dependencies on the state of: the controller, door opening sensor

(reed switch), exit button, etc.

2. Components arrangement.

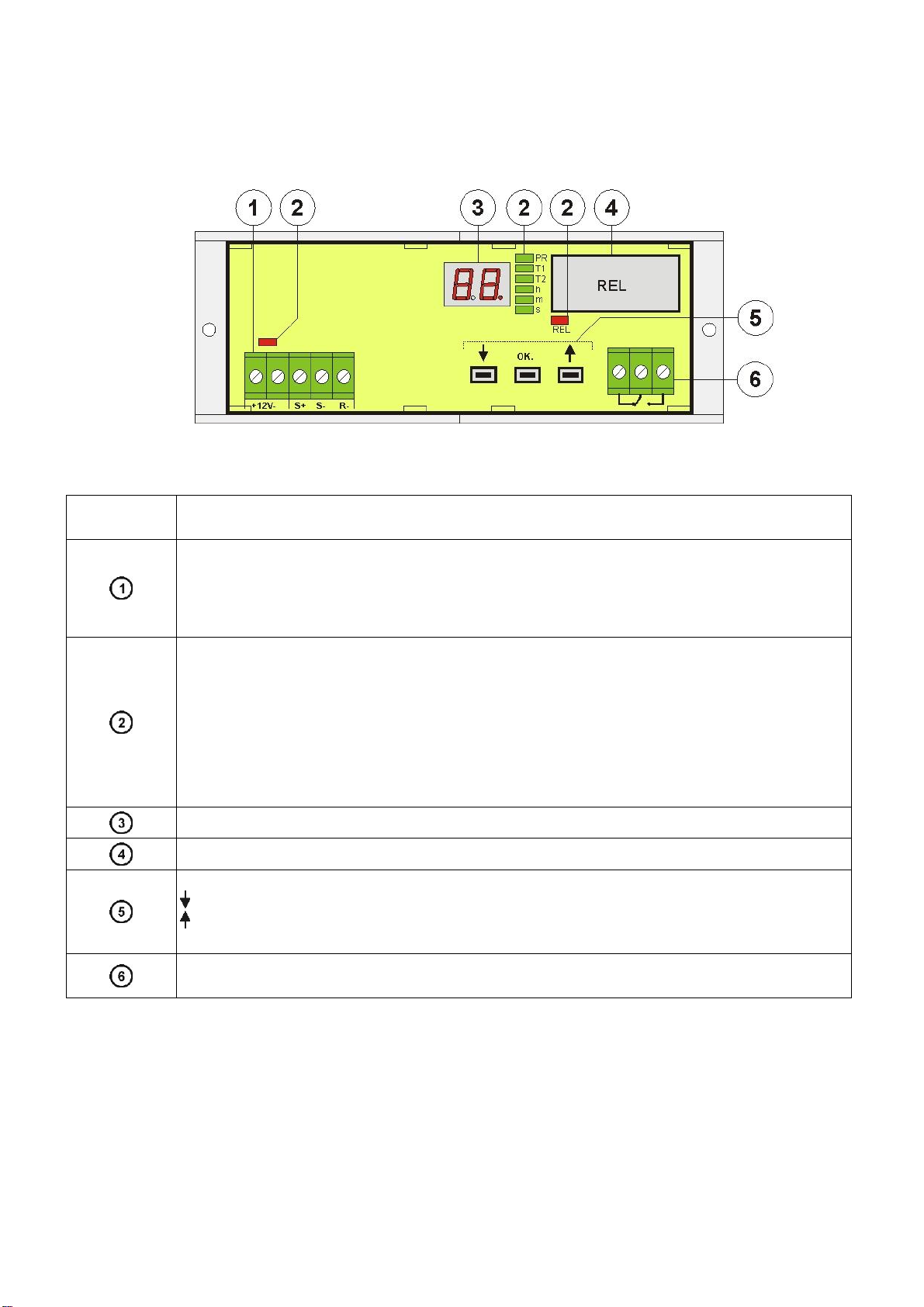

The figure below shows the arrangement of the most important components and connectors of the relay

module.

Fig. 1. The module’s view.

Table 1. The description of components and connectors of the module.

Number

[Fig. 1]

Description

Connector:

+12V- - the module’s power supply, DC voltage

S+ - control input supplied by the positive power supply

S- - control input activated by negative power supply (ground)

R- - reset input activated by negative power supply (ground)

LEDs –optical indication

red –supply voltage

REL –ON, relay on

PR –blinking –programming mode, ON –previewing the current mode

T1 –time indication T1

T2 –time indication T2

h–hours indication (0-99h)

m–minutes indication (0-59m)

s–seconds indication (0-59s)

LED display.

Relay

Buttons

- Decreasing the parameter, move down one level in the menu

- Increasing the parameter, move up one level in the menu

OK. - Confirm the settings

The REL relay connector

CAUTION! Connector pin-out in the figure 1 shows the potential-free status of the relay.

3. Programming the time module.

If there is no action for more than 30 seconds when changing the parameters settings, the module

automatically exits the programming mode without saving the changes.

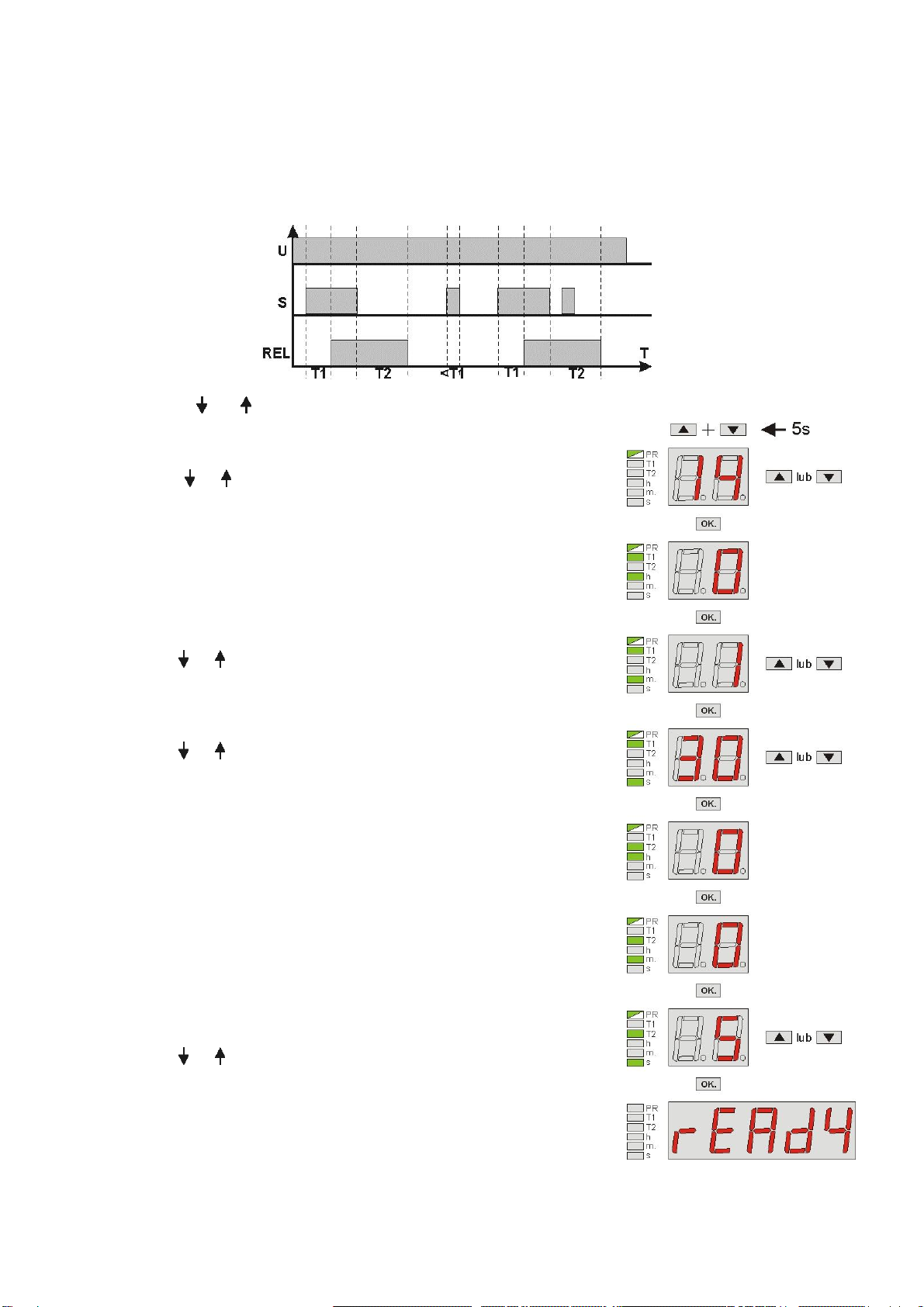

1) Press the and buttons simultaneously for 5 seconds to enter

the programming mode.

The „PR” LED will blink and the number of currently saved

program will be displayed.

2) Use the or buttons to select the desired program number.

Confirm by pressing "OK.” button.

3) Use the or buttons to set the „T1” time (hours).

(when required).

The „T1” and „h” LEDs are ON.

Confirm by pressing „OK.” button.

4) Use the or buttons to set the „T1” time (minutes).

The „T1” and „m” LEDs are ON.

Confirm by pressing „OK.” button.

5) Use the or buttons to set the „T1” time (seconds).

The „T1” and „s” LEDs are ON.

Confirm by pressing „OK.” button.

6) Use the or buttons to set the „T2” time (hours)

(when required).

The „T2” and „h” LEDs are ON.

Confirm by pressing „OK.” button.

7) Use the or buttons to set the „T2” time (minutes).

The „T2” and „m” LEDs are ON.

Confirm by pressing „OK.” button.

8) Use the or buttons to set the „T2” time (seconds).

The „T2” and „s” LEDs are ON.

Confirm by pressing „OK.” button.

9) The scrolling message „ready” - indicating readiness for operation

of the module according to the selected mode and preset times –

will be displayed

4. Preview - the parameters of currently set program.

The program number and time module parameters can be checked by pressing the OK button for 3

seconds. The "PR" LED will light up and the number of the currently set program will be displayed.

Use the or buttons. The information about the current time parameters of the program -

according to the diagram in Chapter 3: "Programming the time module” – will be displayed.

The Preview Mode is disabled once the OK button is pressed again or after 5 seconds of inactivity.

5. Previewing the status.

During normal operation, it is possible to preview the time module operating status. Press the or

button; the following information is displayed as follows:

Countdown timer - hours

The “h” and “T1” or “T2” LED is ON

Countdown timer - minutes

The “m” and “T1” or “T2” LED is ON

Countdown timer - seconds

The “s” and “T1” or “T2” LED is ON

Preview of the status of R and S inputs

A blinking dot indicates the time measurement

of operating module

6. Timer programs.

PR0 - Permanent on or off.

In this mode, press the

"OK" button to permanently

switch on or off the relay.

The relay state is

remembered when power is

disconnected and it is

immediately restored when

switched on.

PR1 - T1 time activation delay with locking option –single cycle.

The countdown of the T1 time takes

place automatically after switching on

the power. Then, the "REL" relay is

activated. This mode is maintained until

the power is disconnected.

In the case of the „S” triggering

signal (rising edge) during the

countdown of the T1 time, the module

will lock and the relay will not be

activated.

PR2 - T1 time deactivation delay with locking option –single cycle.

The "REL" relay is activated

automatically after switching on the

power for the T1 time period. Once the

countdown of the T1 time is finished, the

"REL" relay is disconnected. This mode

is maintained until the power is

disconnected.

In case of the „S” triggering signal

(rising edge) during the countdown of

the T1 time, the module will lock and the

relay will not be deactivated.

PR3 - T1 to T2 time activation delay with resetting T1 time–single cycle.

The countdown of the T1 time takes

place automatically after switching on

the power. Then, the "REL" relay is

activated for the T2 time period. Once

the countdown of the T2 time is finished,

the "REL" relay is disconnected. This

mode is maintained until the power is

disconnected.

The „S” triggering signal (rising

edge) during the countdown of the T1

time resets and restarts the T1

countdown process.

PR4 - T1 to T2 time deactivation delay with resetting T1 time–single cycle.

The "REL" relay is activated

automatically after switching on the

power for the T1 time period. Then, the

"REL" relay is deactivated for the T2

time period. Once the countdown of the

T2 time is finished, the "REL" relay is

activated again. This mode is

maintained until the power is

disconnected.

The „S” triggering signal (rising

edge) during the countdown of the T1

time resets and restarts the T1 countdown process.

PR5 - Activation delay with increasing T2 activation time with Ts time –cyclic.

The countdown of the T1 time takes

place automatically after switching on

the power. Then, the "REL" relay is

activated for the T2 time period. This

mode is repeated cyclically.

In case of the „S” signal (level)

during the countdown of the T2 time,

the countdown is extended by the

duration of the „S” signal.

The countdown is extended only

during the countdown of the T2 time.

PR6 - Deactivation delay with increasing T2 deactivation time with Ts time –cyclic.

The countdown of the T1 time takes

place automatically after switching on

the power. Then, the "REL" relay is

deactivated for the T2 time period. This

mode is repeated cyclically.

In case of the „S” signal (level)

during the countdown of the T2 time, the

countdown is extended by the duration

of the „S” signal.

The countdown is extended only

during the countdown of the T2 time.

PR7 –Bistable mode.

In case of the „S” triggering signal

(rising edge), the REL relay is

immediately switched into opposite

state.

PR8–Increasing the impulse to T1 time –from rising edge.

The „S” triggering signal (rising

edge) immediately activates the "REL"

relay for the T1 time period. Once the

countdown of the T1 time is finished,

the "REL" relay is deactivated.

Another „S” triggering signal during

the countdown of the T1 time will not

affect the countdown until activation of

the „REL” relay.

PR9- Increasing the impulse to T1 time –from rising edge with resetting T1 time.

The „S” triggering signal (rising

edge) immediately activates the "REL"

relay for the T1 time period. Once the

countdown of the T1 time is finished, the

"REL" relay is deactivated.

Another „S” triggering signal during

the countdown of the T1 time (rising

edge) resets and restarts the T1

countdown process.

PR10 - Increasing the impulse to T1 time –from falling edge.

The „S” triggering signal (rising

edge) immediately activates the "REL"

relay. After a loss of the „S” signal

(falling edge), the „REL” relay stays

activated for the T1 time.

Another „S” triggering signal during

the countdown of the T1 time will not

affect the countdown until activation of

the „REL” relay.

PR11 - Increasing the impulse to T1 time –from falling edge with resetting T1 time.

The „S” triggering signal (rising

edge) immediately activates the "REL"

relay. After a loss of the „S” signal

(falling edge), the „REL” relay stays

activated for the T1 time.

Another „S” triggering signal during

the countdown of the T1 time (rising

edge) resets and restarts the T1

countdown process after a loss of the

„S” signal.

PR12 –Delaying the impulse - the T1 to T2 time.

The „S” triggering signal (rising

edge) activates the countdown of the T1

time, followed by the activation of the

"REL" relay for the T2 time period.

Another „S” triggering signal during

the countdown of the T1 or T2 time will

not affect the operation in this cycle.

Every next cycle can begin only

after the completion of the T2

countdown.

PR13 - Delaying the impulse - the T1 to T2 time with resetting the T1 time.

The „S” triggering signal (rising

edge) activates the countdown of the T1

time, followed by the activation of the

"REL" relay for the T2 time period.

Another „S” triggering signal during the

countdown of the T1 time (rising edge)

resets and restarts the T1 countdown

process.

Another „S” triggering signal during

the countdown of the T2 time will not

affect the countdown until activation of the „REL” relay.

Every next cycle can begin only after the completion of the T2 countdown.

PR14 - T1 time activation delay and T2 time deactivation delay.

The „S” triggering signal (rising

edge) activates the countdown of the T1

time, followed by the activation of the

"REL" relay if the „S” signal is still on.

The relay stays activated for the entire

duration of the „S” signal. A loss of the

„S” signal (falling edge) activates the

countdown of the T2 time, followed by

deactivation of the "REL" relay.

If the triggering signal is shorter

than the T1 time, then the REL relay is not activated.

Another „S” triggering signal during the countdown of the T2 time will not affect the operation in this

cycle.

Every next cycle can begin only after the completion of the T2 countdown.

PR15 - T1 time activation delay and T2 time deactivation delay with resetting the T2 time.

The „S” triggering signal (rising

edge) activates the countdown of the T1

time, followed by the activation of the

"REL" relay if the „S” signal is still on.

The relay stays activated for the entire

duration of the „S” signal. A loss of the

„S” signal (falling edge) activates the

countdown of the T2 time, followed by

the deactivation of the "REL" relay.

If the triggering signal is shorter

than the T1 time, then the REL relay is not activated.

Another „S” triggering signal during the countdown of the T2 time resets and restarts the T2

countdown process.

Every next cycle can begin only after the completion of the T2 countdown.

PR16 - Random switching to T1 and T2

The "REL" relay is activated

automatically for a randomly selected

period in the T1 ÷ T2 range. Once the

countdown is finished, the "REL" relay is

disconnected for another randomly

selected period in the T1 ÷ T2 range.

This mode is repeated cyclically.

When the REL relay is deactivated,

the „S” triggering signal (rising edge) will

activate the relay for another randomly

selected period in the T1 ÷ T2 range.

When the relay is activated, the „S” triggering signal does not affect its operation .

PR17 –Switching to T1 after detecting the rising edge and to T2 after detecting the falling edge.

The „S” triggering signal (rising

edge) activates the countdown of the T1

time. Once the countdown of the T1

time is finished, the "REL" relay is

deactivated.

A loss of the „S” signal (falling edge)

activates the countdown of the T2 time,

followed by deactivation of the "REL"

relay.

If the triggering signal is shorter than

the T1 time, then the T1 countdown is followed by the T2 countdown and only then the REL relay is

deactivated.

In the case of the „S” triggering signal during the countdown of the T2 time, the T2 countdown is

followed by the T1 countdown, followed by the deactivation of the REL relay.

PR18 –Cyclic mode

The „S” triggering signal (rising

edge) immediately activates the "REL"

relay for the T1 time period. Once the

countdown of the T1 time is finished, the

"REL" relay is deactivated for the T2

time period. This mode is repeated

cyclically.

7. Programming example.

This example shows how to program the time module to indicate whenever the doors in an air-

conditioned room are left open. The following assumptions are made:

- Allowable time for door opening: T1 = 1min 30s

- The minimum alarm time: T2 = 5s

The used program is PR14 „T1time activation delay and T2 time deactivation delay”.

1) Press the and buttons simultaneously for 5 seconds to enter

the programming mode.

The „PR” LED will blink and the number of currently saved

program will be displayed.

2) Use the for buttons to select the 14 mode.

Confirm by pressing the „OK.” button.

3) The „T1” and „h” LEDs are ON (time setting mode „T1”).

Press the OK button again to leave the zero value of the

number of hours.

4) The „T1” and „m” LEDs are ON.

Use the for buttons to set the „1”.

Confirm by pressing the „OK.” button.

5) The „T1” and „s” LEDs are ON.

Use the for buttons to set the „30”.

Confirm by pressing the „OK.” button”

6) The „T2” and „h” LEDs are ON (time setting mode „T2”).

Press the OK button again to leave the zero value of the

number of hours.

7) The „T2” and „m” LEDs are ON.

Press the OK button again to leave the zero value of the

number of hours.

8) The „T2” and „s” LEDs are ON.

Use the for buttons to set the „5.”

Confirm by pressing the „OK.” button.

9) The scrolling message „ready” - indicating readiness for operation

of the module according to the PR14 mode and preset times –

will be displayed.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Pulsar

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
