Pullman Holt UV9 Guía de aplicación

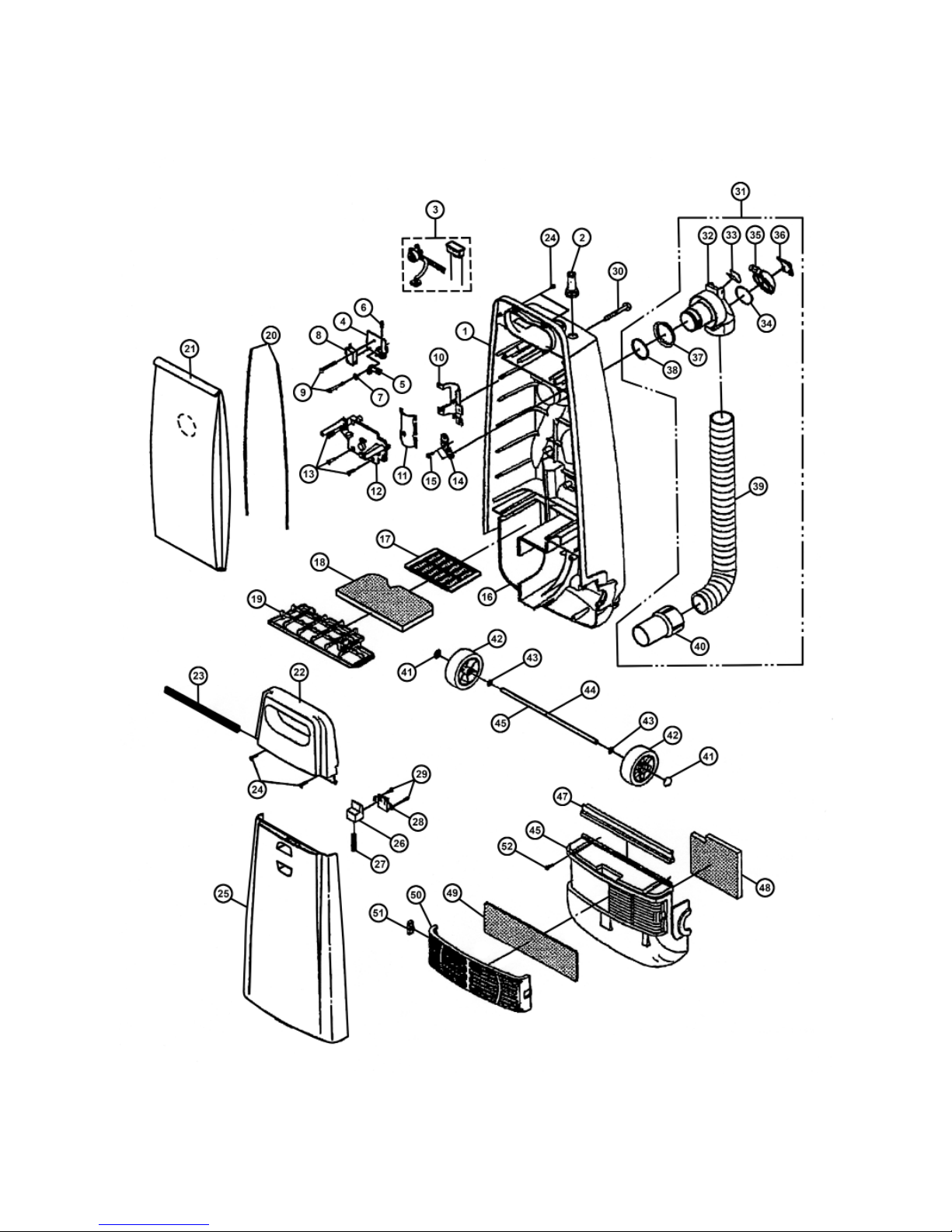

REPLACEMENT PARTS LIST

Save for future reference

Model UV9 Vacuum

B260965

B260961

B260953

Brush Nozzle Base Housing

Plastic Bushing

Top Mark

Light Bulb

Bottom Plate Lock Screw

Nozzle Housing Felt Packing

Vented Support Felt Packing

Vented Support Fitting

Nozzle Inlet

Set Screw

Furniture Guard

Washer

Set Screw

Foot Pedal Complete

Pedal Frame

Foot Pedal

Foot Pedal Spring

Rear Belt Cover

Foot Pedal Shaft

E-Clip

Set Screw

Clutch Crank Rod Frame Complete

Clutch Crank Rod Frame

Clutch Crank Rod Frame Shaft

Rod Frame Shaft Spring

E-Clip

Clutch Lever

Washer

E-Clip

Clutch Lever Boot

Clutch Crank Rod

Washer

Clutch Crank Rod

Clutch Crank Rod Pin

Belt Controller Plate Spring

Belt Controller Plate

Set Screw

Belt Controller Plate Washer

Washer

Belt Controller Plate Screw

Belt

Brush Housing Assembly

Ref. Part No. Description Qty

B260955

B260956

B260952

Dust Compartment

SJT Rubber Boot

Vacuum Sensor & Fullbag Indicator

Switch Mounting Plate

Switch Activator

Switch Activator Spring

Plastic Washer

Switch

Set Screw

Handle Fitting (rear)

Handle Fitting (front)

P.C. Board Holder

Set Screw

Cord Holder

Set Screw

Motor Compartment Seals

Filter Supporter Screen

Secondary Filter

Bag Supporter

Dust Compartment Side Seals

Disposable Dust Bag

Switch Housing Cover

Dust Cover Seal

Set Screw

Dust Cover

Cover Release Button

Cover Release Button Spring

Release Button Cover

Set Screw

Handle Screw

Stretch Hose Complete

Filter Housing Assembly

Ref. Part No. Description Qty Ref. Part No. Description Qty

B260954

Attachment Connecting Device

Suction Inlet Cover Spring

Suction Inlet Cover Seal

Magnet Holder Cover

Magnet Holder

Attach. Connecting Device Seal (lg)

Attach. Connecting Device Seal (sm)

Stretch Hose

Hose Cuff

Cap Nut

TPR Rear Wheel

Washer

Set Screw

Rear Wheel Shaft

Motor Cover

Motor Cover Seal

Exhaust Filter

Post Cover Filter

Post Cover

Post Cover Knob

Set Screw

PARTS NOT SHOWN

Magnet

B260963

B260962

Brush Roller Assembly

Agitator Core (metal)

Rubber End Cover

End Cap

Agitator Felt Washer

Washer

Agitator Bearing

Agitator Bearing Holder

Agitator Brush

Brush Assembly

Ref. Part No. Description Qty Ref. Part No. Description Qty

Clutch Pulley (large) Complete

Clutch Pulley (large)

E-Clip

Washer

Clutch Pulley (small) Complete

Clutch Pulley Cover

Clutch Pulley (small)

Agitator Shaft

Handle Tube

Handle Grip

Switch Window

Switch Knob

Handle Lever Rod

Large Handle Side Clip

Set Screw

Large Upper Cord Hook

Cord Hook Spring

Washer

Large Lower Cord Hook

Spring Washer

Handle Assembly

Ref. Part No. Description Qty Ref. Part No. Description Qty

B260964

Set Screw

Power Cord 50ft. orange

Cord Protection Tube

Bottom Plate Assembly (lock)

Bottom Plate (lock)

Bottom Plate Wheel Pin

Bottom Plate Wheel (TPR)

Push-on Nut

Bottom Plate Latch

Bottom Plate Latch Spring

Bottom Plate Latch Washer

Set Screw

Packing Grip

B260957

B260958

B260960

B260959

Telescoping Wand

Crevice Tool

Upholstery Tool

Dusting Brush

Tools

Ref. Part No. Description Qty

B260951

B260950

Multiﬁlter Paper Bag

Premium Filter Bag (5 pk)

Bags

Ref. Part No. Description Qty

NOTES:

10702 N. 46th Street Tampa, FL 33617

(813) 971-2223 Fax (813) 971-6090

www.pullman-holt.com 02/11
