Quick Installation Guide
© 2018 PSP Security Co. Ltd. All rights reserved
AccuFACE™ EFR-T3 Series Quick Installation Guide
Version 1.4
A. Preparation
The following peripherals are required for installing AccuFACE:
Mounting bracket
12 VDC power supply with at least 1.5 Amps output
Standard Ethernet cable
Screws 4~6 pcs
Special screws 2 pcs
B. Wiring
1. Back Panel
Below describes the functionalities of back panel at the back of the AccuFACE.
Ports:
P1: Power Supply
P2: Digital I/O
P3: Communication
P4: Network
Tamper
Alarm
Hidden Reset
Button
Serial Number
Label
Speaker &
Buzzer
Threaded Hole for
Tripod Mount
2. Port Pins
The AccuFACE has four ports located at the back of the unit, for power supply,
digital I/O, communication, and network interface.
Port Pin# Definition & Color
P1
(Power)
1 12V POWER SUPPLY
2 12V POWER GND
P2
(Digital I/O)
1 Brown 12V DC OUT
2 Black 12V DC OUT
3 Pink DOOR SENSOR INPUT
4 Purple EXIT SWITCH INPUT
5 White RELAY 1 COM
6 Gray RELAY 2 COM
7 Green RELAY 1 NC
8 Yellow RELAY 2 NC
9 Blue RELAY 1 NO
10 Orange RELAY 2 NO
P3
(Communication)
1 Red 12V Power OUT
2 Black 12V Power OUT GND
3 Blue Wiegand IN Data 0
4 Gray Wiegand IN Data 1
5 Green Wiegand OUT Data 0
6 White Wiegand OUT Data 1
7 Orange RS232 Tx
8 Yellow RS232 Rx
P4
(Network)
Standard Gigabit Ethernet
AccuFACE™ EFR-T3 Series Quick Installation Guide
Version 1.4
3. Typical Wiring Schematics
C. Installation
1. Installing
Follow below steps to install AccuFACE:
Decide the
appropriate height
to mount AccuFACE
(see the table below)
Ensure power, network,
communication, and I/O
cables are available from
the opening of the
mounting bracket
Ensure AccuFACE is
vertically installed and
parallel to a vertical wall
Apply screws to
tighten the
mounting bracket
on the wall
AccuFACE™ EFR-T3 Series Quick Installation Guide
Version 1.4
Finally, mount two
special screws at the
bottom of AccuFACE
Power up AccuFACE to
test if all the cables are
connected correctly
Connect all the cables to
the ports, and mount
AccuFACE gently
Hook the top of the
bracket and press it down.
Slide the unit down to
reach the bottom of the
bracket

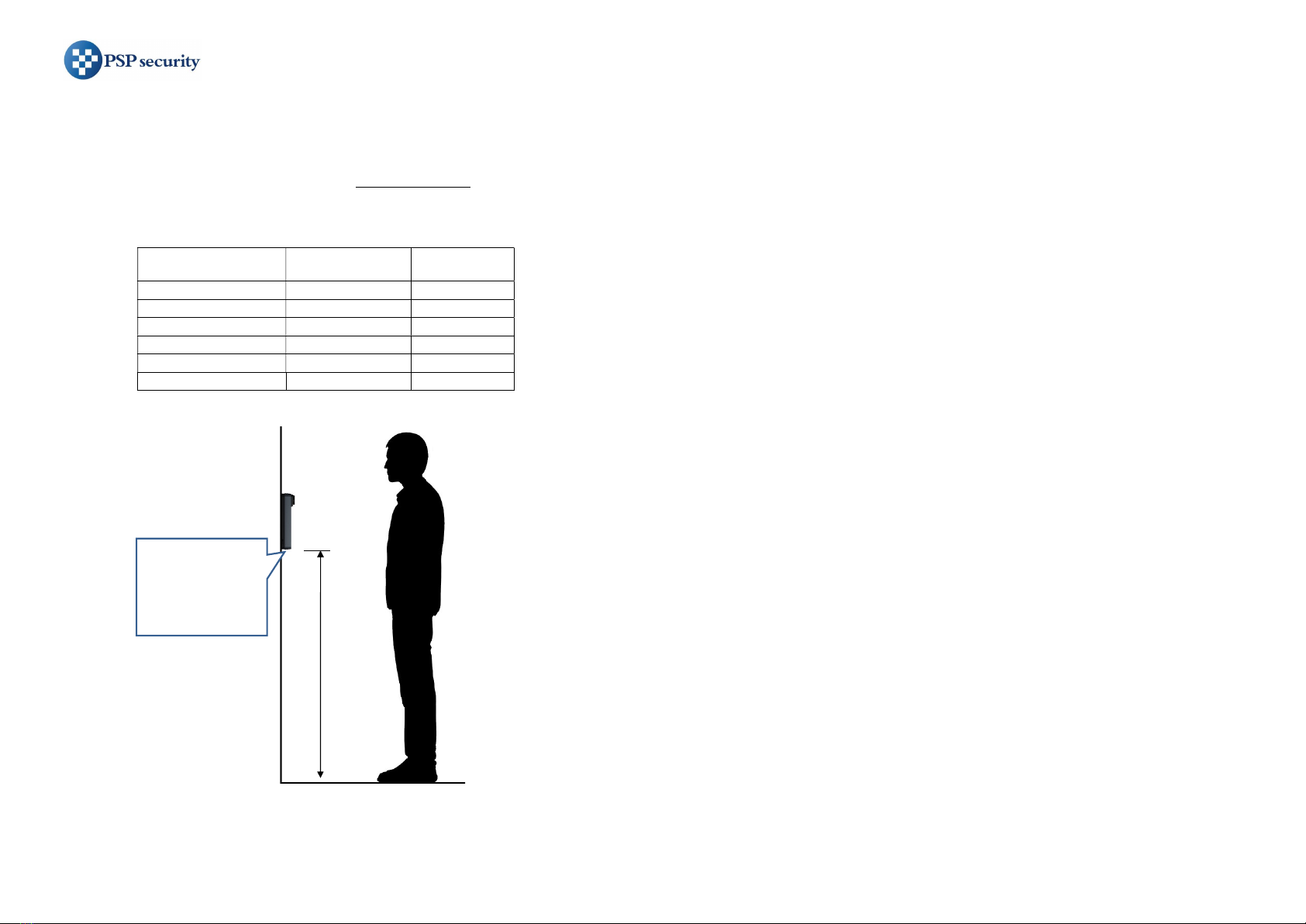

2. Installation Height Consideration
More about installation height:
For installation with multiple AccuFACE, all units (including unit used for
user enrollment) must be installed at the same height
Installation height depends on end user’s minimum and average height
See below table to find the appropriate installation height
Installation height of
AccuFACE
(H)
Minimum user
height
Maximum
user height
1.10 m 1.10 m 1.65 m
1.15 m 1.15 m 1.70 m
1.
20
m
1.
20
m
1.
75
m
1.25 m 1.25 m 1.80 m
1.30 m 1.30 m 1.85 m
1.35 m 1.35 m 1.90 m
Installation height
(H) measured from
the bottom of
AccuFACE to
ground
AccuFACE™ EFR-T3 Series Quick Installation Guide
Version 1.4
