FytoScope FS 130

Manual and User Guide

Please read this manual before operating this product

PSI, spol. s r. o., Drásov 470, 664 24 Drásov, Czech Republic

FAX: +420 511 440 901, TEL: +420 511 440 011, www.psi.cz

This document and its parts can be copied or provided to a third party only with the express permission of PSI.

The contents of this manual have been verified to correspond to the specifications of the device. However, deviations

cannot be ruled out. Therefore, a complete correspondence between the manual and the real device cannot be

guaranteed. The information in this manual is regularly checked, and corrections may be made in subsequent versions.

The visualizations shown in this manual are only illustrative.

This manual is an integral part of the purchase and delivery of equipment and its accessories and both Parties must abide

by it.

© PSI (Photon Systems Instruments), spol. s r. o.

3

TABLE OF CONTENTS
1Warnings and Safety Precautions ................................................................................................................................... 4
2Technical Specification.................................................................................................................................................... 6
3General Information ....................................................................................................................................................... 7
4Components of FS 130 .................................................................................................................................................... 8
5Device Description and Instalation ................................................................................................................................. 9
5.1 Device Installation ................................................................................................................................................. 9
5.2 Description of the FytoScope Control Unit Front Panel ...................................................................................... 10
5.3 Description of the FytoScope Rear Panel and Connection to 230 or 110 V Power Supply ................................. 11
5.4 Description of the FytoScope Interior Space....................................................................................................... 12
5.5 Description of the FytoScope Shelving................................................................................................................ 13
6FytoScope Control......................................................................................................................................................... 14
7Control Menu Tree........................................................................................................................................................ 15
Examples of Light Protocols Configured Via the Control Unit Front Panel ....................................................................... 22
Circadian Cycle.............................................................................................................................................................. 23
Pulse Cycle .................................................................................................................................................................... 24
Sine Circadian Cycle ...................................................................................................................................................... 26
8Warranty Terms and Conditions................................................................................................................................... 28
9Troubleshooting and Customer Support....................................................................................................................... 29


1WARNINGS AND SAFETY PRECAUTIONS

Read this manual carefully before operating the device. If you are not sure about anything in the manual, contact the

manufacturer for clarification.

By accepting the device, the customer agrees to follow the instructions in this guide.

Always follow corresponding manuals while working with the FytoScope device or doing the maintenance.

It is forbidden to interfere with the hardware of the FytoScope device in any way without previous agreement with the

manufacturer.

The following table presents basic highlight symbols used in this manual:

Symbol

Description

Important information, read carefully.

Complementary and additional information.

Tab. 1 Used symbols.

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE TURNING THE ALGAETRON ON:

•Remove all packaging and transit protectors before connecting the AlgaeTron to the electricity supply.

•Let the AlgaeTron stand up after the transport and WAIT AT LEAST 12 HOURS before plugging it in.

•Use only the cables supplied by the manufacturer.

•Keep the device dry and avoid working in high humidity environment!

•The manufacturer is not responsible for any damage due to improper or incompetent operation!

GENERAL ELECTRICAL SAFETY GUIDELINES:

•Routinely check the devices and their wiring.

•Replace worn or damaged cords immediately.

•Use electrical extension cords wisely and do not overload them.

•Place the devices on a flat and firm surface. Keep them away from wet floors and counters.

•Avoid touching the device, socket outlet or switch if your hands are wet.

•Do not perform any alterations to the electrical part of the devices or their components.

WARNING:

THE FYTOSCOPE FS 130 IS CONSIDERED CLASS 1M* LED PRODUCT. LED RADIATION MAY BE

HARMFUL TO EYE, AVOID DIRECT AND STRONGLY REFLECTED EXPOSURE. IT IS REASONABLE TO

USE PROTECTIVE GLASSES.

*Class 1M: Laser and LED equipment that is safe under reasonably foreseeable conditions of

operation for use with the naked eye. Looking directly into the source of radiation by employing

optics within the beam such as magnifying glass, telescope or microscope can be potentially

hazardous.

2TECHNICAL SPECIFICATION

Temperature range:

+15 °C to +55 °C (with maximum illumination) - standard

+10 °C to +55 °C (with maximum illumination) - optional

LED Light Illumination:

LED panel 250 x 350 mm

External Dimensions (H x W x D):

100 x 550 x 620 mm

Internal Dimensions (H x W x D):

690 x 420 x 400 mm

Growth Area:

0.14 m2

Weight:

55 kg

Internal Volume:

124 l

Air Ventilation:

250 l/h

Power:

500 W

3GENERAL INFORMATION

FytoScope Chamber FS 130 represents a remarkable combination of a LED-based growth chamber and measuring device

designed for well-defined cultivation and monitoring of higher plants. It is equipped with a LED-based light panel that

provides high-intensity illumination that is controllable in its power, spectral composition and temporal modulation.

Temperature and gas atmosphere composition can be constant or varied. The FytoScope has a large, easy-to-read display

screen that clearly shows operating parameters and actual values. Intuitive programming allows multiple parameter

changes to light intensity, light characteristics, temperature, or humidity (optional).

The FytoScope can also be used for growing algae and cyanobacteria in Petri dishes or Erlenmeyer flasks.

Version:

•WIR (Cool or Warm White + Far-Red LEDs) –maximum intensity is 1,000 µmol.m-2.s-1

Upgrade version:

•WIR (Cool or Warm White + Far-Red LEDs) –maximum intensity is 1,500 µmol.m-2.s-1

Version provides:

•Precise control of illumination in mode, intensity and timing;

•Separate control of particular light colors;

•Control of the interior temperature.

4COMPONENTS OF FS 130

Please, find below a list of standard FytoScope FS 130 components delivered to the customer.

Check the contents of the package and compare it with enclosed standard package list.

List of standard FS 130 components:

•The cultivation unit.

•Two slide out cultivation shelves.

•One inbuilt LED light panel.

•Power cord.

•USB flash disc with Device Control Center.

•Serial cable with USB adapter for data transfer or firmware upgrade.

•Instruction Manual.

•Protective glasses.

Optional accessories/components:

•Gas mixing GMS 150 system.

•Orbital shaker equipped either with non-skid rubber mat or sticky pads or Erlenmeyer attachment of different

size.

•Fluorpen for measuring Ft and QY.

5DEVICE DESCRIPTION AND INSTALATION

5.1 DEVICE INSTALLATION

•Place the FytoScope on a flat, firm and dry surface! Let it stand up and wait at least 12 hours before plugging it

in!

•Place the FytoScope into a well-ventilated room with ambient temperature not exceeding 25 ºC!

•Do not cover the upper part of the FytoScope! Ventilation holes cooling the device electronics are installed on

the FytoScope top.

•If you place the rear of the FytoScope against the wall, use plastic distance tubes (only for 230V version)

•Fig. 1-1 to ensure sufficient distance for heat removal from the condenser!

Fig. 1 Plastic distance tubes.

5.2 DESCRIPTION OF THE FYTOSCOPE CONTROL UNIT FRONT PANEL

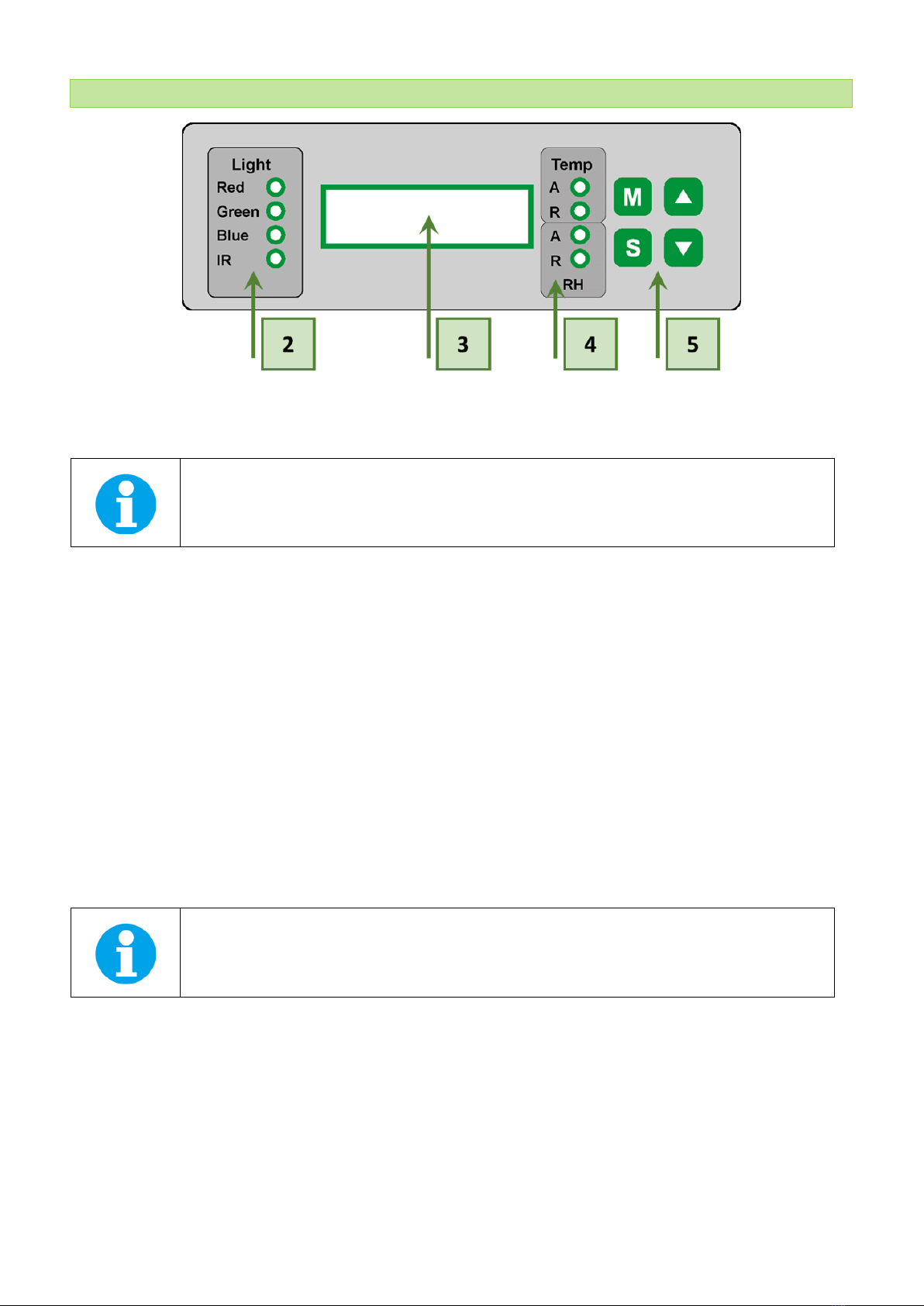

Fig. 2 Front Panel.

[2] Light panel indicators: Indicating whether the corresponding light is active.

Only two LED indicators are mounted for the FS 130 WIR version (White + IR light).

[3] Two-line LCD display.

[4] Temperature and Relative humidity (RH) indicators: Indicating the status of thermoregulation and humidity.

[A]: Indicates the Active state of Thermoregulation [Temp] / Humidity [RH]

[R]: Indicates Reaching the desired Temperature [Temp] / Humidity [RH]

[5] Four control keys:

[M]: Used to move back in the menu tree or to exit the menu.

[S]: Used to move forward in the menu tree or to save the selection.

[▲]: Used to move up in the menu or to add value.

[▼]: Used to move down in the menu or to subtract value.

See Chapter FytoScope FS 130 Control on page 14 for more information about the FytoScope Control

Panel operation.
