Provision ISR Effio-E Infra Red Manual de usuario

www.provision-isr.comwww.provision-isr.com

USER MANUAL

English / Spanish

Digital CCTV Camera

Effio-E Infra Red

English Manual

Manual en Español

Content

Note:

In order to avoid electrical

shock or re, please use

proper power according to

the manual.

WARNING

Note: Only professional technicians is

allowed to open the front or back cover

of this camera.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Nota:

Para prevención de choques

electricos o fuego, por favor

use la corriente apropiada,

acorde con el manual.

ADVERTENCIA

NotA: Solo técnicos profesionales

pueden abrir las cubiertas frontal o

posterior de esta cámara.

PELIGRO DE CHOQUES

NO ABRIR

I II

1 2

Note:

In order to avoid electrical

shock or re, please use

proper power according to

the manual.

WARNING

Note: Only professional technicians is

allowed to open the front or back cover

of this camera.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Content

Features

Precautions

Structure and Components

System connection

OSD Menu

OSD Menu Operation

1) LENS

2) SHUTTER/AGC

3) WHITE BAL

4) BACKLIGHT

5) PICT ADJUST

6) ATR (Adaptive Tone Reproduction)

7) PRIVACY

8) DAY/NIGHT

9) NR

10) CAMERA ID

11) SYNC

12) LANGUAGE

13) CAMERA RESET

Speciﬁcations

Features

• 650TV Lines.

• 2D-DNR

• OSD control.

• 0.03 Lux sensitivity

• Motion detection

• HLC

• Color rolling control

• Privacy masking

1. Do not install the camera in places where the temperature is above

50°C or under -10°C.

2. Do not touch the CCD surface with your finger. If cleaning is

needed, please wipe it using a soft cloth with a little bit of alcohol.

3. Do not install in places with high humidity, it can seriously damage

the quality of the picture.

4. Do not drop the camera and the controller and avoid physical shock.

5. Do not face your camera to a strong light, it can damage the CCD.

6. Do not expose the camera to rain or dusty surroundings.

7. It’s highly important to use the correct and suitable power supply

(DC12V) for the camera.

8. Only professional and qualified technician can install and test this

camera.

9. During use, if any errors occur, cut off the power immediately and

contact your local distributor.

Precautions

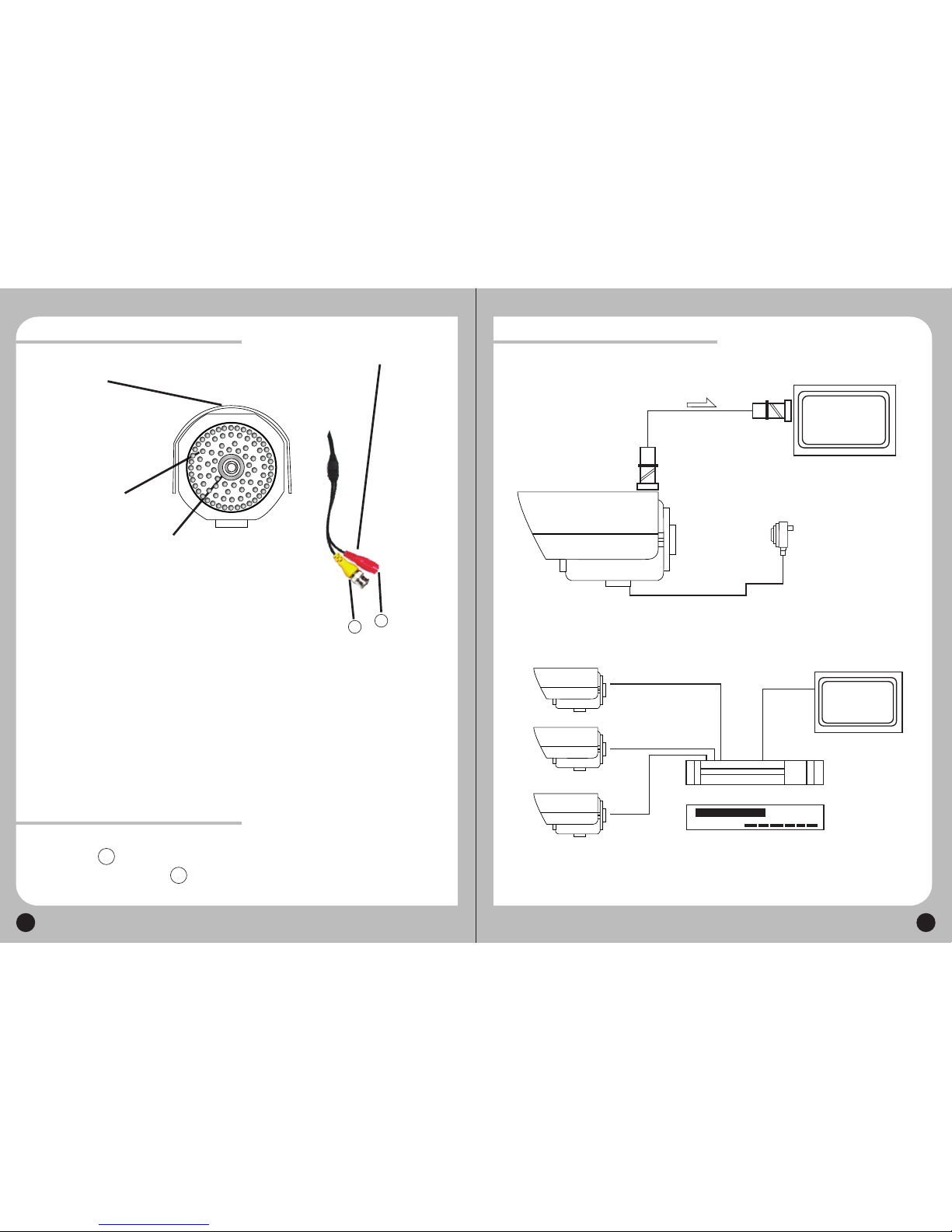

①Use one camera and one monitor

②Use Several Cameras and one Monitor

VCN

Monitor

MULTIPLEXER Video Divider

DVR

3 4

BNC

DC 12V

Monitor

⑴Confirm that the power supply for the camera is correct;

Connect Power Supply Socket to the power supplier.

⑵Connect "Video Out" of the camera to the monitor or

other video equipment (DVR) with a 75 ohm cable (RG59).

Color Camera

AES Auto Electronic Shutter Switch (Auto)

BLC Backlight Compensation Switch (Auto)

AGC Auto Gain Control Switch (Auto)

AWB Auto White Balance Switch (Auto)

Video Cable:

①Power Supply Socket

②Video out

Structure and Components System connection

Operation Steps

Video Cable

Lens

Shield

IR Led

OSD Menu

▲ - Joystick Up – Moves the cursor upwards.

▼ - Joystick Down – Moves the cursor downwards.

◄ - Joystick Left – Moves the cursor to the left/change selection.

► - Joystick Right – Moves the cursor to the right/change selection.

O - Joystick button – Press the Joystick to execute selections and

displays a Submenu for an item with the mark.

- To enter the SETUP MENU press the Joystick button – “O”,

The menu will appear on the screen.

5 6

You can push "UP" and "DOWN" to browse the main function.

Push "LEFT" and "RIGHT" to change the value.

Press the joystick for sub-menus and more configurations.

SETUP MENU

LENS AUTO

SHUTTER/AGC AUTO

WHITE BAL ATW

BACKLIGHT BLC

PICT ADJUST

ATR ON

MOTION DET ON

EXIT SAVE ALL

Main Menu

Lens

Auto/Manual

Shutter

Auto/Manual

White Balance

ATW/Push/User1/User2/Anti CR/Manual

Backlight

BLC/HLC/Off

Picture Adjust

Mirror/Brightness/Contrast/Sharpness/HUE/Gain

ATR

On/Off

Motion Detect

On/Off

Privacy

On/Off

Day/Night

Auto/BW/Color

Mode/Y Level/C Level

Camera ID

On/Off

Sync

INT

Language

English/Chinese/Deutsch/Francais/Russian/Portugues/Spanish

OSD Main Menu

7 8

OSD Menu Operation

1) LENS

The LENS menu allows you to set the lens which attached to

You’re camera.

MANUAL IRIS LENS: Where the aperture is fixed or set manually by

the user. Iris is mechanism which closes and opens allowing more or

less light into the lens.

AUTO IRIS LENS: In which the aperture is continuously controlled

by the camera to automatically set to the desired level of brightness.

TYPE – you can select between 2 types of lens: DC or VIDEO.

MODE – adjusts the LENS mode to CLOSE/OPEN/AUTO.

SPEED –

• When using a camera with a normal lens – set the LENS mode to

MANUAL.

• When using an AUTO IRIS lens – set the LENS mode to AUTO.

SETUP MENU

LENS AUTO

SHUTTER/AGC AUTO

WHITE BAL ATW

BACKLIGHT BLC

PICT ADJUST

ATR ON

MOTION DET ON

EXIT SAVE ALL

- Scroll to LENS using ▲ or ▼.

- Use ◄ or ► to select AUTO and press O to enter the

AUTO IRIS menu.

- Use ▲ or ▼to scroll the setup page.

- Use ◄ or ► to change different parameters:

AUTO IRIS

TYPE DC

MODE AUTO

SPEED 0 |----------|----------|255

RETURN

9 10

- You can choose Auto/Manual option and set brightness level,

AGC level or mode on/off.

SETUP MENU

LENS AUTO

SHUTTER/AGC AUTO

WHITE BAL ATW

BACKLIGHT BLC

PICT ADJUST

ATR ON

MOTION DET ON

EXIT SAVE ALL

- Scroll to SHUTTER/AGC using ▲ or ▼.

- Press O to enter the SHUTTER/AGC menu.

- Use ◄ or ► to select Auto and press O to enter the

AUTO SETUP menu.

AUTO SETUP

HIGH LUMINANCE

MODE SHUT+AUTO IRIS / AUTO IRIS

BRIGHTNESS |------|-----------------|

LOW LUMINANCE

MODE AGC

BIRHGTNESS x0.50

RETURN

HIGH LUMUNANCE

- MODE – Use ◄ or ► to set AUTO IRIS (Recommended).

- BRIGHTNESS – Use ◄ or ► to set brightness level between

0 – 255.

LOW LUMUNANCE

AGC level – At low lightning conditions, if the image is too dark –

select higher AGC level which means that the camera would amplify

the CCD input signal and make image will become brighter but

noisier.

- Mode – Use ◄ or ► to use AGC mode or turn it OFF.

- Brightness - Use ◄ or ► to set brightness level between x0.25/

x0.50/ x0.75/ x1.0.

RETURN – Return to previous menu.

2) a) SHUTTER/AGC

Here you can control SHUTTER function such as brightness level

and AGC mode.

The shutter – Controls the amount of light according to your own

environment. Increase SHUTTER value in dark places for a brighter

picture,

Decrease SHUTTER value in places with more light for reducing

amount of light.

11 12

MANUAL SETUP

MODE SHUT+AGC

SHUTTER 1/50

AGC 12.00

RETURN

- Use ◄ or ► to select MANUAL and press O to enter the

MANUAL SETUP menu.

- Use ▲ or ▼ to move up and down in the menu.

- Use ◄ or ► to change SHUTTER value between 1/50,

1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000.

- Use ◄ or ► to change AGC value between 6.00/ 12.00/

18.00/ 24.00/ 30.00/ 36.00/ 42.00/ 44.80.

Remember

Increase SHUTTER value in dark places for a brighter picture,

Decrease SHUTTER value in places with more light for reducing

amount of light.

AGC At low lightning conditions, if the image is too dark – select

higher AGC level.

- Scroll to SHUTTER/AGC using ▲ or ▼.

b) From the main menu

SHUTTER/AGC MANUAL SETTINGS.

SETUP MENU

LENS AUTO

SHUTTER/AGC AUTO

WHITE BAL ATW

BACKLIGHT BLC

PICT ADJUST

ATR ON

MOTION DET ON

EXIT SAVE ALL

13 14

- From main menu - Scroll to WHITE BAL using ▲ or ▼.

- Use ◄ or ► to select ATW and press O to enter ATW

MENU.

- Use ▲ or ▼ to navigate in the menu.

- Use ◄ or ► to change values of SPEED, DELAY CNT, ATW

FRAME and ENVIRONMENT,

According to your environment – Outdoor/Indoor.

ATW

SPEED 0|-------|--------|255

DELAY CNT |------|---------|255

ATW FRAME x2.00

ENVIRONMENT INDOOR

RETURN

- Scroll to WHITE BAL using ▲ or ▼.

- Use ◄ or ► to select between the different modes: ATW/

PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH

LOCK (see explanations about different modes next page) :

3) WHITE BAL

White balance adjustment - adjust the white balance of color

necessary for the correct reproduction of colors including white as

white and other colors based on it. In changing light conditions

(changing the color temperature of light), white balance needs to be

done again.

White balance setting can be adjusted according to the color

temperature of object.

SETUP MENU

LENS AUTO

SHUTTER/AGC AUTO

WHITE BAL ATW

BACKLIGHT BLC

PICT ADJUST

ATR ON

MOTION DET ON

EXIT SAVE ALL

a) ATW

Auto Tracing White Balance - Auto white balance of color, which

tracks the changes of white at the pictures in real time, comparing it

with standard white color and reproduce the colors without the need

for manual setup.

15 16

- Scroll to BACKLIGHT using ▲ or ▼.

- Use ◄ or ► to change BACKLIGHT value between

HLC / BLC / OFF.

SETUP MENU

LENS AUTO

SHUTTER/AGC AUTO

WHITE BAL ATW

BACKLIGHT BLC

PICT ADJUST

ATR ON

MOTION DET ON

EXIT SAVE ALL

- From main menu - Scroll to WHITE BAL using ▲ or ▼.

- Use ◄ or ► to select USER 1 and press Oto enter USER 1

menu.

- Use ▲ or ▼ to navigate in the menu.

- Use ◄ or ► to change values of B-GAIN and R-GAIN.

b) USER 1/USER 2

Manually adjusts blue color lever and red color level.

B-GAIN – Blue color level.

R-GAIN – Red color level.

c) ANTI CR

- From main menu - Scroll to WHITE BAL using ▲ or ▼.

- Use ◄ or ► to select ANTI CR.

USER 1 WB

B-GAIN 0|-------|--------|255

R-GAIN 0|------|---------|255

RETURN

4) BACKLIGHT

You can select between the special backlights modes – BLC or HLC

according to your envioroment or turn it off.

counter light, taillight, facilitating the photographed object to be

separated from the background. Often with different color

temperature compared with that of the front lighting, this creates a

color perspective.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Provision ISR

Provision ISR

Provision ISR BX-380IP Manual de usuario

Provision ISR

Provision ISR Z-22IR Manual de usuario

Provision ISR

Provision ISR 5MP 4 in 1 Series Manual de usuario

Provision ISR

Provision ISR Light Cruiser LC-10 Manual de usuario

Provision ISR

Provision ISR DA-352CS DA-322CS Manual de usuario

Provision ISR

Provision ISR I5PT-390AHDX4 Manual de usuario

Provision ISR

Provision ISR PT-737 Instrucciones de funcionamiento y mantenimiento

Provision ISR

Provision ISR AUTO SYNC FOCUS SERIES Manual de usuario

Provision ISR

Provision ISR PT-737 Manual de usuario

Provision ISR

Provision ISR I3-380IP04 Manual de usuario

Provision ISR

Provision ISR DAIPT-390AX4 Manual de usuario

Provision ISR

Provision ISR ISR BOX CAMERA Manual de usuario

Provision ISR

Provision ISR ZP-20A-2(IR) Manual de usuario

Provision ISR

Provision ISR DI-380AHD36 Manual de usuario

Provision ISR

Provision ISR 1080P Pro-AHD Series Manual de usuario

Provision ISR

Provision ISR I1-380AHDB36 Manual de usuario

Provision ISR

Provision ISR MC-392AHD37+ Manual de usuario

Provision ISR

Provision ISR Ultra-Z IP series Manual de usuario

Provision ISR

Provision ISR I2-350A-28 Manual de usuario

Provision ISR

Provision ISR I1-325CS Manual de usuario

Provision ISR

Provision ISR MN-322CS43 Manual de usuario

Provision ISR

Provision ISR DAI-390IP04 Manual de usuario

Provision ISR

Provision ISR Ultra-Z-18s Manual de usuario

Provision ISR

Provision ISR I5PT-390IPX4 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
