Protech YADA ST Manual de usuario

* Picture show YADA ST version

SNV: Service na verkoop

Alléén fabricagefouten of problemen veroorzaakt

door een fabricagefout zullen op rekening van de SNV

hersteld worden. Er kan nooit aanspraak gemaakt

worden op een gratis herstelling door de SNV als de

problemen voortkomen uit een verkeerd gebruik van

het produkt.

SAV INTERNATIONALE

PROTECH

TEL: ++ 32 14 25 92 83

FAX: ++ 32 14 25 92 89

email: [email protected]

http://www.protech.be

Om het zoeken van het onderdeel dat u nodig hebt te

vergemakkelijken, gelieve de onderdelenlijst op pagina

30-41 van deze handleiding te raadplegen

PROTECH kan niet verantwoordelijk gesteld worden

voor schade of vorderingen voortvloeiend uit het

gebruik van dit produkt

KD : Kundendienst

Nur Herstellungsfehler oder durch Herstellungsfehler

verursachte Probleme werden für Rechnung des KD

repariert. Die Garantie kann nicht in Anspruch genom-

men werden, wenn das Problem auf eine unsachge-

mäße Verwendung des Erzeugnisses zurückzuführen

ist.

SAV INTERNATIONALE

PROTECH

TEL: ++ 32 14 25 92 83

FAX: ++ 32 14 25 92 89

email: [email protected]

http://www.protech.be

Bitte verwenden Sie die in diesem Anweisungsheft auf

Seite 30-41 abgedruckten Diagramme, um die Ersatz-

teile zu ﬁnden, die Sie benötigen.

PROTECH kann nicht für Schäden oder Ansprüche

haftbar gemacht werden, die sich aus der Verwendung

dieses Produkts ergeben.

SAV: Service après vente

Ne seront pris en charge par le SAV, que les pièces

présentant un vice de fabrication. En aucun cas, la

mauvaise utilisation du produit ne peut enjendrer un

SAV gratuit.

SAV INTERNATIONALE

PROTECH

TEL: ++ 32 14 25 92 83

FAX: ++ 32 14 25 92 89

email: [email protected]

http://www.protech.be

Aﬁn de faciliter la recherche de vos pièces détachées,

veuillez consulter la liste des pièces détachées en ﬁn

de cette notice

PROTECH ne peut pas être rendu responsable pour

des dommages provenant de l’utlisation de ce produit.

SAS: Service after sales

Please note that only manufacturing faults or prob-

lems caused by manufactor faults will be repaired on

the account of SAS. It is not possible to claim warranty

if the problem is caused by misuse of this product.

SAV INTERNATIONALE

PROTECH

TEL: ++ 32 14 25 92 83

FAX: ++ 32 14 25 92 89

email: [email protected]

http://www.protech.be

Please use the spare parts list at the back of this

manual to help you ﬁnd the part more easily

PROTECH cannot be held responsible for damage or

any claims arizing from the use of this product.

Service

version: YADA ST/PRO/PRO-X 10/08/2006

Performance features of the YADA 1/8th Nitro Buggy

YADA ST

YADA PRO

YADA PRO-X

Extreme low Differential Center Of Gravity

Extreme light Differential system

Increased suspension travel to 7cm

Pro steering geometry angle

Moulded wing and Body included

Lower CG design troughout the car

6061 Anodized Black Aluminium Radio Plate

6061 Anodized 3.2mm Alu main chassis

6061 Anodized Black steering plate

6061 engine mount set

6061 Black center diff. support plate

Pro Turnbuckles

3 Shoe clutch

Low proﬁle radio box

Pro brake pad

Shock shaft of 3.5mm

Two Piece Pro center differential mount

Full ball Bearing throughout the car

Protech SX-21 engine included

Complete 2 Channel radio included

Laydown servo steering

CNC Spur, Crown and Pinion gear

Rear swaybar

Competition Dishweels & Tyres

7075 Lightened CNC design main chassis

7075 CNC RE & FR susp hinge pin holder

7075 CNC lightened design FR shocktower

7075 CNC lightened design RE shocktower

7075 CNC lightened steering plate

7075 CNC lightened Torque rod front & rear

7075 Black Center differential support plate

7075 Black CNC design Radioplate

Extra features

features

Extra “X” features

Reinforced brake pad & holder

7075 Engine mount set

Competition dish wheels & Tyres

Universal joints rear & front

1.7mm blue springs rear & front

Rear and Front swaybar

7075 CNC lightened FR shocktower black/chrome ﬁnished-X

7075 CNC lightened RE shocktower black/chrome ﬁnished-X

7075 CNC lightened Torque rod FR black/chrome ﬁnished-X

7075 CNC lightened Torque rod RE black/chrome ﬁnished-X

7075 CNC lightened FR suspension Arm holder black/chrome ﬁnished-X

7075 CNC lightened RE suspension Arm holder black/chrome ﬁnished-X

7075 Steering servo mount-X & Aluminium Wing stay joint

7075 Center diff mount set-X

7075 Engine mount set-X

7075 Sway bar plate-X

7075 Steering plate-X

7075 Radio plate-X

7075 center diff plate

Motor and radio equipment are not

included !

Motor and radio equipment are not

included !

* Picture show YADA ST version

T30

T31

T32

+,*+3(5)250$1&(:'

1,752%8**<

SPECIAL

PAINT FOR

POLYCARBONATE

Tools required / Benodigde gereedschappen

Benotigde werkzeuge / Outils recommandés

Conical reamer

Konische ruimer

Konische Reibahlen

Alésoir conique

Sharp hobby knife

Scherp hobbymes

Hobby messer

Couteau de modéliste

Needle nose plier

Bek tang

Beiszange

Pince à becs

Philips screw driver

Kruisschroevendraaier

Schraubendreher

Tournevis Philips

Hexwrench set

Inbussleutels set

Sechskant-Steckschlüssel

Set clés allen

Curved scissors

Gebogen schaar

Gebogene Schere

Ciseaux

Wire cutter

Draad stripper

Kneifzange

Pince coupante

Cross wrench

Kruissleutel

Clé en croix

Kreuzschlussel

Nut lock

Lock-Tide

Schrauben Sicherer

Frein-ﬁlet

Protech Racing Finish

AK101

T0158 4pcs

AK100

T0158

A600

RF... (*)

Check the colours in our

general catalog or visit

us at

http://www.protech.be

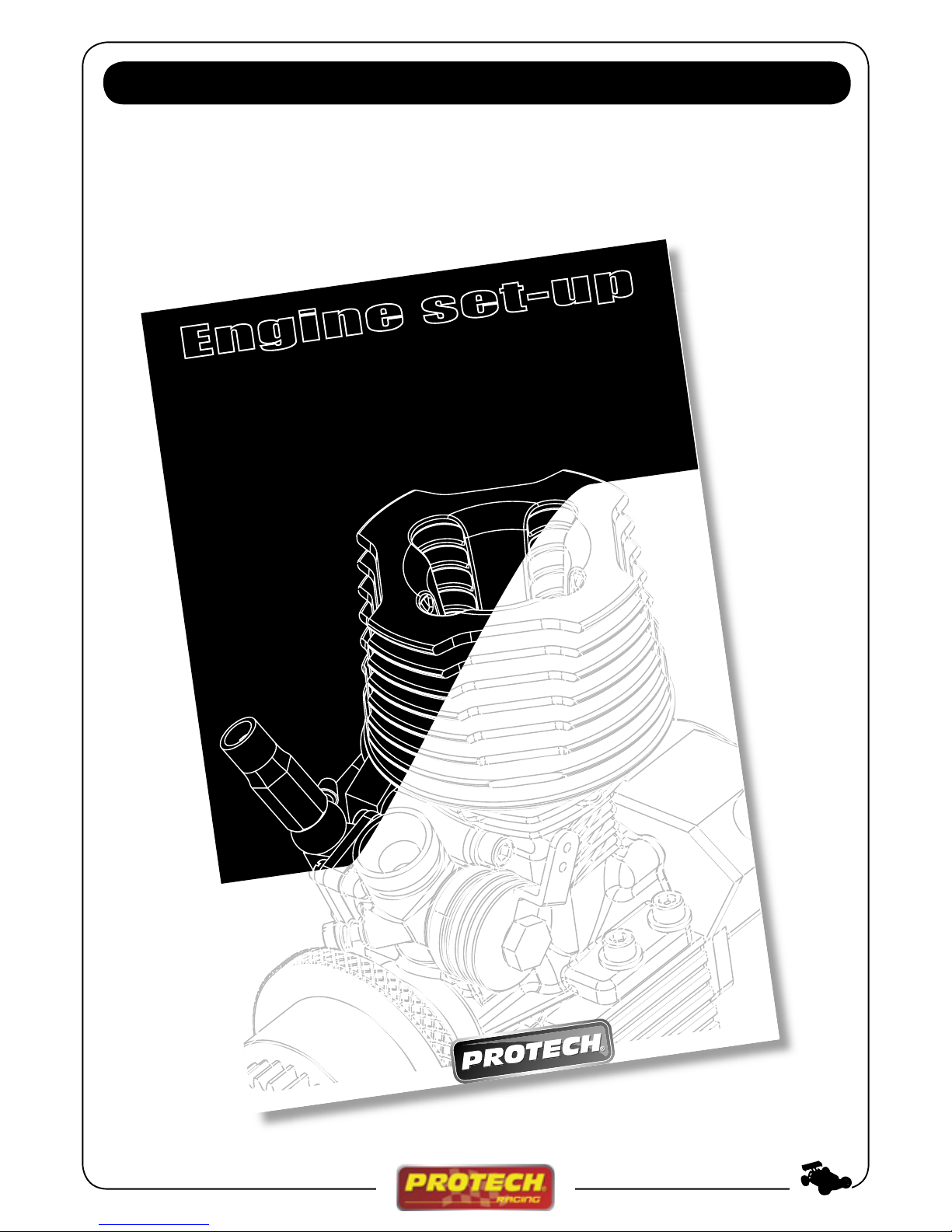

Engine set -up / Afstellen van de motor

Einstellungen des Motors / Réglage moteur

Afstellen motor • Einstellen des Motors • Réglage du moteur

.21-.27series

• Check the ENGINE SET-UP manual to start and break in the engine

• Lees aandachtig de handleiding AFSTELLEN MOTOR voor het inlopen en roderen van de motor

• Lesen Sie gründlich die Anleitung EINSTELLEN DES MOTORS für das einlaufen und rodieren vom Motor

• Consultez le manuel REGLAGE DU MOTEUR pour démarrer et rôder votre moteur



FRONT of REAR DIFFERENTIAL 2x

Assembly of the differentials FR & RE / Montage van het voorste en achterste differentielen /

Assemblage des différentiels AV et AR / Montierung von die Vordere und Hintere Differentialen

Differential gasket set

T30.091

Ball bearing

8x16x5mm

T30.144

Diff Case (F/R)

T30.034

2 x 9 mm pin

T30.103

Differential shaft

T30.075

Shim ring

3,6x12mm

T30.090

Bevel gear 39T

T30.068

2 x 9 mm pin

T30.103

Cap Joint

T30.055

Differential bevel gear 18T(Large)

T30.070

Differential bevel gear (Large)

T30.070

Cap Joint

T30.055

O-ring

T30.087

O-ring

T30.087

Shim ring

T30.089

Shim ring

T30.089

O-ring (option part)

T31.215

F/H 3mm x 10mm (4)

T30.180

Bevel gear small

T30.071

Differentials

Gear Differential / Make 2 x !

Assembly of the Front Differential

(*) USE ONLY PROTECH SILICONE OIL

F/H 3mm x 10mm (x4)

O-rings are a optional part for different driving settings (with O-rings = more acceleration)

OIL

! 90% Full / Plein / Vol / Voll

OIL (*)

Ball bearing

8x16x5mm

T30.144

FRONT DIFF. More steering use the ref. SL2500

Standard use the ref. SL5000

Less steering use the ref. SL10000

CENTER

DIFF.

Standard use the ref. SL5000

Quick use the ref. SL10000

acceleration

REAR DIFF. Standard use the ref. SL1000

or use grease



Assembly of the differentials RE & CE / Montage van de achterste en centrale differentielen /

Assemblage des différentiels AR et CE / Montierung von die Centale und Hintere Differentialen

FRONT DIFF. More steering use the ref. SL2500

Standard use the ref. SL5000

Less steering use the ref. SL10000

CENTER

DIFF.

Standard use the ref. SL5000

Quick use the ref. SL10000

acceleration

REAR DIFF. Standard use the ref. SL1000

or use grease

(*) USE ONLY PROTECH SILICONE OIL

OIL (*)

Differential gasket set

T30.091

Differential shaft

T30.075

Shim ring

3.6x12mm

T30.090

F/H 3mm x 10mm (4)

Bevel gear small 10T

T30.071

OIL

2 x 9 mm pin

T30.103

Cap Joint

T30.056

Differential bevel gear 18T (Large)

T30.070

Shim ring

T30.089

Diff Case (F/R)

T30.034

Cap Joint

T30.056

Center diff. gear 44T

T30.067

Shim ring

T30.089

2 x 9 mm pin

T30.103

Bevel gear large

T30.070

OIL

Assembly of the Rear Differential

Central Gear Differential

F/H 3mm x 10mm (x4)

O-ring

T30.087

O-ring

T30.087

! 90% Full / Plein / Vol / Voll

Ball bearing

8x16x5mm

T30.144

Ball bearing

8x16x5mm

T30.144



Assembly of the REAR gearbox & Center diff. / Montage v/d tandwielkast A & Centraal diff /

Montage des réducteurs AR & différentiel central/ Montierung des Getriebe A & Central

FRONT GEAR BOX

Rear Gear Box

Stud lock

A601

Nut lock

A600

F/H 3mm x 10mm (4)

T30.180

Differential gasket set

T30.091

Differential shaft

T30.075

NUT LOCK

90% Full / Plein / Vol / Voll

OIL (*)

O-rings are a optional part for different driving settings (with O-rings = more acceleration)

Bevel gear small

T30.071

O-ring (option part)

T31.215

Shim ring

3.6x12mm

T30.174

Set screw

5x5mm

T30.192

R/H 3 x 16mm

T30.213

Rear Sus. Hinge pin Holder ( * )

Drive Joint

T30.057

Shim ring

T30.088

Shim ring

T30.111

Pinion Gear Small

T30.069

Rear Toe In (use 3 degrees to start)

T30.048

Gearcase

T30.027

FH/ST 3 x 40mm

T30.184

F/H 3 x 20mm

T30.208

Gearcase

T30.027

Assembly of the Central Differential

FRONT DIFF. More steering use the ref. SL2500

Standard use the ref. SL5000

Less steering use the ref. SL10000

CENTER

DIFF.

Standard use the ref. SL5000

Quick use the ref. SL10000

acceleration

REAR DIFF. Standard use the ref. SL1000

or use grease

(*) USE ONLY PROTECH SILICONE OIL

F/H 3mm x 40mm (x2)

R/H 3mm x 16mm (x2)

Set Screw 5mm x 5mm (x1)

F/H 3mm x 10mm (x4)

*YADA ST = 6061 Alu Rear Sus. Hinge Pin Holder T30.084

YADA PRO = 7075 CNC Rear Sus. Hinge Pin Holder T31.213

YADA PRO-X = 7075 CNC Rear Sus. Hinge Pin Holder-X T31.239

High Speed Grease

SL001

8 x 16 x 5 mm

ball bearing

T30.144

Shim ring

T30.088

Front Gear Box

Assembly of the FRONT gearbox & SUSPENSION / Montage v/d tandwielkast V & / ophanging

Montage des réducteurs FR & de la Suspension AV / Montierung des Getriebe V & Querlenker V

5 x 5mm set screw

T30.192

F/H 3 x 15mm

T30.178

Front Toe In

(use 1 degree)

T30.048

Drive Joint

T30.057

Shim Ring

T30.088

Shim Ring

T30.111

Pinion Gear small

T30.069

F/H 3 x 20mm

T30.208

FH/ST 3 x 40mm

T30.184 Front Sus. Hinge Pin Holder ( * )

Gearcase

T30.027

Gearcase

T30.027

Front Body Mount

T30.046

Front Shock Tower ( * )

R/H 3 x 12mm

T30.212

E-Clip 3mm

T30.200

E-Clip 3mm

T30.200

Front Sus. Arm-R

T30.025

Front Sus. Arm-L

T30.025

Set Screw 4 x 8mm

T30.191

Set Screw 4 x 8mm

T30.191

Adjuster

T30.049

Front Shock Tower

Front Lower arm

Set Screw 4 x 8mm (x2)

*YADA ST = 6061 Alu Front Shock Tower T30.078

YADA PRO = 7075 Lighten CNC Front Shock Tower T31.204

YADA PRO-X = 7075 Lighten CNC Black/Chrome design

Front Shock Tower-X T31.205

NUT LOCK

High Speed Grease

SL001

Front Lower Susp. Hinge Pin

T30.072

8 x 16 x 5 mm

ball bearing

T30.144

*YADA ST = 6061 Alu Front Sus. Hinge Pin Holder T30.083

YADA PRO = 7075 CNC Front Sus. Hinge Pin Holder T31.212

YADA PRO-X = 7075 CNC Front Sus. Hinge Pin Holder-X T31.238





Assembly of the front suspension / Montage van de voorste ophanging /

Montage de la suspension avant / Montierung von die vordere Querlenker

Make sure that the swaybare can move freely

Distance between the 2 ball Ends = 0.5mm

Front Upper Sus. Plate ( * )

MAKE 4 SETS !

Stabilizer Ball

T30.100

Ball End 6mm

T30.051

3 x 12mm

T30.188

Ball 6mm

T30.102

3 x 3mm

T30.186

NUT LOCK

3 x 3mm

T30.186

NUT LOCK

R/H 3 x 16mm

T30.213

R/H 3 x 16mm

T30.213

3 x 5mm

F/H 3 x 8mm

T30.204

Sway Bar Plate (*)

T30.104 * Sway Bar Front

Not Included in YADA ST

Front Upper Sus. Hinge Pin Holder-R

T30.043

Front Upper Sus. Hinge

Pin Holder-L

T30.043

Front Sway Bar

Front Upper Suspension Plate

R/H 3 x 8mm

T30.210

R/H 3mm x 8mm (x4)

3mm x 3mm (x2)

3mm x 5mm (x2)

R/H 3mm x 16mm (x2)

F/H 3mm x 8mm (x2)

YADA ST = 6061 Alu Front Upper Sus. Plate T30.080

YADA PRO = 7075 Black anodized CNC plate T31.208

YADA PRO-X = 7075 Black/chrome anodized CNC plate-X T31.209

Nylon Nut M3

T30.172

YADA PRO = 7075 Sway Bar Plate T31.217

YADA PRO-X = 7075 Sway Bar Plate T31.235

Front Sway Bar 2.2mm : T30.105

2.3mm : T30.106

2.4mm : T30.107

Stud lock

A601

Nut lock

A600

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Juguete de protech

protech

protech Razor T0386 Manual de usuario

protech

protech VORTEX T0390 Manual de usuario

protech

protech Zoom 450 Pro Manual de usuario

protech

protech MIRAGE 2000-5 Manual de usuario

protech

protech Slowmo Manual de usuario

protech

protech Christen Eagle T0373 Manual de usuario

protech

protech GS 600 Manual de usuario

protech

protech Cessna 400 Manual de instrucciones

protech

protech SRT-2 Manual de usuario

protech

protech ZOOM 450 IC Manual de usuario

protech

protech ALPHA180 Manual de instrucciones

protech

protech Zoom 400 Manual de usuario

protech

protech IBIS 46 Manual de usuario

protech

protech Cessna 400 Manual de usuario

protech

protech Douglas DC3 Manual de instrucciones

protech

protech EXTRA 330 S Manual de usuario

protech

protech F15 EAGLE Manual de usuario

protech

protech EXTRA 300L Manual de usuario

protech

protech DinGo 3D Manual de usuario

protech

protech P47 THUNDERBOLT Manual de usuario

protech

protech ZOOM 425 ccpm Manual de usuario

protech

protech SIAI MARCHETTI Manual de usuario

protech

protech nitro fun 12 Manual de usuario

protech

protech TOJEIRO 90 Manual de usuario

Manuales populares de Juguete de otras marcas

marklin

marklin 37321 Manual de usuario

Canon

Canon PAPER CRAFT Manual de usuario

GREAT PLANES

GREAT PLANES Pitts M-12S Manual de usuario

NOCH

NOCH 14261 Manual de usuario

Hausler

Hausler 450 SE V2 Manual de usuario

Dynaflite

Dynaflite Daydream Manual de usuario

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manual

Kenner

Kenner Batman 63651 Manual de usuario

LEGO

LEGO 8527 Manual de usuario

iKarus

iKarus ECO 8 Manual de usuario

Multiplex

Multiplex EasyStar II Manual de instrucciones

Walkera

Walkera 38 Manual de instrucciones

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manual de usuario

MD MXION SWD Manual de usuario

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manual de usuario

marklin

marklin 39671 Manual de usuario

Meccano

Meccano 15103 Manual de usuario

LEGO

LEGO TECHNIC 8735 Manual de usuario

protech YADA ST Manual de usuario

Manuales populares de Juguete de otras marcas
