Protech PA-6722 Manual de usuario

MANUAL

PA-6722 M6

PA-6722

15" POS Terminal

J1900 Quad-Cord

INTRODUCTION

This chapter gives you the information for the PA-6722. It also outlines

the system specifications.

Sections included:

About This Manual

POS System Illustration

System Specifications

Safety precautions

Experienced users can jump to chapter 2 on page 2-1

for a quick start.

CHAPTER

All trademarks and registered trademarks mentioned herein are the property of their

respective owners.

This manual is copyrighted June 2014. You may not reproduce or transmit in any

form or by any means, electronic, or mechanical, including photocopying and

recording.

DISCLAIMER

This user’s manual is meant to assist users in installing and setting up the system. The

information contained in this document is subject to change without any notice.

CE NOTICE

This is a class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference

in which case the user will be required to correct the interference at his own expense.

You are cautioned that any change or modifications to the equipment not expressly

approve by the party responsible for compliance could void your authority to operate

such equipment.

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries

according to the manufacturer’s instructions.

WARNING! Some internal parts of the system may have high electrical voltage. And

therefore we strongly recommend that qualified engineers can open and disassemble the

system.The LCD and Touchscreen are easily breakable, please handle them with extra

care.

Page.3

1-1. ABOUT THIS MANUAL

Thank you for purchasing our PA-6722 Series System. The PA-6722 is an updated

system designed to be comparable with the highest performance of IBM AT personal

computers. The PA-6722 provides faster processing speed, greater expandability and

can handle more tasks than before. This manual is designed to assist you how to install

and set up the whole system. It contains four chapters and two appendixes. Users can

configure the system according to their own needs.

Chapter 1 Introduction

This chapter introduces you to the background of this manual. It also includes

illustrations and specifications for the whole system. The final section of this chapter

indicates some safety reminders on how to take care of your system.

Chapter 2 System Configuration

This chapter outlines the location of motherboard, printer, VFD, MSR components

and their function. You will learn how to set the jumpers and configure the system to

meet your own needs.

Chapter 3 Software

This chapter contains detailed information for driver installations of the Intel® Utility,

VG, LAN, Sound, Touch Screen, embedded peripheral devices, BIOS setup & update,

Watchdog timer and resource map.

Chapter 4 System Diagrams

This chapter shows the exploded diagrams and part numbers of PA-6722 components.

Page.4

Page.5

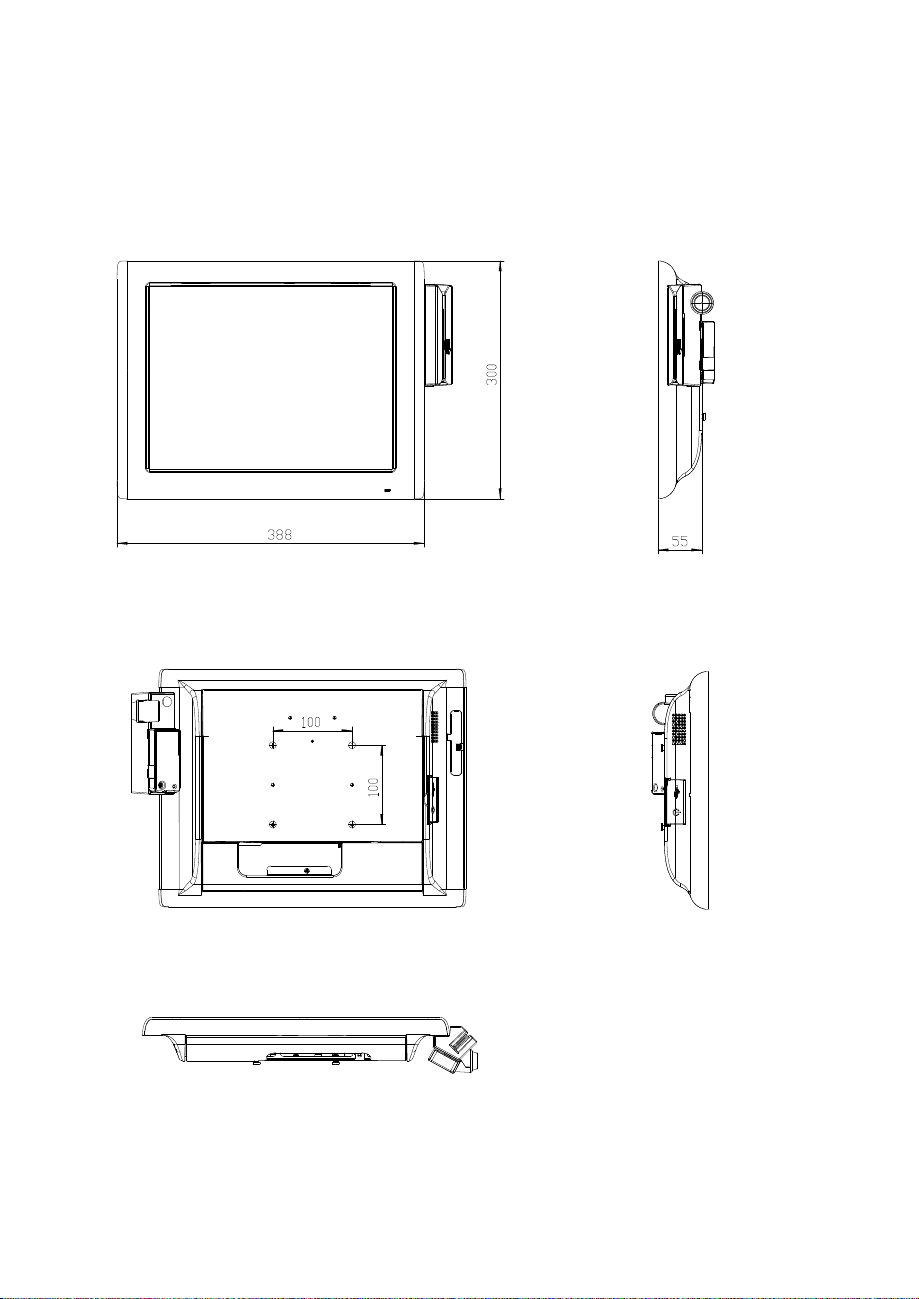

Panel-PC

Page.6

Easy Stand

Non-bazel-free

Bezel-free TouchScreen

15" Touch

& LCD

Power

LED light

Stand

Optional -

MSR & iButton

Adjustable angle

30~50 degrees

Page.7

Small Stand

Adjustable angle

0~70 degrees

Page.8

PRINTER Stand

Caution:

The correct method of "Closing Printer-Door". Please refer to below drawings.

Page.9

1-3. SYSTEM SPECIFICATIONS

System

CPU Intel® Celeron® J1900 Quad-Core 2.0GHz

Memory 1 x DDR3/ SO-DIMM 204-pin socket, up to 8GB

OS Support Windows Embedded 8 Industry Pro Retail

WindowV Embedded POSReady7

LAN 1 x Giga LAN

VGA 1 x DB-15

Wireless LAN (Optional)

802.11 b/g/n

AP distance

0° 90° 180° 270°

5M -29 dB -29 dB -30 dB -29 dB

10M -30 dB -30 dB -31 dB -31 dB

Note:

1. Test tolerance:

5dB

2. AP: ASUS RT-N56U (2 x internal antenna with 3.8 dBi

gain)

Angle: 0°

(Distance)

Angle: 90° Angle: 180° Angle: 270°

Audio 2W speaker & Line-out Port

BIOS AMI SPI BIOS, 8 Mbits with VGA BIOS

RTC Accuracy 3 days

3 seconds

System Weight With power adapter approx. 5.5 kg

Dimension (W x H x D) 388mm x 223mm x 234mm

(Distance)
