INFPRV315
Owner’s Manual
MUTE
G
IN
TT
SE
ST
LI
1
Table of Contents
Table of Contents ----------------------------------------------------------------- 1
Product Description -------------------------------------------------------------- 2
Installation ------------------------------------------------------------------------- 3
Wiring Configuration ------------------------------------------------------------ 3
General Function of Buttons ---------------------------------------------------- 4
Generation Operations ----------------------------------------------------------- 5
Radio Section Operation -------------------------------------------------------- 9
Bluetooth Section Operation --------------------------------------------------- 11
USB Section Operation --------------------------------------------------------- 13
AUX Section Operation -------------------------------------------------------- 15
Troubleshooting ----------------------------------------------------------------- 16
Installation Instructions -------------------------------------------------------- 17
2
Product Description
This Infinity PRV315 incorporates a 3.5” TFT color screen, ready to complement
your day whether you are on the water, motorcycle, UTV trail, or farm. Following
the same footprint as the popular INFPRV250, this stereo is synonymous with
excellence.
The INFPRV315 incorporates the following features:
AM/FM
Bluetooth Audio Streaming with ID tagging
USB input and control-for USB drives only
Auxiliary input
3.5” color TFT screen / Waterproof faceplate
45W x 4 amplifier
Wired remote option
U.S. and European tuning
Charging through USB
3 pair of RCA output including Subwoofer
/WB
The Infinity brand is part of Harman International Industries. In 1958, Harman
Kardon developed the world’s first stereo receiver and we are proud to bring
you the world’s first Infinity marine color screen receiver!
3
Installation
A mounting gasket has been added inside the package for convenience. Trace along
the outside edge of the gasket thus revealing your cutout.
Mounting Illustration
1. Avoid installing stereo
below cupholders!
Make sure mounting
substrate is flat to avoid
flexing of the plastic.
2. Use the back bracket and
studs to affix the unit. Install
the U bracket behind the unit,
using two nuts per bolt for
ultra hold.
Wire Configuration
NOTE: When wiring, the red lead is recommended to be wired to ACC/ignition power lead.
12P CONNECTOR
(REM)
( ACC )
( GROUND )
FUSE
BLUE
RED
BLACK
GRAY
GRAY/BLACK
VIOLET
VIOLET/BLACK
(FRONT RIGHT )
( REAR RIGHT )
GREEN
GREEN/BLACK
WHITE
WHITE/BLACK
( FRONT LEFT )
( REAR LEFT )
10A
(USB)
(AUX)
(ANT JACK) (REAR LINE OUT)
(SUBWOOFER)
6P REMOTE
CONTROL (FRONT LINE OUT)
3. To avoid possible water
ingress into wire harness
area, route the harness in
the downward direction
as shown above.
4

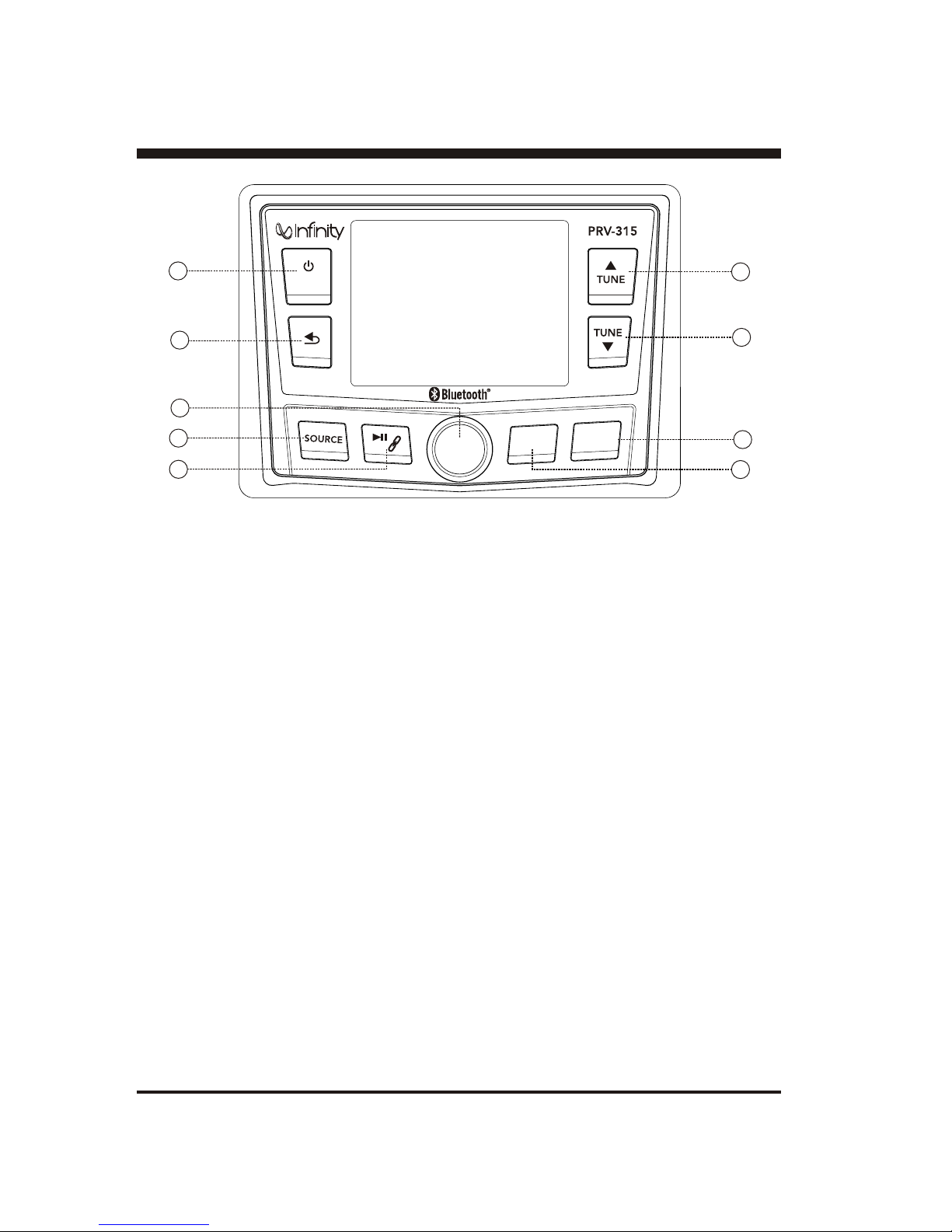

General Function of Buttons
1
8
2
6
7
4
1. POWER, MUTE button
- With unit off, press to power the unit on.
- With the unit on, press to MUTE sound output, press again to resume sound output.
- With the unit on, press and hold for over 2s to power the unit off.
2. RETURN button
- In any status, press it to back to previous display; press and hold it for 2s to navigate
to home display.
3. VOLUME knob, SEL button
- Turn the knob right or left to adjust volume level.
- Press it to confirm selection.
4. SOURCE button
- Repeat press it to select source in following sequence:
FM --> AM --> WB --> USB --> AUX --> BT MUSIC.
5. PAUSE button, LINK button
- In USB, BT MUSIC playing status, press it to pause playback, press again to
resume playback.
- In BT Music mode, it works BT pairing, connect and disconnect. (See Bluetooth
section operation in page for details.)
6. Tune Up button
- In playing status, press to select the next station or track.
- In navigation mode, press to move highlight upward/over.
7. Tune Down button
- In playing status, press to select the previous station or track.
- In navigation mode, press to move highlight downward/over.
8. SETTING button
In any status, press to display Settings. (See page for details operation.)
9. LIST button
- In FM, AM, WB mode, press to display Global Preset List.
- In USB mode, press to display Fold/File List.
MUTE
NG
TTI
SE
T
LIS
59
3
5
General Operations
1. POWER / MUTE button
With the unit powered off, press it button to turn the unit on.
With the unit on, press it to MUTE sound output, press again to resume sound output,
and press and hold it for over 2s to power the unit off.
Once the unit powered on, the introductory home screen appears for 4 seconds, then
switches to the last played mode before power off occurred.
2. RETURN button
In Source playing status, press and hold it for more than 3s to display the Main Screen.
At Main Screen, press TUNE UP/DN button to move highlight among Sources and press
SEL knob at desired Source.
In Sub-feature selection status, press it to return to previous screen.
Introductory home screen MUTE icon display
Radio SiriusXM BT Music
USB AUX IN Settings
NOTE:
1. Icon background changes to two toned
burnt orange when selected.
For example, AUX mode is the selected
mode in the picture.
2.
SiriusXM is not available on PRV315,
so it could not be selected.
General Operations
6
3. SOURCE button
Repeat press it to change source in following sequence:
FM --> AM --> WB --> USB --> BT MUSIC --> AUX --> FM.
(Note: Without USB or BT device connected, the corresponding source will not display
while pushing Source button. Besides Source can also be selected in Main Source screen.)
4. SETTING button
In any status, press it to display settings. Then press TUNE UP/DN button to select the
sub-features that desired to adjust, then turn VOL knob to adjust it.
4-1. Bass Control
In Settings screen, press TUNE UP/DN button to
select Bass, then turn VOL knob to adjust the level.
4-2. Treble Control
In Settings screen, press TUNE UP/DN button to
select Treble, then turn VOL knob to adjust the level.
4-3. Balance Control
In Settings screen, press TUNE UP/DN button to
select Balance, then turn VOL knob to adjust the level.
4-4. Fader Control
In Settings screen, press TUNE UP/DN button to
select Fader, then turn VOL knob to adjust the level.
7
4-5. Loud Control
In Settings screen, press TUNE UP/DN button to
select Loud, then turn VOL knob to select ON or OFF.
4-6. EQ Selection
In Settings screen, press TUNE UP/DN button to
select EQ, then turn VOL knob to select Off,
Classics, Jazz, Pop or Rock.
4-7. Subwoofer Gain Control
At Setting screen, press TUNE UP/DN button to
select Subwoofer, then turn VOL knob to adjust the
Sub. Gain level.
4-8. I-Volume Control
At Setting screen, press TUNE UP/DN button to
select I-VOL, then turn VOL knob to adjust the level.
This feature controls the maximum volume level
desired when powered on.
4-9. Brightness Adjustment
In Settings screen, press TUNE UP/DN button to
select Brightness, then turn VOL knob to adjust
Brightness level.
General Settings
8
4-10. Area Selection
In Settings screen, press TUNE UP/DN button to
select AREA, then turn VOL knob to select USA
or EUR.
4-11. Software Version View, Software Reset
At Setting screen, press TUNE UP/DN button to
select S/W Version, then press SEL knob to view
the Software Version.
Software Reset:
In Software Version display status, press TUNE UP,
TUNE DN, and TUNE UP in sequence, then press
and hold TUNE DN for 7s to reset the unit.
Note: It will be necessary to re-enter the radio preset
memories and other personal settings as these
will have been erased when the software was
reset. After resetting the unit, ensure all
functions are operating correctly.
General Settings
9
Radio Section Operation
1. To Select Radio mode
There are two ways to select Radio mode.
- By repeat press SOURCE button.
- By press TUNE UP/DN button at Main Source screen and press SEL knob when
Radio Icon selected. (
2. Radio Screen Description
Note: highlight movement indicated by the icon background
change to two tone orange.)
3. BAND Selection
There are two ways to select BAND.
- By repeat press SOURCE button.
- In Radio screen, press SEL knob to activate navigation, then press TUNE UP/DN button
to move highlight to BAND. Now press SEL repeatedly to toggle between FM, AM or
WB band.
4. Auto Tuning
In Radio playing mode, press TUNE UP/DN button to activate auto tune. This results in
automatically stopping at next station of sufficient signal strength.
5. Manual Tuning
In Radio playing mode, long press TUNE UP/DN button for 2s. This will activate manual
tune with MANU display on the top area. Then repeatedly press TUNE UP/DN button to
tune frequency by steps.
NOTE: Radio will revert back to AUTO tune mode after 5s without operation.
Only shows when
the station is a
Stereo Channel.
Displays EUR or USA to indicate
the Area selected in the Settings.
Displays FM, AM.
Only displays when
the station is a preset
station.
Frequency Bar
Frequency Mark
SAVE: To save current frequency into P.List
BAND: To select FM, AM
P.LIST: Global Preset List
Only displays when EQ / LOUD
ON was selected in the Settings.
Only displays in Manual
Tune status.
