MODEL NO.:RV2040

STEREO RECEIVER AMPLIFIER

SERVICE MANUAL

The lightning flash with arrowhead symbol, with an

equilateral triangle, is intended to alert you to the

presence of uninsulated dangerous voltage within

the product's enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle

is intended to alert you to the presence of important

operating and maintenance (servicing) instructions

in the literature accompanying the appliance.

SAFETY PRECAUTIONS & IMPORTANT NOTES

These servicing instructions are of

use by qualified service personnel

only. To reduce the risk of electric

shock do not perform any servicing

other than that contained in the

operating instructions unless you

are qualified to do so.

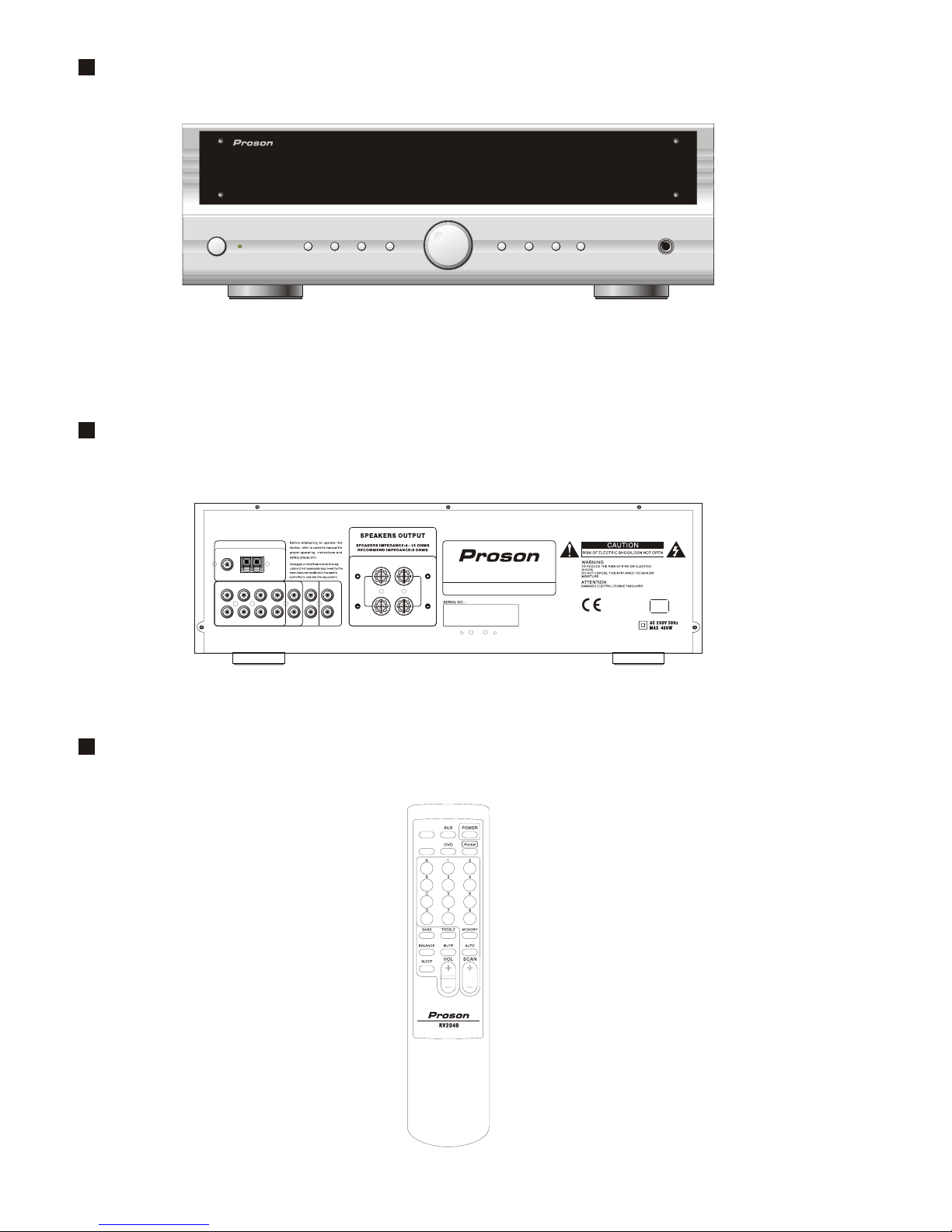

RV 2040 PANEL

RV 2040 REAL PANEL

RV 2040 REMOTE CONTROL

PHONE

A/B/C/D

SCAN+FM/AM SCAN- NO.1-8 MEMORY

POWER

VOLUME - VOLUME+

AUTO INPUT

STEREO RECEIVER AMPLIFIER RV2040

VCR

FM AM

COAX LOOP

ANTENNA

VCR AUX CD DVD REC OUT

VCR AUX CD DVD REC OUT PRE OUT AMP IN

AUDIO INPUT

PRE OUT AMP IN

AC INLET

MODEL NO.:RV2040

MADE IN CHINA

STEREO RECEIVER AMPLIFIER

AMPLIFIER SECTION

Left & Right Channel......................................................................................................2X100Watts

Signal to Noise(A weight)..........................................................................................................85dB

Frequency Response......................................................................................20Hz-20 KHz+/-1.5 dB

AM TUNER SECTION

Frequency Response........................................................................................80Hz 2.3 KHz +/- 6dB

Usable Sensitivity........................................................................................... ....55dBu @ S/N 20 dB

Signal to Noise........................................................................................................................38 dB

Image Ratio......................................................................................................... 30 dB @ 1000KHz

IF Rejection ...........................................................................................................................40 dB

FM TUNER SECTION

Frequency Response......................................................................................... 40Hz-15 KHz+/- 3dB

Quieting................................................................................................................................24 dBu

Signal to Noise....................................................................................... 60 dB (stereo)/65 dB (mono)

Image Ratio..............................................................................................................................40dB

IF Rejection............................................................................................................................. 65dB

Specifications

Name of Component Spec. Package

AV3021400 PCB PCB IS-HC040918 Power PCB SN:POW1740400

2A2 1 IS-HC040918 Power Board

ARF45 6100 Carbon Resistor 1K 1/4W +/-5% Pin Span 10mm 1 R503

ARJ35 3470 Carbon Resistor 4K7 1/4W +/-5% Pin Span 10mm 2 R501 R502

AVR210470 Carbon Resistor 470K 1/2W +/-5% Pin Span 10mm 1 R505

AIF004148 Diode IN4148 Pin Span 7.5mm 1 D501

AIF004004 Diode IN4004 Pin Span 10mm 4 D502 D503 D504 D505

ACC5SL1B105K Ceramic Cap 104/50V Pin Span 5mm 1 C507

ACC7Z5V1B472Z AC X Cap 472/275V(MPX) Pin Span 15mm 1 C502

ACC7Z5V1B104Z AC X Cap 104/275V(MPX) Pin Span 15mm 1 C501

ACC8Z5V1B103Z AC Y Cap 103/250V Pin Span 7.5mm 1 C503

AIAO995015 Transistor C9015 1 Q502

AIAO948085 Transistor S8050 1 Q501

ACDV842600 16V Electrolytic Cap 100µF Pin Span 2.5mm，

Dia. 5mm 2 C505 C506

ACDV843000 16V Electrolytic Cap 1000µF Pin Span 5mm，

Dia. 10mm 1 C504

AKB003250 Fuse 250VT5A 618 1 F501

AVP206500 Fuse Holder 250V/25A Plastic with

Cover(PTF-78) 1 F501

APC780500 3 Pin Constant Voltage IC KA7805 1 U501

ARE112000 Standby Relay JQX-14F 12V 1 J501

AXV401A00 Standby Transformer AC120V/60Hz 1 B501

RV 2040 Power Board PCB Bill of Material

CommentsParts NO. Description Qty. Designator

Name of Component Spec. Package

AV3404500 PCB SN:AMP80504002A3 247*293*1.6 1 IS-HC040918 Main PCB

AV283500 Beads 3508 Pin Span 10mm 1 J35

ARF45 4100 Carbon Resistor 10R 1/4W +/-5% Pin Span 10mm 5 R13 R326 R327 R332 R333

ARF45 4330 Carbon Resistor 33R 1/4W +/-5% Pin Span 10mm 4 R111 R112 R211 R212

ARF45 4510 Carbon Resistor 51R 1/4W +/-5% Pin Span 10mm 2 R125 R225

ARF45 5120 Carbon Resistor 120R 1/4W +/-5% Pin Span 10mm 4 R115 R116 R215 R216

ARF45 5100 Carbon Resistor 100R 1/4W +/-5% Pin Span 10mm 10 R121 R122 R135 R221 R222 R235 R339

R340 RG1 RG2

ARF45 5150 Carbon Resistor 150R 1/4W +/-5% Pin Span 10mm 4 R107 R108 R207 R208

ARF45 5220 Carbon Resistor 220R 1/4W +/-5% Pin Span 10mm 1 R15

ARF45 5470 Carbon Resistor 470R 1/4W +/-5% Pin Span 10mm 13 R701 R703 R705 R707 R709 R711 R713

R715 R717 R719 R721 R723 RG3

ARF45 6100 Carbon Resistor 1K 1/4W +/-5% Pin Span 10mm 14 R102 R113 R114 R123 R202 R213 R214

R223 R315 R321 R323 R329 R725 R726

HF456130 Carbon Resistor 1K3 1/4W +/-5% Pin Span 10mm 2 R124 R224

ARF45 6150 Carbon Resistor 1K5 1/4W +/-5% Pin Span 10mm 1 R406

ARF45 6220 Carbon Resistor 2K2 1/4W +/-5% Pin Span 10mm 4 R324 R325 R330 R331

ARF45 6270 Carbon Resistor 2K7 1/4W +/-5% Pin Span 10mm 4 R130 R131 R230 R231

ARF45 6470 Carbon Resistor 4K7 1/4W +/-5% Pin Span 10mm 6 R16 R21 R316 R322 R401 J86

ARF45 6560 Carbon Resistor 5K6 1/4W +/-5% Pin Span 10mm 4 R313 R319 R335 R336

ARF45 6680 Carbon Resistor 6K8 1/4W +/-5% Pin Span 10mm 2 R312 R318

ARF45 7100 Carbon Resistor 10K 1/4W +/-5% Pin Span 10mm 9

R10

R20

R23

R337

R403

R404

R405

ARF45 4220 Carbon Resistor 22K 1/4W +/-5% Pin Span 10mm 8 R3 R4 R8 R311 R314 R317 R320 R338

ARF45 7300 Carbon Resistor 30K 1/4W +/-5% Pin Span 10mm 4 R109 R110 R209 R210

ARF45 73901 Carbon Resistor 39K 1/4W +/-5% Pin Span 10mm 13 R5 R119 R120 R132 R133 R134 R219

R220 R232 R233 R234 R104 R204

ARF45 7470 Carbon Resistor 47K 1/4W +/-5% Pin Span 10mm 12 R301 R306 R702 R704 R706 R708 R710

R712 R714 R716 R718 R720

ARF45 8100 Carbon Resistor 100K 1/4W +/-5% Pin Span 10mm 2 R722 R724

ARF45 8100 Carbon Resistor 100K 1/4W +/-5% Pin Span 10mm 4 R117 R118 R217 R218

ARJ35 8220 Carbon Resistor 220K 1/4W +/-5% Pin Span 10mm 1 R6

ARF45 9100 Carbon Resistor 1M 1/4W +/-5% Pin Span 10mm 1 R402

Carbon Resistor 47R 1/4W +/-5% Pin Span 10mm 4 R126 R127 R226 R227

AVK181000 1/2W Fuseable Resistor 0.5R Pin Span 10mm 2 R14 R17

AHL315270 1W Carbon Resistor 270R

Pin Span

15mm,Height

10mm,Bend Pin

with Limit Point

1 R19

AHL316270 1W Carbon Resistor 2K7

Pin Span

15mm,Height

10mm,Bend Pin

with Limit Point

2 R136 R236

AVE869120 2W Carbon Resistor 1K2

Pin Span

20mm,Height

10mm,Bend Pin

with Limit Point

2 R137 R237

AVR414710 3W Carbon Resistor 10R

Pin Span

20mm,Height

10mm,Bend Pin

with Limit Point

2 R138 R238

AVR414560 3W Carbon Resistor 560R

Pin Span

20mm,Height

10mm,Bend Pin

with Limit Point

1 R12

AVR412200 5W Twin Cement Fixed

Resistor 0.22R

Stand,Pin Span

10mmHeight

5mm,Bend Pin

with Limit Point

4 R128 R129 R228 R229

AWF456470 Resistor Array 4K7*8 九PIN 1 RP3

AVG438200 Zener Diode 7V5 0.5W Pin Span 7.5mm 2 D305 D306

AVG438300 Zener Diode 10V 0.5W Pin Span 7.5mm 1 D12

AVG438400 Zener Diode 15V 0.5W Pin Span 7.5mm 1 D10

AVG438500 Zener Diode 33V 0.5W Pin Span 10mm 1 D20

AIF004148 Diode 1N4148 Pin Span 7.5mm 22 D101 D102 D103 D104 D105 D106 D201

D202 D203 D204 D205 D206 D301 D302

D303 D304 D5 D6 D7 D8 D9 D401

AIF004002 Diode 1N4002 Pin Span 10mm 6 D18 D1 D2 D3 D4 D11

AIF005404 Diode IN5404

Pin Span

22.5mm,H10mm,B

end Pin with Limit

Point

4 D13 D14 D15 D16

AXF640520 IC CD4052BE DIP16 1 U101

AXF240200 IC 24C02 DIP8 1 U108

AXF645580 IC JRC4558D DIP8 2 U105 U106

ACC5NPO1B150K 50V Ceramic Cap. 15p Pin Span 5mm 4 C106 C107 C206 C207

ACC5NPO1B220K 50V Ceramic Cap. 22p Pin Span 5mm 2 C401 C402

ACC5SL1B221K 50V Ceramic Cap. 220p Pin Span 5mm 6 C103 C203 C304 C318 C302 C317

ACC1Z1V1B470Z 100V Ceramic Cap. 470p Pin Span 5mm 4 C109 C110 C209 C210

Comments

RV 2040 Main Board PCB Bill of Material

Parts NO. Description Qty. Designator

Name of Component Spec. Package Comments

RV 2040 Main Board PCB Bill of Material

Parts NO. Description Qty. Designator

ACC5Z5V1B050Z 50V Ceramic Cap. 103 Pin Span 5mm 1 C4

ACC5SL1B105K 50V Ceramic Cap. 104 Pin Span 5mm 20 C19 C20 C21 C22 C23 C24 C112 C212

C321 C322 C323 C324 C337 C339 CG1

CG2 C27 C405 C406 C407

ACC1Z1V1B104Z 100V Ceramic Cap. 104 Pin Span 5mm 6 C35 C36 C37 C38 C39 C40

AFC050V272 50V Film Cap.. 272 Pin Span 5mm 2 C307 C308

AFC050V103 50V Film Cap.. 103 Pin Span 5mm 2 C117 C217

AFC050V104 50V Film Cap.. 104 Pin Span 5mm 10 C309 C310 C311 C312 C328 C330 C116

C216 C115 C215

AFC100V103 100V Film Cap.. 103 Pin Span 7.5mm 2 CK1 C1

AIA0935401 Transistor 2N5401 7 Q2 Q102 Q105 Q106 Q202 Q205 Q206

AIA0935551 Transistor 2N5551 11 Q103 Q104 Q107 Q115 Q203 Q204 Q207

Q215 Q8 Q9 Q5

AIA0938050 Transistor S8050 3 Q301 Q302 Q4

AIA0939014 Transistor C9014 4 Q10 Q303 Q305 Q6

AIA0995015 Transistor C9015 4 Q304 Q306 Q307 Q401

AIA0931013 Transistor A1013 3 Q108 Q208 Q1

AIA0932383 Transistor C2383 2 Q109 Q209

ACDV841100 6V3 None Polarity Cap. 220µF Pin Span

2.5mmDia. 6mm 1C7

ACDV841400 6V3 Electrolytic Cap. 1000µF Pin Span 5mm，

Dia. 10mm 2 C114 C214

ACDV842200 16V Electrolytic Cap. 2.2µF Pin Span 2.5mm，

Dia. 5mm 9C11 C315 C316 C305 C306 C313 C314

C327 C331

ACDV842000 16V Electrolytic Cap. 10µF Pin Span 2.5mm，

Dia. 5mm 8C101 C108 C201 C208 C319 C320 C403

C25

ACDV842300 16V Electrolytic Cap. 22µF Pin Span 2.5mm，

Dia. 5mm 1 C325

ACDV842400 16V Electrolytic Cap. 47µF Pin Span 2.5mm，

Dia. 5mm 2 C341 C342

ACDV842600 16V Electrolytic Cap. 100µF Pin Span 2.5mm，

Dia. 6mm 3 C26 C404 C18

ACDV842800 16V Electrolytic Cap. 330µF Pin Span 5mm，

Dia. 7.5mm 2 C15 C16

ACDV843300 25V Electrolytic Cap. 33µF Pin Span 2.5mm，

Dia. 5mm 1 C10

ACDV843800 25V Electrolytic Cap. 470µF Pin Span 5mm，

Dia. 10mm 1 C14

ACDV845600 50V Electrolytic Cap. 10µF Pin Span 2.5mm，

Dia. 5mm 4 C31 C32 C326 C329

ACDV847000 63V Electrolytic Cap. 2.2µF Pin Span 2.5mm，

Dia. 5mm 1C8

ACDV847200 63V Electrolytic Cap. 33µF Pin Span 5mm，

Dia. 7.5mm 4 C104 C105 C204 C205

AVI552000 Crystal 12MHz 1 Y1

AVI271000 Inductance 1uH10A Stand Pin Span

10mm 2 L101 L201

ACI742313 Chip IC PT2313 SOP28 1 U102

AIA0935551 Transistor 2N5551 2 Q110 Q210

AIA0935649 Transistor B649 Plastic Seal 2 Q112 Q212

AIA0935669 Transistor D669 Plastic Seal 2 Q111 Q211

APC781200 3 Pin Constant Voltage IC 7812 1 U2

APC791200 3 Pin Constant Voltage IC 7912 1 U3

AVJ690400 RCA Jack AV4-8.4-13 4 White Red 2 BNC2 BNC3

AVJ690600 RCA Jack AV6-8.4-13 6 White Red 1 BNC1

AVS868400 Headphone Jack Short 9 Pin Short Mouth CK6.35-3-02

Golden Mouth CK6.35-3-02 1

AEC162102 Rotary Encoder EC162102E1B-HA1-24P5-

FB200B120-N& 20mm 2 BMQ1(ALPS) BMQ2

APTS01050 Power Switch AC120V/5A KDC-A02 1 SW101

ARE224000 Relay HLS-4453﹙18F﹚2 Group 24V 1 DJ1

AV2504700 Speaker Output Socket WP4-10A Red Black 1 WP1

ACDV844000 25V Electrolytic Cap. 2200µF Pin Span 5mm，

Dia. 12.5mm 1 C13

ACDV847800 63V Electrolytic Cap. 4700µFF Pin Span 10mm，

Dia. 35mm 2 C2 C3

APT194300 Power Transistor 2SA1943 TOSHIBA 2 Q113 Q213

APT520000 Power Transistor 2SC5200 TOSHIBA 2 Q114 Q214

AMW022800 Mica Washer 28*22 4

AVV693400 Small Heat Sink with Solder Pin M3 Tap 15*10*25 2 For 3 Pin Constant Voltage IC

AVV693600 Main Heat Sink IS-HC040918 1 A/918-SR041224A1

AXFC91800 IC ATMAEL AT89S52 DIP40C 1 U107 IC-HC040918 CPU

Name of Component Spec. Package

AV3021300 PCB Single-Side Printed Circuit Board

94V0，400*113 1 IS-HC040918 DISPLAY BOARD

ARF45 4100 Carbon Resistor 10 ohm 1/4W，+/-5% R0.4 1 R17

ARF45 4220 Carbon Resistor 22 ohm 1/4W，+/-5% R0.4 1 R13

ARF45 5100 Carbon Resistor 100 ohm 1/4W，+/-5% R0.4 6 R2 R4 R5 RG1 RG3 RG4

ARF45 7100 Carbon Resistor 10K ohm 1/4W，+/-5% R0.4 5 R9 R10 R11 R12 R21

ARF45 7470 Carbon Resistor 47K ohm 1/4W，+/-5% R0.4 3 R7 R8 R16

AIF004148 Diode 1N4148 D0.3 7 D1 D2 D3 D4 D5 D6 D7

AVG438600 Zener Diode 7.5V 0.5W DZ0.3 1 D02

AV273500 Bead 3505 L0.4/W 1 L11

ACC5SL1B101K Ceramic Cap. 100P 50V CC0.2 1 C3

ACC5SL1B105K Ceramic Cap. 104 50V CC0.2 8 C1 C2 C5 C9 C10 CG1 C6 C7

ACDV842000 Electrolytic Cap. 10µF 16VΦ5 CE.1/.25SD 1 C4

ACDV844300 Electrolytic Cap. 47µF 35VΦ5 E.1/.25 1 C8

AXF631100 IC PT6311 52P-QFP 1 U0

ARC104100 Remote Controller Receiver

Sensor BRM-1040 JS 1 JS

AVG392500 Tact Switch KFC-A06-H9 6*6*5 SK7*7 26

S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12

S13 S14 S15 S16 S17 S18 S19 S20 S21

S22 S23 S24 S25 S26

AVG392900 Tact Switch KFC-A06-H9 6*6*14 SK7*7 2 S27 S28

ALE001010 Indicator Light Φ5 Red Astigmatism LED0.1-2 1 LED2

AV2763100 VFD BOE VFD25-1118 1 VFD1

RV 2040 Display Board PCB Bill of Material

Parts NO. Description Qty. Designator Comments

Name of Component Spec. Package

AV2643300 Panel Assembly IS-HC040918 Plastic Panel and

Accessories 1See Exploded

View

AVJ893400 Bottom Board IS-HC040918 with Repair

Window Board 1See Exploded

View

AV2615100 Rear Panel IS-HC040918 1 See Exploded

View

AV2643900 Display Lens IS-HC040917&918 1 See Exploded

View

AWP191810 Left Polyfoam IS-HC040918 1

AWP191820 Right Polyfoam IS-HC040918 1 See Exploded

View

AV0051300 Top Cover IS-HC040918 Black 1

AVS025000 Leg Short Leg 4

ATY390982 Tuner Assembly YST982-B0E3 AM/FM 1

AVQ194100 Short Plug 2

AVS759300 Power Cord QL－101

American

Standard

AV2438700 Power Cord Stopper 4N-4 UL Approved 1

AXV402A00 Main Toroid Transformer

Assembly

HC040918

Main

Toroid

Transformer and Accessories

AC120V/60Hz

AVL849180 Connector Assembly IS-HC040918 1

AM0918300 User's Manual IS-HC040918 User's Manual English,French,Sp

anish three

language 1

AMIS91730 Warranty Card INSIGNIA 1

AWP400020 Label for Serial Number 40×10mm 2

AV2686800 Remote controller IS-HC040918 1

AVBT05000 Battery SIZE AA UM3 1.5V 2

AATF03280 AM Antenna 1

AATA03280 FM Antenna 1

AWP300010 Accessories Bag 225×310mm 1

AWB00000 Wrap Bag for Equipment EPE 1

AWP491720 Label for Shipping Marke IS-HC040918 1

AWP291710 Carton IS-HC040918 1

RV 2040 Packaging and Accessories BOM

Parts NO. Description Qty. Designator Comments

130mm

PH SAN

100mm

PH SAN

130mm

VH Solder 5MM

DISPLAY-GND

Part N0. Name/Spec. Description Fig

3P2.54Double

Head, Single

Socket Cable

4P2.0

Head, Single

Socket Cable

Double

With3A Head(26# Black

Array Cable)

With4A Head

(26# BlackArray Cable)

14P2.0 Double

Head, Single

Socket Cable

With 14AHead(26# Black

Array Cable)

500mm

XH SCN

Single Head ,

Single Wire

Single Head

(22#Black Array Cable) SCN

130mm

VFD-AMP

POWER-AMP

PHONE-AMP

Qty

13P Flat Cable

With 13 Pin1pcs 1.27Stand

Socket

TUNER-AMP

110mm

RV 2040 Connection Cable List

AVL8491802

AVL8491803

AVL8491805 AVL8491804 AVL8491801AVL8491806

VH3P3.96

Single Head

Array Cable

(18# Black

Double

Insulated Wire)

2 pin is

With 3AHead

POWER-SWITCH

Otros manuales para RV2040

Tabla de contenidos

Otros manuales de Amplificador de Proson

Proson

Proson PA-150 Manual de usuario

Proson

Proson RV2040 Manual de usuario

Manuales populares de Amplificador de otras marcas

ASTRO

ASTRO HVO V40 P Manual de usuario

Marantz

Marantz SUPERSCOPE BLA-545 Instrucciones de montaje

NAD

NAD CI980 Manual de usuario

Technics

Technics SE-CH770 Manual de usuario

Harman Kardon

Harman Kardon HK6300 Manual de usuario

NAD

NAD T975 Manual de usuario

McIntosh

McIntosh MA6850 Manual de usuario

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manual de usuario

Viatron

Viatron Autrix Manual de usuario

GME

GME GA9800 Manual de usuario

Atlas

Atlas CP700 Manual de usuario

Roland

Roland KC-1000 Manual de usuario

Pyle

Pyle PFMRA350BW Manual de usuario

Advantage

Advantage S-250 Manual de usuario

IRT Electronics

IRT Electronics DVA-3007 Manual de usuario

Dimavery

Dimavery BA-100 Series Manual de usuario

Sony

Sony XM-S400D Manual de usuario

Schertler

Schertler ROY X Manual de usuario
