ProScan PS27115FE1BC Manual de usuario

USER MANUAL

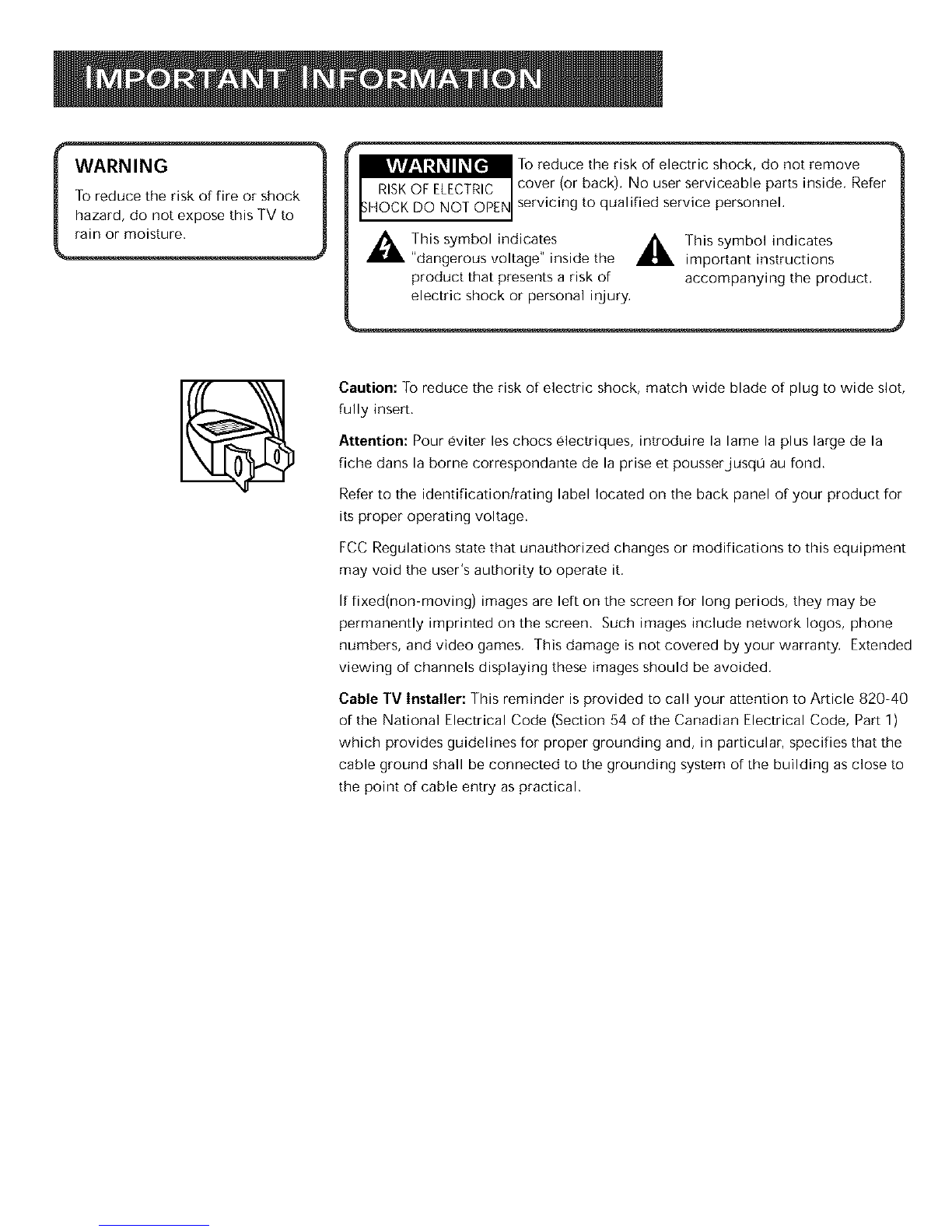

hazard, donor expose this TV to I ]o reduce the risk of electric shock, do not remove

HOCK DO NOT OPEiX servicing to qualified service personnel.

LVlVl__q_11_[e]

RISKOF ELECTRIC cover (or back). No user serviceable parts inside. Refer

,_ This symbol indicates ,_ This symbol indicates

"dangerous voltage" inside the important instructions

product that presents a risk of accompanying the product,

electric shock or personal injury.

Caution: To reduce the risk of electric shock, match wide blade of plug to wide slot,

fully insert.

Attention: Pour eviter les chocs electriques, introduire la lame la plus large de la

fiche dans la borne correspondante de la prise et pousserjusqo au fond.

Refer to the identification/rating label located on the back panel of your product for

its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this equipment

may void the user's authority to operate it.

If fixed(non-moving) images are left on the screen for long periods, they may be

permanently imprinted on the screen. Such images include network Iogos, phone

numbers, and video games. This damage is not covered by your warranty. Extended

viewing of channels displaying these images should be avoided.

Cable TV Installer: This reminder is provided to call your attention to Article 820-40

of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1)

which provides guidelines for proper grounding and, in particular, specifies that the

cable ground shall be connected to the grounding system of the building as close to

the point of cable entry as practical.

FIRST THINGS FIRST .......................... 3

Connecting your TV ......................................................... 4

TV Only ..................................................................... 4

TV with other Components ......................................... 5

USING THE MENU SYSTEM .................. 7

The Menu Rule: Point and Select ..................................... 8

What is Point and Select? ........................................... 8

Menus and Control Panels ............................................. 10

Menus ...................................................................... 10

Control Panels ........................................................... 11

Sliders ....................................................................... 11

Choice Lists .............................................................. 12

Numeric Entry .......................................................... 13

INTERACTIVE SETUP ......................... 15

Entering Setup ................................................................ 16

Select a Language .......................................................... 16

Auto Channel Search ..................................................... 17

Set the Time ................................................................... 18

Set the VCR1 Channel ................................................... 19

Set the DVD/VCR2 Channel .......................................... 20

Set the SAT/CABLE Channel ........................................... 21

Label the Channels ........................................................ 22

PROGRAM THE REMOTE .................... 25

Programming the Remote .............................................. 26

To Control a VCR ..................................................... 26

To Control a DVD Player or Laserdisc Player ............ 28

To Control an RCA Audio Device ............................. 28

To Control a Satellite Receiver or Cable Box ............. 29

Using the Remote to Control a Device ........................... 29

TOUR OF THE TV ............................. 31

Remote Buttons ............................................................. 32

Back Panel ..................................................................... 34

Front Panel .................................................................... 36

Channel Marker ............................................................. 37

QUICK REFERENCE .......................... 39

Audio Menu .................................................................. 40

Picture Quality Menu .................................................... 41

Screen Menu ................................................................. 42

Channel Menu ............................................................... 43

Time Menu .................................................................... 45

Parental Controls Menu ................................................. 46

Setup Menu ................................................................... 47

ADVANCED FEATURES ...................... 49

PIP (Picture-in-Picture) Operation .................................. 50

Two Tips for Using PIP Buttons ................................. 51

Fetch Menu ................................................................... 52

Choosing an Audio Processor ........................................ 53

Choosing an audio processor from the remote .......... 53

Closed Captioning ......................................................... 54

To display Closed Captioning ................................... 54

Closed Captioning Modes ........................................ 55

On-screen Program Details ...................................... 56

Playback from an S-VHS camcorder ......................... 69

APPENDIXA: TV CONNECTIONS..57

APPENDIX B: OTHER COMPONENTS 68

APPENDIX C: TROUBLESHOOTING ... 70

APPENDIX D: LIMITED WARRANTY .... 72

APPENDIX E: CARE AND CLEANING . 73

ACCESSORIES .................................. 74

INDEX ............................................. 77

HI, I'M MARK.

I wrote this manual to help you get the most from

your TV. I know you expect a lot from your TV, so I

designed this user manual to give you the information

you need.., when you need it.

READ THE FIRST FOUR CHAPTERS

The manual is designed to get you started quickly...

and let you catch up on the details when you get a

chance.The first four sections of the manual will get

yourTV up and running.You'll learn how to use the

menu system, run the interactive setup routine and

program the remote.

The rest of the manual gives you the specifics: a tour

of theTV, aquick reference guide, details on

StarSight, the advanced features and appendices.

Well... if yourTV's out of the box, let's get started.

First things first.

STEP I

Unpack the TV. Make sure to locate the remote control and

Connections Foldout.

Important Information: Optional Stand

CAUTION: Matching stands were designed to be used with the table

model TV included in this book. The recommended stands are

provided with hardware to secure the TV to the stand so that it cannot

be easily pushed off, pulled off or tipped over. Your ProScan dealer can

help you choose the appropriate stand for your TV.

If you choose not to use the stand recommended For your TV, take

precautions that the stand or other furniture the TV is placed on is

properly located (see Important Safeguards sheet) and of adequate size

and strength to prevent the TV from accidentally being pushed off,

pulled off or tipped over. This could cause damage to the TV and or

personal injury.

Stands are not available by mail order. ]o locate your nearest ProScan

dealer, call 1-800-PROSCAN.

STEP 2: CONNECTING YOUR TV

If you're only going to connect the TV to your home antenna or cable

system, use the "TV Only" connection shown below. If you're going to

connect the TV to a VCR, satellite receiver, DVD player or other

component, look at the Connections Foldout. The Connections

Foldout details ten diagrams that are recommended for hooking up the

TV to a cable box or antenna, one or two VCRs, a laserdisc player, and

a satellite receiver.

TV ONLY

This is a basic connection from an antenna or cable system to your TV.

Connect the cable as shown. If you have a VCR or other components

to connect to the TV, skip to the top of the next page.

TV WITH OTHER COMPONENTS

Use the Connections Foldout to connect your TV to a VCR, DVD

player, and/or satellite receiver. After connecting your TV and other

components, proceed to the next step. See Appendix A for detailed

information about using each of these connections.

If your components don't match those shown on the foldout, or if you

prefer a different connection, see your dealer or specific component

user manuals.

STEP 3

Plug in the TV.

Plug the end into the wall outlet, matching the wide blade of the plug

with the wide slot in the outlet. Be sure to insert the plug completely.

STEP 4

Put batteries in the remote,

Remove the battery compartment cover from the back of the

remote.

Insert four AAA batteries as shown, matching the + and - ends of

each battery in the compartment.

Replace the cover.

STEP 5

Turn on the TV.

PressTV on the remote, or press POWER on the TV itself,

STEP 6

Read the next section, Using the Menu System, which is a brief

overview of the basic rules for getting around in the menus,

STEP 7

Proceed to section three, Interactive Setup. The interactive setup

routine walks you through the steps needed to fully configure the TV.

The first steps ask you to select your preferred language for the menu

system and to begin the auto channel search, which puts available

cable TV or antenna signals into the TV's memory. You can skip any of

the steps and return to them later.

vc_ _T°_L _

Fi_R_c°_ F_ r_PAusE

0 0

MUTE GObACK

000

0 © 0

FAV_INPUT ANTENNA

o 0 o

SOND

mTV BUTTON

ONE RULE TO REMEMBER

You control and customize theTV by making changes to

various control panels in the menu system,The great

thing is, you only need to know one rule: point and select,

THE MENU RULE: POINT AND SELECT

You only need to know one rule to use the on-screen menus and

control panels: point and select.

WHAT IS POINT AND SELECT?

The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on the remote.

To point up or down, press the up or down arrows. ]b point left or

right, press the left or right arrows.

2. Select a menu item by pressing MENU°SELECT.

Selecting an item tells the TV's menu system to go ahead and

make the change or go to a place you have indicated.

For example, to select the Channel menu from the Main menu:

1. Press MENU to bring up the Main menu.

2. Point to Channel by pressing the down arrow until the word

Channel is highlighted.

entering the iterq nuFiber with the

r,urqber buttor, s o1 tho remoto,

Press C[ EAR at any time to remove all

displays fore the sceen a_d return to IV

Maly \/CI: user maluals refer to a

PROGRAM button, The MENUoSEI ECI

button o_ this remote w!orks as a

PROGRAM button il VCR mode, Ihe rest

of this rna _ual refers to this button only as

MENU,

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de ProScan

ProScan

ProScan PS27410YX1AX Manual de usuario

ProScan

ProScan PS52690 Manual de usuario

ProScan

ProScan PLED3204A Manual de usuario

ProScan

ProScan PLDED5068A-D Manual de usuario

ProScan

ProScan PS27152FX1 Manual de usuario

ProScan

ProScan 32LC30S57 Manual de usuario

ProScan

ProScan PLED2694A Manual de usuario

ProScan

ProScan PS36700YX1CJ5 Manual de usuario

ProScan

ProScan 40LC45S Manual de usuario

ProScan

ProScan PLDED5066A Manual de usuario

ProScan

ProScan PLDED3996A-C2 Manual de usuario

ProScan

ProScan PLED4616A Manual de usuario

ProScan

ProScan Proscan PLDV321300 Manual de usuario

ProScan

ProScan PLCD3903A Manual de usuario

ProScan

ProScan PLCD5092A Manual de usuario

ProScan

ProScan PS35682 Manual de usuario

ProScan

ProScan PS60690 Manual de usuario

ProScan

ProScan PS35190 Manual de instrucciones

ProScan

ProScan PS32710YX1CJ5 Manual de usuario

ProScan

ProScan PLDEDV4018 Manual de usuario

ProScan

ProScan Monitor/Receiver Manual de usuario

ProScan

ProScan PLDED6535-UHD-D Manual de usuario

ProScan

ProScan PLED1526A-C Manual de usuario

ProScan

ProScan PLDED5515-B-UHD Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
