USER'S MANUAL

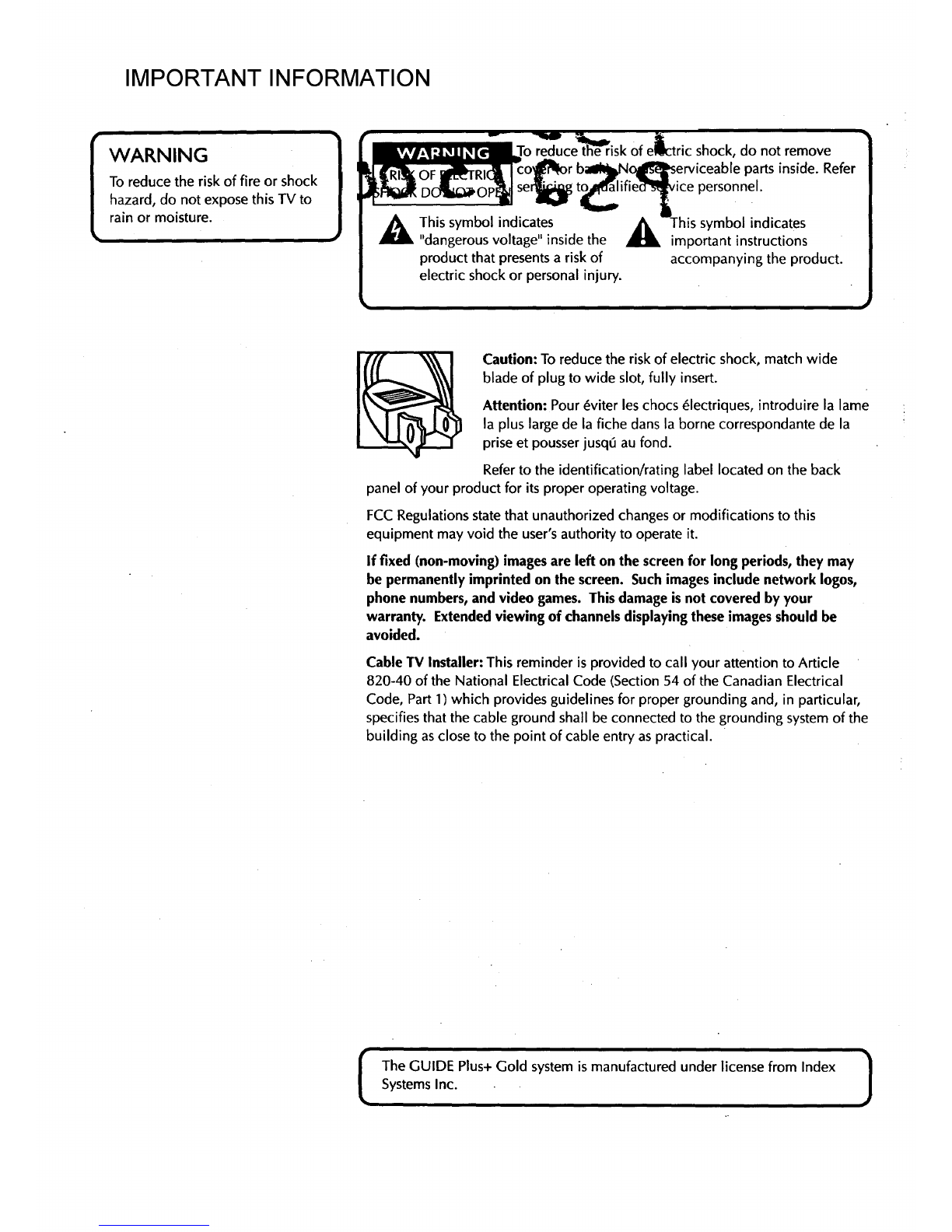

IMPORTANT INFORMATION

___To reduce tl_e risk of e_[ktric shock, do not remove

_o ._. r balll_o_l_erviceable parts inside. Refer

_ D_Op_ ser_ t_ifie_ice Pers°nnel.

l_k This symbol indicates A This symbol indicates

"dangerous voltage" inside the _ important instructions

product that presents a risk of accompanying the product.

electric shock or personal injury.

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot, fully insert.

Attention: Pour _viter les chocs _lectriques, introduire la lame

la plus large de la fiche dans la borne correspondante de la

prise et pousser jusq_ au fond.

Refer to the identification/rating label located on the back

panel of your product for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non-moving) imagesare left on the screenfor long periods, they may

be permanently imprinted on the screen. Suchimages include network Iogos,

phone numbers,and video games. This damage is not covered by your

warranty. Extendedviewing of channelsdisplaying these images should be

avoided.

Cable TV Installer: This reminder is provided to call your attention to Article

820-40 of the National Electrical Code (Section 54 of the Canadian Electrical

Code, Part 1) which provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the grounding system of the

building asclose to the point of cable entry as practical.

u i

I he GUIDE Plus+ Gold system is manufactured under license from Index 1

Systems Inc.

TABLE OF CONTENTS

SETUP AND CONNECTIONS ................... ............. .-........... 3

Step 1 : Unpack the TV ..................................................... 4

Step 2: Connecting your TV .................................. 2.......... 4

TV Only (PIP Not Available) ....................................... 4

The Basic connection (pip not available) .................... 5

Advanced Connections .............................................. 6

Step 3:Connecting the IR Controller ................................. 9

Attaching the IR Controllers ........................................ 9

Step 4: Plug in the -IV .................................................... 10

Step 5: Place batteries in remote .................................... 10

Step 6: Turn on the IV ................................................... 10

On-Screen Program Guide ....................................... 10

Step 7: Program the TV .................................................. 10

INTERACTIVE SETUP .......................................................... 11

Using Point and Select ................................................... 12

Entering Setup ................................................................ 12

Select a Language .......................................................... 13

Auto Channel Search ..................................................... 13

GUIDE Plus+ System ..................................................... 14

Set the Time ................................................................... 14

Set the VCR1 Channel (auto tuning) ............................... 15

Set the VCR2 Channel (auto tuning) ............................... 15

Set the DVD Channel (auto tuning) ................................ 16

Set the SAT/CABLE Channel (auto tuning) ....... ............... 17

Label the Channels ........................................................ 18

What Now? ................................................................... 18

Program the Remote ................................................. 18

USING THE REMOTE ................................................ .......... 19

Remote Buttons ........................................................ 20

Using the WHO.INPUT button ............................... 21

Programming the Remote .............................................. 22

Testing the remote .................................................... 22

Programming the remote .......................................... 22

Using the remote to control a device ........................ 23

Modes of Operation ................................................. 23

Front Panel .................................................................... 23

TABLE OF CONTENTS

FEATURES AND MENUS .................................................... 25

Menus and Control Panels ............................................. 26

Menus ........................................ .............................. 26

Control Panels .................. ................. ....................... 27

Audio Menu .................. ................................................ 28

Using the remote to select an audio processor ............... 29

Picture Quality Menu .................................................... 30

Screen Menu ................................................................. 31

Using Closed Captioning .......................................... 32

Channel Menu ............................................................... 33

Time Menu .................................................................... 34

Parental Controls Menu ................................................. 35

GUIDE Plus+ Menu ....................................................... 36

Setup Menu ................................................................... 36

PIP (Picture-in-Picture) Operation .................................. 37

Channel Marker ............................................................. 38

TROUBLESHOOTING ........................ ................................ 39

CARE AND CLEANING ..................................................... 40

PROSCAN TV LIMITED WARRANTY ........................... 41

ACCESSORY INFORMATION ......................................... 42

INDEX ....................................................................................... 45

SETUP AND CONN

GETTING STARTED

This manual isdesigned to get yo_

The first four sections of the

to get yourTV Setup and

Interactive Setup, Rem_

the Features and of yourTV.

The Reference secti_in the back

contains troubleshoot_ng_ps, care

instructions, accessory ordenn_ infoM

warranty. _

Well... ifyourTV's out of the box,

how

Jnthe -.

and use all_

book

cleaning

and your

started.

4 FEATURES MENUS

I Check out the notes that have been I

added throughout the manual in these J

TipBoxes.Therearesomeimportant

tips that will help yougetthemostfrom

your IV.

SETUP AND CONNECTIONS

STEPI: UNPACK THETV

Make sure to locate the remote control and your GUIDE Plus+ Booklet.

STEP2: CONNECTING YOUR "l"Y

There are three types of connections outlined in this section:

TV Only: If you're only going to connect the

TV to your home antenna or cable

system.

The BasicConnection: If you're going to connect the TV to a

VCR or satellite receiver.

Advanced Connections: If you're going to make multiple

connections, hooking up the TV to

one or two VCRs, DVD player, and a

satellite receiver.

Cable information and illustrations are given for each type of

connection. Once you have completed your desired connection you

may skip forward to Step 3.

rBefore You Connect

Protect against power surges:

• Connect all components before

plugging any power cords into the wall

outlet.

• Turn off the TV and/or component

before Connecting or disconnecting

any cables.

0 Make sure all antennas and cables are

properly grounded. Refer to your Safety

Tips sheet packed with your TV.

"1"%/ONLY (PIPNOT AVAILABLE)

This is a basic connection from an antenna or cable system to your TV.

Connect the cable into the Cable/Antenna jack asshown.

CABLES

You will use the following cable to make your connection:

Coaxial Cable: These cables carry audio and video

signal to the TV from an antenna, cable, or

cablebox.

CABLE, CABLE BOX, OR ANTENNA

Once you have completed this connection you may skip to Step 3.

This Connection Will Not Allow

You to Use PIP

Your TV is equipped with a single tuner

which means you must connect with a

second video source using Audio/Video

Cables. This TV Only connection will

not enable you to use your PIP,but will

get your TV up and running quickly.

Refer to Advanced Connections for

connecting Audio/Video cables to your

VCR or other video component.

YOUr TV May Differ •

Model P527500 does not have an

S-Video jack for INPUT2 nor external

peaker terminals. 1

SETUP AND CONNECTIONS-

THE BASIC CONNECTION (PIP NOT AVAILABLE)

The basic connection below (TV and VCR) is the most common

connection and istherefore used to illustrate a single component

connection with your TV. For better sound and picture quality and

multiple component connection information refer to the next section,

Advanced Connections.

CABLES

You will use the following cable to make your connection:

Coaxial Cables: These cables carry both the audio

and video signal to the TV from an antenna, cable,

or cablebox. In this connection, a second Coaxial

Cable carries the signal through the VCR to the TV.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

"Iv

OUT

VIDEO AUDIO

"%LoO

r'ol

IN FROM ANT CH3

OUT TOTV

fThis Connection Will Not Allow

You to Use PIP

Your TV is equipped with a single tuner

which means you must connect with a

second video source using Audio/Video

Cables. This Basic Connection will not

enable you to use your PIP,but will get

your TV up and running quickly.

Refer to Advanced Connections for

connecting Audio/Video cables to your

_VCR or other video component.

How ToVIEW THEVCR

To watch the VCR in this connection tune TV to

Channel 3 or 4.

Later, in the Interactive Setup section you will

program the TV to automatically tune to Channel 3

or 4 when you turn on the VCR.

Once you have completed this connection you may skip to Step 3,

"Connecting the IR Controller."

YourTV May Differ

Model PS27500 does not have an

S-Video jack for INPUT2 nor external

speaker terminals.

SETUP AND CONNECTIONS

ADVANCED CONNECTIONS

Advanced connections give you better sound and video by separating

the audio and video signals and enable you to connect multiple

components.

This section describes the types of inputs available on the back of your

TV and suggests ways you can usethem for optimum performance.

BACK OF THE TV

The diagrambelow describeseachofthebackpaneljacks.When

connectingA/V cables,be suretoconnectcorrespondingOUTPUTS

and INPUTS (VideotoVideo,RightAudio toRightAudio,etc.).

Input 1

Connect any of the following components:

• VCR • Internet Access Device

° Laserdisc Player ° DVD Player

° Satellite Receiver

To view the component connected to Input 1:

Use the WHO°INPUT button on the remote.

Input 2

Connect any of the following components:

• VCR •Internet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

S-Video

This optional

connection

can be used

for better

video quality

INPUT 1

To view the component connected to Input 2:

Use the WHO•INPUT button on the remote.

picture.

\VIDEO @

S-VIDEO

•/rSpeaker Jacks*

,-- /Use !o connect external , /

•Jspeakers ior surrouncl souna. /

'_ _ _._"-1 Make sure the Speaker |

VIDEO L---AU DIO--R S-VIDEO

_UDIO OUTPUT

/ ,.

VOR

CONTROl.

1 1

°c_ |cable box, or an off-air antenna. Can

[also be used for basic component ,,

connections.

S-Video* 1

This optional connection can

be used for better video

quality picture.

VCR Control

Connect Guide Plus+

controller for one-button

recording and channel

tuning from the Guide.

*Model PS27500 does not have these features.

SETUP AND CONNECTIONS

SAMPLE CONNECTIONS

The following are sample connection scenarios which you may

encounter when connecting components to your TV. Note: those

components which offer an S-Video connection, such as DVD, VCR or

Satellite Receivers, must match their S-Video connection with their

audio INPUT connection.

CABLES

You will usethe following cable to make your connection:

Coaxial Cables: Carries the signal from the

antenna or cable directly to the television or

through a cablebox, as needed by your cable

system.

Audio/Video Cables: Carries sound and video

from the component to the TV.

S-Video Cable: Carries video from an S-Video

capable component which provides best

picture quality.

TV AND STEREOVCR

CABLE,CABLE BOX, OR ANTENNA

Cautions:

Position cables to Avoid Audio Hum or

Interference

• Insert all cables firmly into jacks.

• Place the audio/video cables to the

sides of the TV's back panel instead of

straight down the middle.

• Try not to coil any twin-lead cables

and keep them away from the audio/

video cables.

Protect your componentsfrom

Overheating

• Do not block ventilation holes in any

of the components. Arrange the

components sothat air can circulate

freely.

• Do not stack components.

• Allow adequate ventilation when

placing your components in a stand.

• Place an amplifier on the top shelf of

the stand so heated air rising from it

will not flow around other

components.

VCR

,NFROMANTOH3

VIDEO R AUOtOL OUT TO lV

Compared to the Basic Connection, usingaudio, video and

S-Video (if available) cables will enhance the sound and picture quality

from a component.

How ToVIEwYouRVCR

To watch the VCR in this connection, press TV to put the

remote control into TV mode, then press WHO• INPUT to

scroll through the video input channels until you tune to

VlD1 input.

In the Interactive Setup section you can program the TV

to automatically tune to the VlD1 input channel when

you turn on the VCR.

Most Audio/Video cables are combined •

into one cable with three heads on each

end.

We show individual

cables in these

sample __}

connections. Either

may be used, but you _,_ffAud_€,__l:E_,)

must be sure to connect

Video to Video, Right to Right and Left to

Left:

• •

SETUP AND CONNECTIONS

TV,VCR AND SATELLITERECEIVER

CABLE, CABLE BOX, OR ANTENNA

SATELLITE RECEIVER

VCR

How TO VIEW YOUR COHPONENTS

To watch the Satellite Receiver in this connection,

pressTV to put the remote control into TV mode, then

pressWHO.INPUT to scroll through the video input

channels until you tune to VID1 ( or S-VID 1) input.

To watch the VCR in this connection, press TV to put

the remote control into TV mode, then press

WHO*INPUT to scroll through the video input

channels until you tune to VlD2 ( or S-VID 2) input.

In the Interactive Setup you can program the TV to

automatically tune to correct input channel when you

turn on your component,

TV,VCR, SATELLITE RECEIVERAND DVD

CABLE, CABLE BOX, OR ANTENNA SATELUTE SIGNAL

SATELLITE RECEIVER

VCR

How ToVIEWYOUR COI'IPONENTS

Towatch the Satellite Receiver in this connection, press

TV to put the remote control into TV mode, then press

WHO.INPUT to scroll through the video input

channels until you tune to VlD1 ( or S-VlD 1) input.

To watch the VCR in this connection tune to Channel 3

or 4.

Towatch the DVD player in this connection, press TV

to put the remote control into TV mode, then press

WHO.INPUT to scroll through the video input

channels until you tune to VID2 ( or S-VID 2) input.

In the Interactive Setup you can program the TV to

automatically tune to the correct input channel when

you turn on your component.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de ProScan

ProScan

ProScan PS36700YX1CJ5 Manual de usuario

ProScan

ProScan PS61670 Manual de usuario

ProScan

ProScan Monitor/Receiver Manual de usuario

ProScan

ProScan PS32710YX1CJ5 Manual de usuario

ProScan

ProScan PS36605YX4CK2 Manual de usuario

ProScan

ProScan 32LC30S57 Manual de usuario

ProScan

ProScan PS3109YX1CH2 Manual de usuario

ProScan

ProScan PS50710 Manual de usuario

ProScan

ProScan PLDED5515-B-UHD Manual de usuario

ProScan

ProScan PS27410YX1AX Manual de usuario

ProScan

ProScan PS32510YX1CM2 Manual de usuario

ProScan

ProScan PLEDV2213A-F Manual de usuario

ProScan

ProScan PLDED3281 Manual de usuario

ProScan

ProScan PLDED3273A Manual de usuario

ProScan

ProScan PLED1960A-E Manual de usuario

ProScan

ProScan PS27600YX1AL4 Manual de usuario

ProScan

ProScan PLDED5068A-D Manual de usuario

ProScan

ProScan PLED4274A-B Manual de usuario

ProScan

ProScan PLED2243A-C Manual de usuario

ProScan

ProScan PLDEDV3285 Manual de usuario

ProScan

ProScan PS32130 Manual de usuario

ProScan

ProScan 32LC30S60 Manual de usuario

ProScan

ProScan PLDED3257A-B Manual de usuario

ProScan

ProScan 37LC30S57 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
