ProScan PLDED5066A Manual de usuario

Model: LDED5066A-BP

EP4008554

CONTENTS

SAFETY

PRECAUTION

ACCESSORIES

CONTROL

REFERENCE

GUIDE

WALL MOUNT

INSTALLATION

INITIAL SETUP

TV SETUP

CONNECTIONS

Remote Control

Front View

Back View

Antenna Connection

AV Connection

Y Pb Pr Connection

HDMI Connection

VGA Connection

Headphone Connection

Power Cord Connection

Coax(SPDIF) Connection

Putting The Unit On A Proper Place

Turning The Unit On For The First Time

Source selection

Picture Menu

Audio Menu

Time Menu

Setup Menu

LOCK(Parental) Menu

TV(CHANNEL) Menu

Zoom Function

English

GETTING

STARTED

CONTENTS

DISPLAY

MODE

SPECIFICATION

TROUBLE-

SHOOTING

GUIDE

PC Formats

Video Formats

TV Symptom

SAFETY CLASS : This is an IEC safety class ǁ product.

Caution marking is located at the rear of the apparatus.

The marking information is located at the rear of apparatus.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or

the like.

Le marquage est situé sur le paneau arrière de l’unité.

L'appareil ne doit pas être exposé aux écoulements ou aux éclaboussures et aucun objet ne contenant de liquide,

tel qu'un vase,ne doit être placé sur l'objet.

La prise du secteur est utilisé pour déconnecter le système. La prise du secteur ne doit pas être obstruée ou doit

être facilement accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée,

la prise doit être débranchée du secteur.

Des pressions acoustiques excessives provenant découteurs ou de casques peuvent provoquer des pertes de

l’auditon.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu'à la lumière du soleil, au feu ou autres choses de

semblable.

WARNING:Excessive sound pressure from earphones and headphones can cause hearing loss.

WARNING SHOCK HAZARD.DO NOT OPEN.

AVIS:RISOU DE CHOC ELECTRIQUE-NEPAS OUVRIR.

SAFETY PRECAUTION

ACCESSORIES

Please check and identify the supplied accessories.

.....................................................................................................................

................................................................................................................

...........................................................................................................

GETTING STARTED

USING THE REMOTE CONTROL

BATTERY REPLACEMENT

CAUTION : Danger of explosion if battery is incorrectly replaced.

NOTES

WARNING :

x 2

x 1

Remote control ..................................................................................................................

Remote control

Battery(AAA)

Warranty Card

Instruction Manual

·Point the remote control at the remote sensor located on the unit.

·When there is a strong ambient light source, the performance of the infrared remote sensor

·may be degraded, causing unreliable operation.

·The recommended effective distance for remote operation is about 16 feet (5 meters).

When the batteries become weak, the operating distance of the remote control is greatly

reduced and you will need to replace the batteries.

·If the remote control is not going to be used for a long time, remove the batteries to avoid

damage caused by battery leakage corrosion.

·Do not mix old and new batteries. Do not mix ALKALINE, standard (CARBON-ZINC) or

rechargeable (NICKEL-CADMIUM) batteries.

·Always remove batteries as soon as they become weak.

·Weak batteries can leak and severely damage the remote control.

Do not dispose batteries in a fire. Batteries may explode or leak.

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

Base stand and 5 screws ........................................................................................... x 1

Screw driver ................................................................................................................ x 1

CONTROL REFERENCE GUIDE

REMOTE CONTROL

1.STANDBY

To switch on the TV or make the TV into

standby mode.

2.MUTE

Press this button to mute or restore sound.

12.INFO

Show the information of the program you are watching.

9.SOURCE

Press this button to select an input source.

5.PMODE

Press this button to select a picture mode for different

picture qualities.

6.SMODE

Press this button to select sound setting for different

sound effects.

3.0-9

Allows you to change the channel of the TV.

Switches back and forth between the current and

previous channels.

8.SLEEP

To select the amount of time before your TV turns

Off automatically.

10.VOL+/VOL-

Increases/Decreases the Volume control.

11.CH+/CH-

Skips to the next/previous channel on TV mode.

17.UP/DOWN/LEFT/RIGHT

Moves the cursor upward/downward/to the left/to the right

when making a selection.

18.MENU

Displays the OSD Menu of the TV.

21.No function.

7.MTS

To change among STEREO, MONO and SAP. If there is no

second language available for the signal received, LCD

Display audio will output to mono.

20.ENTER

Press to confirm selections on a menu screen.

19.Exit

Press this button to exit the on screen display.

13.EPG

Press this button to select the electronic programme

guide in DTV mode.

23. FAV

Press this button to show the favourite list.

24. FAV+/FAV-

Press this button to go through the FAV channel list.

14. CH.LIST

Display program list.

15. AUTO

Press to do auto configuration directly(PC MODE).

16. ASPECT

Select the aspect ratio settings:Wide/Zoom/Cinema/

Normal( ).In PC Mode:Wide/dot to dot

22.CC

Press the button to enter into the CC mode.

PMODE SMODE MTS SLEEP

SOURCE INFO

VOL CH

EPG

CH.LIST

AUTO

ASPECT

EXIT ENTER

CC FAV FAV+ FAV-

CONTROL REFERENCE GUIDE

BACK VIEW

FRONT VIEW

1.Color Screen

2.Standby Indicator

Indicates whether the unit is ON

or in STANDBY (OFF) mode.

Light in red: The unit is in STANDBY.

Light in blue:The unit is turned ON.

3.Remote Sensor

Do not block this sensor or the

remote control will not work.

4. Speakers

1.Power cord

2.HDMI IN Jack

3.PC AUDIO IN Jack

4.VGA IN Jack

5.Coax OUT Jack

6.TV ANTENNA Terminal

7.AV (VIDEO/ AUDIO R/L) IN

8.COMPONENT IN Jack

9.Service Port

10.Headphone Jack

244 1

SERVICE PORT

YPRPB R

LAUDIO

RF EARPHONE

VIDEO AV IN

VGAPC AUDIO

HDMI2HDMI1 HDMI3

CONTROL REFERENCE GUIDE

VOL-

VOL+CH-

CH+MENU SOURCE

STANDBY

Press to select the input source of the TV.

2. VOL+ Button

3. VOL- Button

4. CH+ Button

5. CH- Button

6. MENU Button

7. SOURCE Button

1. STANDBY Button

CONNECTIONS

CONNECTING A TV ANTENNA / CABLE / SATELLITE

To view television channels correctly, a signal must

be received from one of the following sources:

- An indoor or outdoor aerial antenna

- A cable system

- A satellite system

For receiving over-the-air TV broadcasts, we

recommend that you use an external fixed antenna.

Should you require the use of a temporary antenna,

please ensure that you purchase an antenna with

sufficient ability to receive in weak signal areas.

Only when you are in close proximity to a transmitter

will a temporary antenna reproduce a signal as

strongly as a fixed antenna.

To connect to other equipment such as a VCR, camcorder, satellite system or cable, etc.

CONNECTING AN A/V DEVICE

NOTE

CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE)

VIDEO OUTPUT

Connecting to a VCR / Video Game System / Camcorder

AUDIO VIDEO OUT

NOTE

To connect A/V devices such as a VCR, video game system or camcorder.

Connect the AUDIO / VIDEO cable (not included) as shown.

Make sure you connect the cable from the other equipment ( and ) to this unit

Please refer to the user manual

for the other equipment for

more information.

Satellite, cable or TV antenna

cable to TV ANTENNA

terminal (cable not included)

(AV in)

To AUDIO / VIDEO IN jacks

To AUDIO / VIDEO

OUT jacks

PbY Pr L R

CONNECTIONS

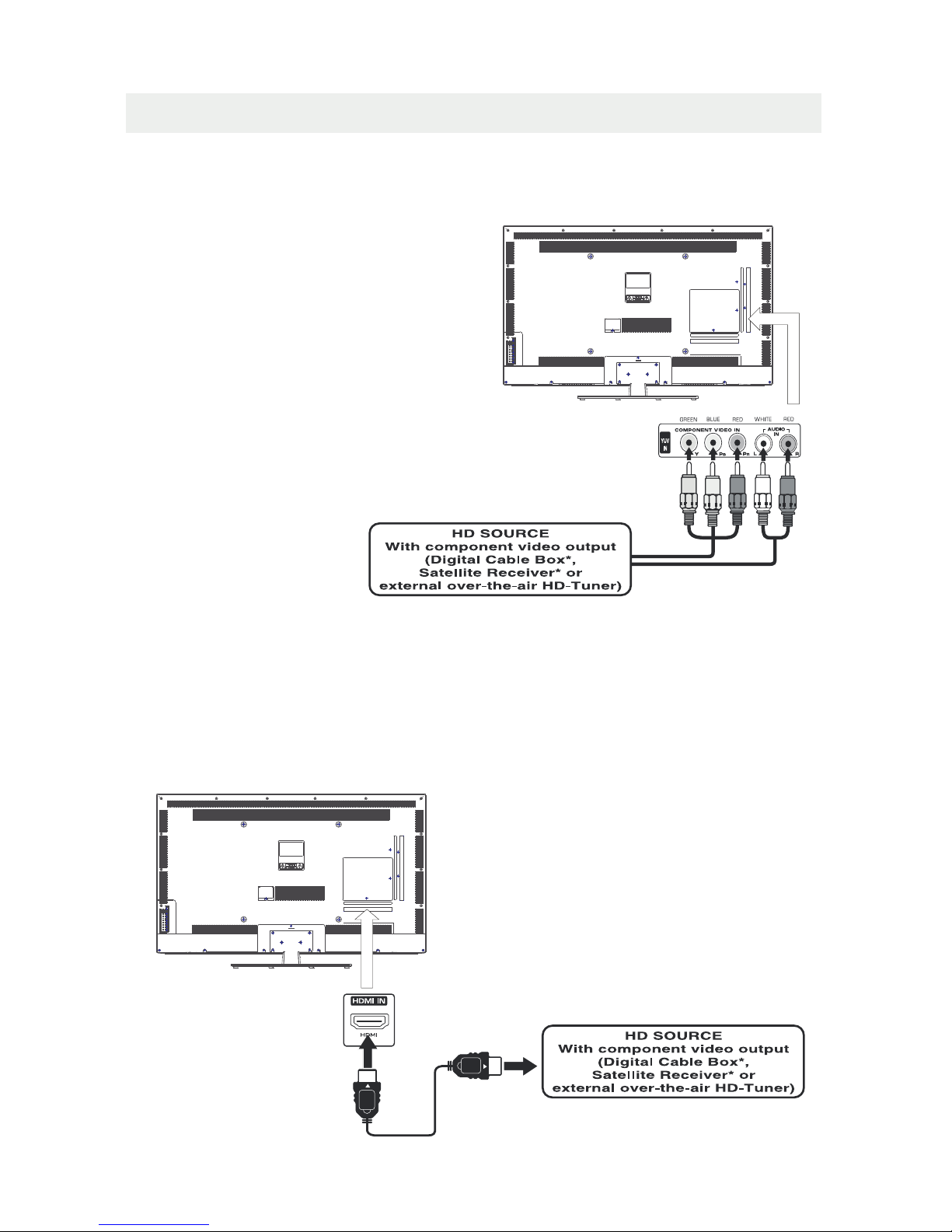

CONNECTING A HIGH-DEFINITION (HD) SOURCE USING CONNECTION

NOTE

COMPONENT

High-Definition (HD) Devices with component video output must be connected to the Y input.

Connect the component video cable and audio cable (not included) as shown.

Make sure you connect the component video cable and audio cable from the other equipment

When connecting a DVD player to the television,

the picture resolution is solely dependent upon

the resolution supported by the DVD player attached.

DVD player resolutions vary from 480i to 1080p.

and this television can support DVD players up to

a maximum resolution of 1080p.

PbPr

* May require a subscription

for receiving HD channels,

check with your cable/satellite

service provider for details.

To COMPONENT

VIDEO OUT jacks

CONNECTING A HIGH-DEFINITION (HD) SOURCE USING HDMI CONNECTION

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection

for use with DVD players, DTV, set-topboxes and other digital AV devices. HDMI was developed to provide

the technologies of High Bandwidth Digital Content Protection (HDCP) as well asDigital Visual Interface

(DVI) in one specification. HDCP is used to protect digital content transmitted and received by

DVI-compliant or HDMIcompliant displays.

HDMI has the capability to support standard, enhanced or high-definition video plus standard to

multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of

up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and

connectors), and communication between the AV source and AV devices such as DTVs.

To HDMI

IN jack To HDMI

jackOUT

To COMPONENT

VIDEO IN jacks

To COMPONENT AUDIO

OUT jacks

Connect the HDMI cable (not included) as

shown:

Make sure you connect the cable from the

source equipment ( ) to this unit

( ).

HDMI OUT

HDMI IN

HDMI CABLE

(NOT INCLUDED)

（COMPONENT OUT and AUDIO OUT）to the unit COMPONENT IN.

COMPONENT IN

AUDIO IN jacks

To COMPONENT
