Prorack EXP360 Manual de usuario

Page 1 of 6EXP360U-Rev4.0

Roof Box 360 L

First Time Installation

• Please read instructions carefully before installation.

• Check the contents of kit. Contact your Prorack dealer if any parts appear to be missing or damaged.

• Clean your roof racks prior to ﬁtting the roof box.

Important Warning

• It is critical that all Prorack racks and accessories be properly and securely attached to your vehicle. Improper

attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others.

• You are responsible for securing the racks and accessories to your car, checking the attachments prior to use, and

periodically inspecting the products for adjustment, wear, and damage.

• If you do not understand all of the instructions and cautions, or if you have no mechanical experience and are not

thoroughly familiar with the installation procedures, you should have the product installed by a professional installer

such as a roof rack specialist.

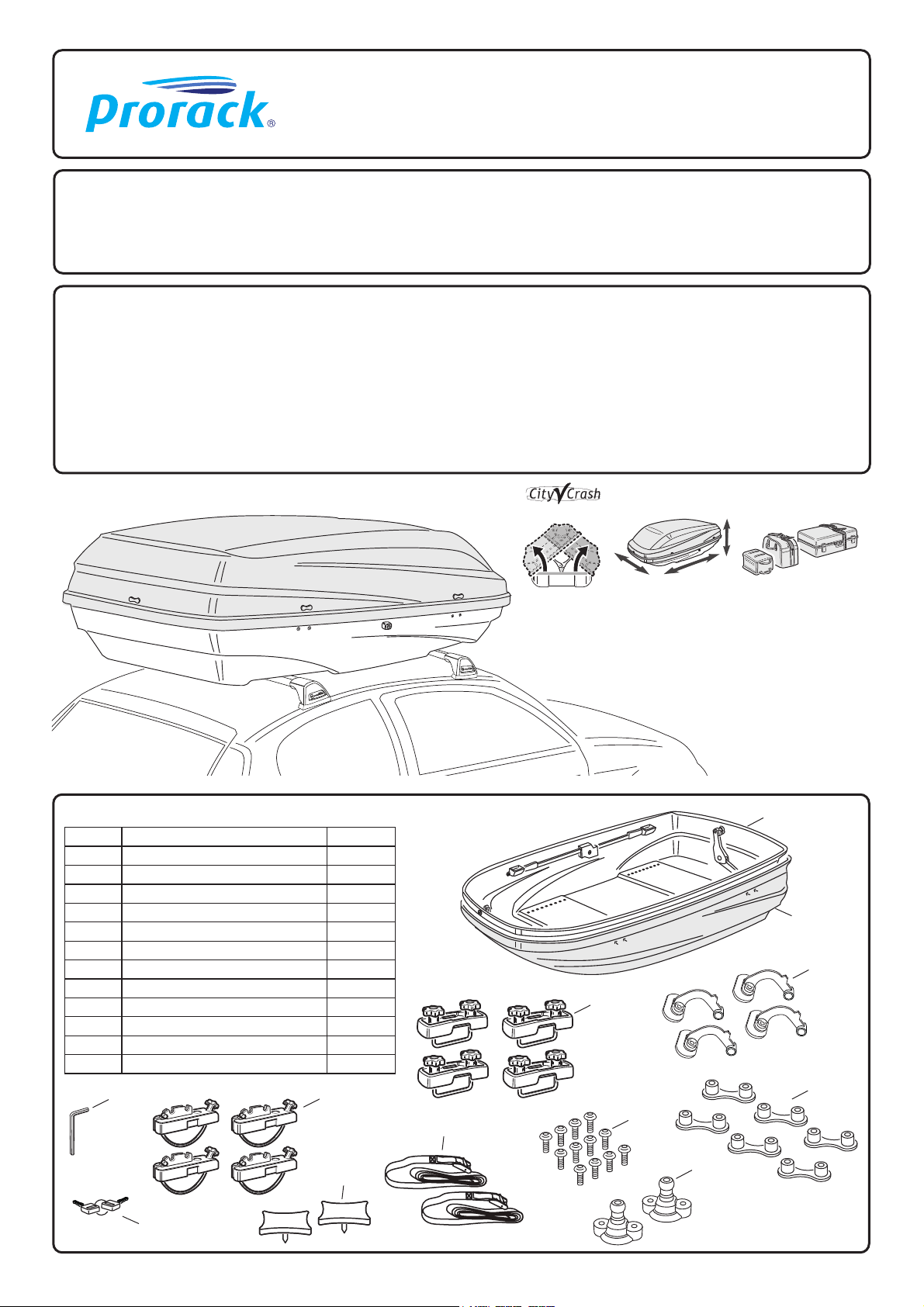

Kit Contents

Item Component Qty

A Roof Box Base 1

B Roof Box Lid 1

CLatchClamp 4

DNutPlate 6

ELidLifterPivot 2

FCapscrew 12

GLuggageStrap 2

H Fitting Kit 1 (SP166) 1

I Fitting Kit 2 (SP167) 1

J Allen Key 2.5 mm 1

KKeySet 1

LHolePunch 2

OPENS

EITHER SIDE

MAX WEIGHT:

50 KG

LENGTH: 145 CM

WIDTH: 85 CM

HEIGHT: 44 CM

WEIGHT: 10.4 KG

EXP360U

Page 2 of 6EXP360U-Rev4.0

MAX. 75 kg

MAX.

10.4 kg

MIN. = 570 mm

MAX. = 840 mm

OK NO

OK NO NO

1Remove Roof Box Base (A) from Roof Box Lid (B)

Page 3 of 6EXP360U-Rev4.0

2Attach Latch Clamps to Roof Box Lid sides

3Attach Lid Lifter Pivots to Roof Box Lid front and rear

4Place Roof Box Lid (B) on Roof Box Base (A)

LEFT side

RIGHT side

2.5 mm

Page 4 of 6EXP360U-Rev4.0

5Attach Lid Lifters to Roof Box Lid

6Your assembled Roof Box is now ready to be fitted

Continue on Step 7 to install Prorack 360 L Roof Box to your Roof Racks

Page 5 of 6EXP360U-Rev4.0

Fitting Kit 1 (SP166)

Use for Standard Bar

20 - 60 mm

MAX .

45 mm

4 Nm

67 - 90 mm

33 mm

34 - 66 mm

67 - 90 mm

33 mm

4 Nm

Fitting Kit 2 (SP167)

Use for Aero or Heavy Duty

Securing luggage

SP166

SP167

ABC

VALID FOR MODEL WITH:

Page 6 of 6EXP360U-Rev4.0

Securing skis with luggage

SP166

SP167

SP166

SP167

CD E

D E

MAX.

RE-CHECK

MAX.

Roof Box Care:

• Use a clean soft cloth. Wash with mild soap and water. Polish

with automotive type wax and UV protectant to prevent

colour fade.

• Periodically check the knobs inside the roof box and tighten

if necessary. Attachment hardware can loosen over time.

Check and tighten if necessary, before each use.

• Be sure all hardware is secured according to instructions.

Failure to perform safety checks before driving away can

result in property damage, personal injury.

Care and Maintenance

Lock Maintenance:

• Spray a small amount of lubricant into lock mechanism once

a month.

If Your Vehicle Has A Rear Hatch:

• On some vehicles, hatch interference is unavoidable.

Use caution when opening your hatch.

Caution

Automatic Car Washes:

• Do not enter car wash with roof box installed on

vehicle.

Prorack

17 Hinkler Court, Brendale

QLD 4500, Australia

Freephone

AU: 1800 143 548 www.prorack.com.au

NZ: 0800 4776 722 www.prorack.co.nz
