PROPOINT 9113911 Manual de usuario
V1.0 9113911
Please read and understand all instructions before use. Retain this manual for future reference.

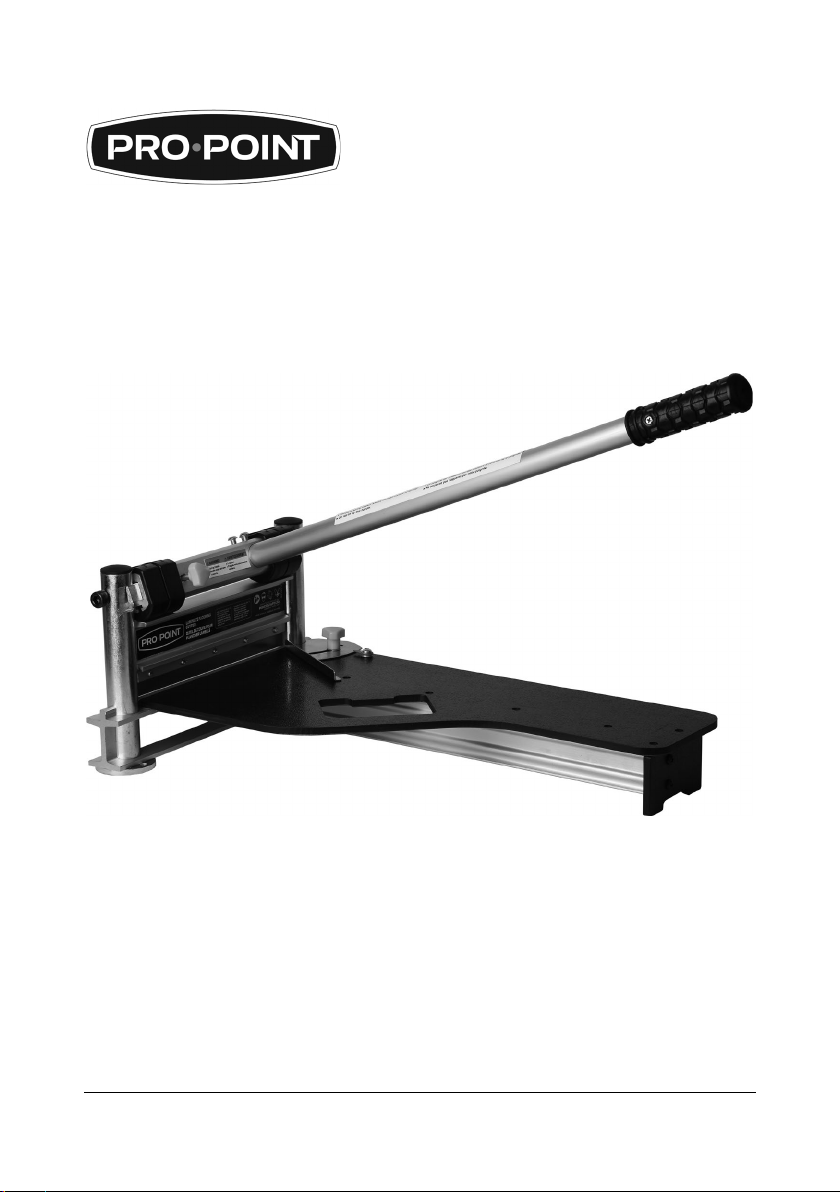

LAMINATE
FLOOR CUTTER
9113911 9 in. Laminate Floor Cutter V1.0
2 For technical questions call 1-800-665-8685
SPECIFICATIONS
Blade Material High-speed steel
Blade Size 9-7/16L x 1-1/8W in.
Blade Finish High-temperature quenching
Handle Type Round
Handle Material 6061 Aluminum
Handle Length 23-5/8 in.
Overall Dimensions 24-1/2L x 13W in.
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this manual.
A notice is an alert that there is a possibility of property damage, injury
or death if certain instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard that
will result in severe personal injury or death if the proper
precautions are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice
that could result in severe personal injury or death if the
proper precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that
may result in minor or moderate injury if proper practices are
not taken.
NOTICE! This notice indicates that a specific hazard or unsafe
practice will result in equipment or property damage, but
not personal injury.
V1.0 9 in. Laminate Floor Cutter 9113911
Visit www.princessauto.com for more information 3
INTRODUCTION
Cleanly cut a variety of flooring materials with this professional-grade
flooring cutter. It features a large 9-7/16L x 1-1/8W in., high-speed steel
blade that creates precision cuts and a strong, lightweight
aluminum handle.
SAFETY
WARNING! Read and understand all instructions before using this
tool. The operator must follow basic precautions to reduce the
risk of personal injury and/or damage to the equipment.
WARNING! Do not alter or misuse this tool. The 9 in. Laminate
Cutter is precision built. Modifications not specificed in this
manual may result in dangerous condition.
Keep this manual for safety warnings, precautions, operating or
inspection and maintenance instructions.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean,
well-lit and free of distractions. Place lights so you are not working
in a shadow.
2. Keep children, unauthorized persons or anyone not wearing the
appropriate safety equipment away from the work area.
3. Store unused tools properly in a safe and dry location to prevent
rust or damage. Lock tools away and keep out of the reach of
children.
4. Operate only on a secure, balanced surface capable of handling
the tool and the workpiece.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the
Canadian Standards Association (CSA) or American National
Standards Institute (ANSI).
WARNING! Flying debris can cause permanent eye damage.
Prescription eyeglasses are not a replacement for proper
eye protection.
9113911 9 in. Laminate Floor Cutter V1.0
4 For technical questions call 1-800-665-8685
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side
protection for the eyes. Eye protection equipment should comply
with CSA Z94.3-07 or ANSI Z87.1 standards based on the type of
work performed.
2. Wear the appropriate type of full-face shield in addition to safety
googles, as the work can create chips, abrasive or particulate matter.
3. Wear gloves that provide protection based on the work materials or
to reduce the effects of tool vibration.
4. Wear protective clothing designed for the work environment
and tool.
5. Non-skid footwear is recommended to maintain footing and
balance in the work environment.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid
personal injury or damage to the tool.
1. Do not operate any tool when tired or under the influence of drugs,
alcohol or medications.
2. Avoid wearing clothes or jewelry that can become entangled with
the moving parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating a tool. Proper footing and
balance enables better control in unexpected situations.
4. Keep hands and fingers away from work area. Any part of body
coming in contact with moving parts could cause injury.
SPECIFIC SAFETY PRECAUTIONS
WARNING! DO NOT let comfort or familiarity with product (gained
from repeated use) replace strict adherence to the tool safety rules.
If you use this tool unsafely or incorrectly, you can suffer serious
personal injury.
WARNING! The dust generated by the cutting of certain woods,
wood fibres and/or PVC products can be harmful to your health.
1. Use the correct tool for the job. This tool was designed for a
specific function. Do not modify or alter this tool or use it for an
unintended purpose.
V1.0 9 in. Laminate Floor Cutter 9113911
Visit www.princessauto.com for more information 7
4. Make sure the angle gauge (B) is set to the desired angle and that
the workpiece is flush.
5. Hold the workpiece steady with one of your feet.
6. Depress the handle fully to lower the blade and complete the cut.
7. Slowly raise the handle to lift the blade.
7.1 Do not release the handle while depressed. This will cause the
handle to slam upwards and may damage the tool.
8. Remove the workpiece from the opening.
CUTTING GUIDE
This tool cuts a wide variety of products up to a maximum width of 9 in.
It includes a miter guide for angled cuts from 0 to 45°.
Use this guide for recommended products and thicknesses.
MATERIAL
MAX. CUTTING THICKNESS
Fibre cement siding 5/16 in. (8 mm)
LVP, LVT, SPC and WPC 5/16 in. (8 mm)
Laminate flooring 15/32 in. (12 mm)
Engineered wood flooring 15/32 in. (12 mm)
Vinyl siding 15/32 in. (12 mm)
Vinyl tile (VCT) 19/32 in. (15 mm)
MDF and soft plastic 19/32 in. (15 mm)
CARE & MAINTENANCE
1. Maintain the tool with care. A tool in good condition is efficient,
easier to control and will have fewer problems.
2. Inspect the tool components periodically. Repair or replace
damaged or worn components. Only use identical replacement parts
when servicing.
3. Follow instructions for lubricating and changing accessories.
4. Only use accessories intended for use with this tool.
5. Keep the tool clean, dry and free from oil/grease at all times.
9113911 9 in. Laminate Floor Cutter V1.0
10 For technical questions call 1-800-665-8685
PARTS BREAKDOWN
