ProMinent MultiFLEX M10 Manual de usuario

multiFLEX

M10 and M5

User Manual

M714_User_Master.doc

Updated Aug. 25, 2015 2

M714_User_Master.doc

Updated Aug. 25, 2015 3

CONTENTS

Safety

1. STANDARD OPERATIONS 4

1.1 What’s Happening Now

1.2 Checking & Clearing Alarms

1.3 Checking & Changing Setpoints

1.4 Calibrating Sensors

1.5 Changing Biocide Timing

1.6 Adjusting % Feeds

1.7 Userid - Passwords

2. ADDITIONAL OPERATIONS 16

2.1 Setting Biocide Prebleed-Lockout

2.2 Adjusting Boiler Blowdown Timing

2.3 Sensor Diagnostics

2.4 Control Diagnostics

2.5 System Diagnostics

3. START UP PROCEDURE 28

3.1 Read this first!

3.2 Connect Sensors

3.3 Connect Pumps, Valves, Solenoids

3.4 Verify controls

3.5 Setting Sensor Alarms

3.6 Setting Output Alarms

3.7 Verify Interlocks

3.8 Verify Blocking Relays

3.9 Selecting Special Controls

3.10 Modifying Variable Cycles

3.11 Modifying Feed Verification

3.12 Modifying Time & Date

4. ADDITIONAL INFORMATION 46

4.1 Spare Parts

4.2 Technical Support

4.3 Specifications

4.4 Keypad Navigator

4.5 Revision Log

M714_User_Master.doc

Updated Aug. 25, 2015 4

Saftey

Electrical Shock Hazard

CAUTION: The operator of this instrument is advised that if the equipment is used in a

manner not specified in this manual, the protection provided by the equipment may be

impaired.

Opening the controller enclosure with the controller plugged in, exposes the user

to AC line voltages on the lower of the two controller circuit boards.

Ground the controller AC power to the ground screw labeled and located on

the bottom, right of the aluminum backplate.

External, 120VAC plug boxes are provided with controllers installed in North

America External plug boxes are grounded to the ground screw labeled

located on the bottom, center of the aluminum backplate.

USER WARNING : CAUTION

Water Treatment Controllers operate steam and water valves and may pump

hazardous, corrosive and toxic chemicals. Opening the controller enclosure

exposes user to the risk of electrical shock at power line voltages.

Understand fully the implications of the control setpoints, interlocks and alarms

that you select. Harm to personnel and damage to equipment may result from

mis-application.

Unplug or turn OFF the AC power to the controller if you have any concerns

regarding safety or incorrect controller operation and notify supervisory staff.

YOUR CONTROLLER

Controllers are supplied in many different configurations.

The HELP section in the back of this manual contains the information for

terminating the sensors supplied with your specific controller.

The HELP section in the back of this manual depicts the installation plumbing

header showing the sensor set supplied with your specific controller.

M714_User_Master.doc

Updated Aug. 25, 2015 5

1.1 What’s Happening Now

Power UP, first display, current date

Key ENTER for System menu

Key DOWN & enter to clear all alarms

And to view detail on Sensor ‘D’, Relay ‘2’ and

‘Sys’tem Alarms

Sensors and the relays they control are grouped

Key ENTER on sensor for sensor ‘O’ menu

& ENTER on the relay ‘1’ relay menu

Sensor ‘E’ menu: Diagnostics | Alarms | Calibrate |

Configure

Relay ‘2’ menu: Diagnostics | Configure |

Alarms | Timed Events | Setup

The display line with the ENTER arrow

Displays Relay ‘9’ menu on ENTER

Sampling timing is adjusted by keying ENTER, DOWN

to Configure & ENTER

Sensor display current value

Relays sown ON/OFF state and run time if ON

Water meters show volume from midnight

Flowswitch ‘T’ is ON and has been on for 560.2

minutes from midnight

Biocide B pump is controlled by Relay #8

and is now OFF:

System:2003-10-03

S/N: M0389001

Alarms: 16:38:11

D G 2 Sys

Tower Make-up O

12800 Gal

Inhibitor Feed 1

OFF:

Tower Conduct'y E

1246 uS

Tower 1 Bleed 2

ON: 18.6min

Blr 2 Conduct'y F

5240 uS

B2 B'down Valve 9

ON: 0.4min

Corrosion Rate D

1.45 mpy

Tower Bleed meter Q

34000 Gal

Flowswitch 1 T

ON: 560.2min

Biocide B 8

OFF:

M714_User_Master.doc

Updated Aug. 25, 2015 6

1.2 Checking & Clearing Alarms 1 of 3

CHECK ALARMS

Power UP, first display

Key DOWN to Alarms & ENTER

to view detail on Sensors ‘C’ ,‘K’ & Relay ‘3’

& to clear alarms

Key DOWN to view active alarms

& ENTER

Display on no active alarms

Scroll down to view all active alarms

Name of alarming Sensor

Alarm type: pH Sensor value above High alarm for a

user set time.

Name of alarming Water Meter

Alarm type: Low alarm checked at midnight

High meter alarm trip immediately

Name of Output control alarming

Alarm type: Feed limit timer turns OFF Pump

Day Timer may be set to limit on time/day

System:2003-10-03

S/N: M0389001

Alarms: 16:38:11

C K 3

Alarms:

Clear Alarms

Alarms

Alarms:

Alarms..............

No Active Alarms

Alarms:

Alarms..............

pH Sensor

Alarmed High

Alarms:

Alarms..............

Water Meter O

Alarmed Low

Alarms:

Alarms..............

Acid Pump

Limited, ON timer

or to exit

M714_User_Master.doc

Updated Aug. 25, 2015 7

1.2 Checking & Clearing Alarms 2 of 3

CLEAR ALARMS

Power UP, first display

Key ENTER

to view detail on Sensors ‘C’ ,‘K’ & Relay ‘3’

& to clear alarms

Key ENTER to Clear Alarms

Clear Alarms:

Resets only all active alarms

If you wish to end biocide events.

Prebleeds or lockouts.

OR restart special controls:

Clear the target relay alarm.

See page 3 of 3.

Information only display

EXIT key escapes

Internet HELP reference for more detail

Refer to Technical Support.

System:2003-10-03

S/N: M0389001

Alarms: 16:38:11

C K 3

Alarms:

Clear Alarms

Alarms

Alarms:

Clear Alarms.........

Clear All Alarms

YES

Alarms

Alarms Cleared

Key to Exit

iNet HELP# 0700

M714_User_Master.doc

Updated Aug. 25, 2015 8

1.2 Checking & Clearing Alarms 3 of 3

RESET RELAY USING CLEAR ALARMS

Key UP or DOWN to the output relay

& key ENTER

Any relay can be reset

This example is a Biocide pump with 16.6 minutes

of ON time remaining

Key DOWN to Alarms & ENTER

Key DOWN to ‘Reset Alarm & Time & ENTER

Relay 4 will turn OFF

Biocide feeds and prebleeds will end

If this relay is timing a biocide lockout, it will end

Special controls like Bleed & Feed, % Time

or Boiler Captured Sample controls will restart.

After you key ENTER you see the value of the relay

feed limit timer.

Key EXIT twice

& you’ll see that Relay 4 is now OFF

Relays don’t need to be ON to be reset

You may wish to restart special control

Or end the lockout of a bleed relay

Biocide A 4

ON:owes 16.6

Biocide B 5

OFF: No Control

Biocide A 4

Diagnostics

Configure

Alarms

Biocide A 4

Alarms..............

Reset Alarm & Time

YES

Biocide A 4

Alarms ............

Minutes/Actuation

120.0 minutes

Biocide A 4

OFF: No Control

Biocide B 5

OFF: No Control

then

to exitand

M714_User_Master.doc

Updated Aug. 25, 2015 9

1.3 Checking & Changing Setpoints

Key UP or DOWN to the output relay

& key ENTER

Relays follow the controlling sensor

Key DOWN to Configure & ENTER

Key DOWN to ‘Turn ON’ & ENTER

Select ‘Measure Volume’ for water meter controls.

Current setpoint is 1000uS

Use the UP & DOWN keys to adjust the setpoint

RIGHT moves the cursor across the screen

EXIT abandons adjusting the setpoint

You can adjust ON or OFF setpoints or both

Key ENTER to adjust or UP – DOWN to view current

settings

Turn OFF > Turn ON not allowed with a Rising

Setpoint control

Tower Conduct'vty E

986 uS

Bleed Valve 2

OFF: Setpoints

Bleed Valve 2

Diagnostics

Configure

Alarms

Bleed Valve 2

Configure...........

Turn ON

1000 uS

Editing Value

Turn ON ............

1150 uS

Executes, Exits

Bleed Valve 2

Configure...........

Turn OFF

980 uS

Editing Value

Turn OFF............

1130 uS

Executes, Exits

then

M714_User_Master.doc

Updated Aug. 25, 2015 10

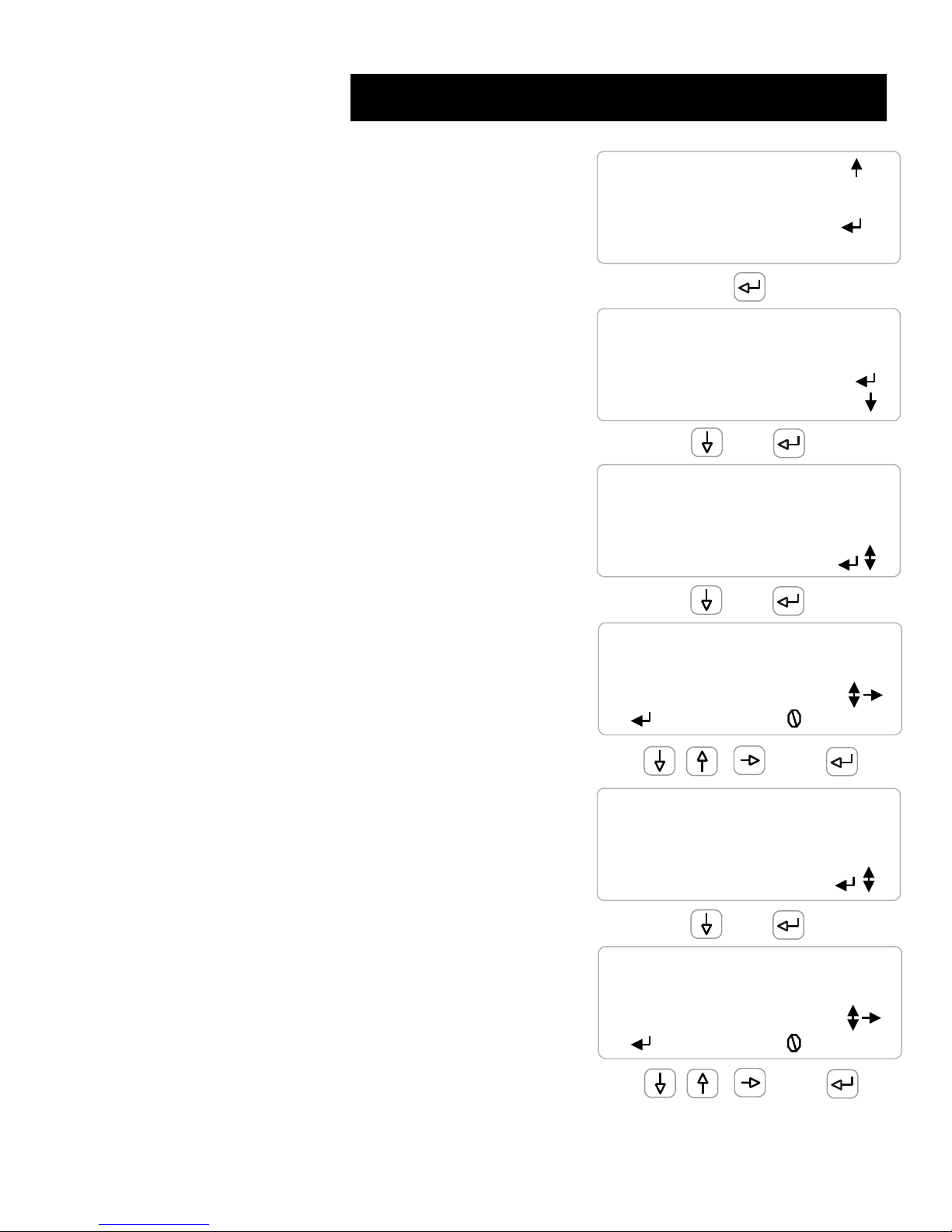

1.4 Calibrating Sensors 1 of 2

SENSORS

Key ENTER at selected sensor

Key DOWN to Calibrate & ENTER

Key ENTER to change sensor value

DOWN & ENTER to Reset to Factory option

Use the UP & DOWN keys to adjust the value

RIGHT moves the cursor across the screen

EXIT abandons calibrating

If the calibration succeeds,

you’ll return to the sensor value display

If the sensor is outside of calibration limits

You’ll view the override option

Key ENTER then UP or DOWN to override

If you key DOWN, you’ll have the

Reset to Factory option

Key ENTER then UP or DOWN to Reset

Tower Conduct'vty E

986 uS

Bleed Valve 2

OFF: Setpoints

Tower Conduct'vty E

Diagnostics

Alarms

Calibrate

Tower Conduct'vty E

Calibrate...........

Enter Current Value

986 uS

Editing Value:

Enter Current Valu..

996 uS

Executes, Exits

Tower Conduct'vty E

Calibrate...........

Sensor fault

Override warning

Tower Conduct'vty E

Calibrate...........

Reset to Factory

then

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de ProMinent

ProMinent

ProMinent DULCOMETER D1CA Manual de usuario

ProMinent

ProMinent DULCOMETER Manual de usuario

ProMinent

ProMinent PROFIBUS DP DULCOMETER diaLog DACb Diagrama de cableado

ProMinent

ProMinent DULCOMETER Compact Manual de usuario

ProMinent

ProMinent DULCOMETER D2C Manual de usuario

ProMinent

ProMinent DCM3 Series Manual de usuario

ProMinent

ProMinent diaLog DACb Diagrama de cableado

ProMinent

ProMinent DCM 5 Series Manual de usuario

ProMinent

ProMinent DULCOMETER PH-501 Manual de usuario

ProMinent

ProMinent DULCOMARIN 3 Compact Manual de usuario

ProMinent

ProMinent DULCOMETER D2C Manual de usuario

ProMinent

ProMinent DULCOMETER Manual de usuario

ProMinent

ProMinent DULCOMETER D1Cb Manual del operador

ProMinent

ProMinent DULCOMETER D1C Manual de usuario

ProMinent

ProMinent DULCOMARIN II DXM Series Diagrama de cableado

ProMinent

ProMinent DULCOMETER Manual de usuario

ProMinent

ProMinent Splash Control 2 Manual de usuario

ProMinent

ProMinent DULCOMETER D1C Manual de usuario

ProMinent

ProMinent DCM 2 Series Manual de usuario

ProMinent

ProMinent Aegis-II Manual de usuario

ProMinent

ProMinent DULCOMETER Manual de usuario

ProMinent

ProMinent Splash Control Pro 2 Manual de usuario

ProMinent

ProMinent Aegis-II Manual de usuario

ProMinent

ProMinent DULCOMETER Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario

ProMinent multiFLEX M10 Manual de usuario

Manuales populares de Controladores de otras marcas
