Promeba PS-190 Manual de usuario
USER GUIDE
ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
3
INDEX
01 INTRODUCTION
01.1 Using this manual 05
01.2 Characteristics 06
01.2 Technical data sheet 06
02 INSTALATION
02.1 Transporting and unpacking 07
03 OPERATING
03.1 General elements of evacuation chair PS-190 08
03.2 Chair’s use 09
03.3. Notes 09
04 MOUNTING AND COMPONENTS
04.1 General view CHAIR PS-190 10
04.2 Bill of materials of gerenal view PS-190 11
05 GENERAL MAINTENANCE 11
06 LEGAL NOTICES 12
07 PRODUCT WARRANTY 13
USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
5
01.1 Using this manual
This manual provides using and maintenance instruc-
tions of the product, as well as the way of xing minor
faults that could appear.
It is recommended before the operation of the product
to read carefully this manual in order to avoid damages
caused by a misuse.
Do not lose this document, it should be accessible to
any doubt that could appear by medical personnel.
Remember that a good use and maintenance are ne-
cessary for the proper operation of the product.
Each product incorporates an identication sticker with
the serial number and the model. Keep these numbers
so that they can be indicated to the dealer if necessary.
01 INTRODUCTION
USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
6
01.2 Characteristics
1. It is widely used in the home for the old people, school security, hospi-
tals, hotels etc for emergency evacuation.
2. Can be folded, easy storage.
3. It can climb up and down stairs smoothly and steadily by track.
4. With 4 wear-resistant rubber wheels, the chair can be used as a wheel-
chair on the ground.
5. There are short handles behind the backrest and exible handles at
the bottom, easy for carrying patients in narrow space.
01.3 Technical data sheet
MEASURES AND FEATURES //
LENGHT 80 ~ 110 cm
WIDTH 50 cm
HEIGHT 110 ~ 160 cm
WEIGHT 30 Kg
MAX. LOAD 160 Kg
FOLDED SIZE 115x50x27 cm
MEASURES AND FEATURES OF PACKAGE //
QUANTITY 1
SIZE 116 x 55 x 30,5 cm
WEIGHT 35 Kg
01 INTRODUCTION
USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
7
02 INSTALATION
02.1 Transport and unpacking
First remove the packaging carefully so as not to dama-
ge the outside of the stretcher.
1. Transport
· Always x the load, if it is necessary stack. you should
follow the diagram shown.
· Transport the level load and following all the precepts
and regulations regarding the transport of loads.
2. Unpacking
· Put the box on a at and stable surface, open the seal
carefully not to damage inside.
· Remove the product from the inside of the case as
shown in the chart below.
Each product has been thoroughly inspected when
leaving the factory.To ensure that the transport has not
deteriorated it, please inspect the exterior and interior
carefully, and in the event of any damage, contact the
installer immediately.
PACKING UNIT
RESPECT THE PACKAGING TRANSPORT POSITION
UNPACKING THE PRODUCT
ALWAYS USE FLAT SURFACE
USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
8
03.1 Chair’s use
1. Before transfer patients, open the chair, ensure the red cross-bar has
insert the lock slot. Warning: Be sure the cross-bar is locked before using.
2. After the patient sit down, fasten the vest belts.
3. Press the lock button to adjust the telescopic front handles, open fol-
ding handle to 90 degree, then autolock.
4. The headrest can be adjusted according to patient’s height by pull &re-
lease the black bar, total 3 positions,then fasten the head cushion.
5. Track operation: Push down the black tube along the slot to fold the
track and track frame will be locked automatically by the side lock, when open
the track , open the black size lock rst, then pull out the black tube.
Adjust track tightness: if you nd the track become too loose or tight, you can
use socket head wrench to adjust it.
6. After using, pull the black cross bar along the slot to fold the chair.
7. Go down the stair: (this product is suitable for any type of stairs)
Open battery switch: push the chair to the stair, make the chair fall backward,
press the “DOWN” , the chair will go down the stairs , you just need to hold the
chair, ensure that the chair go straight line.
Go up the stair:
Pull the chair to the stair, make the chair fall backward, press the “UP”, the chair
will go up the stairs, you just need to hold the chair, ensure that the chair go
straight line, and lightly press the backrest to ensure the chair steady climbing.
Stop on the stairs: if you want to stop the chair on the stairs, just move your
nger away from the button, the chair has its own balance will not move down
or fall down from the stairs, very safe.
8. The installation of the battery, charging and maintenance.
Insert the battery to the slot, can be locked by key.
Battery charging need 5 hours, the full charging can use about 1.5 hours, equal
to climbing and down 5 layers building 30 times.
When no use the chair, close the battery switch, if long time not use, make sure
to charge the battery every 3 month, the battery can repeat charge for 500
times, its lifetime is about 3-5 years.
03 OPERATING
USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
9
03.2 Notes
1. The operator must read the manual rst, operate the product in right way and
examine before use, or the company will not responsible for the risk of accidents.
2. We suggest the man or the strong woman to operate the chair.
3. When transporting, be sure use the safety belts to avoid further damages.
4. If any damage on the chair, should be replaced immediately.
5. Check the safety belts frequently, replace the damaged parts at once.
03.3 Maintenance
1. Keep clean, including disinfection.
2. Always check whether each part is loose before using the chair. If there are some
parts loose, please fasten them at once. Usually every three month need to have a check
under normal use.
3. If the chair get wet in the rain, try it after using, so that the chair can be kept light.
03.4 Storage
1. Store this chair in the place of damp proof and non-corrosion environment.
03.5 Transport
1. Transport can be carried out by air, by sea, or land.
2. Manual handling is strictly prohibited throwing, smashing and other acts.
03.6 List of accessories
NO. Name Quality
1 Safety Belt 1
2 Head Restraint 1
3 Lithium battery and charger 1
4 e M4 Allen wrench 1
5 User Manual 1
03 OPERATING
USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
10
04 MOUNTING AND COMPONENTS

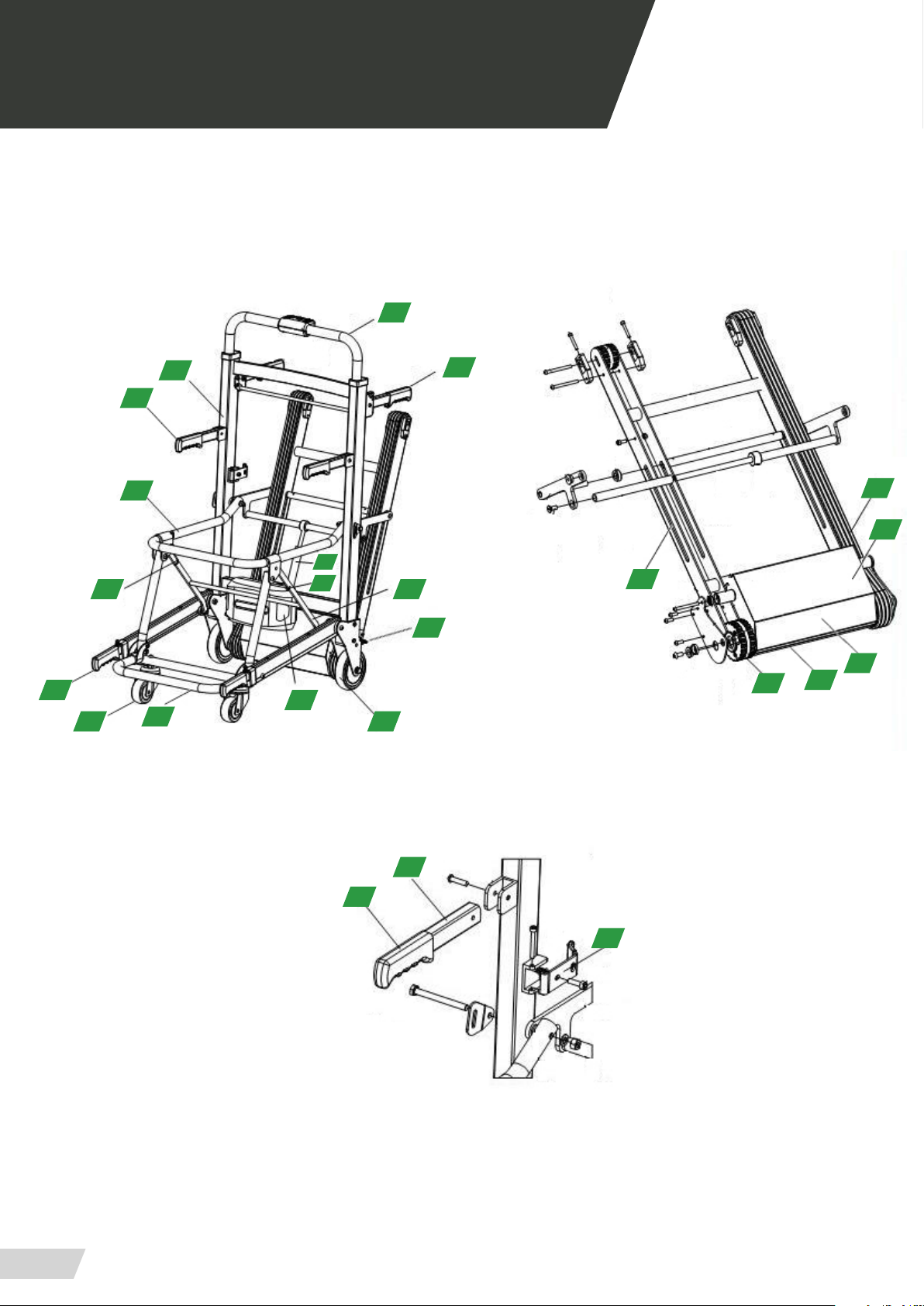

04.1 General view PS-190
7
11
10
2
1
16
17
20
4 5
17
25
19
23
25
24
28 14
26 22
15
21
12
18
