Promax TVHUNTER+ Manual de usuario

TVHUNTER +

DVB-T/T2

Trademark of the

DVB - Digital Video

Broadcasting Project

TVHUNTER +

DVB-T/T2

SCREEN ICONS REFERENCE

STATUS BAR

DVB-T/T2 signal not locked.

USB

DVB-T/T2 signal locked.

Power supply connected.

Battery power level.

Manual power off enabled. Connected to PC through the USB port.

5/12/15/24/OFF External voltage supplied through the RF connector (5V/12V/15V/24V/OFF)

SWITCHING ON/OFF

Switch on the TVHUNTER + pressing , or for two seconds.

If you press or for more than five seconds when starting, it enables manual power off mode.

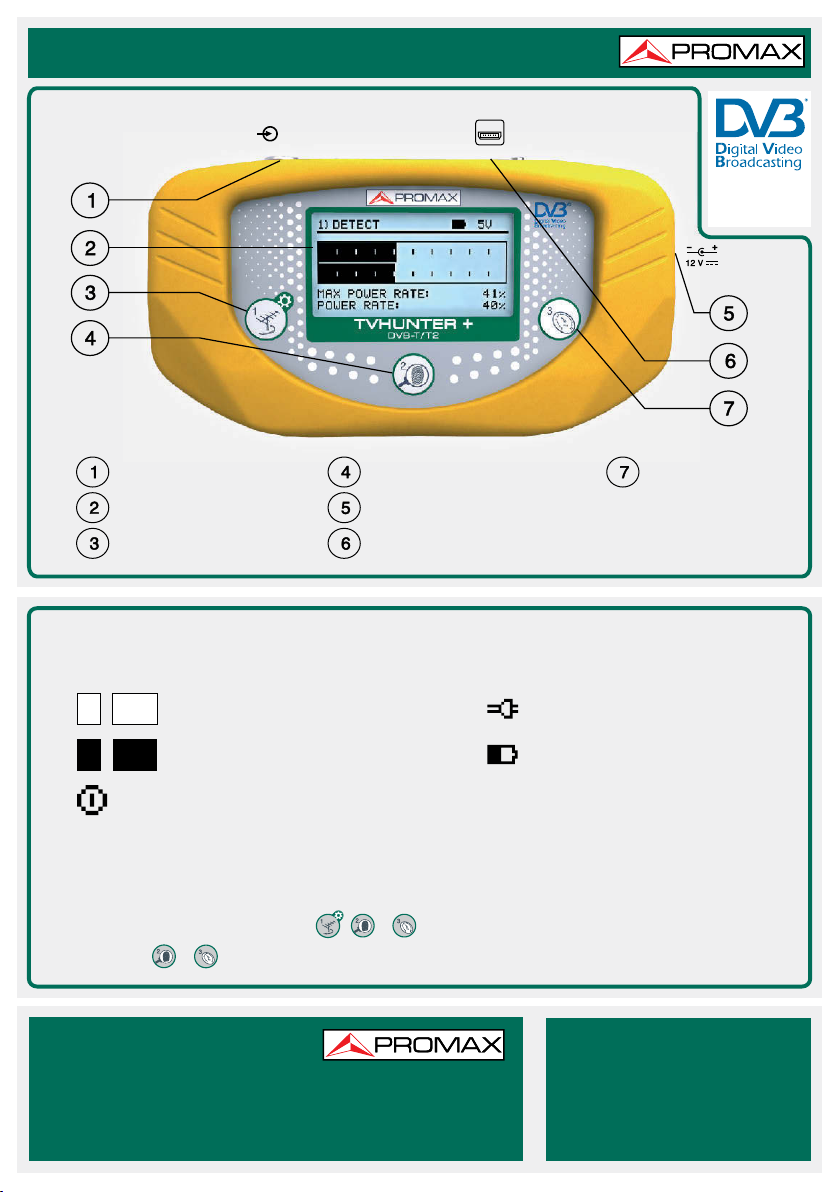

FRONT VIEW

QUICK START GUIDE

RF USB

Input RF connector

Display

DETECTION/CONFIGURATION key USB connector

Power input connector

IDENTIFICATION key ADJUST key

TestEquipmentDepot.com

TVHUNTER +

DVB-T/T2

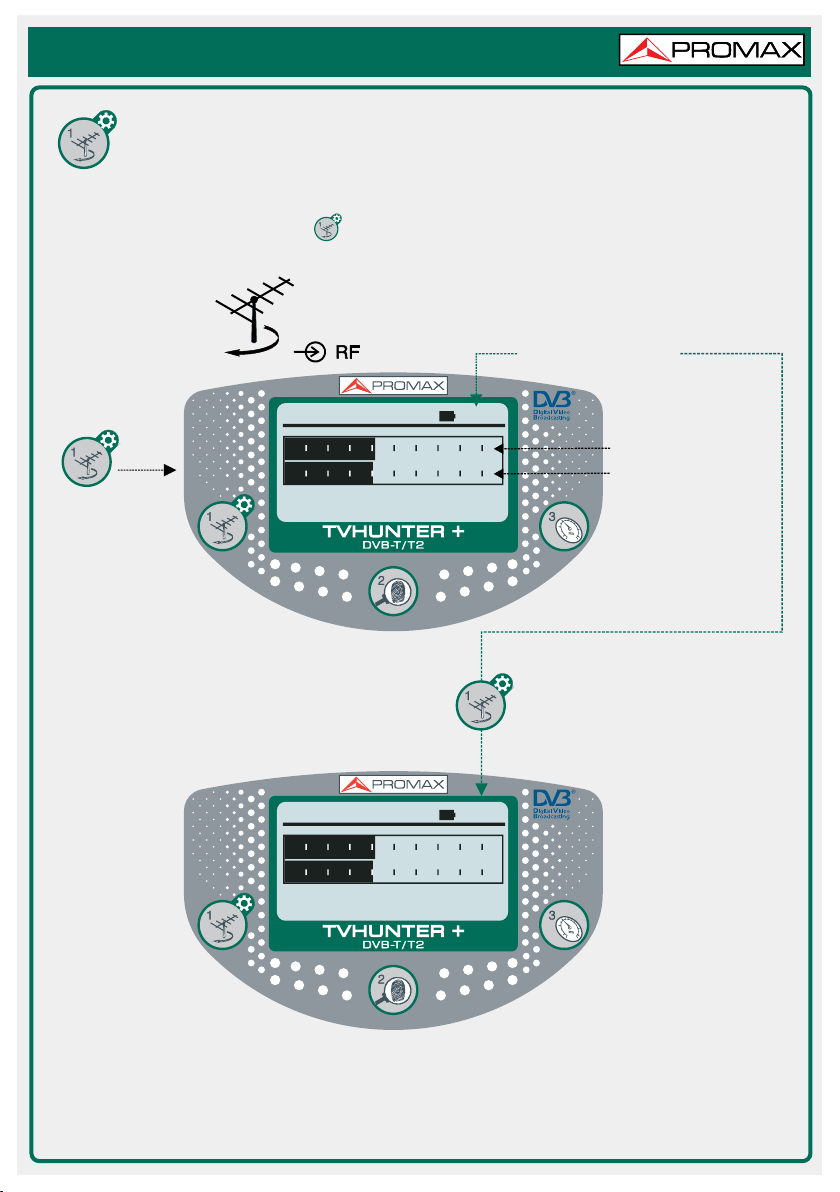

DETECTION

Plug the TVHUNTER + to the antenna socket and turn the antenna until the TVHUNTER + shows the maximum

power on the display. If necessary, press to switch between 0V (OFF) and the selected external supply voltage.

1)DET E CT 5V

MAX POWE R R ATE : 41%

POWER RATE: 40%

PRESS

DETECT

Maximum measured power

Current power

External supply voltage

1)DET E CT OFF

MAX POWE R R ATE : 41%

POWER RATE: 40%

PRESS DETECT TO

SWITCH THE EXTERNAL

SUPPLY VOLTAGE

(see CONFIGURATION)

QUICK START GUIDE

NOTE:

Once the antenna is aligned using the Detection mode, if it is unknown

the channels that can be received at the location, it is advisable

to "Auto-Scan" and save the results (see Configuration)

TVHUNTER +

DVB-T/T2

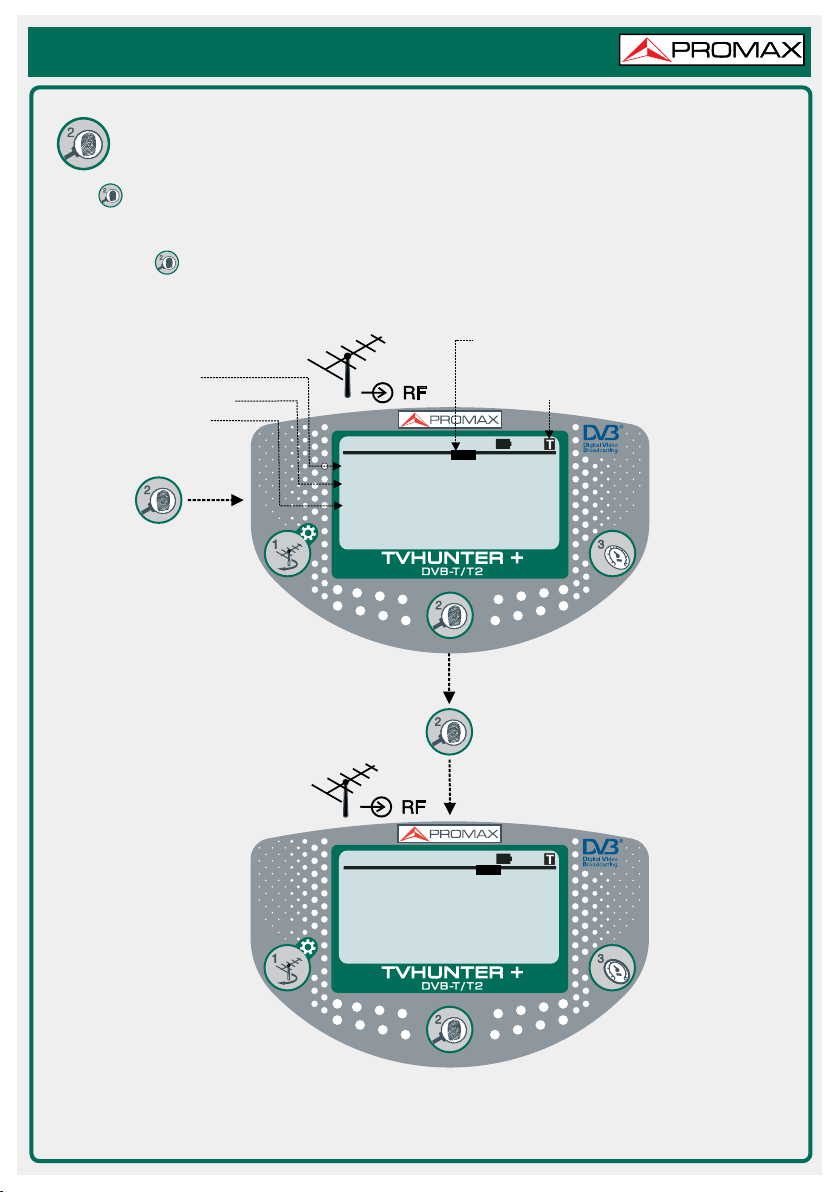

IDENTIFICATION

Press and wait until locking the signal. The display will show the parameters of the stored test point (selected name

and frequency), the name of multiplex channel tuned and its services identified at this test point. To change to another

test point press again.

1)DET E CT 5V

MAX POWE R RATE: 41%

POWER RATE: 40%

2)IDENTIFY OFF

LaSexta

CUATRO

C67 FR: 842.0MHz

NET:SFN

SERVICE LIST: 1/8

CNN+

1)DET E CT 5V

MAX POWE R RATE: 41%

POWER RATE: 40%

PRESS

IDENTIFICATION

)

2 IDENTIFY OFF

La 1

La 2

C66 FR: 818.0MHz

NET:RGE CAT

SERVICE LIST: 1/7

24h

Locked signal (black background)

Test Point Name

Tuned channel name

Identified services

TP 04TP 04

Sequential number of

the test point

TP 05TP 05

QUICK START GUIDE

PRESS SHORT PRESS: NEXT TEST POINT

LONG PRESS (1s): PREVIOUS TEST POINT

TVHUNTER +

DVB-T/T2

ADJUST

Press to perform fine-tuning. Check that every access point in the installation is meeting the criteria

established by current regulations. To measure another test point press again until finding the test point you

are looking for.

1)DET ECT 5V

MAX POWER RA TE: 41%

POWER R ATE: 40%

PRESS

ADJUST

Locked signal (black background)

Test Point Name

3)ADJ UST OFF

C67 FR:842.00MHz

PO WER : 46.7d BuV

MER :

21 .7 dB

3.9E- 2CBER:

033

7.3E- 5VBER:

TP05

LM: 5.6dB

Sequential number of

the test point

CONFIGURATION

At the DETECTION screen, press and hold

until appears the configuration menu.

1)DET ECT 5V

MAX POWER RA TE: 41%

POWER R ATE: 40%

)SETUP OFF

1)CANCEL 2)OPTION 3)SELECT

START AUTO SCAN

EXTERNAL SUPPLY

SOUND CONTROL

BACKLIGHT MODE

CONTRAST LCD

CONFIRM & EXIT

OFF

AUTO It exits the configuration menu without saving changes

It scrolls along the menu options

It changes the parameter/Accepts

Start Auto Scan: It starts the auto-scan function.

External Supply: Select the external supply voltage for the antenna among 0V (OFF), 5V, 12V,15V or 24V.

Confirm & Exit: It applies and saves the changes made and exits the configuration menu.

When using the TVHUNTER +, it may appear on the display some messages and icons, depending on the status or

event is taking place. These messages and icons are detailed below

Low power level battery. Plug it to the charger.

The external supply can be shortcut.

“SUPPLY OVER CURRENT”

“LOW BATTERY”

“VERY LOW BATTERY” The equipment will be switched off immediately.

MESSAGE DESCRIPTION

“SUPPLY SHORT CIRCUIT”

The external supply has a high current consumption.

“MANUAL POWER OFF” The instrument has to be switched off by hand.

“AUTO POWER OFF” The instrument will switch off after five minutes

of inactivity.

“SERVICE MODE” Service mode.

“BATTERY MODE” When the battery is being charged.

“UPDATE MODE”

“NETWORK NOT FOUND”

“SERVICES NOT FOUND”

“SIGNAL NOT DETECTED”

“FULL BATTERY”

“MPEG-2 NOT DETECTED”

“LOADING NETWORK”

“LOADING SERVICES”

“HIGH TEMPERATURE”

When the instrument is being updated.

MESSAGE DESCRIPTION

The instrument cannot find a TV network.

The instrument cannot detect the services of a network.

When no signal is detected.

Battery fully charged.

It is not detecting the Transport Stream MPEG-2 signal.

After finding a signal, needs a time to load the network.

After finding a network, needs a time to load services.

The operation temperature is too high.

The instrument must be switched off for a while.

If the problem persists, contact with the technical support.

Navegation Keys:

QUICK START GUIDE

PRESS

SHORT PRESS: NEXT TEST POINT

LONG PRESS (1s): PREVIOUS TEST POINT

v1.2 (0 DG0102) 24/01/2013
