EclCyclorama 050

170W Linear soft CYC and Flood light

with RGB+WarmWhite color mixing

User ManualREV.02-07/20 English version

Thank you for choosing PROLIGHTS.

Please note that every PROLIGHTS product has been designed in Italy to meet quality and perfor-

mance requirements for professionals and designed and manufactured for the use and application as

shown in this document.

Any other use, if not expressly indicated, could compromise the good condition/operation of the prod-

uct and/or be a source of danger.

This product is meant for professional use. Therefore, commercial use of this equipment is subject to

the respectively applicable national accident prevention rules and regulations.

Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and

all afliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or

economic loss or any other loss occasioned by the use of, inability to use or reliance on the information

contained in this document.

Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the

ofcial

PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).

Scanning the below QR Code, you will access the download area of the product page, where you can

nd a broad set of always updated technical documentation: specications, user manual, technical

drawings, photometrics, personalities, xture rmware updates.

The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to

PROLIGHTS services or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights

S.r.l., its afliates, and subsidiaries.

Appia km 136,200; Itri 04020, Italy.

PROLIGHTS - ECLCyclorama 050 1

INDEX

SAFETY INFORMATION 2SAFETY INFORMATION 2

1 - PACKAGING 51 - PACKAGING 5

PACKAGE CONTENT 5PACKAGE CONTENT 5

OPTIONAL ACCESSORIES 5OPTIONAL ACCESSORIES 5

2 - TECHNICAL DRAWING 52 - TECHNICAL DRAWING 5

3 - INSTALLATION 63 - INSTALLATION 6

MOUNTING 6MOUNTING 6

INTRODUCTION FOR INSTALLATION SET UP 7INTRODUCTION FOR INSTALLATION SET UP 7

INSTALLATION CONFIGURATIONS 7INSTALLATION CONFIGURATIONS 7

4 - CONNECTION TO THE MAINS SUPPLY 84 - CONNECTION TO THE MAINS SUPPLY 8

5 - START UP 85 - START UP 8

CONNECT AND DISCONNECT POWER FROM THE PRODUCT 8CONNECT AND DISCONNECT POWER FROM THE PRODUCT 8

6 - PRODUCT OVERVIEW 96 - PRODUCT OVERVIEW 9

7 - DMX CONNECTION 107 - DMX CONNECTION 10

CONNECTION OF THE CONTROL SIGNAL: DMX LINE 10CONNECTION OF THE CONTROL SIGNAL: DMX LINE 10

INSTRUCTIONS FOR A RELIABLE DMX CONNECTION 10INSTRUCTIONS FOR A RELIABLE DMX CONNECTION 10

CONNECTION DAISY CHAIN 10CONNECTION DAISY CHAIN 10

CONNECTION OF THE DMX LINE 10CONNECTION OF THE DMX LINE 10

CONSTRUCTION OF THE DMX TERMINATION 11CONSTRUCTION OF THE DMX TERMINATION 11

DMX ADDRESSING 11DMX ADDRESSING 11

ETHERNET CONNECTION 11ETHERNET CONNECTION 11

ETHERNET OPERATION 11ETHERNET OPERATION 11

ETHERNET TO DMX OPERATIONS 12ETHERNET TO DMX OPERATIONS 12

CONNECTION TO A WIRELESS DMX TRANSMITTER 13CONNECTION TO A WIRELESS DMX TRANSMITTER 13

8 - CONTROL PANEL 148 - CONTROL PANEL 14

DISPLAY AND BUTTONS LAYOUT 14DISPLAY AND BUTTONS LAYOUT 14

9 - MENU STRUCTURE 159 - MENU STRUCTURE 15

10 - RDM FUNCTIONS 1810 - RDM FUNCTIONS 18

11 - DMX CHARTS 1911 - DMX CHARTS 19

12 - ACCESSORIES INSTALLATION 2412 - ACCESSORIES INSTALLATION 24

THE POLE OPERATED YOKE (CODE ECLCYC050PO) 24THE POLE OPERATED YOKE (CODE ECLCYC050PO) 24

DIFFUSION FILTERS (CODE ECLCYCF) 25DIFFUSION FILTERS (CODE ECLCYCF) 25

BARN DOOR (CODE ECLCYCBD050) 26BARN DOOR (CODE ECLCYCBD050) 26

HANGING BAR (CODE ECLCYCOHB) 27HANGING BAR (CODE ECLCYCOHB) 27

13 - MAINTENANCE 2813 - MAINTENANCE 28

MAINTENANCE AND CLEANING THE PRODUCT 28MAINTENANCE AND CLEANING THE PRODUCT 28

REPLACING THE FUSE 28REPLACING THE FUSE 28

VISUAL CHECK OF PRODUCT HOUSING 28VISUAL CHECK OF PRODUCT HOUSING 28

TROUBLESHOOTING 29TROUBLESHOOTING 29

PROLIGHTS - ECLCyclorama 050

SAFETY INFORMATION

WARNING!

• Please read carefully the instruction reported in this section before installing, power-

ing, operating or servicing the product and observe the indications also for its future

handling.

This unit is not for household use, only professional applications.

Connection to mains supply

• The Connection to the mains supply must be carried out by a qualied electrical

installer.

• Use only AC supplies 100-240V 50-60 Hz, the xture must be electrically connected

to ground (earth).

• Select the cable cross section in according with the maximum current draw of the

product and the possible number of products connected at the same power line.

• The AC mains power distribution circuit must be equipped with magnetic+residual

current circuit breaker protection.

• Do not connect it to a dimmer system; doing so may damage the product.

Protection and Warning against electrical shock

• Do not remove any cover from the product, always disconnect the product from AC

power before servicing.

• Ensure that the xture is electrically connected to ground (earth). And use only a

source of AC power that complies with local building and electrical codes and has

both overload and ground-fault (earth-fault) protection.

• Before using the xture, check that all power distribution equipment and cables are

in perfect condition and rated for the current requirements of all connected devices.

• Isolate the xture from power immediately if the power plug or any seal, cover, ca-

ble, or other components are damaged, defective, deformed or showing signs of

overheating.

• Do not reapply power until repairs have been completed.

• Refer any service operation not described in this manual to PROLIGHTS Service team

or an authorized PROLIGHTS service center.

Installation

• Make sure that all visible parts of the product are in good visible condition before its

use or installation.

• Make sure the point of anchorage is stable before positioning the projector.

• When suspending the xture above ground level, secure it against failure of primary

attachments by attaching a safety cable that is approved as a safety attachment for

the weight of the xture to the attachment point on the main frame of the product. ln

case the safety cable, enter in action, it needs to be replaced with a new one.

• Install the product only in well ventilated places.

• For non temporary installations, ensure that the xture is securely fastened to a load-

bearing surface with suitable corrosionresistant hardware.

• For a temporary installation with clamps, ensure that the quarter-turn fastener and/or

screws are turned fully, and secured with a suitable safety cable.

0,5 m Minimum distance of illuminated objects

• The projector needs to be positioned so that the objects hit by the beam of light are

at least 0.5 meters (1.64 ft) from the lens of the projector.

PROLIGHTS - ECLCyclorama 050 3

45°

aMax operating ambient temperature (Ta)

• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).

Protection from burns and re

• The exterior of the xture becomes hot during use. Avoid contact by persons and

materials.

• Ensure that there is free and unobstructed airow around the xture.

• Keep ammable materials well away from the xture

• Do not expose the front glass to sunlight or any other strong light source from any an-

gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.

• Do not attempt to bypass thermostatic switches or fuses.

Indoor use

• This product is designed for indoor and dry environments.

• Do not use in wet location and do not expose the xture to rain or moisture.

• Never use the xture in places subject to vibrations or bumps.

• Make certain that no inammable liquids, water or metal objects enter the xture.

• Excessive dust, smoke uid, and particle build up degrades performance, causes

overheating and will damage the xture.

• Damages caused by inadequate cleaning or maintenance are not covered by the

product warranty.

50°

cTemperature of the external surface

• The surface of the xture can reach up to 50 °C (122 °F) during operation. Avoid

contact with people and materials.

Maintenance

• Warning! Disconnect the xture from AC mains power and allow to cool for at least

10 minutes before handling.

• Only technicians who are authorized by PROLIGHTS or Authorised service partners

are permitted to open the xture.

• Users may carry out external cleaning, following the warnings and instructions pro-

vided, but any service operation not described in this manual must be referred to a

qualied service technician.

• Important! Excessive dust, smoke uid, and particle build up degrades performance,

causes overheating and will damage the xture. Damages caused by inadequate

cleaning or maintenance is not covered by the product warranty.

Photobiological safety

• This device emits potentially dangerous optical radiation and is identied in the cat-

egory of Risk Group 2 according to EN 62471.

Minimun

distance

Risk

Group 2

Risk

Group 1

0.2 m

0.7 ft

8 m

26.25 ft

Do not stare at the operating light source

• Do not look directly at the LED source during operation. It can be harmful to the eyes

and skin.

• During Installation, operation and maintenance, be prepared for the xture to light

and move suddenly when connected to power.

• The device should be positioned so that prolonged staring into the luminaire at a

distance closer than 8 m is not expected.

PROLIGHTS - ECLCyclorama 050

Disposal

• This product is supplied in compliance with European Directive 2012/19/EU – Waste

Electrical and Electronic Equipment

• (WEEE). To preserve the environment please dispose/ recycle this product at the end

of its life according to the local regulation.

The product contains a lithium ion battery

• Don't throw the unit into the garbage at the end of its lifetime.

• Make sure to dispose according to your local ordinances and/or regulations, to avoid

polluting the environment!

• The packaging is recyclable and can be disposed.

The products to which this manual refers comply with:

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).

• 2014/30/EU - Electromagnetic Compatibility (EMC).

• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).

• 2014/53/EU - Radio Equipment Directive (RED).

PROLIGHTS - ECLCyclorama 050 5

1 - PACKAGING

PACKAGE CONTENT

• ECLCYC050:

• Power cable 1.5 m, Schuko - PowerCon True1;

• Quick-Lock Omega bracket;

• User manual.

OPTIONAL ACCESSORIES

• ECLCYC050PO: Pole operated aluminium yoke bracket for pan/tilt for ECLCYC050;

• FCLECLCYC: Flightcase for 4 pcs of ECLCYC100 or 8 pcs ECLCYC050 divided on two layers;

• ECLCYCBD050: Upper and lower barn door for adjust the light beam for ECLCYC050;

• ECLCYCF40L050: Light diffuser lter for ECLCYC series projectors, 40°, lenght 50 cm;

• ECLCYCF1060L050: Light diffuser lter for ECLCYC series projectors, 10°x60°, lenght 50 cm;

• ECLCYCF3060L050: Light diffuser lter for ECLCYC series projectors, 30°x60°, lenght 50 cm;

• ECLCYCOHB: Orientable hanging bar for ECLCYC series projectors;

• OS25: Quick-Lock omega bracket;

• UPBOX1U: Firmware uploader kit, USB IN, 3-pin XLR DMX OUT, USB OUT;

• RSR: Steel security cable for hanging bodies, inox steel shackle;

• C6002: Slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt.

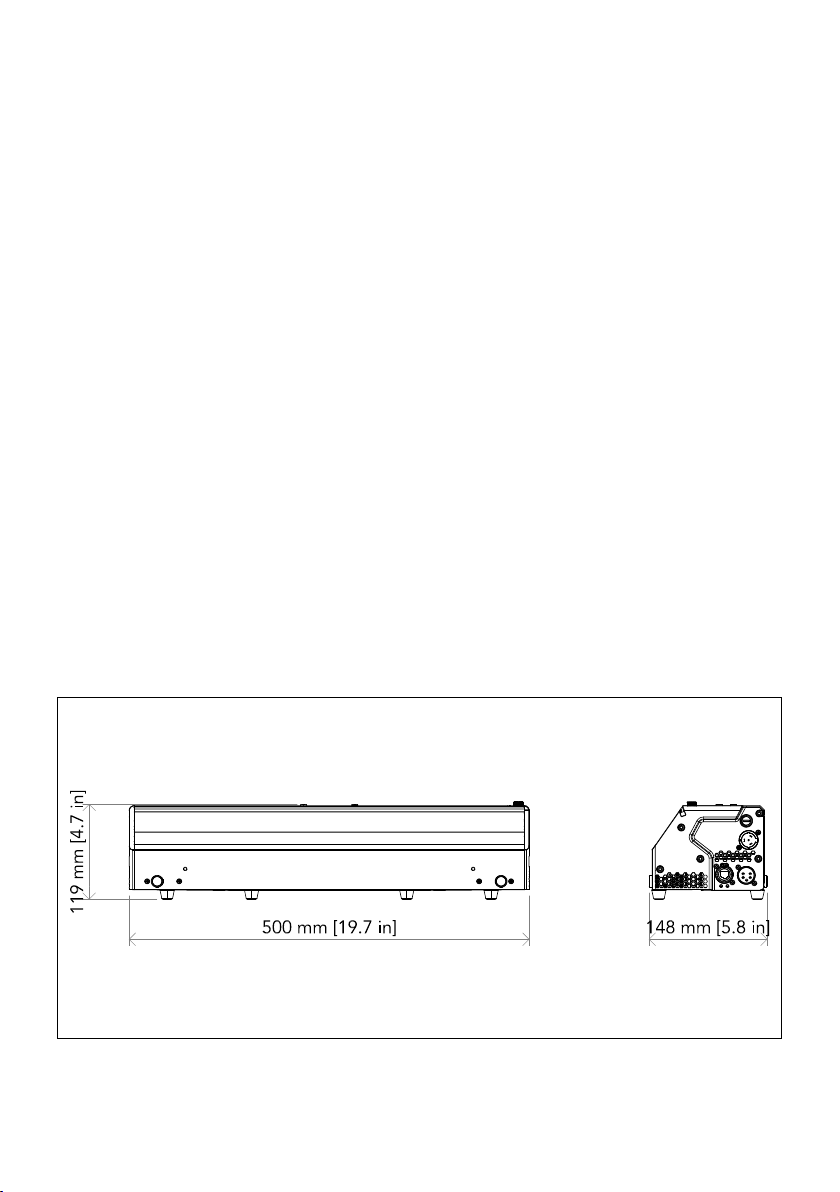

2 - TECHNICAL DRAWING

Dimensions are in mm / in - Fig.1Weight: 5 kg - 11.02 lbs

PROLIGHTS - ECLCyclorama 050

Fig.2

3 - INSTALLATION

MOUNTING

Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,

auxiliary equipment, etc. and complies with locally applicable regulations.

When suspending the xture above ground level, secure it against failure of primary attachments by

attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor

point on the product main frame.

Do not use removable parts or weak anchors for secondary attachment.

Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-

pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.

Quick-Lock

omega bracket

Clamps Safety cable

Fixing point of

the safety cable

171 [6.7]

79 [3.1]26 [1.0]

44 [1.7]

140 [5.5]

36 [1.4]

PROLIGHTS - ECLCyclorama 050 7

INTRODUCTION FOR INSTALLATION SET UP

The ECLCYC050 is an asymemetrical xture that has been designed for application as CYC light and

oodlight being able to be placed both at the front or at the end of the stage. Its soft and wide optics

features a beam angle of 80° horizontal x 40° Vertical (asymmetry of 25° on the vertical), making this

xture exible and effective to illuminate walls, sets and cyclorama uniformly with and even wash with

a perfect blending of colours in multiple and exible congurations.

The ECLCYC050 ensures good light distribution from 1m up to 3m installation distance from the CYC

wall, and it can be installed placing xtures next each other in a continuous line or with a clearance of

up to 3 meter without hard edges or dark gaps, even when illuminating curved canvas.

INSTALLATION CONFIGURATIONS

ECLCYC050 can be installed at the bottom, top or both top+bottom depending of the desired effect

(eveness or color gradient on the cyclorama).

One of the key aspects of the ECLCYC050 is its exibility, and this document will shows how the

xture will be have at different distance from the CYC wall, and how it performs when combines in

top+bottom conguration.

The ECLCYC050 is equipped with on board adjustable foot to regulate the tilt for the xture focusing.

The Tilt adjustment has a range of ±8°. For distances from 1 to 1,5m the Tilt should adjusted at +8°,

for distances more than 3m the Tilt should be adjusted at -8°.

RELATION BETWEEN VERTICAL COVERAGE AND DISTANCE FROM THE CYC WALL

1 1,5 2 2,5 3

Vertical Coverage (m)

Distance (m)

Bottom Top + Bottom

LEGEND

MFS

PROLIGHTS - ECLCyclorama 050

5 - START UP

CONNECT AND DISCONNECT POWER FROM THE PRODUCT

To apply and disconnect power to the product:

• Check that the product is installed and secured as indicated in the Safety Informations, and that

personal safety will not be put at risk when the xture lights up.

• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz).

• The product is then ready for its operations and can be controlled through the available input sig-

nals on board.

• To disconnect power from the product, disconnect the Mains from the socket.

4 - CONNECTION TO THE MAINS SUPPLY

WARNING: For protection from electric shock, the xture must be earthed!

The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz

AC power source from 100-240 Volts.

If you need to install a power plug on the power cable to allow connection to power outlets, install a

grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts

about proper installation, consult a qualied electrician.

The max power consumption is 180W.

Core (EU) Core (US) Connection Plug terminal marking

Brown Black Live L

Blue White Neutral N

Yellow+green Green Earth

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de iluminación de ProLights

ProLights

ProLights SmartBook Manual de usuario

ProLights

ProLights UPBOX2 Manual de usuario

ProLights

ProLights DISPLAYCOBTRWDDY2 Manual de usuario

ProLights

ProLights DIGIDRIVERIP Manual de usuario

ProLights

ProLights NANOLASERRG Manual de usuario

ProLights

ProLights EXPLO3000D Manual de usuario

ProLights

ProLights LUMI4RGB Manual de usuario

ProLights

ProLights Astra Wash19PixIP Manual de usuario

ProLights

ProLights SmartBat Wash Manual de usuario

ProLights

ProLights EclPanel TWCMini2X1 Manual de usuario

ProLights

ProLights Sunrise 2IP Manual de usuario

ProLights

ProLights Lumipar 12UTRI Manual de usuario

ProLights

ProLights DIAMOND19WH Manual de usuario

ProLights

ProLights EclMiniProfile WDMX Manual de usuario

ProLights

ProLights Astra Profile400 Manual de usuario

ProLights

ProLights ARCLED2033 Manual de usuario

ProLights

ProLights REFLEXs Manual de usuario

ProLights

ProLights BB5PIX Manual de usuario

ProLights

ProLights SMARTBATIP Manual de usuario

ProLights

ProLights Titan Manual de usuario

ProLights

ProLights Fury FY400S Manual de usuario

ProLights

ProLights Cyber24 Manual de usuario

ProLights

ProLights EclProfile FW IP Manual de usuario

ProLights

ProLights Astra Profile600IP Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
