Project Source B30B Manual de usuario
1
ITEM #5217209, 5217210
MODEL #B30B, B36B
BASE CABINET
ASSEMBLY INSTRUCTION
Español p. 16
Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE
AS23015
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 866-389-8827, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
Scan for assembly video
PROJECT SOURCE and logo design are
trademarks or registered trademarks of LF,
LLC. All rights reserved.
2
TABLE OF CONTENTS
Package Contents...........................................................................................................................3
Hardware Contents..........................................................................................................................4
Safety Information............................................................................................................................5
Preparation.......................................................................................................................................5
Assembly or Installation Instructions................................................................................................6
Toe-Kick Assembly Instruction..........................................................................................................12
Care and Maintenance..........................................................................................................................13
Troubleshooting..............................................................................................................................13
Warranty............................................................................................................................................14
Replacement Parts..........................................................................................................................15
3

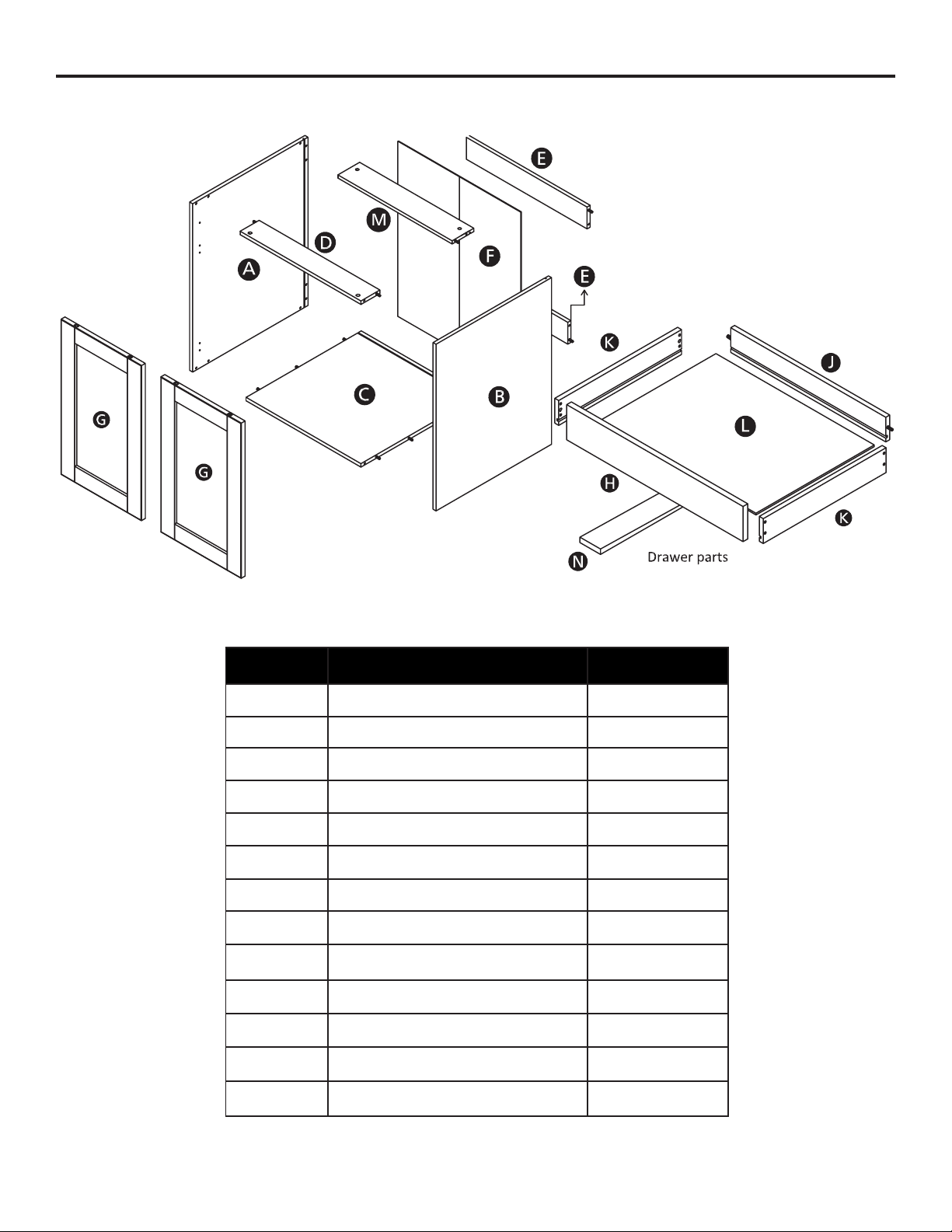

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A LH GABLE 1
B RH GABLE 1
C BOTTOM PANEL 1
D TOP FRONT RAIL 1
E BACK RAIL 2
F BACK PANEL 1
G DOOR 2
H TOP DRAWER FRONT 1
J LOW_DRWR BACK 1
K LOW_DRWR SIDE 2
L DRAWER BOTTOM 1
M TOP BACK RAIL 1
N DRAWER BOT SUPPORT 1
4

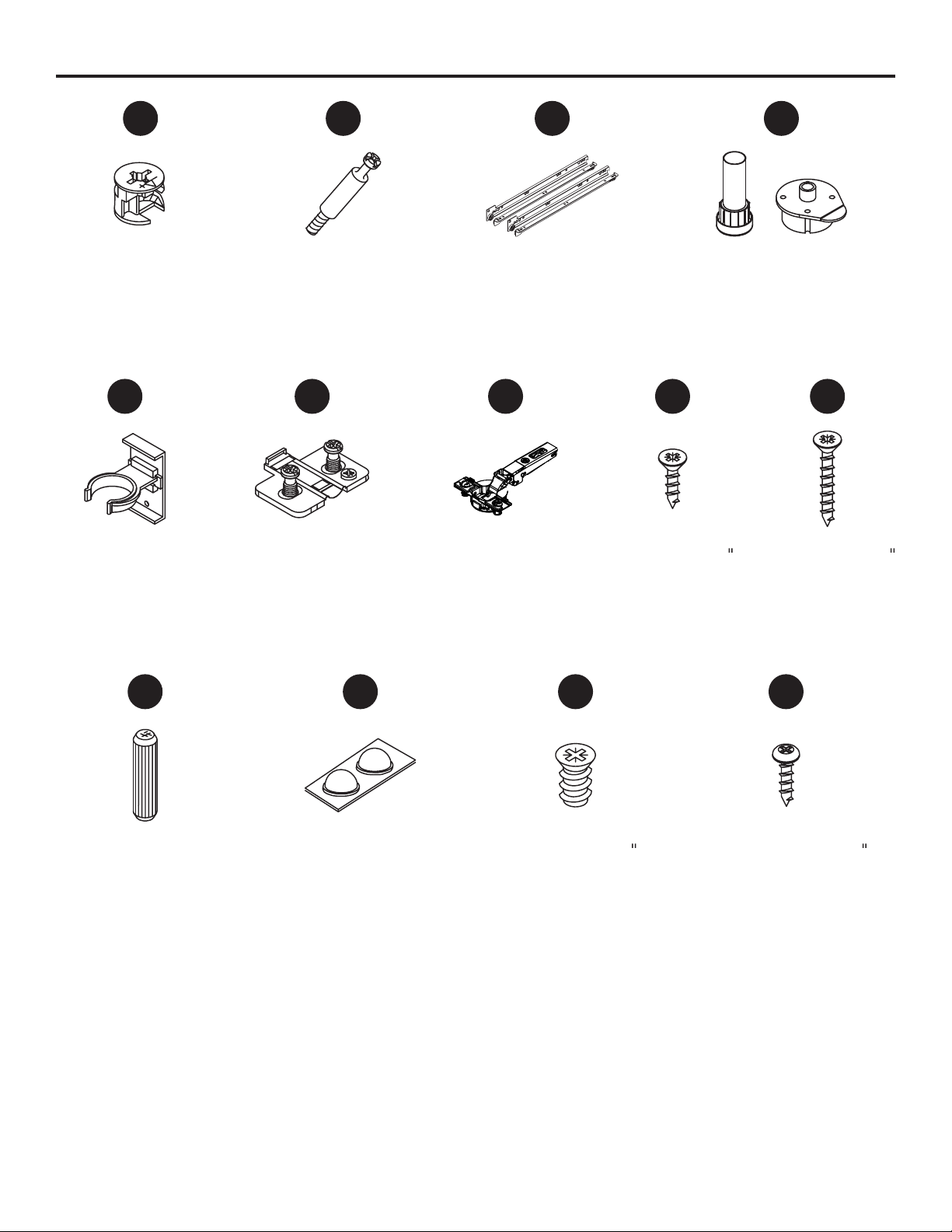

HARDWARE CONTENTS (shown actual size)
Qty. 13
Hinge Mounting Plate
Qty. 4
105oHinge
Qty. 4
CSK Screw 5/8
Qty. 24
CSK Screw 1 1/2
Qty. 10
Wooden Dowel
Qty. 18
Bumper 2MM
Qty. 6
Euro Screw 1/2
Qty. 4
Pan Head Screw 5/8
(For Toe-Kick Clip)
Qty. 4
Qty. 13
Qty. 1 Set
PVC Adjustable Leg
Qty. 4
Leg Clip
Qty. 2
BBAA CC DD
EE FF HHGG II
JJ KK LL MM
5
SAFETY INFORMATION
• Electric, plumbing, gas lines, and other utilities are frequently installed or embedded behind wall
behind a wall during installation, please contact a licensed contractor to install the cabinets.
• Prior to starting the installation, ensure you read and understand the entire installation guide.
• At least two people are required for safe installation.
Cabinets properly to the wall. If you are uncertain, contact lowes customer service. Failure to properly
secure the cabinets may result in serious injury!
• Do not over-tighten connectors (screws, bolts, etc.). Overtightening can lead to product damage.
WARNING
CAUTION
• Check the inventory you received against the bill of materials you have ordered to ensure all items
Have been delivered. If there are missing or damaged items contact lowes customer service.
• Be sure to check all packing materials carefully for small parts that may have come loose inside the
Carton during shipment. If parts are missing, contact lowes customer service.
PREPARATION
Before beginning assembly of product, make sure all parts are present.
Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated assembly time: 45 minutes
Tools required for assembly (not included): list here tools that are required but not included.
6

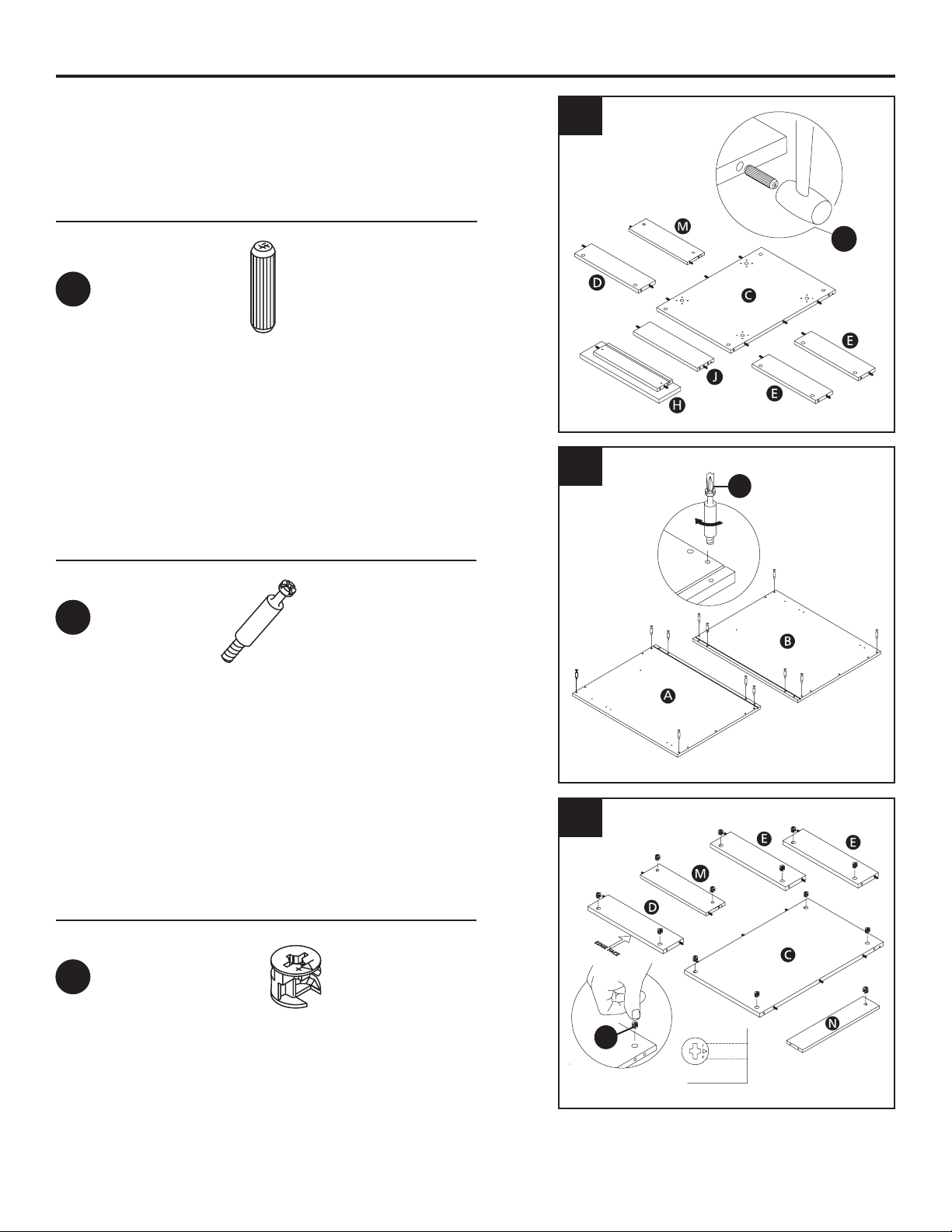

ASSEMBLY INSTRUCTIONS
Hardware Used
Hardware Used
Hardware Used
1
2
3
BB
BB
AA
AA
JJ
JJ
1. Using a rubber mallet, tap in wooden dowels in the
correct positions as per the illustration. For added
strength, apply a small amount of wood glue to each
dowel prior to placement (not included).
2. Using a phillips head screwdriver, fasten
shown.
based on the illustration. Please note the arrow mark
should face the bore hole as per the illustration.
7

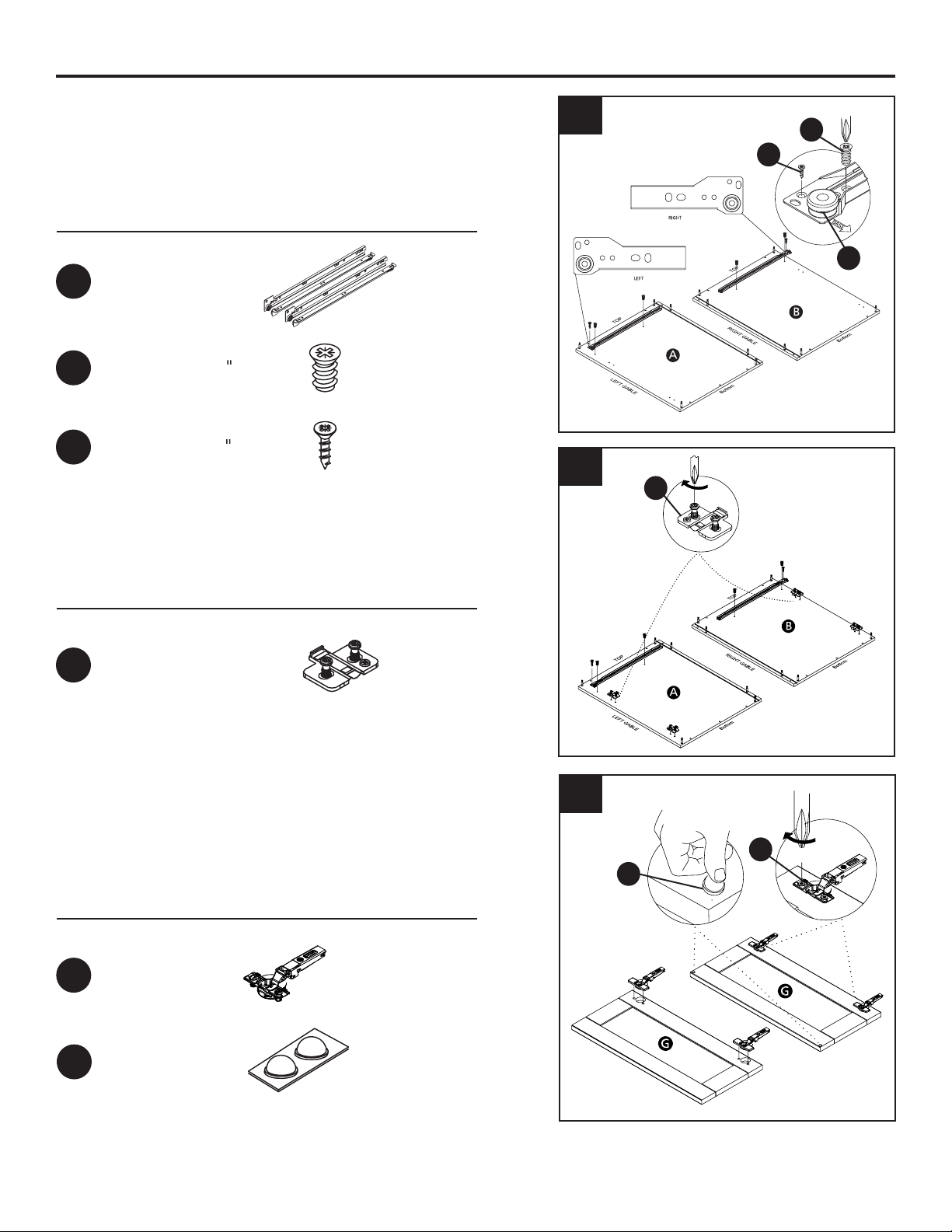

ASSEMBLY INSTRUCTIONS
5
4
6
Hardware Used
CSK screw 5/8
per the illustration. Use the euro and csk screws
as shown. Ensure the left & right hardware slides
are placed on the correct panels.
HH
Euro screw 1/2
LL
Hardware Used
Hardware Used
Hinge mounting plate
105oHinge
FF
GG
Bumper 2MM
KK
CC
FF
5. Using a phillips head screwdriver, attach the
mounting plate as shown in the illustration.
6. Insert the hinge in the bore hole. Using a phillips
head screwdriver, turn the pre-installed screws
clockwise to lock into place.
Place the bumper on the door as shown.
HH
LL
CC
KK
GG
8

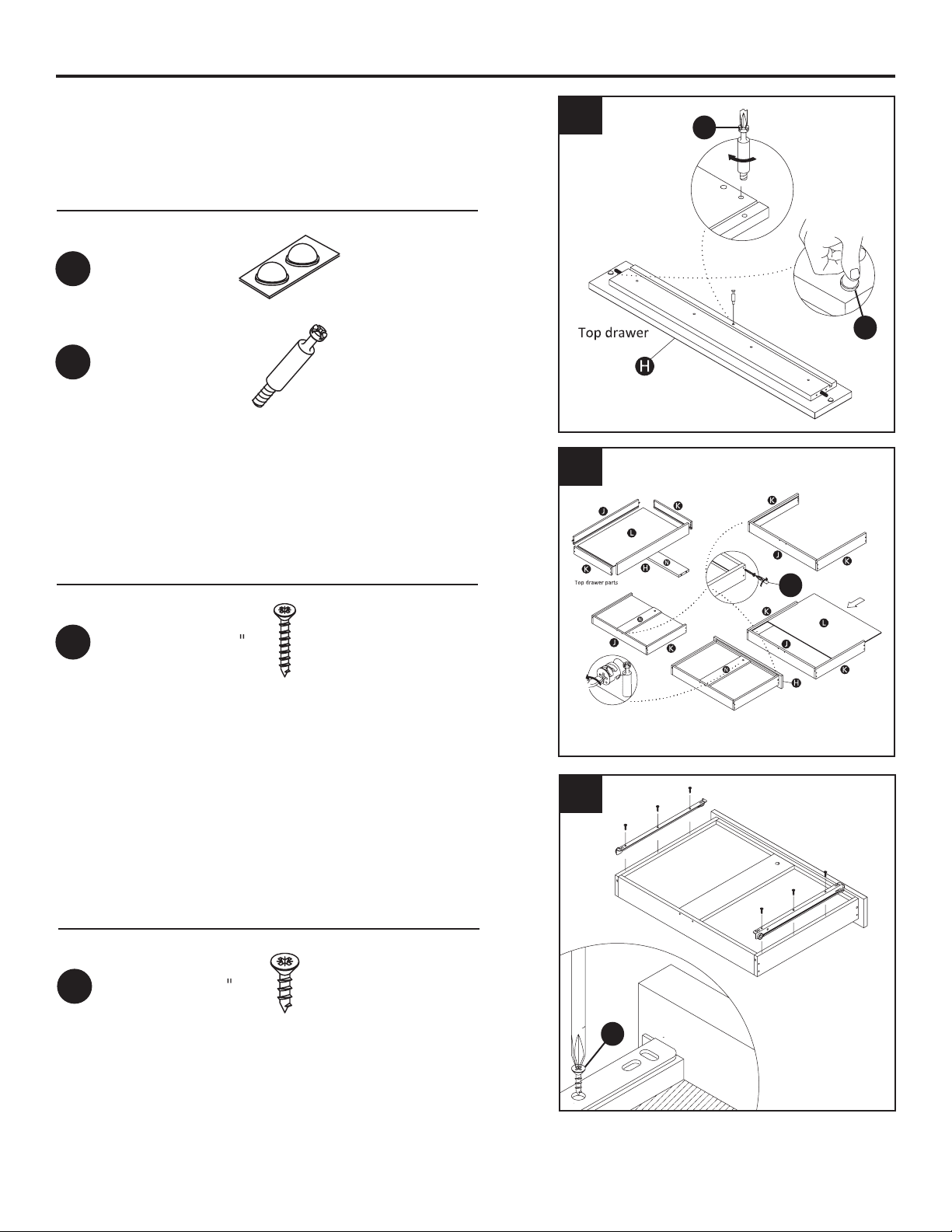

ASSEMBLY INSTRUCTIONS
7. Place the bumper pad on the drawer front as shown.
Attach
shown.
8
7
9
Hardware Used
Hardware Used
Hardware Used
Bumper 2MM
CSK screw 1 1/2
CSK screw 5/8
KK
II
HH
KK
BB
HH
BB
Step 1
Step 3
Step 2
Step 4
8. Using a phillips head screwdriver, secure the
"as shown in the
illustration. Be careful not to over-tighten as this
may damage the product.
bottom runner to the underside of the drawer
"as shown in the
illustration. Be careful not to over-tighten as this
may damage the product.
II
9

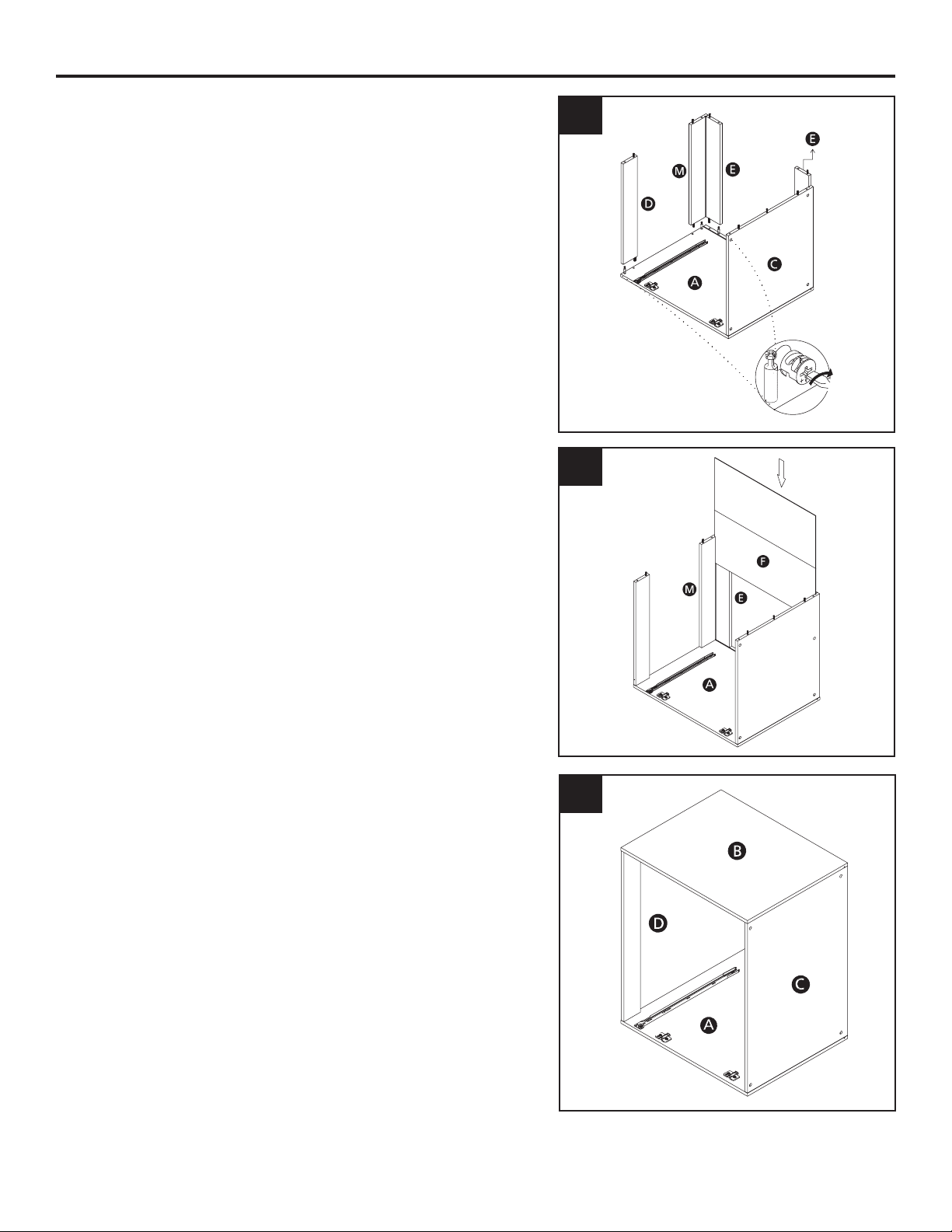

ASSEMBLY INSTRUCTIONS
11
10
11. Insert the back panel as shown in the drawing.
12
10. Assemble the cabinets parts as per the illustration.
cam clockwise to fasten into place. Ensure all
cams are locked into place before moving the
cabinet.
12. Assemble the cabinets parts as per the illustration.
Ensure all cams are locked into place before
moving the cabinet.
10

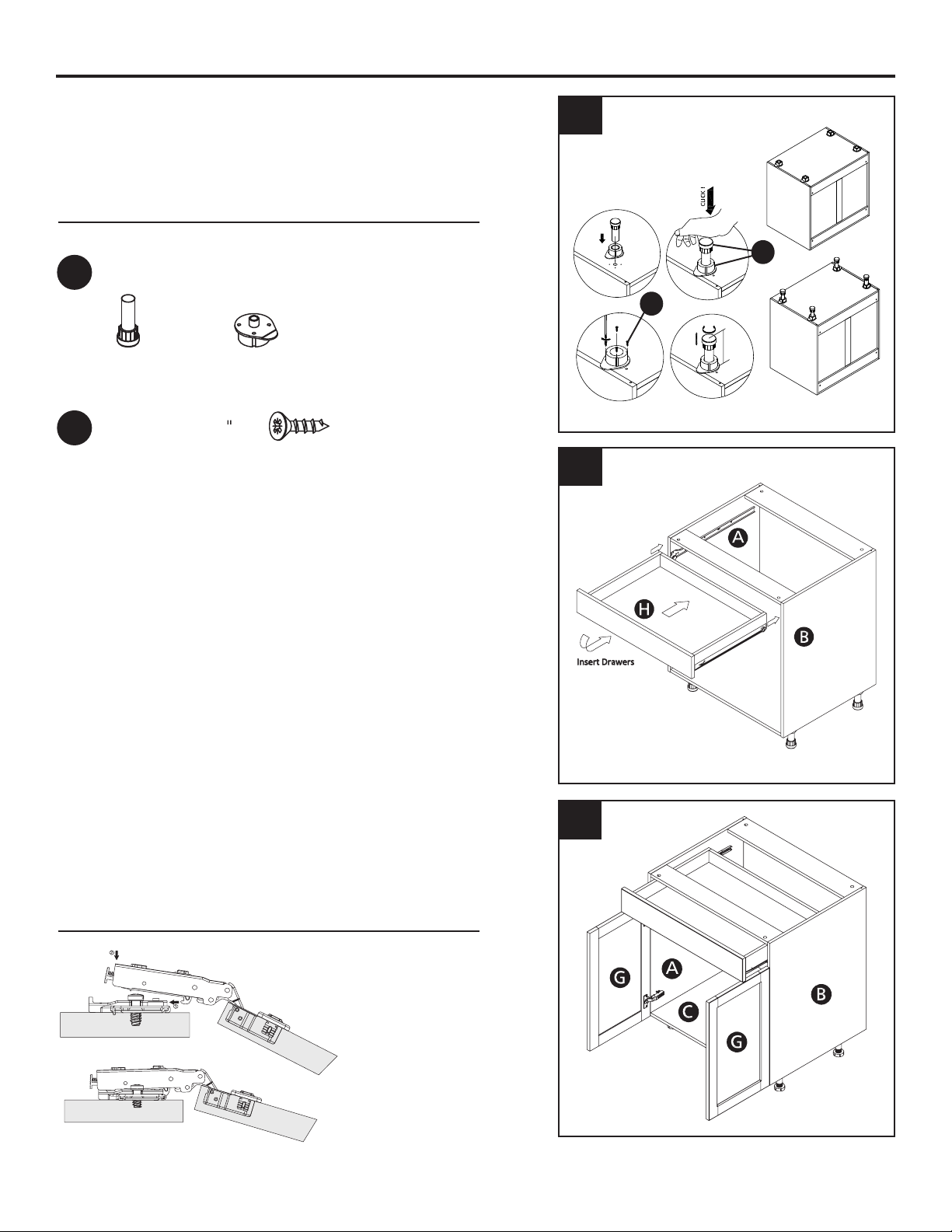

ASSEMBLY INSTRUCTIONS
14
15
13
DD
HH
If adjustments to the drawer are needed, instructions
are available on page 11 of this manual.
15. Mount the door on the cabinet by connecting the
hinges on the door to the mounting plates on
instructions.
If the adjustments to the door are needed,
instructions are available on page 11 of this manual.
13. Position the mounting bracket for the legs on the
head screwdriver, secure into place with csk screws
5/8"as per the illustration.
Hardware Used
PVC adjustable leg
DD
Leg Mounting bracket
CSK screw 5/8
HH
Hinge guide
105oHinge
