FLT-03-2-1
User Manual

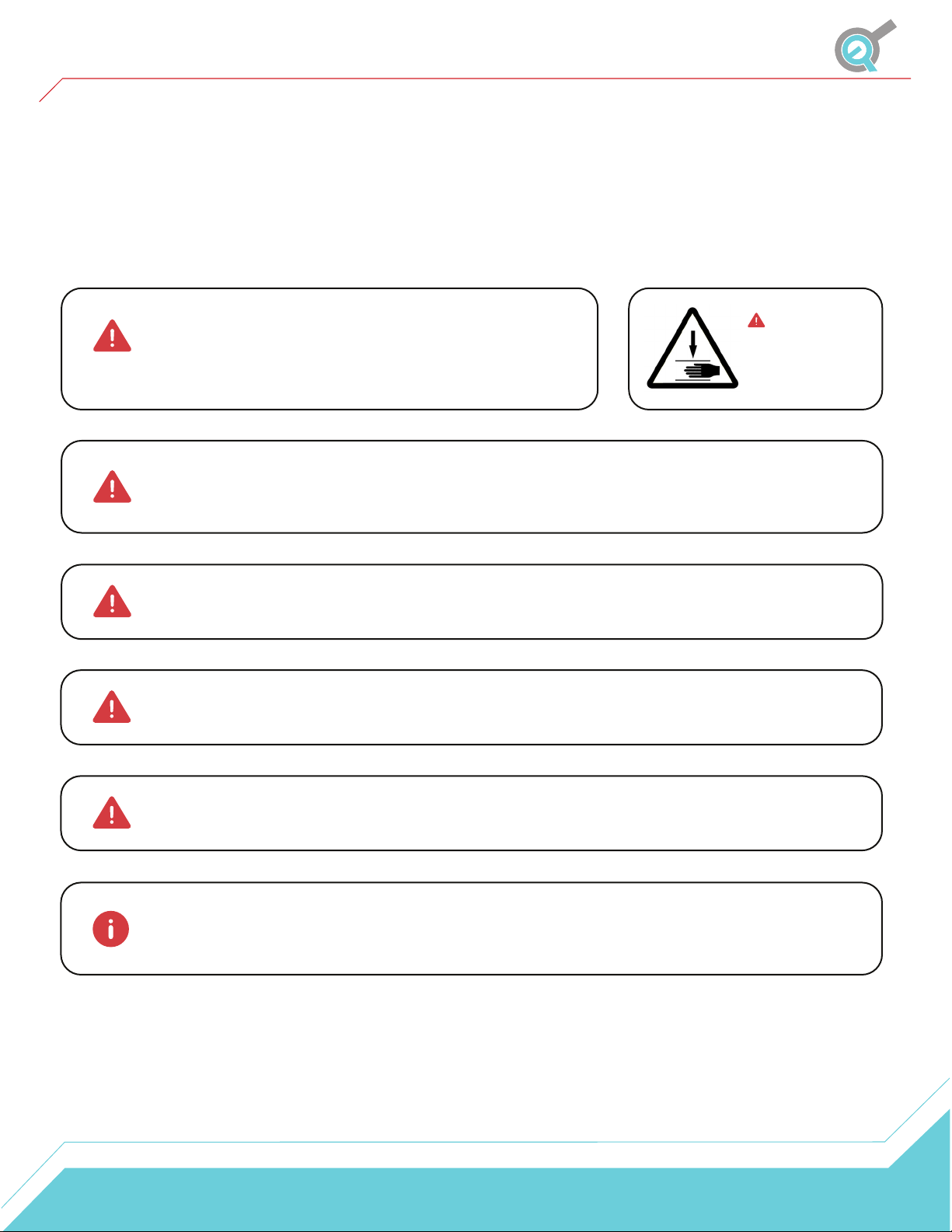

Ensure no obstacles are in the lifting column's path.
Ensure the top is not touching any walls. Ensure all
cords are appropriate length to accommodate the change
in height.
Warning
Pinch Point
Keep hands and
fingers clear.
Keep children away from electric height-adjustable lifting columns, control units, and handsets.
There is a risk of injury and electric shock.
During the Reset Procedure, the lifting column will retract 7mm below the lowest normal
operating height, ensure no obstacles impede this motion of travel.
Keep all electrical components away from liquids.
Do not sit or stand on the lifting column. Do not crawl or lie under the desk frame.
Do not place any objects taller than 20" underneath the lifting column.
Caution
1
Duty Cycle 10% Max. 2 mins on, 18 mins off
Height Range 22.8" - 37.9" (without tabletop)
Weight Capacity 440lbs
Input Voltage 120 VAC, 60 Hz
Output Voltage 24 VDC
Stroke 16"
Speed 0.5"/sec
Material Aluminum Alloy
Certification UL
Feature Description
Soft Start and Stop The lifting column will accelerate to maximum speed
and decelerate to a stop to ensure smooth travel.
Specifications
2
IP Rating IP43
3.9"
Ø0.2"
Ø0.8"
2.8"
1.6"
0.2" 2.3"
0.3"
1.0"
1.5" 1.6"
2.4"
4.5"
Ø0.3"
0.5"
0.8"
4.1"
3.6"
1.4"
0.4"
0.7"
0.4"
1.0"
2.8" 2.4"
3.2"
4.5"
2.1"
3.6"
0.6"
3.8"
3.3"
4.4"
6.7"
Ø0.5"
2.5"
2.5"
22.0"
0.5"
0.5"
7.9"
4.4"
1.9"
7.9"
4.4"
0.8"
3.9"
0.3"
Ø0.2"
1.4"
3.2"
1.6"
1.6"
0.3"
Leg Control Box
Remote
Dimensional Drawing
3
FLT-03-2-1 LIFTING COLUMN
Wired Remote

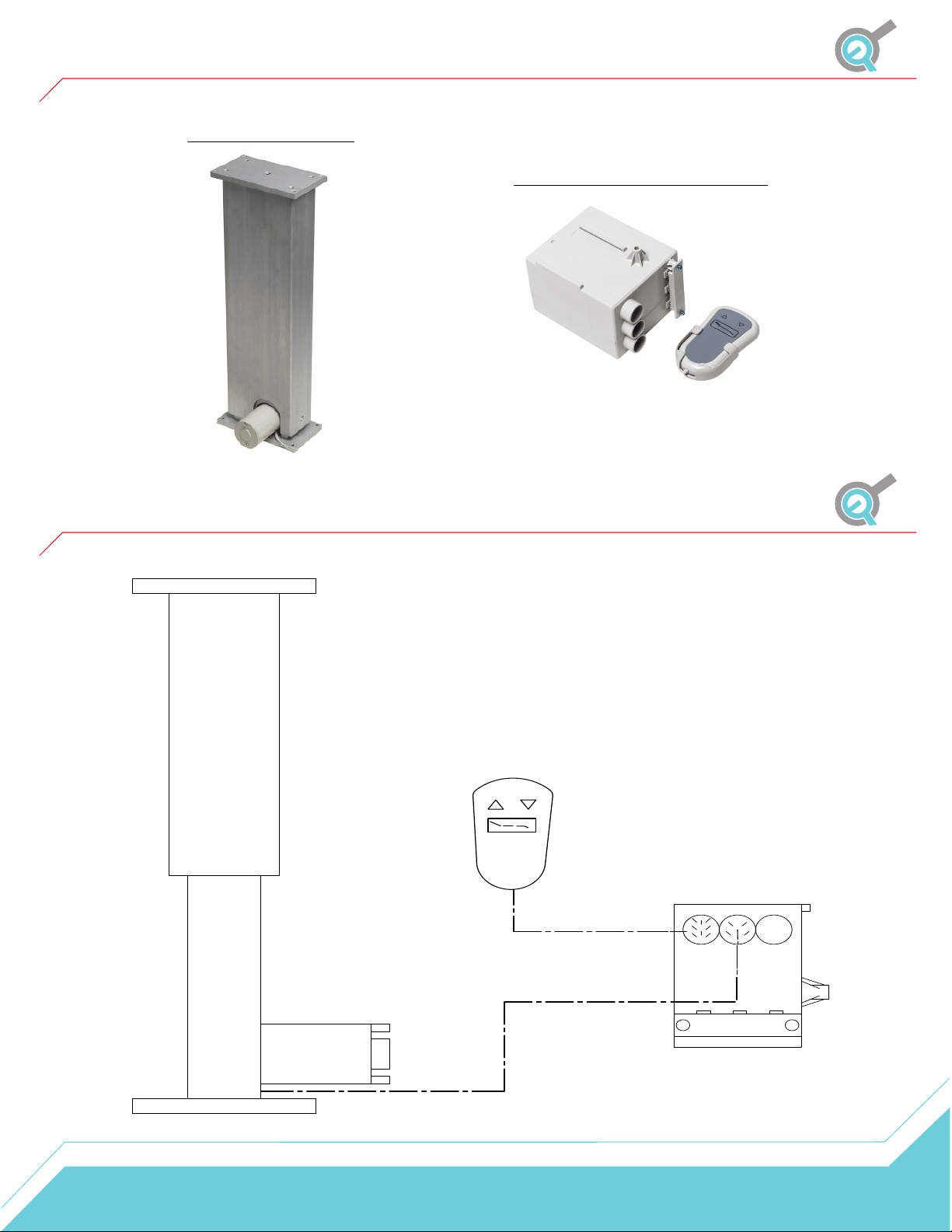

1 Lifting Column
Control Box and Remote
Control Box
Components
Setup
4
Operational Procedure
Once the lifting column is installed, use the wired remote for full up and down motion control. The
momentary buttons require the user to press and hold the button for both up and down control.
Once the button is released, the FLT-03-2-1 will stop moving.
5
