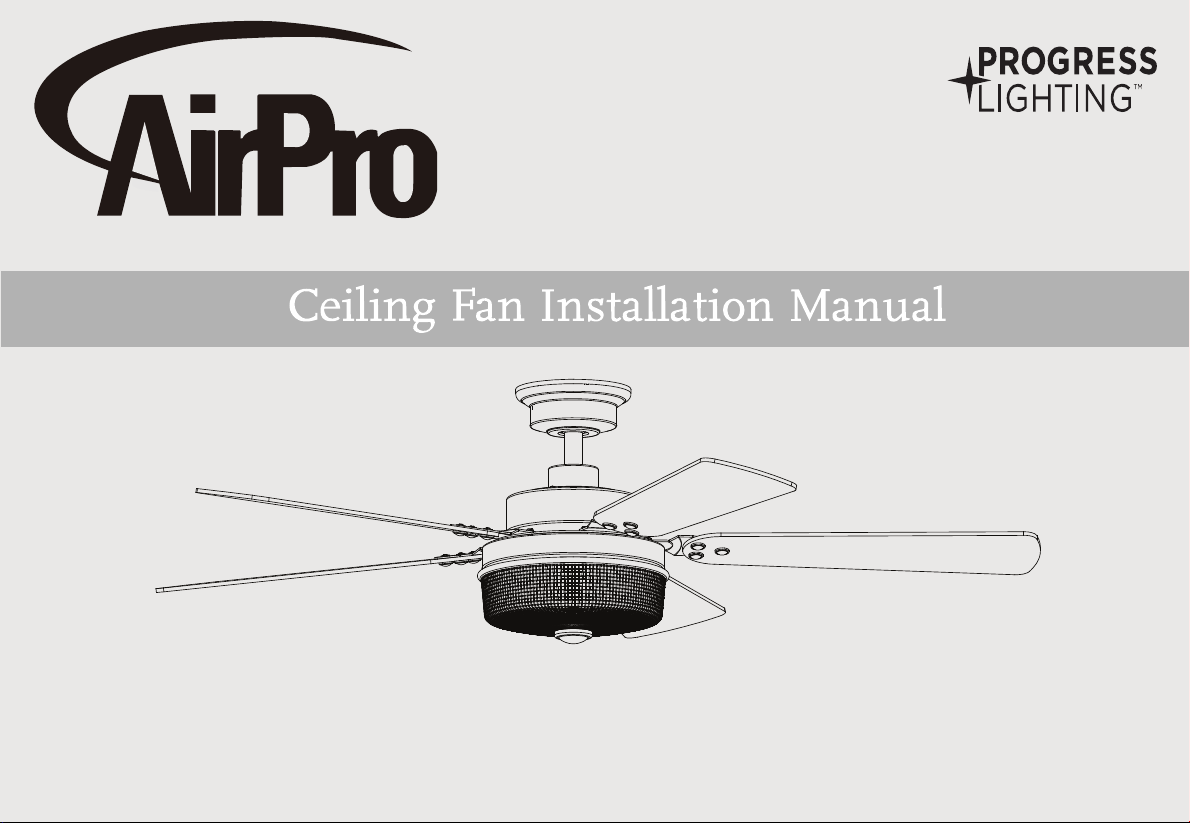

Progress Lighting AirPro P2578 Manual de usuario

P2578

93089911_A

Limited Lifetime Warranty

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

111017

P2578

Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical

defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and

metal nishes are warranted to be free from defects in materials or workmanship for a period of 1 year from

the date of purchase. Warping of wooden or plastic blades is not covered by this warranty nor is corrosion and/

or deterioration of any nishes for fans installed within ten miles of any sea coast. Extended warranties for

ENERGY STAR® qualied products may apply.

Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal

conditions of use, are warranted to be free from defects in material and workmanship which cause the light

sources to fail to operate in accordance with the specications for (i) ve (5) years from the date of purchase

on the LED Light modules and electrical components for fans used in single family residences, and (ii) three

(3) years from the date of purchase on the LED Light modules and electrical components for fans used in

multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no warranty other

than manufacturer’s warranty. Non-LED bulbs carry no warranty.

With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the

rst 30 days for replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864)

678-1000 for repair or replacement which shall be determined in Progress Lighting’s sole discretion and shall

be purchaser’s sole and exclusive remedy.

Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor

(including, but not limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.

This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration,

misuse, abuse or neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser

or a third party, including without limitation improper voltage supply or power surge, use of improper parts or

accessories, unauthorized repair (made or attempted) or failure to provide maintenance to the fan.

THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION

AND ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS.

PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL,

INCIDENTIAL OR CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF

BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN

IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE

OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations

of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This

warranty gives you specic rights and you may have other rights which vary from state to state.

Safety Rules

Unpacking Your Fan

Installing Your Fan

Making the Electrical Connections

Operating Your Fan

Care of Your Fan

Troubleshooting

Specications

Table of Contents

1. To reduce the risk of electric shock, insure electricity

has been turned off at the circuit breaker or fuse box

before beginning.

2. All wiring must be in accordance with the National

Electrical Code ANSI/NFPA 70-1999 and local electrical codes.

Electrical installation should be performed by a

qualied licensed electrician.

3. CAUTION: To reduce the risk of personal injury, use only

the screws provided with the electrical box.

4. The outlet box and support structure must be securely

mounted and capable of reliably supporting 35 lbs. (15.9

kg). Use only UL Listed outlet boxes marked “Acceptable

for Fan Support of 35 lbs. (15.9 kg) or less.”

5. CAUTION: The fan must be mounted with a minimum of

7 feet clearance from the trailing edge of the blades to the

oor.

6. Do not operate reversing switch while fan blades are in

motion. Fan must be turned off and blades stopped before

reversing blade direction.

7. Avoid placing objects in path of the blades.

8. To avoid personal injury or damage to the fan and other

items, be cautious when working around or

cleaning the fan.

9. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

10. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into

electrical box. The wires should be spread apart with the

grounded conductor and the equipment-grounding

conductor on one side of the electrical box and ungrounded

conductor on the other side of the electrical box.

11. Electrical diagrams are for reference only. Light kits that

are not packed with the fan must be UL Listed and marked

suitable for use with the model fan you are installing.

Switches must be UL General Use Switches. Refer to the

instructions packaged with the light kits and switches for

proper assembly.

12. All set screws must be checked and retightened where

necessary before installation.

13. WARNING: To reduce the risk of re or electric shock, do

not use this fan with any solid-state speed control device.

14. Use With Speed Controller UC7067RYE, manufactured by

Rhine Electronic Co., Ltd only.

1. Safety Rules

READ AND SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN

SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-

VIDED WITH THE OUTLET BOX.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED

WITH AN ISOLATION CONTROL/SWITCH.

a. Blade attachment hardware

(15 Screws)

b. Electrical hardware and Balancing kit

(3 plastic wire connectors, blade

balancing kit)

c. Blade bracket hardware (11 Screws)

d. Blade decorative hardware (15 Screws)

6. Blade Bracket (5)

7. Blades (5)

8. Light Kit Pan

9. Light Kit Fitter Assembly

10. Glass Shade

11. Transmitter and Receiver

1. Mounting Bracket (inside canopy)

2. 4.5” Ball/Downrod Assembly (hanger pin

and locking pin pre-attached)

3. Canopy with Canopy Ring (attached)

4. Decorative Motor Collar Cover

5. Fan Motor Assembly

2. Unpacking Your Fan

Unpack your fan and check the contents. You should have the following items:

c d

3. Installing Your Fan

Tools Required

Phillips screw driver or straight slotted screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn’t an existing electrical box, then

read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the electrical box directly to the building

structure. Use appropriate fasteners and

building materials. The electrical box and

its support must be able to fully support the

moving weight of the fan (at least 35 lbs.).

Do not use plastic electrical boxes.

Figures 1, 2, and 3 are examples of different

ways to mount the electrical box.

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum

angle allowable is 20˚. If the canopy touches

downrod, remove the decorative canopy

bottom cover and turn the canopy 180˚ before

attaching the canopy to the mounting plate.

To hang your fan where there is an existing

xture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

TO OUTLET BOX MARKED “ACCEPTABLE

FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR

LESS”, AND USE SCREWS PROVIDED WITH

THE OUTLET BOX. ELECTRICAL BOXES

COMMONLY USED FOR THE SUPPORT OF

LIGHTING FIXTURES MAY NOT BE ACCEPT-

ABLE FOR FAN SUPPORT AND MAY NEED TO

BE REPLACED. CONSULT A QUALIFIED ELEC-

TRICIAN IF IN DOUBT.

Figure 1

Figure 2

Figure 4

Figure 3

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly.

NOTE: This fan is recommended for

standard ceiling mount using the downrod

provided with this fan. When using standard

ceiling installation with the 4.5 inch downrod

provided, the distance from the ceiling

to the bottom of the fan blades will be

approximately 10 inches.

Standard Ceiling Mounting

1. Remove the canopy ring from the canopy

by turning the ring counter-clockwise

until it unlocks. (Figure 5)

2. Remove the mounting bracket from the

canopy by loosening the four screws on

the top of the canopy. Remove the two

non-slotted screws and loosen the slotted

screws. This will enable you to remove

the mounting bracket. (Figure 6)

3. Remove the hanger pin and locking pin

from downrod assembly

4. Route the wires exiting the top of the fan

motor through the decorative motor collar

cover then the canopy ring. Make sure the

slot openings are on top. Route the wires

through the canopy and then through the

ball/downrod assembly. (Figure 7)

Remove

Loosen but Do Not Remove

Turn Canopy to Remove

Figure 5

Figure 6

5. Loosen, but do not remove, the set screws

on the collar on the top of the motor

housing.

6. Align the holes at the bottom of the

downrod with the holes in the collar on top

of the motor housing. (Figure 7)

Carefully insert the hanger pin through the

holes in the collar and downrod. Be careful

not to jam the hanger pin against the wiring

inside the downrod. Insert the locking pin

through the hole near the end of the bolt

until it snaps into its locked position, as

noted in the circle inset of Figure 7.

7. Re-tighten the set screws on the collar on

top of the motor housing.

8. Make sure the grommet is properly installed

in the collar cover, then slide the collar cover

on the downrod until it rests on the motor

housing. Be sure that the canopy and the

collar cover are both oriented correctly.

9. Proceed to “Installing the Fan” section.

FAILURE TO PROPERLY INSTALL SET SCREWS

AS NOTED IN STEP 7 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Figure 7

Motor collar

Pin in locked

position

Locking pin

Tighten

screws

Reverse

switch

Hanger pin

Motor collar

cover

Canopy ring

Motor wires

Ball/Downrod

assembly

Canopy

Installing Fan to

the Electrical Box

WHEN MOUNTING THE FAN ON A SLOPED

CEILING, THE STANDARD BALL/DOWNROD

MOUNTING METHOD MUST BE USED. THE

MOUNTING BRACKET MUST BE MOUNTED

SO THAT THE SLOT OPENINGS ARE ON THE

LOWER SIDE BY SLIDING THE MOUNTING

BRACKET FROM THE TOP DOWN.

1. Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket

as shown in Figure 8.

2. Install the ceiling mounting bracket on the

electrical box by using the mounting screws

provided with the electrical box. Note that

the at side of the mounting bracket is

toward the electrical box. (Figure 8)

3. Tighten the two screws on the electrical box

securely.

4. Carefully lift the fan assembly up to the

ceiling mounting bracket. Make sure the tab

on the mounting bracket is properly seated

in the groove in the hanger ball. (Figure 9)

Figure 8

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING BRACKET MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 9

Standard mounting

EACH WIRE NUT (WIRE CONNECTOR) SUPPLIED

WITH THIS FAN IS DESIGNED TO ACCEPT UP TO

ONE 12 GAUGE HOUSE WIRE AND TWO WIRES

FROM THIS FAN. IF YOU HAVE LARGER THAN

12 GAUGE HOUSE WIRING OR MORE THAN

ONE HOUSE WIRE TO CONNECT TO THE FAN

WIRING, CONSULT AN ELECTRICIAN FOR THE

PROPER SIZE WIRE NUTS TO USE.

USE THE PLASTIC WIRE CONNECTORS

SUPPLIED WITH YOUR FAN. SECURE THE

CONNECTORS WITH ELECTRICAL TAPE AND

ENSURE THERE ARE NO LOOSE STRANDS OR

CONNECTIONS.

BLUE

BLACK

WHITE

GREEN

BLUE

BLACK WHITE

WHITE

SUPPLY CIRCUIT

BLACK

WHITE

Grounding

Conductor

Green

Grounding

Lead

Remote

Receiver

Figure 10

Making the Electrical

Connections

REMEMBER to disconnect the power. If

you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts supplied with your fan and

supplied with remote control. Secure the

connectors with electrical tape. Make sure there

are no loose strands or

connections. (Figure 10)

1. Connect the ground conductor of the 120v

supply (this may be a bare wire or a wire

with green colored insulation) to the green

ground lead(s) of the fan. (Figure 10)

2. Connect the fan motor white wire to the

receiver white wire using a wire nut.

(Figure 10)

3. Connect the fan motor black wire to the

receiver black wire using a wire nut.

(Figure 10)

4. Connect the fan motor blue wire to the

receiver blue wire using a wire nut.

t(Figure 10)

5. Connect the receiver black wire to the

supply black (hot) wire using a wire nut.

(Figure 10)

6. Connect the receiver white wire to the

supply white (neutral) wire using a wire

nut. (Figure 10)

7. After connecting the wires, spread them

apart so that the green and white wires are

one side of the electrical box and the black

wire is on the other side.

8. Turn the wire connecting nuts upward and

carefully push the wiring into the electrical

box.

Attaching the Fan

Blades

1. Attach a blade to blade bracket using

the decorative nuts and blade attachment

screws provided. Insert a blade attachment

screw through the hole in the blade bracket

and blade and into the decorative nut.

Tighten each screw securely. (Figure 12)

2. Repeat these steps for each blade and blade

bracket. (Figure 12)

3. Attach the blade assemblies to the motor by

aligning the two screw holes in the blade

bracket with the screw holes in the center

ywheel and secure with screws. (Figure

13)

4. Repeat this step for the remaining blade

assemblies. (Figure 13)

Figure 13

Figure 14

Blade Balancing

All blades are grouped by weight. Because natural

woods vary in density, the fan may wobble even

though the blades are weight matched.

The following procedure should correct most fan

wobble. Check after each step.

1. Check that all blade screws are secure.

2. Most fan wobble problems are caused when blade

levels are unequal. Check this level by selecting

a point on the ceiling above the tip of one of the

blades. Measure from a point on the center of

each blade to the point on the ceiling. Measure

this distance as shown in Figure 14. Rotate the fan

until the next blade is positioned for measurement.

Repeat for each blade. Measurements deviation

should be within 1/8”. Run the fan for 10 minutes.

3. Make sure that canopy is tightened securely to

ceiling mounting bracket and that the ceiling

mounting bracket is tightened securely to the

electrical box.

4. Interchanging two adjacent blades can redistribute

the weight and possibly result in the smoother

operation.

5. Use the enclosed Blade Balancing Kit if the blade

wobble is still noticeable.

Touching

Ceiling

1. Remove one screw from the black bracket

below fan motor assembly, loosen but do

not remove the other two screws. (Figure

11)

2. Push the light kit pan up to the fan motor

assembly so that the two loosened screw

heads t into the keyhole slots. Turn the

light kit pan clockwise. Re-install the screw

that was removed in step 1. Make sure all

the screws are rmly tightened. (Figure 11)

7. Assembling the Fan

Screws

Motor Assembly

Attaching the Light Kit

Pan

Blade

Screws

Decorative

Nuts

Blade arm

Figure 12

Motor

Assembly

Light Kit

Pan

Screws

Figure 11

Otros manuales para AirPro P2578

Tabla de contenidos

Otros manuales de Admirador de Progress Lighting

Progress Lighting

Progress Lighting AirPro P250032 Manual de usuario

Progress Lighting

Progress Lighting AirPro P2586 Manual de usuario

Progress Lighting

Progress Lighting AirPro P2542 Manual de usuario

Progress Lighting

Progress Lighting Airpro P250073 Manual de usuario

Progress Lighting

Progress Lighting AirPro P2548 Manual de usuario

Progress Lighting

Progress Lighting AirPro P250024 Manual de usuario

Progress Lighting

Progress Lighting AirPro P250071 Manual de usuario

Progress Lighting

Progress Lighting AirPro P250110 Manual de usuario

Progress Lighting

Progress Lighting AirPro P2578 Instrucciones de funcionamiento y mantenimiento

Progress Lighting

Progress Lighting AirPro P2540 Manual de usuario

Progress Lighting

Progress Lighting AirPro P250070 Manual de usuario

Progress Lighting

Progress Lighting P2570 Manual de usuario

Progress Lighting

Progress Lighting AirPro P250075 Manual de usuario

Progress Lighting

Progress Lighting AirPro P2542-3030K Manual de usuario

Progress Lighting

Progress Lighting AirPro Schaal P250101 Manual de usuario

Progress Lighting

Progress Lighting AirPro P2564-3030K Manual de usuario

Progress Lighting

Progress Lighting AirPro P250066 Manual de usuario

Progress Lighting

Progress Lighting AirPro P250107 Manual de usuario

Progress Lighting

Progress Lighting AirPro P2594 Manual de usuario

Progress Lighting

Progress Lighting AirPro P250022 Manual de usuario

Progress Lighting

Progress Lighting AirPro Willacy P250063 Manual de usuario

Progress Lighting

Progress Lighting AirPro P250006 Manual de usuario

Progress Lighting

Progress Lighting AirPro P250040 Manual de usuario

Progress Lighting

Progress Lighting AirPro P2556 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
