Proceq PAROTESTER 2 Manual de usuario
Operating Instructions
PAROTESTER 2
Paper and film tester
Sales and service information: www.proceq.com
Proceq SA
Ringstrasse 2
Postfach 336
CH - 8603 Schwerzenbach
Switzerland
Tel.: +41 ( 0 )43 355 38 00
Fax: +41 ( 0 )43 355 38 12
E-mail: [email protected]
Proceq USA, Inc.
117 Corporation Drive
Aliquippa PA 15001
Phone +1-724-512-0330
Toll free +1-800-839-7016
Proceq Asia Pte Ltd
12 New Industrial Road
#02 - 02A Morningstar Centre
Singapore 536202
Phone +65 - 6382 - 3966
Fax +65 - 6382 - 3307
Subject to change without notice.
Copyright © 2012 by Proceq SA Schwerzenbach 820 360 01 E ver 03 2012
English
© 2012 Proceq SA Table of Contents 1
Contents
1 Safety ................................... 2
General Instructions......................... 2
Use .................................... 2
Liability ................................... 2
Recommendations .......................... 2
2 Important information ...................... 3
Compatibility .............................. 3
Preventing damage ......................... 3
Correct measurement ....................... 3
3Measurements ............................ 4
Measuring process.......................... 4
The hardness value L ....................... 4
Measurement accuracy ...................... 4
Functional checks .......................... 5
4Technical data ............................ 5
Display device ............................. 5
Impact devices ............................ 6
5Connections and controls .................. 7
Display device ............................. 7
Impact device.............................. 7
6Device operation .......................... 8
Electronic display device ..................... 8
Connections ............................... 8
Main necessary settings ..................... 9
Other settings............................. 10
7Data output .............................. 15
Transferring the memory .................... 16
Clear memory ............................ 17
Online data transfer to the printer ............. 18
Online data upload to the PC ................ 19
8Operation ............................... 20
General ................................. 20
Information on the LCD display ............... 21
Depiction and interpretation of the measurements 22
9 Measurement limits ....................... 22
General ................................. 22
10 Error messages .......................... 23
General ................................. 23
Do not test too quickly! ..................... 24
Measurement signal error ................... 24
11 Maintenance ............................. 25
General ................................. 25
12 Accessories ............................. 26
PAROLINK3 data upload software ............ 26
Barcode reader ........................... 28
Test block U .............................. 30
Printer .................................. 30
13 Other important information................ 31
Viewing the data in the memory .............. 31
14 Form of supply and part designation ........ 32
. . © 2012 Proceq SA
1 Safety
1.1 General Instructions
The PAROTESTER impact device and the corresponding
display device are designed and constructed in keep-
ing with the state of the art and signalednized technical
safety regulations .
Please read these operating instructions carefully
before using the device for the first time. They contain
important instructions for use and maintenance of the
PAROTESTER impact device.
1.2 Use
The PAROTESTER impact device is a mechanical
device and serves for fast and almost 100% non-
destructive quality control of paper rolls and plastic rolls
in accordance with customer specifications. The device
should only be used for paper, plastic rolls and films.
Use with harder materials can damage the respective
impact bodies and result in faulty measurement results.
The PAROTESTER2 display device serves for data
acquisition, display and storage. It may only used for
these purposes and must be protected against external
influences.
1.3 Liability
Our «General Terms and Conditions» always apply.
Warranty and liability claims in the event of personal
injury and damage to equipment are excluded if they are
caused by one or more of the following:
- Incorrect functional check, operation and maintenance
of the PAROTESTER2 device
- Unauthorized modifications to the PAROTESTER2
device
- Catastrophes caused by the effects of foreign bodies,
accidents, vandalism and force.
1.4 Recommendations
- Carry out the specified maintenance work regularly.
- Observe the recommendations during cleaning or
maintenance of device components.
2 Safety
English
© 2012 Proceq SA
2 Important information
2.1 Compatibility of the impact devices
The impact devices type P and PG also mentioned
in these operating instructions refer to the previous
PAROTESTER - model ( 1 ). These impact devices can
also be used with the PAROTESTER2 if the impact
device cable has a BNC connection.
2.2 Compatibility of data upload to a PC
Upload of the saved measurement data via RS232 is
possible with the PAROLINK/PAROLINK 3 software,
version 1.X., for all PAROTESTER models.
The special corresponding cable is supplied with the
PAROLINK 3 software.
Upload of the measurement data to a PC without
the PAROLINK 3 software is also possible with the
Windows «Hyperterminal» software.
The special cable is necessary and can be ordered as
an accessory.
2.3 Compatibility with the barcode reader
A barcode reader can only be connected to the serial
interface RS232 of the PAROTESTER2 display device
from series no. SN. 511.XXXX, Eprom Vers. 5.1
onwards. The barcode reader is supplied with power
from the PAROTESTER2 display device (battery supply).
2.4 Compatibility with printing of the
measurement data
An RS232 cable, 9 / 9p, wired 1:1 is required from series
SN 511.XXXX, Eprom Vers. 5.1 onwards due to the
multi-purpose serial interface and for printing the data
on a printer with RS232.
2.5 Preventing damage
PAROTESTER2 is designed for rolled paper, films and
foils. Test impact on harder materials damages the
impact body which can produce in incorrect results.
2.6 Correct measurement
- PAROTESTER 2 is a precise measuring instrument
and should also be used as a measuring instrument.
- If the measurement is carried out too quickly, the
impact body is additionally accelerated. This can result
in incorrect measurements. PAROTESTER2 recognizes
the faulty measurement procedure.
Important information 3
. . © 2012 Proceq SA
This measured value is neither saved nor displayed.
Instead of displaying the measured value, the message
«Measure more slowly!» appears on the LCD display.
During the next correctly executed measurement, the
current hardness profile, the newly executed measure-
ment and all previously set parameters appear once
more. Also refer to section 10, «Error messages»
3 Measurements
3.1 Measuring process
The PAROTESTER measuring process is identical to the
EQUOTIP process, which is based on the energy mea-
surement principle; EQUO = energy quotient. During
testing an impact body with a steel calotte is knocked
against the test surface by spring force and then
rebounds. The impact and rebounding velocity are mea-
sured by non-contacting instruments when the calotte of the
impact body is approx. 1.5 mm away from the tested sur-
face. This is achieved by a permanent magnet integrated
into the impact body which moves through a coil during
the test and induces electrical voltages when moving
forwards and backwards which behave proportionately to
the speeds. The measured values from the impact and
rebound speeds are converted in the display device to
the hardness value L.
3.2 The hardness value L
This term which has been used hardness testing since
1975 is the quotient of rebound and impact speed of the
impact body multiplied by the factor 1,000.

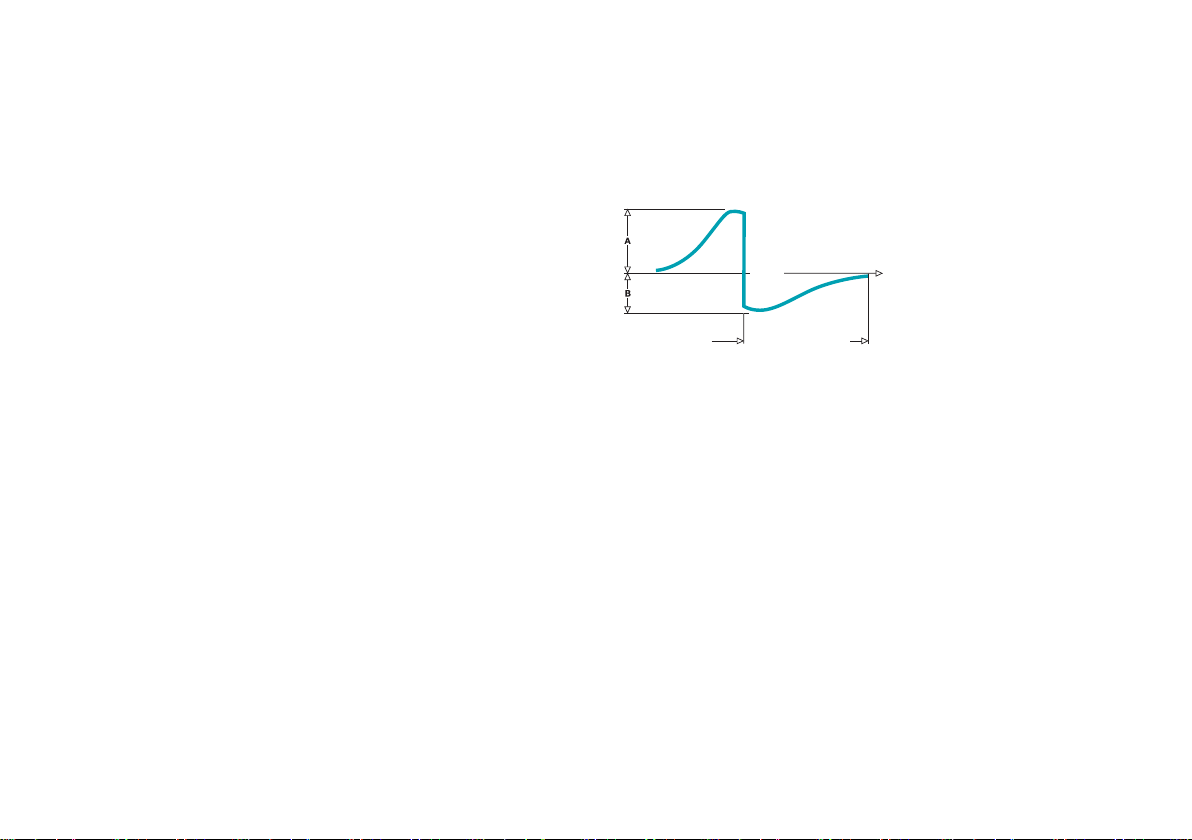

Fig. 1 Signal progression
during test impact
Hardness value L = 1000 · –
B
A
Time
Impact phase Rebound phase
This hardness value comprises a 3-digit value which
increases with the hardness of the tested material.
The L-value is additionally marked with the ID letter of
the respective impact device. For example: LU = 671
for the L-value of the impact device type U.
3.3 Measurement accuracy
The measuring accuracy of the PAROTESTER (EQUO
process) when using the L-value as a direct measure-
ment gauge:
4 Measurements
English
© 2012 Proceq SA
4 Technical data
4.1 Display device
Required batteries: 6 standard size AA cells:
1.5 V LR6
Operating time with a set of batteries at 20 ºC
approx.:
50 hours
Permissible ambient temperature range:
0 ºC to + 50 ºC
Connection sockets on the PAROTESTER
for impact devices:
2-pin and BNC
Connection for external power supply:
9 V DC 0.2 A
Data output socket:
RS 232 / DB 9p
Display device dimensions:
75 x 180 x 80 mm
Weight:
750 g, incl. batteries
- Medium measurement spread of the L-value over
the entire measuring range: ±6L based on the L-value,
L=600: ±1%
3.4 Impact device functional check
- The functional check of the PAROTESTER impact
devices and display devices is carried out electronically
with each measurement(impact energy and encoder
position).Corresponding messages are output on the
display in the event of deviation from the programmed
set value.
- An extended functional check of the impact devices
and display devices is carried out on a calibrated test
block. This serves for mechanical and electrical checks
of impact devices P, PG and U and display device
PAROTESTER2. These are carried out by measure-
ments on this test block. The PAROTESTER impact
devices and display device are working correctly when
the mean value of 3 to 5 measurements is within the
set value marked on the test block and the range R is
< 20 L . Also refer to the section 12.3 «Test block U».
Connecting the devices 5
. . © 2012 Proceq SA
4.2 Impact devices
Impact device type U
Impact energy: 200 Nmm
Max. penetration: 4.0 mm
Contact force: 120 N
Impact device diameter: 46 mm
Impact device length: 300 mm
Weight without cable: 890 g
Impact body U
Mass of the impact body 26 g
Calotte radius 25 mm
Impact body tip, hardened
Impact device type P
Impact energy: 160 Nmm
Max. penetration: 2.5 mm
Contact force: 100 N
Impact device diameter : 45 / 60mm
Impact device length: 300 mm
Weight without cable: 920 g
Impact body P
Mass of the impact body 20 g
Calotte radius 25 mm
Impact body tip not hardened
Impact device type PG
Impact energy: 90 Nmm
Max. penetration: 2.5 mm
Contact force: 100 N
Impact device diameter: 45 / 60 mm
Impact device length: 300 mm
Weight: 920 g
Impact body PG
Mass of the impact body 20 g
Calotte radius 25 mm
Impact body tip not hardened
Impact device type D
Impact energy: 11 Nmm
Max. penetration: 1.0 mm
Contact force ~10 N (by hand)
Impact device diameter: 20 mm
Impact device length: 150 mm
Weight without cable: 50 g
6 Connecting the devices
English
© 2012 Proceq SA
5.2 Impact device
Type U
5 Connections and controls
5.1 Display device
1. Operating panel
2. Large LCD with display of the L-values and
hardness curve
3. Signal input BNC
4. Signal input 2-pin
5. Carrying lugs
6. Signal output RS232C interface
7. Ext. battery connection 9 V DC 0.2 A
8 . Battery compartment, housing bottom section
9 . Battery compartment lid, housing bottom section
10. Housing top section
11. Housing bottom section
f Loading tube
f Guide tube
fCoil
fSupport ring
fBNC cable
11
8/9
7
6
4
3
5
10 1
Connections and controls 7
2
Fig. 3
Fig. 2
Support ring
Type P/PG Type D
Cable
2-pin
f
Fig. 4 Fig. 5
. . © 2012 Proceq SA8 Operation of the devices
6. Device operation
6.1 Electronic display device
The display device is a user-friendly µP-controlled data
acquisition system with the following main advantages:
•Digital display and graphic recording of the measured
L-values
•Calculation of the mean value, standard deviation and
range
•Viewing all measured values in the entire memory
•Conversion to the R-value of the Schmidt-Hammer type
L/LR)
•Data memory with output option via RS232 (PC and
printer)
•Data input with barcode reader via RS232
•Multi-language capability
•Mains independent
Operating keys field and display field
Fig. 6 Fig. 7
Device on/off Cursor upwards Opens the menu
to menu level item on the menu level
Cursor to left Selection in menu level Cursor to right
right
Deletes last Cursor down Finishes menu input
measurement to menu level or concludes measure-
ment series
6.2 Connections
. Fig. 8
I I I I
1 2 3 4
Tabla de contenidos
Otros manuales de Equipo de prueba de Proceq
Proceq
Proceq DYNA ESTRICH Manual de usuario
Proceq
Proceq ZAA2600 Manual de usuario
Proceq
Proceq DIGI-SCHMIDT 2000 LD Manual de usuario
Proceq
Proceq Equotip 3 Manual de usuario
Proceq
Proceq ZCC 2087 Series Manual de usuario
Proceq
Proceq N / L Manual de usuario
Proceq
Proceq SRT 5800 Manual de usuario
Proceq
Proceq Resipod Family Manual de usuario
Proceq
Proceq Equotip 550 Manual de usuario
Proceq
Proceq Equotip Live Series Manual de usuario
Proceq
Proceq GP8800 Manual de usuario
Proceq
Proceq ZAA 2600.SW Manual de usuario
Proceq
Proceq Zonotip Manual de usuario
Proceq
Proceq Pundit PL-200 Manual de usuario
Proceq
Proceq ZCC 2087 Series Manual de usuario
Proceq
Proceq Equotip Live Manual de usuario
Proceq
Proceq Pundit PL-200PE Manual de usuario
Proceq
Proceq DIGI-SCHMIDT 2000 ND Manual de usuario
Proceq
Proceq RQ8000 Manual de usuario
Proceq
Proceq OS8000 Instrucciones de operación
Manuales populares de Equipo de prueba de otras marcas
SMART
SMART KANAAD SBT XTREME 3G Series Manual de usuario
Agilent Technologies
Agilent Technologies BERT Serial Manual de usuario
Agilent Technologies
Agilent Technologies N3280A Manual de usuario
Vernier
Vernier Go Direct Voltage Manual de usuario
Lifeloc
Lifeloc R.A.D.A.R. Manual de usuario
Fluke
Fluke T5-600 Instrucciones de funcionamiento e instalación
