PROAIM P-A21-J Manual de usuario

Proaim Alphabet 21ft Jib Crane

(P-A21-J)

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied by

the applicable copyright statutes or in wring by the Publisher.

I N S T R U C T I O N M A N U A L

For Demonstration only

Proaim Alphabet 21 Jib Crane 2

INTRODUCT ION

Camera Cranes are quite important tools in the world of lmmaking especially when you want to

add visual interest to your shots. To achieve this, Proaim introduced Alphabet 21 Jib Crane

Package that is highly stable and gets easily integrated into your shoong style. Along with this,

we also kept it lightweight, compact and quick to assemble so that you can use it in various

shoong scenarios.

IN THE BOX

Please inspect the contents of your shipped package to ensure you have received all that is

pictured and listed below.

Proaim Alphabet 21 Jib Crane 3

• Install the Hub (Secon 2 of Jib) into bowl of your 100 mm tripod stand and ghten the hub

with center locking knob.

ASSEMBLING JIB SECTIONS

Proaim Alphabet 21 Jib Crane 4

• Loosen the provided knob at the end of secon 2 to slide the bars of secon 3 into the end of

secon 2 .

• Then ghten both the secons together

using the provided knobs.

ASSEMBLING JIB SECTIONS

2. Secon 2a with 2, 2b with 2a, 2c with 2b & 1 with 2c :

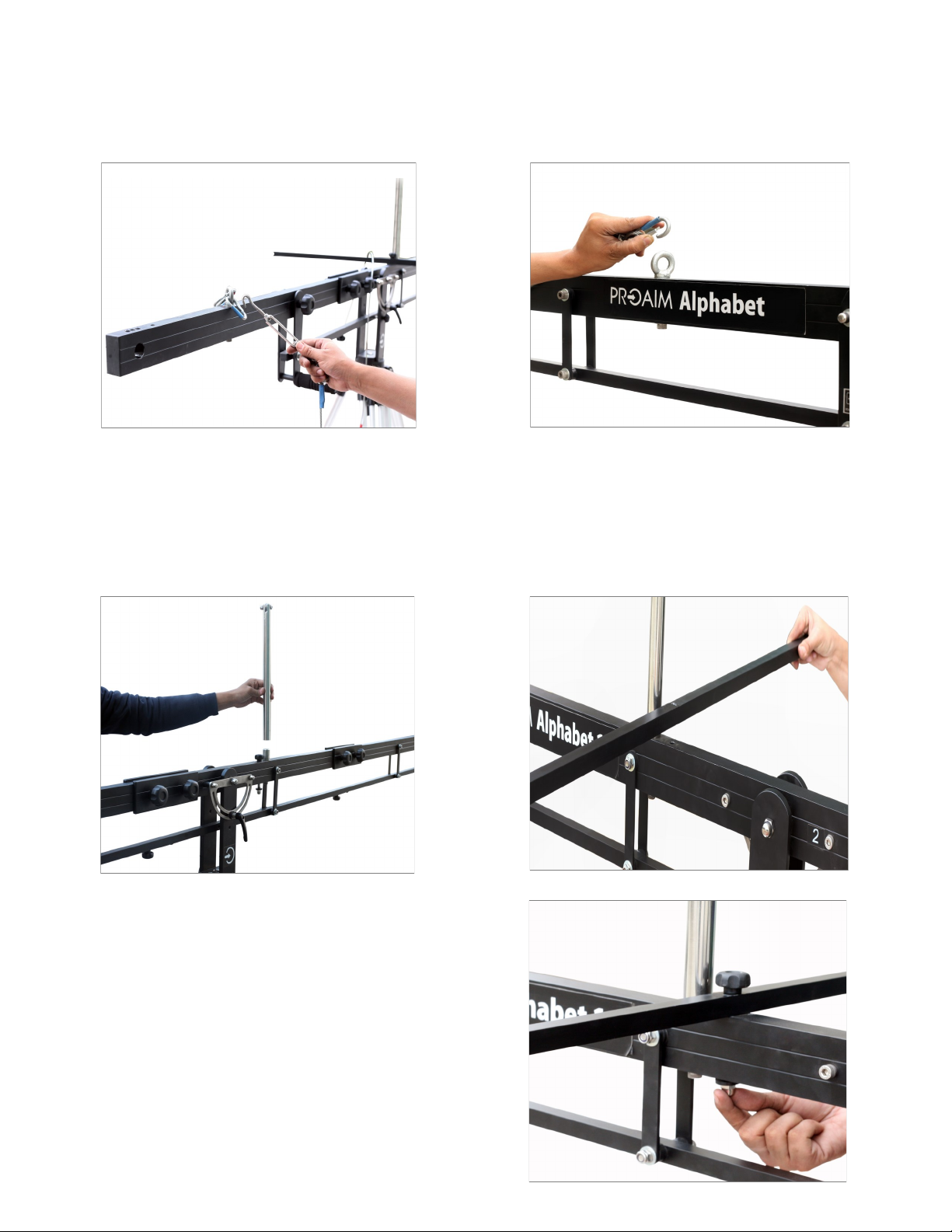

ASSEMBLING CABLE GUIDE AND SUPPO RT ROD

• Aach cable guide to cable guide clamp on 2nd secon properly. Loosen the knob, ahead of

cable guide clamp in order to aach cable guide support rod to it.

Proaim Alphabet 21 Jib Crane 5

ASSEMBLING CABLES

• Now aach one end of 14.5 blue cable to blue hook on back side of jib (secon 3 ) and the

other end of blue cable to blue hook on front secon of jib (secon 1).

2. Secon 2a with 2, 2b with 2a, 2c with 2b & 1 with 2c :

For aaching these secons follow the same steps as menoned above.

ASSEMBLING CABLE GUIDE AND SUPPO RT ROD

• Aach cable guide to cable guide clamp on 2nd secon properly. Loosen the knob, ahead of

cable guide clamp in order to aach cable guide support rod to it.

• Reghten the knob to secure

properly.

899

10 11

Proaim Alphabet 21 Jib Crane 6

ASSEMBLING CABLES

• Now aach one end of 14.5 blue cable to blue hook on back side of jib (secon 3 ) and the

other end of blue cable to blue hook on front secon of jib (secon 1).

• Now aach one end of 14.3 red cable to red hook on back side of jib (secon 3 ) and align

the red cable to the cable guide from top.

• Similarly aach the second blue

cable and align both the blue cables

to the side of support rod.

13 14

16 17

Proaim Alphabet 21 Jib Crane 7

• Then, aach the other end of red cable

to red hook on front secon of jib

(secon 1).

ADJUSTIN G THE WIRE TENSIO NE R

• The wires have the screw-in wire

adjustment system in order to adjust the

wire tension to level the jib .

• The jib arm can be locked (lng) with

the help of this knob.

Proaim Alphabet 21 Jib Crane 8

• Insert the weight rod & weights (not supplied) to both ends and secure with the help of

closers.

• The central fork has free hole to aach LCD mount bracket (not included) .

• The camera plate can be lted upwards & downwards with the help of provided handle.

21 22

23 24

25 26

Proaim Alphabet 21 Jib Crane 9

• Camera can be mounted directly on the head plaorm with the help of provided chuknut.

MOUNTING CAMERA O N HEA D PLATFORM

27 28

Proaim Alphabet 21 Jib Crane 10

Balancing Chart

12ft jib

Length: 12 

Camera Plate Length: 0.8 

Length without Camera Plate: 10.3 

Length with camera Plate: 11.1  (Complete Length)

Camera Weight Without Camera 1KG 15Kg

Counter Weight No need counter weight, it

is balanced with weight

rod whose weight is 3.2 kg

Weight rod +

1.5kg

22.5Kg

15ft jib

Length: 15 

Camera Plate Length: 0.8 

Length without Camera Plate: 13.72 

Length with camera Plate: 14.52  (Complete Length)

Camera Weight Without Camera 1KG 15Kg

Counter Weight 7Kg (7 + 2.25)=9.2Kg 41Kg

18ft jib

Length: 18

Camera Plate Length: 0.8 

Length without Camera Plate: 17.15 

Length with camera Plate: 17.95  (Complete Length)

Camera Weight Without Camera 1KG 15Kg

Counter Weight 16Kg (16 + 3.5)=19.5Kg 68.5Kg
