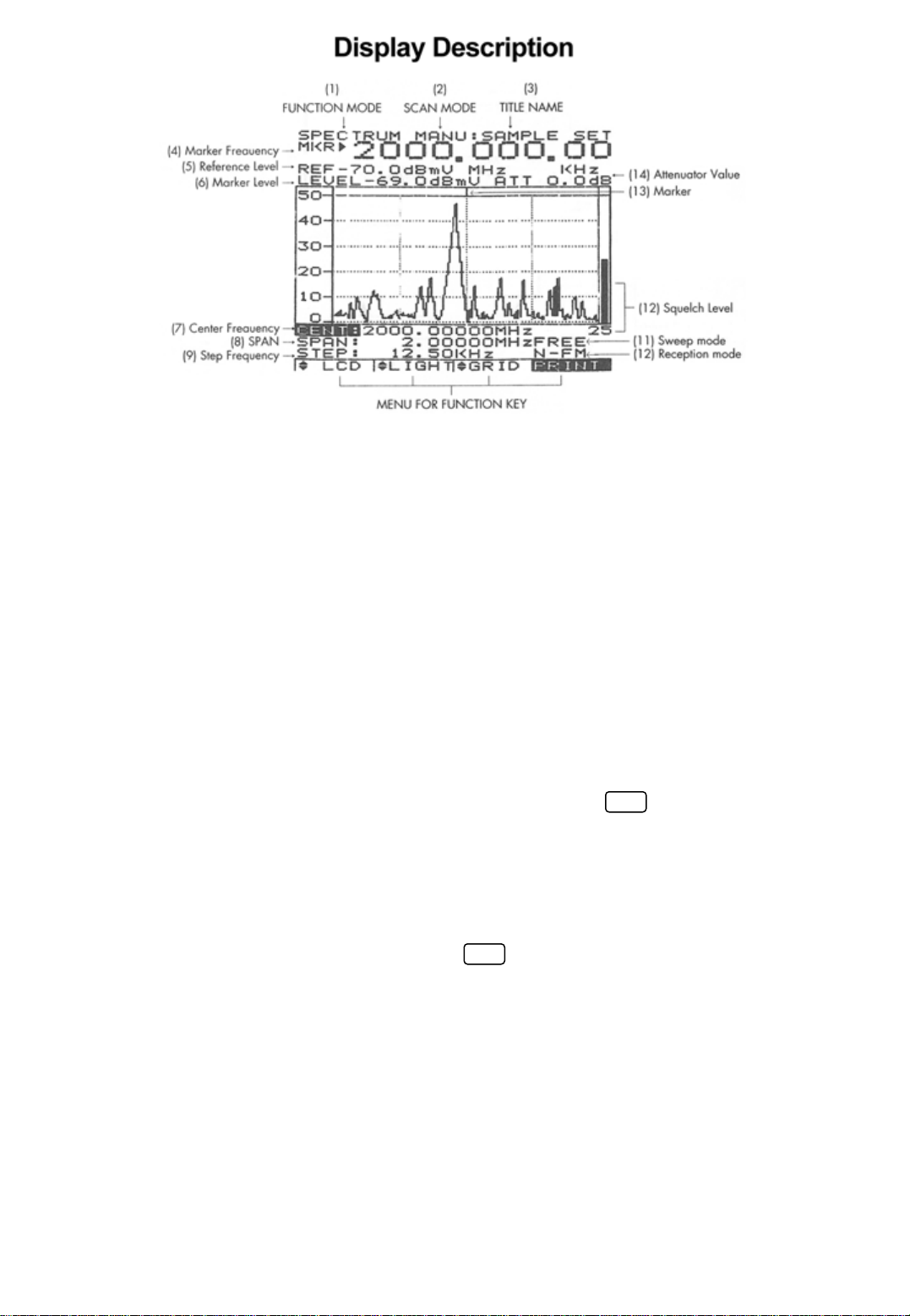

(1) Function mode: Displays the currently selected display (Spectrum, Bar graph, and Counter)

(see page 23)

(2) Scan mode: Displays the selected scan mode.3 types of scanning may be selected. See page

14 and 26 for manual scan, pages 17& 26 for search and pages 16 & 26 for channel scan.

(3) Title name: The data memory, which is, selected (page 37)

(4) Marker Frequency: The frequency in which the unit is currently tuned to as indicated by the

marker indicator.

(5) Ref.Level: The base line reference amplitude(0 level). The Reception modes (page 50)or the

selected external Attenuator value (page 46)sets this value.

(6) Marker Level: The amplitude value of the signal level the unit is currently tuned to as indicated

by the marker.

(7),(8) Center Frequency and Span are used in Manual scan and are described on page 14.

(9) Step Frequency: The scanning frequency increment value set by the .(page 49)

(10) Reception Mode: The type of modulation needed for aural reception of the incoming signal.

Note: a CW or a signal other than a Narrow Band FM(NBFM), wideband FM(WBFM), AM or SSB

may be displayed by selecting a reception mode which has the appropriate bandwidth

(see page 5).

The Reception mode is selected by pressing the button.

(11) Sweep Mode: Determines how the scan moves across the screen when the squelch is activated.

(See page 26)

(12) Displays the value of the squelch level (see page 51).

(13) Marker: Indicates the signal level currently being scanned

(14) Attenuator Value: Displays the amount of external attenuation connected to the input. When

an external Attenuator is used, the value of the Attenuator must be added to the Reference

level. This is accomplished through the ATT dB set in the system

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX 781.665.0780 - TestEquipmentDepot.com

CONTENTS

Quick Main Menu set up guide …..……………………………………………………… ⅰ

Quick System Menu set up guide……………………………………………………..…. ⅱ

Function Key Menu guide ..………………………………………………………………. ⅲ

Display Description ………………………………………………………………………… ⅳ

Ⅰ. Introduction ……………………………………………………………..……………… . 4

1. General …………………………………………………………………..…………….. 4

2. Features …………………………………………………………………..…………….. 4

Ⅱ. Specifications ………………………………………………………………..………….. 4

Ⅲ. Precautions ……………………………………………………………………..………… 7

Ⅳ. Functional Description ……………………………………………………….………… 9

1. Panel Description …………………………………………………………….………… 9

Ⅴ. Basic operation ………………………………………………………………….…….. 12

1. General …………………………………………………………………………………. 12

1 Prior to connecting to a power source …………………………………………….. 12

2 Input connection …………………………………………………………………..…12

3 Powering the unit on ………………………………………………………………… 12

4 Entering a Frequency value …………………………………………………………. 13

5 Scanning ………….…………………………………………………………………. 13

6 Positioning the Frequency marker …………………………………………………. 14

7 Power Off …………………………………………………………………………….. 14

2. Manual Scan ………………………………………………………………………….. 14

3. Ch. Memory Scan ……………………………………………………………………… 16

4. Search Scan

5. Difference Mode

6. Frequency Counter

7. Recorder Mode

8. Power supply

1 Car and AC adapter

2 Battery Replacement

Ⅵ. Menu Description

1. The Main Menu

1 Main menu display

2 Function Modes

3 Scan Modes

4 Sweep Mode

5 Edit Channel

5-1 Selecting Edit Channel

5-2 Assigning a Channel number

5-3 Entering a Channel name

5-4 Insert Function

5-5 Delete Function

1-6 Setup Memory

6-1 Setup Memory

6-2 Save and Load setups

6-3 Title Names

1-7 Data Memory

7-1 Data Memory Setup

7-2 Saving and Loading

7-3 Title name

………………………………………………………………………… 17

…………………………………………………………………… 19

………………………………………………………………… 19

……………………………………………………………………… 21

………………………………………………………………………… 22

……………………………………………………………… 22

………………………………………………………………………… 23

……………………………………………………………………… 23

………………………………………………………………… 23

…………………………………………………………………… 23

………………………………………………………………………… 26

………………………………………………………………………… 27

………………………………………………………………………… 28

……………………………………………………… 28

……………………………………………… 30

…………………………………………………… 30

………………………………………………………………… 32

……………………………………………………………………… 32

…………………………………………………………………… 32

…………………………………………………………… 34

………………………………………………………………………… 35

………………………………………………………………………… 37

……………………………………………………………… 37

……………………………………………………………… 38

……………………………………………………………………… 38

8 SSB BFO

9 Hold Mode

10 Level Hold

2. The System Menu

1 System Menu display

2 db Unit

3 Power Off

4 I/O Menu

5 Printer Menu

6 Copy Set Mode

7 External Attenuators

8 Test Set Menu

9 SCRB Menu

10 Battery Check

11 Keyboard Buzzer

3. Function Keys…………

1 RUN

2 STEP

3 MODE

4 SQL (Squelch Level)

4. LCD Men

…………

1 LCD Contrast

2 LIGHT

3 GRID

4 PRINT…………

……………………………………………………………………………….. 39

……………………………………………………………………………… 39

…………………………………………………………………………….. 41

………………………………………………………………………… 42

………………………………………………………………… 42

………………………………………………………………………………….. 43

………………………………………………………………………………. 43

……………………………………………………………………………….. 44

……………………………………………………………………………. 44

………………………………………………………………………… 45

………………………………………………………………… 46

……………………………………………………………………… 47

………………………………………………………………………… 47

………………………………………………………………………. 48

………………………………………………………………………… 48

…………………………………………………………………….. 49

…………………………………………………………………………………. 49

…………………………………………………………………………………… 49

…………………………………………………………………………………. 50

…………………………………………………………………. 51

…………………………………………………………………………… 51

……………………………………………………………………… 51

…………………………………………………………………………………… 52

……………………………………………………………………………………… 52

…………………………………………………………………………… 53

I. INTRODUCTION

1. General

The 3201 is the world’s first hand-held RF Field Strength Analyzer.

With a wide band reception range of 100 KHz to 2060MHz, the 3201 is a compact and

Lightweight portable analyzer. It is the ideal tool for field RF technicians to test, install and

Maintain Mobile Telecommunications Systems, Cellular and Cordless Phones, CB Radios,

Paging Systems, Cable and Satellite TV systems as well as antenna site measurements and

Maintenance.

2. Features

•100KHz to 2060MHz measurement range

•Measures and demodulates Narrow Band FM(N-FM), Wide Banc FM(W-FM),

AM, Single Side Band (SSB) signals.

•Built-in 2GHz Frequency Counter.

•PLL tuning system for precise frequency tuning.

•Up to 160 channels may be scanned and displayed on the LCD

•Built-in Speaker

•192 X 192 pixel backlit LCD

•All functions are menu selectable

•Has a RS-232 and parallel interface

II. SPECIFICATIONS

Reception Frequency

Frequency range

Freq. Accuracy (TXO)

Freq. Accuracy (display)

Demodulation

Step frequency

Data memory

Set Up memory

Reception sensitivity

Scan spee

: 100KHz to 2060MHz

: ±3PPM

: ±25PPM

: N-FM, W-FM, AM, SSB

: 5KHz to 9995KHz in multiples of 5KHz and 6.25KHz

: Stores 10 displays of up to 160 Channels per display(1600)

: Stores 10 setups for each scan mode

: Approx.0 –6 dBµEMF.

(S/N: 12dB at N-FM, 10dB at W-FM)

: 12.5Ch./sec.max.

Input impedance

Max.Input voltage

Audio output

Level Measurement

N-FM mode Range

Resolution

Accuracy

Repeatability

Bandwidth

W-FM/AM/SSB Range

Resolution

Accuracy

Repeatability

Bandwidth

Spurious and Noise Level internally generated

: 50Ω (standard)

: Max. 5V RMS

: 120mW into 8Ω speaker

: -70 to –20dBmV(-10 to 40dBµV)for 300 to 1800MHz

-60 to –20dBmV(0 to 40dBµV)for 1 to 300MHz and 1800 to 2000MHz

: ±0.5dBµV

: ±3dB(at an ambient of temperature of 23℃±3℃)

: ±2dB

: Approx. 12.5KHz(-6dB)

: -60 to –10dBmV(0 to 50dBµV)for 300 to 1800MHz

-50 to –10dBmV(10 to 50dBµV)for 10 to 300MHz and 1800 to 2000MHz

: ±0.5dBµV

: ±3dB(at an ambient of temperature of 23℃±3℃)

: ±2dB

: WFM: Approx. 180KHz(-6dB), AM/SSB:Approx.2.4KHz(-6dB)

: -35dBc W-FM

: -45dBc for N-FM typical, below a full scale signal level frequency.

Functions

Display modes

Sweep modes

Scan modes

Hold modes

Level hold modes

Squelch function

Copy function

: Spectrum display

Multi Bar graph display(5, 10, 20, 40, 80, 160CH)

Single Bar graph display

Difference frequency display

Frequency measurement level display

: Single, Normal, Free Run, Free Single

: Manual, CH.Memory and Search scan

: Delay run, Delay hold and delay stop

: Max. Hold, Hold, 40mS, 100mS and 200ms peak hold

: Squelch level is displayed as a bar graph and a digital Readout. The

squelch level may be adjusted to any value from the reference level to

Full scale

: The copy set mode allows the contents of the Channel edit, Setup and

Data memories to be copied to an external device. Data may also be

written in to these memories from an external device.
