pro master 8363 Manual de usuario
fits sony a6300/a6000
code 8363
One Year Unconditional Warranty
If for any reason, this ProMaster product fails within ONE YEAR of the date of purchase,
return this product to your ProMaster dealer and it will be exchanged for you at no
charge. ProMaster products are guaranteed for ONE FULL YEAR against defects in
workmanship and materials. If at any time after one year, your ProMaster product fails
under normal use, we invite you to return it to ProMaster for evaluation.
Congratulations on your purchase of the ProMaster Vertical Control Power Grip for the
Sony A6300 & A6000. This battery grip will provide longer shooting times for your camera,
comfortable photography when taking vertical-orientation shots, and a more stable overall
camera rig which reduces the chance of shake and blur.
To ensure proper operation, please read this manual thoroughly before using this product.
This grip is specially designed for the Sony A6300 & A6000 cameras. It is equipped with an
alternate shutter button for easy shooting in a vertical position. This battery grip can hold
two NPFW50 rechargeable Li-ion batteries to extend your shooting time.
1. This product should only be used with compatible devices specified in this
instruction sheet.
2. Use ONLY the batteries and holder recommended.
3. Cover the power terminals with the contact cap when not in use. This prevents
electrical shorts caused by metal objects touching the terminals.
4. When the battery holder is removed from the grip, remove the batteries or place the holder
in a container to prevent electrical shorts caused by contact with the other metal objects.
5. The battery level may not display properly if batteries are inserted before attaching
the grip to the camera.
6. Remove the batteries from the grip when not in use for an extended period.
7. Do not disassemble or repair this product yourself. Doing so will void your warranty.
8. Avoid water or extreme humidity and be sure to store in a cool, dry location.
9. Do not dispose of in fire or extremely high temperature environment.
10. Keep the product or parts away from children to avoid hazard from swallowing.
Shutter Button
Charging Indicator Light
Power Contacts
Tripod Socket
Hand Strap Mount
Dummy Battery
Charging Connection Port
Signal Cable
Attachment Screw
Attachment Wheel
Battery Compartment
7
1
2
9
3
8
4
5
6

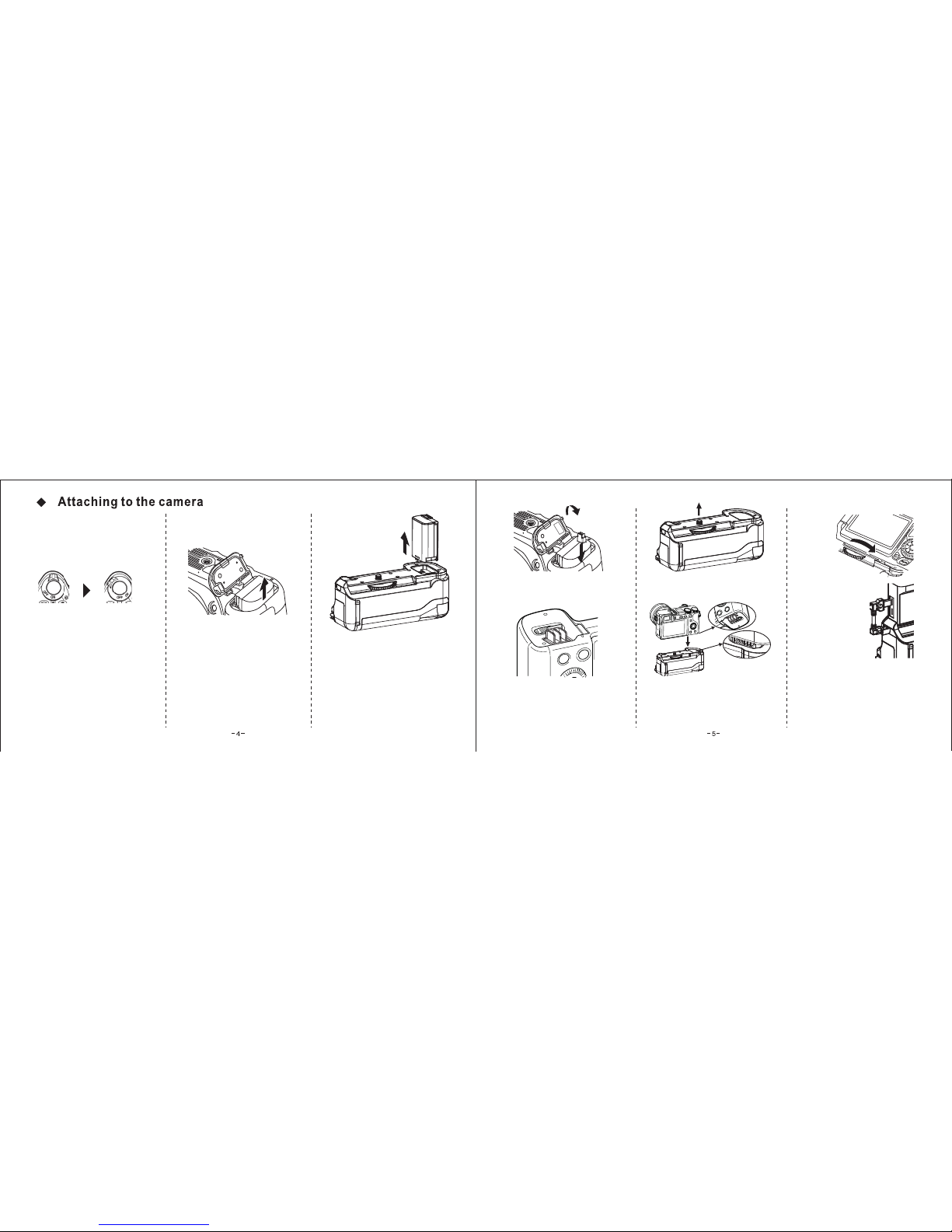

1. Please turn off the
camera.
2. Open the camera’s battery
chamber and remove the
NPFW50 battery.
3. Detach the dummy battery
from the grip by pulling
it away.
6. Align the grip with the camera
using the Attachment Screw (4).
8. Tighten the grip to the camera
by turning the Attachment
Wheel (5) in the direction of
the LOCK arrow. Now connect
the proper Signal Cable (8).
The black cable is for the A6000.
The grey cable is for the A6300.
4. Insert the Dummy Battery (9)
into the camera’s battery
chamber.
5. Close the camera’s battery
chamber door and notice
the dummy battery’s
connectors protrude from
a small hatch in the door.
7. As you mount the grip to
the camera be sure the
dummy battery connectors
line up with the grip’s
battery connectors as shown.
1. Open the grip’s Battery
Compartment (6) by
turning the battery door
knob counter-clockwise.
It will spring open.
2. Remove the battery tray by
pushing on the small lever
inside the compartment.
Insert one or two NPFW50
batteries into the tray.
3. Reinsert the tray into the grip.
Close the battery compartment
door and turn the battery door
knob clockwise to lock it.
1. You can use the USB charging cable included with your camera to charge one
or two batteries while installed in the grip. To do this you must connect the cable
to the Charging Connection Port (7) on the grip, NOT the camera’s charging port.
The Charging Indicator Light (2) will turn red during charging and then change
to green when complete.
2. Your camera must be turned ON for the grip to operate.
3. Use the grip’s Shutter Button (1) to comfortably auto focus and take photographs
while holding your camera in a vertical position.
4. Use the Tripod Socket (10) to mount your grip and camera to a tripod or quick
release plate.
Approximate measurements
All the trademarks are the property of their respective owners
Specification and design are subject to change without notice
Model 8363
Power Source 1 or 2 NPFW50 batteries
Camera Compatibility Sony A6000/A6300
Operating Temperature 0~40º (32~104°F)
Charing Voltage 5V
Charge Time 1 battery = 4.5 hrs /
2 batteries = 9 hrs approx.
Dimensions Approx. 130 x 57 x 88 mm
Weight (without batteries) Approx. 160 g (excluding batteries)
