USER’S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial Number Decal

(beneath stabilizer)

Model No. PFEX59031

Serial No.

Write the serial number in the

space above for reference.

QUESTIONS?

If you have questions, or if

there are missing parts, we will

guarantee complete satisfac-

tion through direct assistance

from our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

customer hot line will provide

immediate assistance, free of

charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

Patent Pending

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

1. Read all instructions in this manual before

using the exercise cycle.

2. Use the exercise cycle only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions.

4. The exercise cycle is intended for home use

only. Do not use the exercise cycle in

a commercial, rental, or institutional setting.

5. Place the exercise cycle indoors on a level

surface. Keep the exercise cycle away from

moisture and dust. Place a mat under the

exercise cycle to protect the floor.

6. Inspect and properly tighten all parts regular-

ly. Replace any worn parts immediately.

7. Keep children under the age of 12 and pets

away from the exercise cycle at all times.

8. Wear appropriate clothing when exercising;

do not wear loose clothing that could

become caught on the exercise cycle. Always

wear athletic shoes for foot protection.

9. The exercise cycle should not be used by

persons weighing more than 250 pounds.

10. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

11. Always keep your back straight when using

the exercise cycle; do not arch your back.

12. If you feel pain or dizziness while exercising,

stop immediately and cool down.

13. The exercise cycle does not have a free-

wheel; the pedals will continue to move until

the flywheel stops.

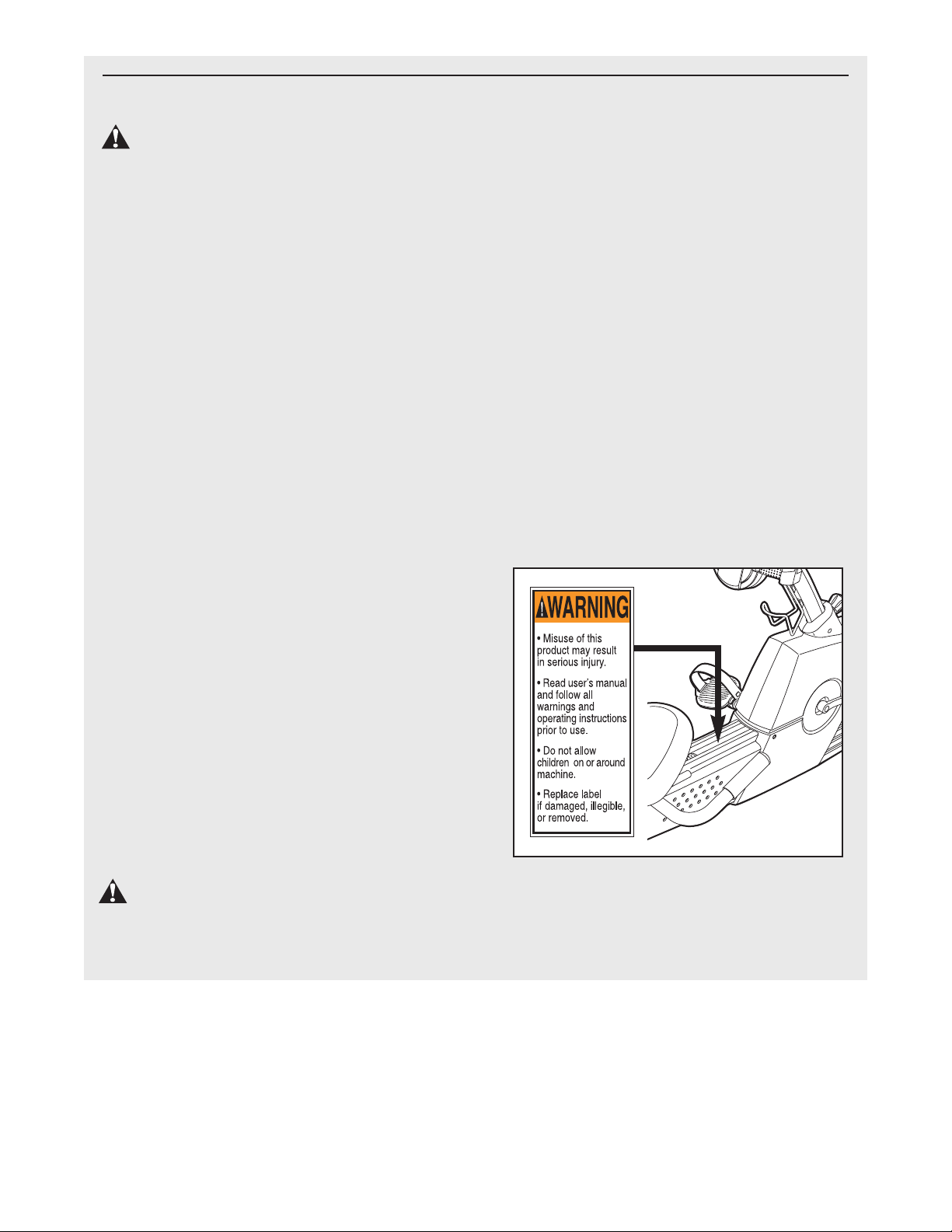

14. The decal shown below has been placed on

the exercise cycle. If the decal is missing, or

if it is not legible, please call toll-free 1-800-

999-3756 and order a free replacement decal.

Apply the decal in the location shown.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the exercise cycle.

Congratulations for selecting the new PROFORM®

GL125 exercise cycle. Cycling is one of the most

effective exercises for increasing cardiovascular fit-

ness, building endurance, and toning the entire body.

The PROFORM®GL125 exercise cycle offers an

impressive array of features to let you enjoy this

healthful exercise in the convenience and privacy of

your home.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading this manual, please call our Customer

Service Department toll-free at 1-800-999-3756,

Monday through Friday, 6 a.m. until 6 p.m. Mountain

Time (excluding holidays). To help us assist you,

please note the product model number and serial

number before calling. The model number is

PFEX59031. The serial number can be found on a

decal attached to the exercise cycle (see the front

cover of this manual).

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor

REAR

Seat

Seat Lever

Pedal/Strap

Wheel

Leveling Foot

Console

Fan

Power Jack

CD Holder

CD Player

Handlebar

Water Bottle Holder*

*No bottle is included

Adjustment Knob

RIGHT SIDE

BEFORE YOU BEGIN

Backrest

ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included tools and your own adjustable wrench and Phillips

screwdriver .

Use the drawings below to identify the small parts used for assembly. The number in parenthesis below each

drawing is the key number of the part, from the PART LIST on page 25. The number following the key number is

the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in

the parts bag, check to see if it has been pre-assembled.

M8 x 52mm Button

Screw (54)–2

M6 x 16mm Button

Screw (8)–4

M4 x 12mm

Screw (41)–4

M8 Nylon

Locknut (49)–4 M8 Washer

(64)–2

M6 Washer

(66)–4

M8 x 25mm Button

Screw (40)–4

M6 x 22mm Button

Screw (93)–3

M8 x 38mm Button

Bolt (96)–4

M6 x 16mm Tapered

Button Screw (102)–8

M4 x 20mm

Screw (101)–1

M4 x 16mm

Screw (57)–10

M6 x 25mm Button

Screw (99)–1

1. Orient the Front Stabilizer (15) as shown. While another

person lifts the front of the Frame (1), attach the Front

Stabilizer to the Frame with two M8 x 52mm Button

Screws (54) and two M8 Washers (64).

231

Make sure the

wire harnesses

do not get

pinched and

damaged during

this step.

2. While another person holds the Upright (2) in the posi-

tion shown, connect the Upper Wire Harness (42) to

the Lower Wire Harness (43). Gently pull the upper

end of the Upper Wire Harness to remove any slack

from the Wire Harnesses.

Turn the indicated Adjustment Knob (20) counterclock-

wise two or three turns to loosen it. Next, pull the Knob,

insert the Upright (2) into the Frame (1), and then

release the Knob. Be careful to avoid pinching the

Wire Harnesses (42, 43). Move the Upright up and

down slightly until the pin on the Knob snaps into

one of the holes in the Upright. Then, turn the Knob

clockwise until it is tight. Tighten the M6 x 25mm

Button Screw (99) into the Frame.

Attach the Water Bottle Holder (31) to the Upright (2)

with two M4 x 12mm Screws (41).

3. Attach the Left Inner Handlebar (71) to the Upright (2)

with four M6 x 16mm Tapered Button Screws (102).

Attach the Right Inner Handlebar (68) to the

Upright (2) in the same way.

102

102 68

4. Attach a Handlebar (3) to the Seat Bracket (11) with

two M8 x 38mm Button Bolts (96) and two M8 Nylon

Locknuts (49). Make sure that the Nylon Locknuts

are resting in the hexagonal holes in the front of

the Handlebar.

Attach the other Handlebar (3) to the Seat Bracket

(11) in the same way.

5. Attach the Seat (9) to the Seat Bracket (11) with four

M6 x 16mm Button Screws (8) and four M6 Washers

(66).

6. Attach the Backrest (90) to the Seat Bracket (11) with

three M6 x 22mm Button Screws (93).

7. Push down the lever (not shown) on the right side of

the Seat Carriage (10), slide the Seat Carriage into the

Frame Rail (81), and then pull the lever back up.

Attach a Bumper (82) to the Frame Rail (81) with an

M4 x 20mm Screw (101). Next, press the Frame Rail

Endcap (83) into the end of the Frame Rail.

101

9. With the help of another person, carefully raise the

exercise cycle so it is resting on the Front and Rear

Stabilizers (not shown).

While another person holds the Console (4) in the

position shown, connect the wire harness on the

Console to the Upper Wire Harness (42). Insert the

excess wire harness down into the Upright (2).

Attach the Console (4) to the Upright (2) with four M4

x 16mm Screws (57). Be careful to avoid pinching

the wire harnesses.

10. Attach the CD Holder (104) to the Console (4) with

two M4 x 12mm Screws (41) as shown.

Attach the Left Handlebar Cover (6) to the Console (4)

with three M4 x 16mm Screws (57).

Attach the Right Handlebar Cover (5) to the

Console (4) in the same way.

104

Wire

Harness

8. With the help of another person, carefully tip the

exercise cycle onto its left side so it is resting on the

Left Inner Handlebar (not shown).

Identify the Left Rear Stabilizer (16), which is marked

with an “L” sticker. Attach the Left Rear Stabilizer and

the Stabilizer Plate (87) to the Frame (1) with two M8

x 25mm Button Screws (40) as shown; do not tighten

the Button Screws yet.

Insert the Right Rear Stabilizer (98) between the

Stabilizer Plate (87) and the Frame (1). Attach the

Right Rear Stabilizer with two M8 x 25mm Button

Screws (40). Tighten all four Button Screws.

13. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is

completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.

11. Identify the Left Pedal (22), which is marked with an

“L.” Using an adjustable wrench, firmly tighten the

Left Pedal counterclockwise into the Left Crank Arm

(24). Tighten the Right Pedal (not shown) clockwise

into the Right Crank Arm. Important: Tighten both

Pedals as firmly as possible. After using the exer-

cise cycle for one week, retighten the Pedals. For

best performance, the Pedals must be kept tight-

ened.

Adjust the Left Pedal Strap (25) to the desired posi-

tion, and press the end of the Pedal Strap onto the tab

on the Left Pedal (22).

Adjust the Right Pedal Strap (not shown) in the

same way.

12. Plug one end of the Power Supply (52) into the jack at

the front of the exercise cycle. Plug the other end of

the Power Supply into an appropriate outlet that is

properly installed in accordance with all local codes

and ordinances.

Note: The console can be operated with batteries (not

included) instead of the Power Supply (52) if desired.

To install batteries, follow the instructions below.

See the inset drawing. Press the indicated tab on the

battery drawer and pull the battery drawer down.

Press four “D” batteries into the battery clips; make

sure that the batteries are oriented as shown by

the markings inside of the battery clips. Then,

close the battery drawer. Note: Alkaline batteries are

recommended.

Tab

Batteries

Battery

Drawer

Tab

HOW TO OPERATE THE EXERCISE CYCLE

HOW TO ADJUST THE SEAT

For effective exercise, the seat should be in the proper

position. As you pedal, there should be a slight bend in

your knees when the pedals are all of the way forward.

To adjust the seat, push the seat lever down, slide the

seat forward or backward, and then firmly pull the seat

lever back up.

HOW TO ADJUST THE UPRIGHT

The upright can be

adjusted to the

height that is the

most comfortable for

you. To adjust the

upright, first turn the

indicated knob

counterclockwise

two or three turns to

loosen it (if the knob

is not loosened

enough, it may

scratch the upright).

Next, pull the knob,

slide the upright to the desired height, and then release

the knob. Move the upright up and down slightly

until the pin on the knob snaps into one of the

holes in the upright. Then, turn the knob clockwise

until it is tight.

HOW TO ADJUST THE PEDAL STRAPS

To adjust the pedal

straps, first pull the

ends of the straps

off the tabs on the

pedals. Adjust the

straps to the

desired position,

and then press the

ends of the straps

back onto the tabs.

Pedal

Strap

Knob

Seat

Lever

Seat

Upright

Tab

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bicicleta estática de Pro-Form

Pro-Form

Pro-Form 455 Ekg Bike Guía de inicio rápido

Pro-Form

Pro-Form PFIVEX56282.0 Manual de usuario

Pro-Form

Pro-Form LE TOUR DE FRANCE Manual de usuario

Pro-Form

Pro-Form 200 Zlx Bike Manual de operación y mantenimiento

Pro-Form

Pro-Form 180 Zlx Bike Guía de inicio rápido

Pro-Form

Pro-Form 350 CSX Manual de usuario

Pro-Form

Pro-Form 290 Csr Bike Manual de usuario

Pro-Form

Pro-Form 790 E Manual de usuario

Pro-Form

Pro-Form 831.280441 Manual de usuario

Pro-Form

Pro-Form PFIVEL32011.0 Manual de usuario

Pro-Form

Pro-Form LE TOUR DE FRANCE PFEX09916.1 Manual de usuario

Pro-Form

Pro-Form 465 Re Bike Manual de usuario

Pro-Form

Pro-Form 225 Zlx Bike Guía de configuración

Pro-Form

Pro-Form Whirlwind Dual Action Manual de usuario

Pro-Form

Pro-Form 831.280440 Manual de usuario

Pro-Form

Pro-Form Airobic Trainer Manual de usuario

Pro-Form

Pro-Form 748 Ekg Bike Guía de inicio rápido

Pro-Form

Pro-Form TrainerCycle PFEX38440 Manual de usuario

Pro-Form

Pro-Form 215 Csx Bike Manual de usuario

Pro-Form

Pro-Form 890e W/hand Pulse Manual de usuario

Pro-Form

Pro-Form Whirlwind PRO Manual de usuario

Pro-Form

Pro-Form PFEX01215.0 Manual de usuario

Pro-Form

Pro-Form 748 Ekg Bike Manual del sistema

Pro-Form

Pro-Form XP400 R Manual de usuario

Manuales populares de Bicicleta estática de otras marcas

Weslo

Weslo Vector 302 Guía de inicio rápido

TOORX

TOORX BRX85 Manual de usuario

Matrix

Matrix KranKcycle Manual de usuario

Matrix

Matrix IC3 Manual de usuario

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manual de usuario

Monark

Monark 827E Manual de usuario

Stamina

Stamina 1310 Manual de usuario

American Fitness

American Fitness SPR-BK1072A Manual de usuario

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manual de usuario

BH FITNESS

BH FITNESS H9158H Manual del operador

Body Sculpture

Body Sculpture BC-7220G Manual de usuario

Cateye

Cateye EC-2300 Manual de usuario

FYTTER

FYTTER RACER RC MSR Manual de usuario

Kikos

Kikos HM-9090M Manual de usuario

Fuel Fitness

Fuel Fitness SU135-40 Manual de usuario

NordicTrack

NordicTrack Gxr 4.2 Bike Manual de usuario

Vision Fitness

Vision Fitness U70 Manual de usuario

Stamina

Stamina 15-0340A Manual de usuario
