Pro-Form 831.21752.0 Manual de usuario
Serial Number
Decal
odel No. 831.21752.0
Serial No.
Write the serial number in the
space above for reference.
• Assembly
• Operation
• aintenance
• Part List and Drawing
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Sears, Roebuck and Co.
Hoffman Estates, IL 60179
BIKE EXERCISER
Userʼs anual
2
TABLE OF CONTENTS
WARNINGDECA P ACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMB Y ...............................................................................5
HOWTOUSETHEEXERCISEBIKE .........................................................13
MAINTENANCEANDTROUB ESHOOTING ...................................................19
EXERCISEGUIDE INES ...................................................................20
PART IST ..............................................................................21
EXP ODEDDRAWING ....................................................................22
ORDERINGREP ACEMENTPARTS ..................................................BackCover
90DAYFU WARRANTY ..........................................................BackCover

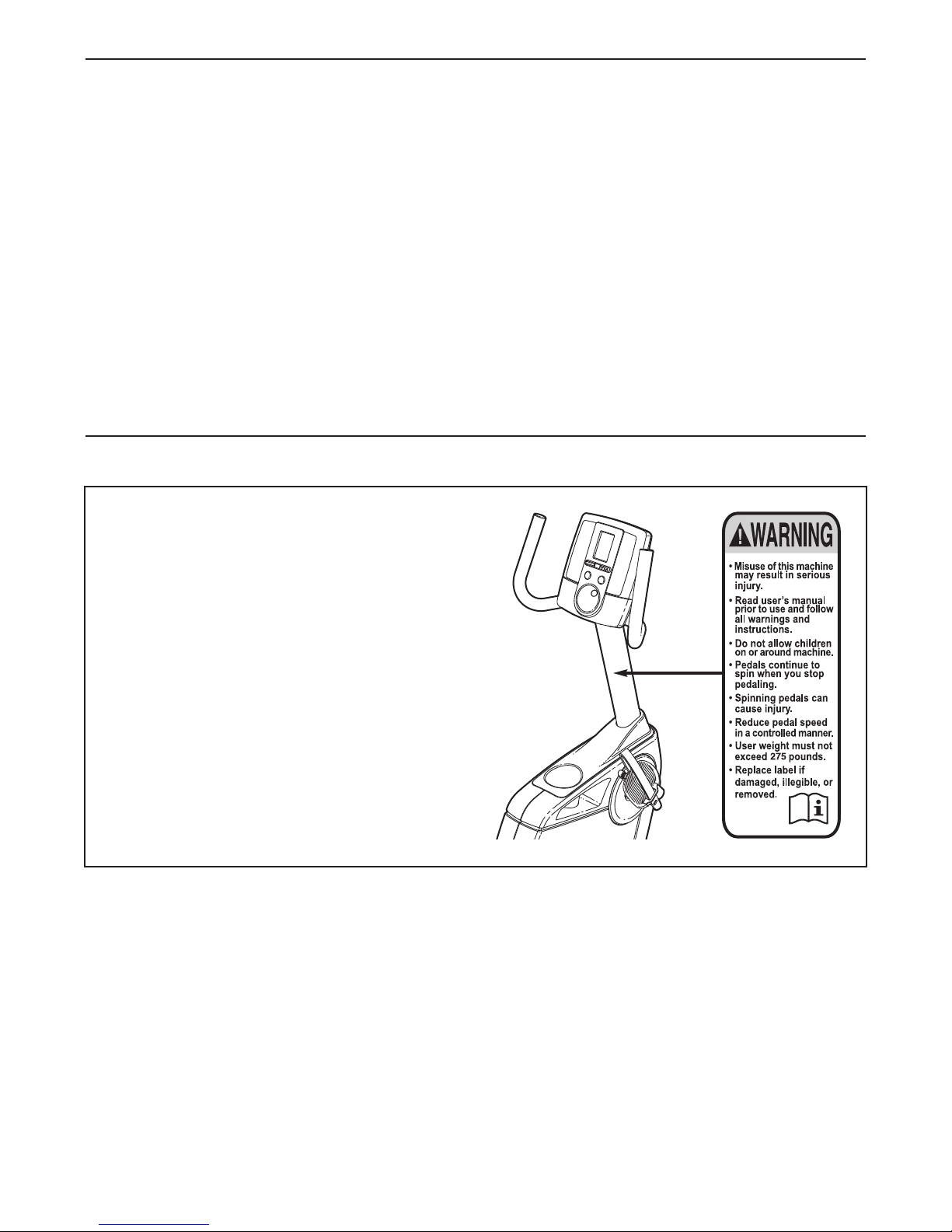

WARNING DECAL PLACE ENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, call 1-888-533-1333 and request a
free replacement decal. Apply the decal in
the location shown. Note: The decal(s) may
not be shown at actual size.
3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
Sears assumes no responsibility for personal injury or property damage sustained by or through
the use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 275 lbs.
(125 kg).
11. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. The exercise bike does not have a free
wheel; the pedals will continue to move until
the flywheel stops. Reduce your pedaling
speed in a controlled way.
13. Always keep your back straight while using
the exercise bike; do not arch your back.
14. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
I PORTANT PRECAUTIONS
4
Thank you for selecting the PROFORM®XP 400 R
exercise bike. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The XP 400 R exercise bike pro-
vides an impressive selection of features designed to
make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions
after reading this manual, please see the back cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.

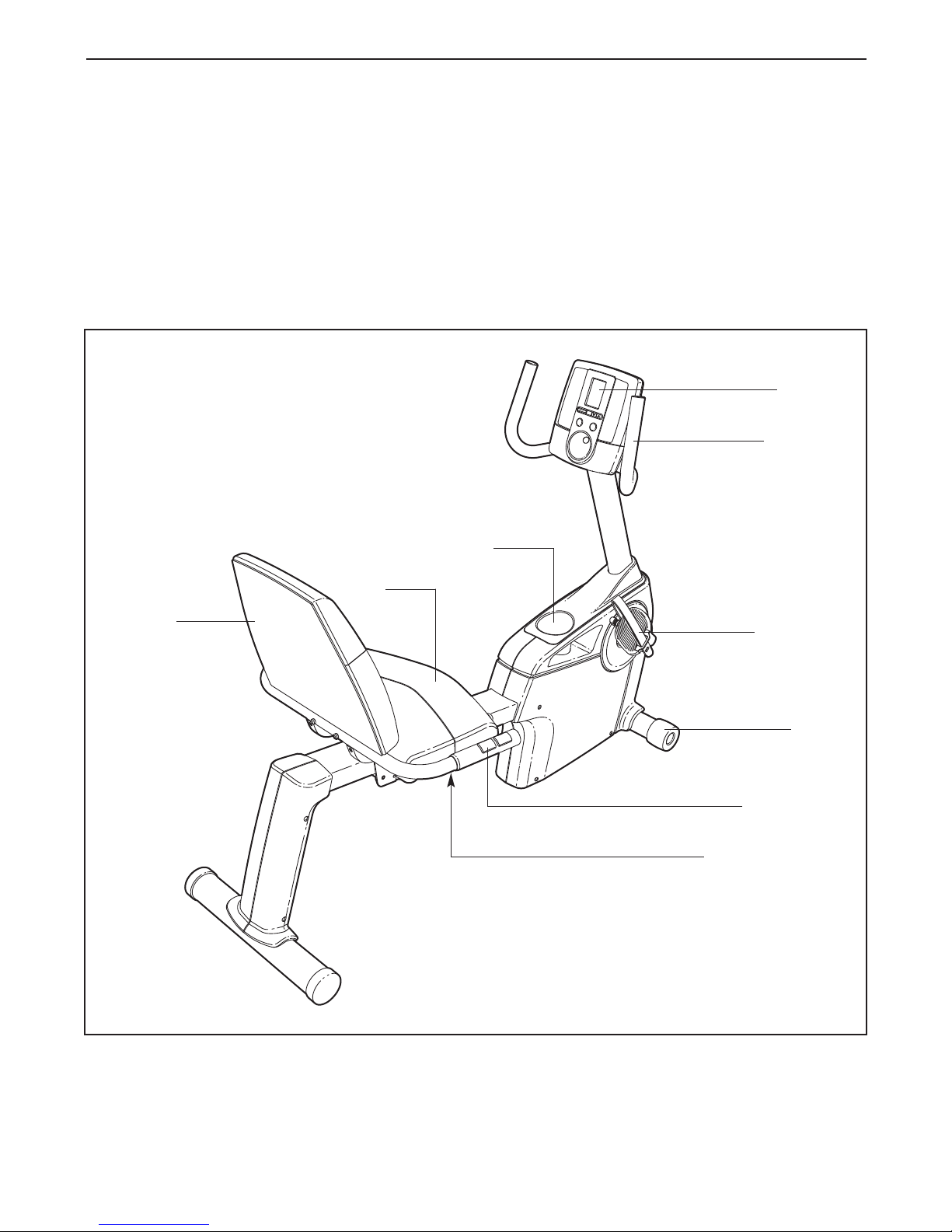

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
*Water bottle is not included
Pulse Sensor
Seat
Adjustment Handle
Pedal/Strap
Wheel
Console
Backrest
Handlebar
Water Bottle Holder*
BEFORE YOU BEGIN
5
ASSE BLY
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires an adjustable wrench and a Phillips
screwdriver .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART IST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly. If a part is
missing, call 1-888-533-1333.
M10 Locknut
(58)–2
M10 Split
Washer (48)–2
M10 x 80mm Patch Screw (47)–2
M10 x 64mm Patch
Screw (52)–3
M6 Locknut
(56)–4
M4 x 16mm
Screw (62)–10
M6 Washer
(63)–4
M10 x 20mm Patch
Screw (54)–4
M10 x 36mm
Screw (57)–2
M6 x 18mm Patch
Screw (59)–2
M6 x 42mm Patch
Screw (60)–2
M6 x 38mm Bolt
(55)–4
1/4" x 38mm Patch
Screw (61)–4
6
1.
With the help of another person, lift the Frame
(1) and place a packing insert (not shown)
under the Frame. Have the other person hold
the Frame to prevent it from moving from side
to side until you complete this step.
Attach the Front Stabilizer (3) to the Frame (1)
with two M10 x 80mm Patch Screws (47) and
two M10 Split Washers (48).
3
47
1
1
48
2. Attach the Rear Stabilizer (2) to the Frame (1)
with three M10 x 64mm Patch Screws (52). 2
52
1
2
To make assembly easier, read the
information on page 5 before you begin.
7
4

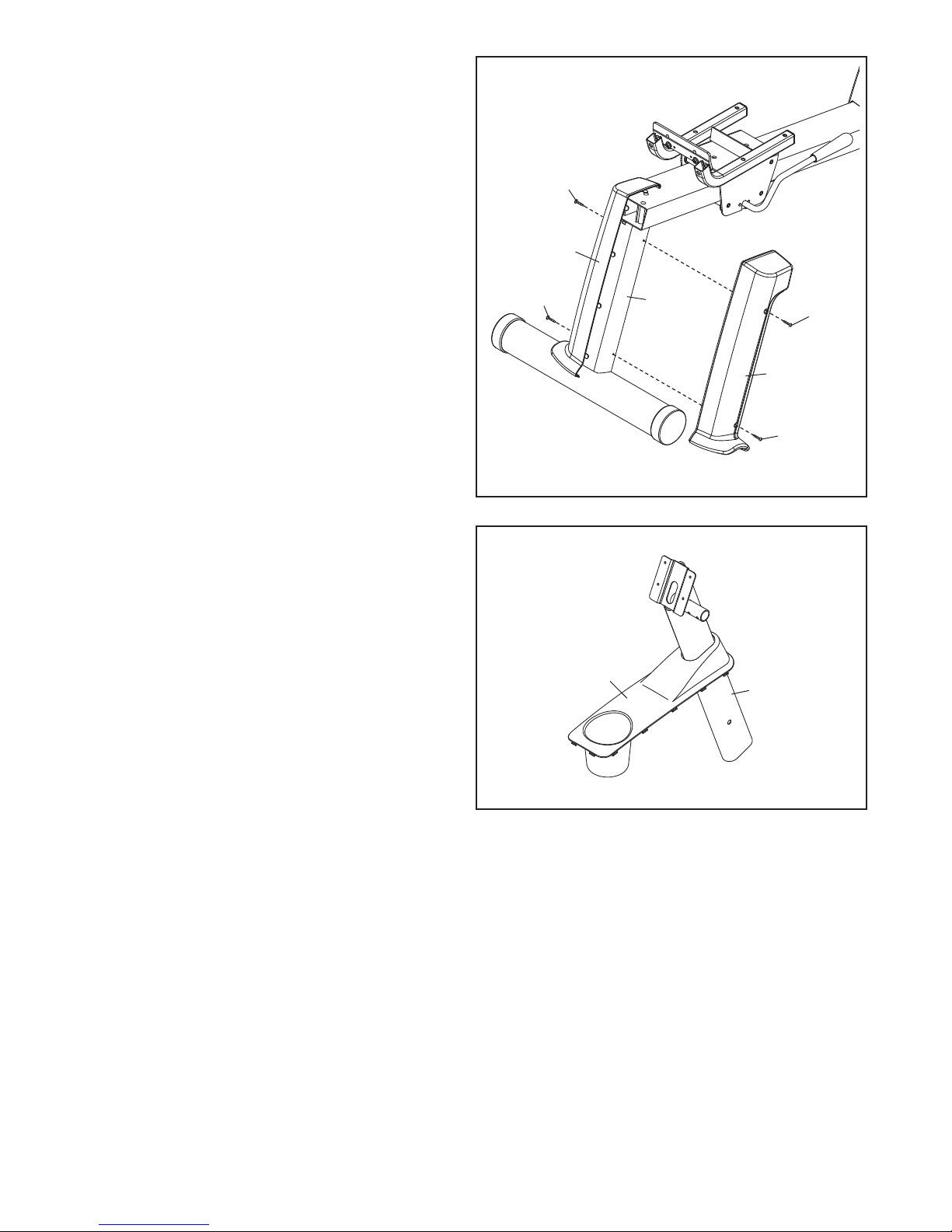

4. Identify the Top Shield (14) and the Upright (4).
With the help of another person, slide the Top
Shield (14) upward onto the Upright (4). ake
sure that the Top Shield and the Upright are
oriented as shown.
Have the other person continue holding the
Top Shield (14) in place while you complete
step 5.
3
3. Identify the Right and eft Stabilizer Covers (12,
13), which are marked with “R” and “ ” stickers.
Attach each Stabilizer Cover (12, 13) to the
Rear Stabilizer (2) with two M4 x 16mm Screws
(62).
13
12
62
62
62
62
4
14
2
8
5
5. Tip: Avoid pinching the Wire Harness (40)
during this step.
Have another person hold the Upright (4) and
the Top Shield (14) near the Frame (1). ocate
the wire tie in the Upright and the Wire Harness
(40) in the Frame.
See the inset drawing. Tie the wire tie to one
of the connectors on the Wire Harness (40).
Then, pull the other end of the wire tie upward
out of the top of the Upright (4). Discard the
wire tie.
Slide the Upright (4) onto the Frame (1). Attach
the Upright with four M10 x 20mm Patch
Screws (54). Then, press the Top Shield (14)
downward into the Frame.
40
40
Wire Tie
Wire Tie
4
54
54
54
14
1
Avoid
pinching
the Wire
Harness (40)
6. Identify the Right and eft Handlebars (28, 29),
which are marked with “R” and “ ” stickers.
Attach each Handlebar (28, 29) to the Upright
(4) with two M6 x 38mm Bolts (55) and two M6
ocknuts (56). ake sure that the hexagonal
holes are in the indicated location.
6
28
55
Hexagonal
Holes
29
56
4
9
8. Tip: Avoid pinching the wires during this
step.
While another person holds the Console (5)
near the Upright (4), connect the console wires
to the Wire Harness (40). Insert the excess wire
downward into the Upright.
Attach the Console (5) to the Upright (4) with
four M4 x 16mm Screws (62).
8
Avoid pinching
the wires

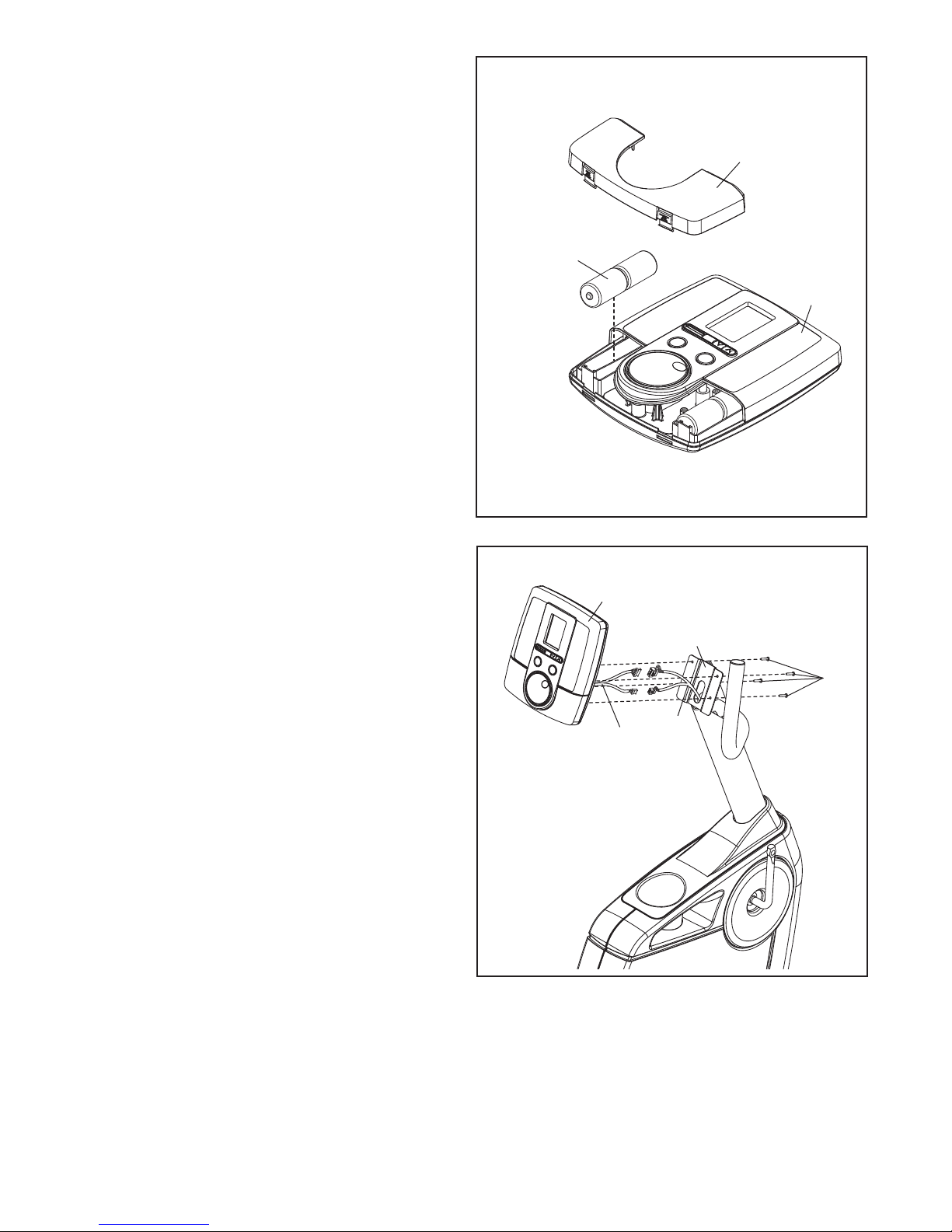

7. The Console (5) can use four 1.5V D batteries
(not included); alkaline batteries are recom-
mended. I PORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries. Otherwise, you may damage
the console displays or other electronic
components. Remove the battery cover, insert
the batteries into the battery compartments, and
reattach the battery cover. ake sure to orient
the batteries as shown by the diagram
inside the battery compartments.
Note: The battery cover may be attached with
screws.
To purchase an optional power adapter, call
the telephone number on the cover of this
manual. To avoid damaging the console, use
only a manufacturer-supplied power adapter.
Plug one end of the power adapter into the
receptacle on the console; plug the other end
into an outlet installed in accordance with all
local codes and ordinances.
7
Batteries
Console
Wires
Battery
Cover
5
5
4
40
62
10

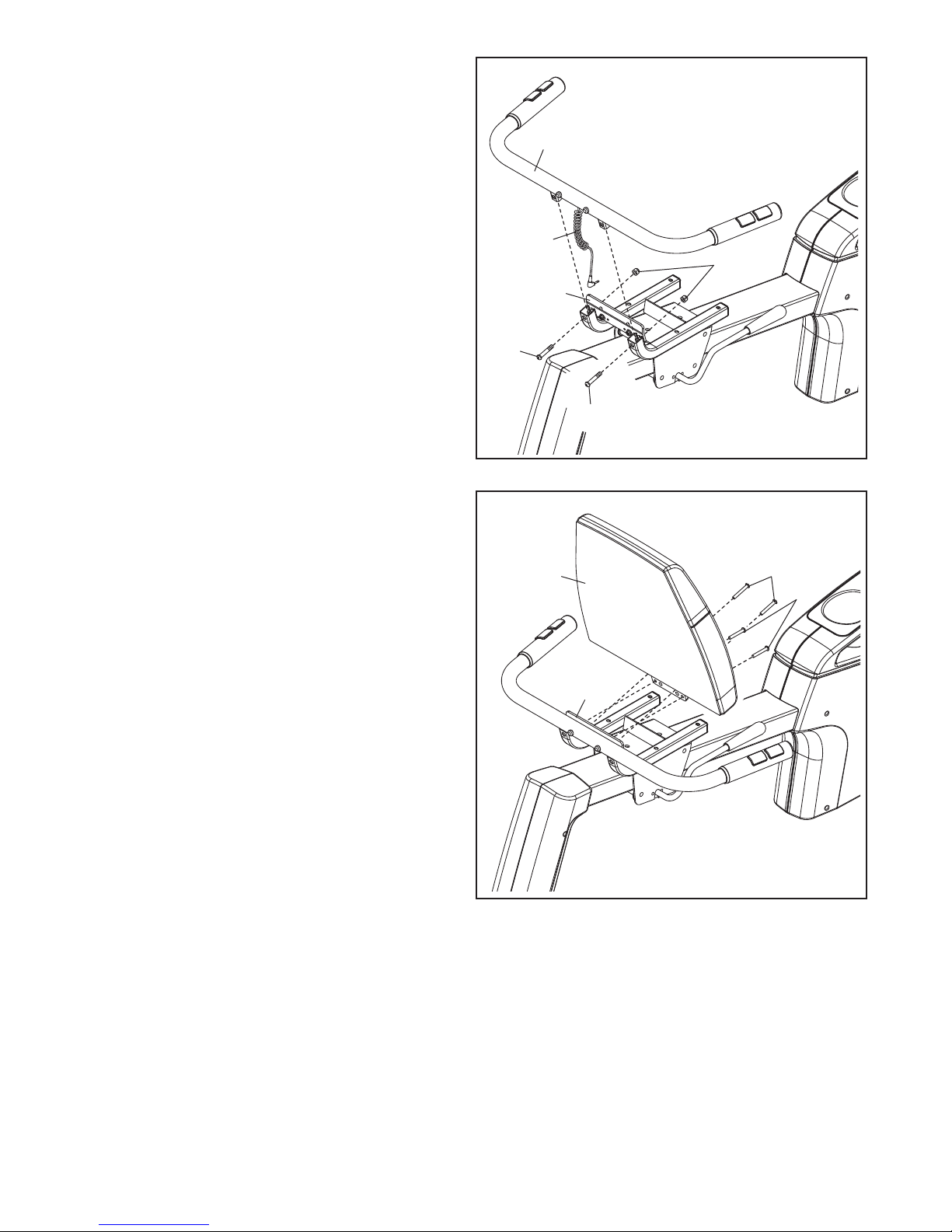

9. Tip: Avoid pinching the Pulse Wire (38)
during this step.
Orient the Pulse Bar (7) as shown. Attach the
Pulse Bar to the Seat Carriage (6) with two M10
x36mm Screws (57) and two M10 ocknuts
(58). Do not tighten the Screws yet.
9
10. Tip: Avoid pinching the Pulse Wire (not
shown) during this step.
Attach the Backrest (8) to the Seat Carriage (6)
with two M6 x 18mm Patch Screws (59) and
two M6 x 42mm Patch Screws (60).
See step 9. Tighten the 10 x 36mm Screws
(57).
10
7
38
57
59
60
58
6
8
6
57
Avoid pinching the
Pulse Wire (38)
Avoid pinching the
Pulse Wire (not shown)
