Princess 01.338902.01.001 Manual de usuario

Instruction manual

Gebruiksaanwijzing

Mode d’emploi

DE Bedienungsanleitung

ES Manual de usuario

PT Manual de utilizador

IT Manuale utente

SV Bruksanvisning

CS Návod na použití

PL Instrukcja obsługi

SK Návod na použitie

Robot Vacuum Cleaner

01.338902.01.001

RU Руководство по эксплуатации

17 2

3458

PARTS DESCRIPTION / ONDERDELENBESCHRIJVING / DESCRIPTION DES PIÈCES

/ TEILEBESCHREIBUNG / DESCRIPCIÓN DE LAS PIEZAS / DESCRIÇÃO DOS

COMPONENTES / DESCRIZIONE DELLE PARTI / BESKRIVNING AV DELAR /

OPIS CZĘŚCI / POPIS SOUČÁSTÍ / POPIS SÚČASTÍ / ОПИСАНИЕ ЗАПЧАСТИ

Instruction manual

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using your Princess product. By ignoring

the safety instructions Princess cannot be held responsible for the

damage. When using an electrical appliance, basic safety

precautions should always be observed, including the following:

IMPORTANT: This appliance is not intended for use by persons

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety. Children shall not use or

play with this appliance. Close supervision is necessary to keep

appliance and cord out of reach of children during use.

• By ignoring the safety instructions the

manufacturer can not be hold responsible

for the damage.

• If the supply cord is damaged, it must be

replaced by the manufacturer, its service

agent or similarly qualified persons in order

to avoid a hazard.

• Never move the appliance by pulling the

cord and make sure the cord can not

become entangled.

• This appliance is only to be used for

household purposes and only for the

purpose it is made for.

• To protect yourself against an electric shock,

do not immerse the cord, plug or appliance

in the water or any other liquid.

• The plug must be removed from the socket-

outlet before cleaning or maintaining the

appliance.

• This appliance can be used by children aged

from 8 years and above and persons with

reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given

supervision or instruction concerning use of

the appliance in a safe way and understand

the hazards involved. Children shall not play

with the appliance. Cleaning and user

maintenance shall not be made by children

without supervision.

SAFETY INSTRUCTIONS

• Risk of suffocation! Keep the packaging

material away from children and animals.

• Keep the device, cord and plug away from

water or other liquids in order to avoid the

risk of an electrical shock. Never touch the

mains plug, cord or device with wet or damp

hands.

Instruction manual

• Keep animals, hair, jewellery, loose clothing,

fingers and all other parts of the body away

from the moving parts or openings of the

appliance when it is in operation. They can

be caught in the vacuum cleaner. If

something gets stuck in the vacuum cleaner,

switch the appliance off immediately.

• Take special care to avoid falling when

cleaning stairs.

• Use and store the device only out of the

reach of children. Improper use can result in

injury and electric shock. The power cord

may also not be accessible to children.

PROPER USE

• The appliance must only be used

domestically, it is not suitable for industrial or

commercial use.

• The appliance must not be used to clean:

• People, animals, plants or items of clothing

on the body, always keep the appliance

away from body parts and hair.

• Glowing or burning objects like ash,

charcoal, burning cigarettes, matches or

highly flammable substances.

• Water and all other liquids

• Pointed objects like broken glass or nails.

• Fine dust, construction dust.

• Only use and store the device in enclosed

areas. Do not use the device outdoors, in

rooms with high humidity or on hot surfaces.

• Check the devices and accessories for

damage before each use. Do not use the

appliance if the appliance, the cord, the plug

or the filter are visibly damaged, do not

attempt to repair the appliance yourself or

replace the parts yourself. In case of

damage, contact a qualified repair center or

the helpdesk of the supplier.

• Do not use the device if it malfunctions or

has vacuumed up liquids. Have the device

repaired by a qualified repair center.

• Only use the device if it has been completely

and correctly assembled.

• Do not expose the device to extreme

temperatures, severe changes in

temperature, open flames, direct sunlight,

moisture or wetness.

• Never place heavy objects on the device.

• Empty the dust bin after every use. The

filters must also be cleaned regularly.

• Allow the dust bin, dust filter and exhaust

filter to dry completely before you reinstall

them in the device.

Instruction manual

• Only use original spare parts provided by

the supplier.

• Store the device in a cool, dry area that is

not accessible to children and animals when

not in use.

• Never fill the dust bin with liquids.

BATTERY WARNING

• Rechargeable battery is only to be charged under adult

supervision.

• Do not attempt to open the rechargeable battery or battery pack

as there are no serviceable parts inside.

• Do not disassemble, incinerate or short-circuit the battery or the

battery pack. Only replace the battery with an original battery, the

use of another battery can cause a fire or explosion.

• The battery is a sealed unit and under normal circumstances it

does not constitute a safety hazard. If in any case liquid does

leak out of the battery don't touch it and consult a doctor

immediately in case of inhalation, skin or eye contact.

• Should a battery leak, the device may become damaged. Clean

the battery compartment immediately, avoiding touching your

skin.

• Avoid storing the battery in extremely hot or cold environment. A

device with a hot or cold battery may not work temporarily, even

when the battery is fully charged.

• Do not dispose battery in a fire as it may explode. Battery may

also explode if damaged. Please dispose it according to local

regulation. Do not dispose it as household waste.

PARTS DESCIRPTION

1. Main body

2. Charging station

3. Remote control

4. Cleaning brush

5. Side brush

6. HEPA filter

7. Mopping plate and water tank

8. Mopping cloth

Instruction manual

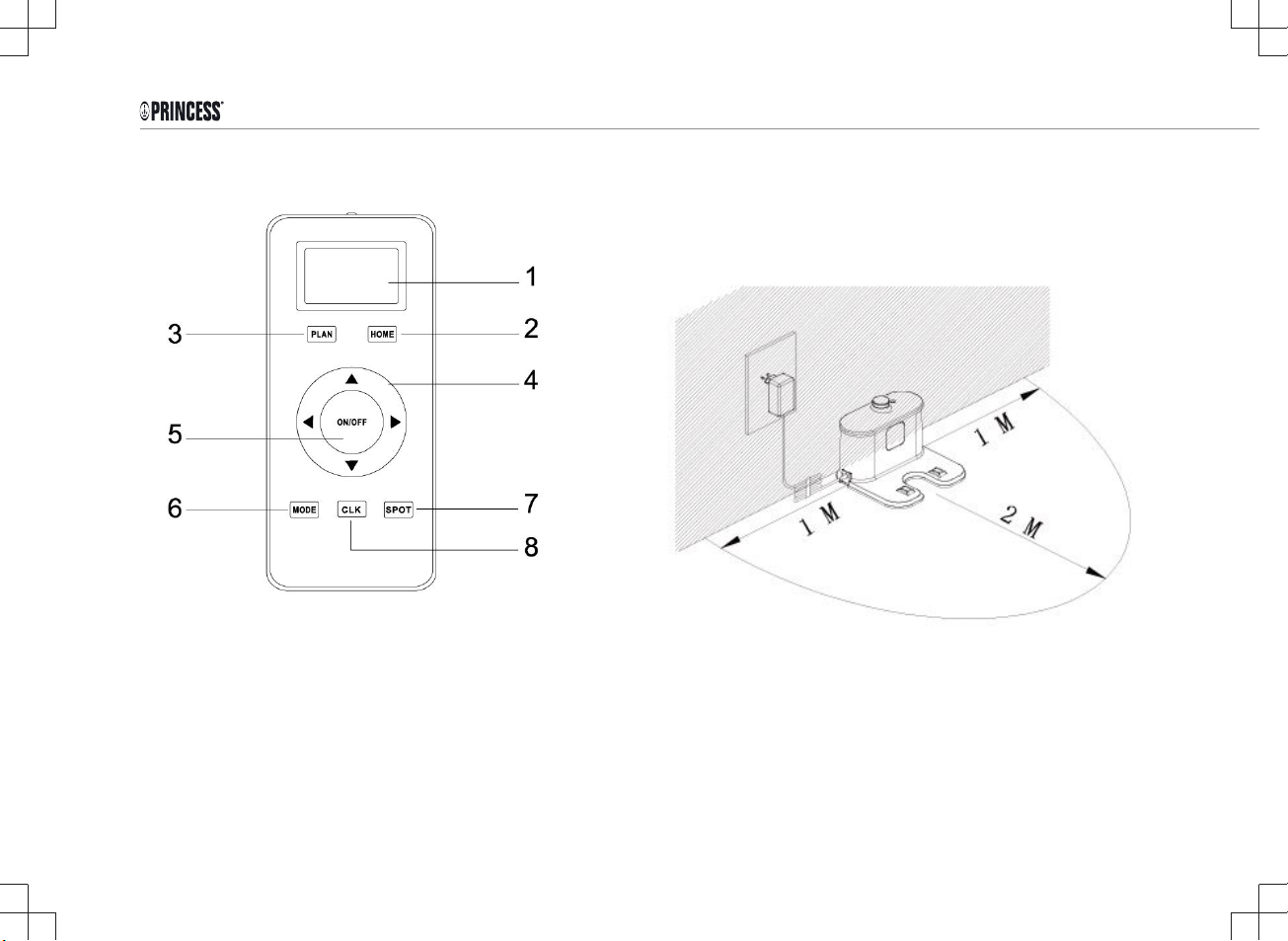

Remote control

1. LCD display

2. Auto charging

3. Scheduling button

4. Direction button

5. ON/OFF

6. Cleaning mode

7. Spot cleaning

8. Clock set up

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the

stickers, protective foil or plastic from the device.

• Place 2x AAA batteries into the remote control.

Battery charging

• Place charging station against the wall and remove obstacles

within 1 meter at the two sides and 2 meters ahead.

• Charge the cleaner in either of the following ways:

1. Plug the adapter into the cleaner and plug the other end into a

power socket. (Fig A)

Instruction manual

2. Press “AUTO” button on remote control to direct the cleaner to

charging station. (Fig B)

USE

Remote control

üPoint the remote control at the main unit when pressing a button

1. Time setting: Press “CLK” button. Press direction buttons to set

the time. When you have selected the time, press “CLK” again.

2. Cleaning function: Press “ON/OFF” button.

3. Sleep function: Press “ON/OFF” button for 5 seconds.

4. Cleaning mode selection: Press “MODE” button. The LCD display

will show in which mode the cleaner currently is. (For details see

Cleaning Modes)

5. Scheduling function: Press “PLAN” button to set up the schedule

(For details see Scheduling Cleaning section)

6. Auto charging: Press “HOME” button to direct the cleaner to the

charging station automatically.

7. Direction buttons: Use to change the direction of the cleaner

manually.

Main body

Cleaning button part

A. Switch on the robot, CLEAN button indicator will be in gradual

blue.

B. Touch CLEAN button, the robot will have 3 beeps and the indicator

will flash in blue, then it will start cleaning if the robot is in good state.

And the indicator will keep in blue during cleaning.

C. If the robot is malfunctioned, its indicator will be in different status

(details please take reference in troubleshooting).

D. The indicator will flash in red when the robot with low power.

E. During charging (robot on charging home base or connected by

charging adaptor), CLEAN button indicator will get red gradually.

After fully charged, the robot will have 5 beeps and CLEAN button

indicator will turn blue.

F. When the robot is successfully scheduled, the indicator will be pink

for two seconds. (Press PLAN button for seconds to check whether

robot has already scheduled. If yes, the indicator will in pink for two

seconds. Otherwise, the indicator will have no color change.)

Starting up / Pause / Sleep

1. Starting up

A. Power on the switch at bottom side of the robot, and CLEAN

button indicator will be in gradual blue.

B. Press CLEAN button on main body or on remote controller to start

cleaning. The robot will have 3 beeps, and the CLEAN indicator will

be in gradual blue.

Instruction manual

Note: if robot is in sleep mode, press CLEAN button to wake the robot

up from sleep mode. Then press CLEAN for a second time, the robot

starts cleaning automatically.

2. Pause

To stop the robot temporarily from cleaning:

A. Press CLEAN button on main body;

B. Or press ON/OFF button on remote controller.

3. Sleep mode

Turn robot into sleep mode, and its display indicator will be off

(robot in standby, not powered off);

A. The robot will automatically turn to sleep mode if no command

received in 30 seconds.

B. Press CLEAN button on the main body for two seconds or press

ON/OFF on remote controller for two seconds, robot will turn to sleep

mode.

NOTE: if the robot is not in use for a long time, please turn the power

switch off.

Scheduling cleaning

You can schedule the robot to make it start cleaning at a certain time.

(Time delay up to 24 hours)

Note:

A. The robot will always work at the scheduled time after scheduling

confirmed.

B. All scheduling will be canceled if the robot is turned off.

C. When the cleaner is charging directly by adapter instead of

charging it will not accept scheduling set up.

How to Schedule the robot by remote controller:

A. To schedule the robot when it is standby or charging on the

charging station. (Press CLEAN to wake up the robot, or press ON/

OFF to wake it up.)

B. Press PLAN button until the remote displays flashed figure “00:00”.

C. Press up and down direction buttons to set the flashing numbers.

D. Press the left and right direction buttons to switch between hour

and minute.

E. After time is confirmed, press ON/OFF to save scheduled setting –

robot will have one beep, and the CLEAN button indicator will be in

pink for two seconds – robot is successfully scheduled.

F. Press ON/OFF again, scheduled setting will be canceled, robot will

have two beeps and the CLEAN button indicator on the robot will be

blue.

G. Press PLAN button for seconds, it will get back from scheduling

setting.

H. User can press PLAN button to check whether robot has already

scheduled, if yes, robot CLEAN button indicator will be in pink for two

seconds. Otherwise, the indicator will have no color change but robot

beeps once.

Cleaning modes

Mode 1: Spiral cleaning

The robot will clean the room automatically in a spiral way and adjust

its cleaning mode according to environment.

To start the auto mode press ON/OFF button on remote control or

press CLEAN on main unit.

Instruction manual

Mode 2: Spot cleaning

Press SPOT on the remote control to start spot cleaning.

NOTE: only use this mode on areas with a lot of dust/dirt.

When the dusty area is cleaned, the robot will automatically turn to

AUTO mode.

Mode 3: Edge cleaning

Switch the robot on, press MODE on the remote control and select

mode 3 (Edge cleaning). The robot will now clean along obstacles by

using its side brushes.

Mode 4: Zig-Zag cleaning

When the robot detects an open area it will automatically turn into

Zig-Zag mode.

Mopping + Watertank

The principle of overflow water tank

Water flows out of the water tank automatically due to gravity, so

please take out the water tank after finishing cleaning.

Water Tank and Mopping Cloth Installation

1. Install mopping cloth

Stick mopping cloth on the bottom of water tank as shown in fig 1.

Make sure the sticking side and mopping cloth face the appropriate

sides, and then stick the mopping cloth on its sticking side.

2. Fill water tank with water

Take out rubber plug of water tank, fill it with water, and then put back

the rubber plug tightly in position to prevent water leakage.

3. Fix water tank on the robot

Turnover the robot, fix the water tank on the robot bottom. Make sure

the bolts are firmly pressed into the fixing slots.

CLEANING AND MAINTENANCE

Side brushes

Dust bin and filter

• Make sure you regularly empty the dust container and clean the

filter

• Keep the device over a bin and press the unlock button of the

dust container.

• Remove the filter holder from the dust container and beat them

clean.

• If the filter is very dirty you can clean with a brush, a vacuum

cleaner, or rinse with lukewarm water.

• Never immerse the device under water, the device and the

various parts are not dishwasher-proof.

• Never block the outlet openings during vacuuming.

• Never vacuum flammable liquids.

Instruction manual

Sensors and charging connection

• Clean the appliance with a damp cloth. Never use harsh and

abrasive cleaners, scouring pad or steel wool, which damages the

device.

• Never immerse the electrical device in water or any other liquid.

The device is not dishwasher proof.

TROUBLESHOOTING

Problem Possible reason Solution

Robot suddenly stops

cleaning and indicator

LED stays blue.

Robot was picked up. Re-place the robot on

the floor and restart

the robot.

Robot is powered on,

indicator LED stays

blue.

Cliff sensor fault. Clean cliff sensor.

If the solution does

not work, send it back

to seller for repair.

Robot does not

change direction

when it comes into

contact with obstacle.

Bumper sensor fault. Check the sensor to

see if its covered by a

foreign object

During charging, LED

indicator flashes red

and robot beeps.

Robot switch might

not be powered on.

Switch the robot on.

RED led stays on. Dust bin is full

Dust passage is

obstructed.

Empty dustbin

Clean dust passage.

Blue LED flashes

once, Red LED

flashes once.

Side brush is stuck. Place the robot on a

flat service and clean

side brush.

Blue LED flashes

once, Red LED

flashes twice

Robot bumper is not

flexible.

Loosen half circle of

bumper bottom screw.

Blue LED flashes

once, Red LED

flashes triple.

Robot wheel is stuck. Check wheels and

take out foreign

object.

NOTE: If all solutions given above are not helpful, please take actions

below:

1. Reset the robot by switching on the power button on the control

panel

2. If reset doesn’t work, please send robot to seller for repairing.

ENVIRONMENT

This appliance should not be put into the domestic garbage at

the end of its durability, but must be offered at a central point for the

recycling of electric and electronic domestic appliances. This symbol

on the appliance, instruction manual and packaging puts your

attention to this important issue. The materials used in this appliance

can be recycled. By recycling of used domestic appliances you

Otros manuales para 01.338902.01.001

Tabla de contenidos

Idiomas:

Otros manuales de Aspiradora de Princess

Princess

Princess 332835 Manual de usuario

Princess

Princess 01.339380.01.001 Manual de usuario

Princess

Princess Arctic Manual de usuario

Princess

Princess Airstream 550 PET Manual de usuario

Princess

Princess 01.339600.01.001 Manual de usuario

Princess

Princess Turbo Tiger Manual de usuario

Princess

Princess 01.338900.01.001 Manual de usuario

Princess

Princess 332755 Manual de usuario

Princess

Princess Royal Jet Manual de usuario

Princess

Princess Nice Price 332860 Manual de usuario

Princess

Princess 339000 Manual de usuario

Princess

Princess 01.339600.01.001 Manual de usuario

Princess

Princess Jet Stream 600 Manual de usuario

Princess

Princess Turbo Tiger Compact Manual de usuario

Princess

Princess 332766 Manual de usuario

Princess

Princess 332928 Manual de usuario

Princess

Princess 01.338902.01.001 Manual de usuario

Princess

Princess 332845 Manual de usuario

Princess

Princess RED FOX Manual de usuario

Princess

Princess TURBO TIGER 332756 Manual de usuario

Princess

Princess Red Eagle Manual de usuario

Princess

Princess 332950 Manual de usuario

Princess

Princess 332829 Manual de usuario

Princess

Princess Air Stream 500 Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario
