Primera DUP-11 Manual de usuario

061605-510800-(01)

CD/DVD

Dupliziersystem

USER’S MANUAL

CD/DVD/Blu-ray

Duplication System

TABLE OF CONTENT

TITLE

PAGE

Welcome!...................................................................................

Before you start…………………………………………..........

LCD Front Panel………………………………………………

Words and Terms……………………………………………...

Tutorial Guide

I. Make Disc-To-Disc Copies……………………................

II. Make copies from the Hard Drive(For Duplicator w/ HDD

installed)…………………………………………..

III. Select the Duplication Speed……………………………..

IV. Select the Master Reading Source………………………..

V. Load Master Disc onto the Hard Drive……………..........

VI. Rename Existing Hard Drive Image Name………………

VII. Delete Existing Image Permanently……………………...

VIII. Change the SETUP settings………………………............

IX. Audio CD Editing…………………………………...........

X. Introduction to Account Management Feature…………...

XI. Introduction to Duplication Mode………….. …………...

XII. Using AutoCopy………………………………………….

Start Up Guide

Setup IEEE 1394 Firewire / USB 2.0 device(s)……...........

Menu Overview

1. COPY………………………………………...……….

2. TEST………………………………………….....……

3. COMPARE……………………………………………

4. TEST + COPY………………………………………..

5. COPY + COMPARE ………………………………...

TITLE

PAGE

6. VERIFY …………………………..………………….

7. SELECT BURN SPEED………….…………………..

8. SELECT SOURCE…………….……………………..

9. ERASE ………………..……………………………...

10. HDD IMAGE SETUP………….……………………..

Menu Overview

1. EDIT AUDIO TRACK …….….…………………….

12. SETUP

Language ………………….…….….………………

Auto Start ………………………….….……………..

Read Error Skip…………..……….….……………...

CD Write Mode ……….……………….….………...

Max Audio & VCD Speed.………….….…..………..

Buzzer ……………………………….….…..……….

Startup Menu ……………………….….……….........

Screen Saver………………….……….….………….

Duplication Mode…………………….….…………..

Counter ……………………………….….…….…….

DVD+R High Compatibility Mode………….….…...

ISRC………………………………………………….

Disable Drives………………………………………..

USB/Firewire Connection……………………………

13. Utility

Disc Info ………………………………….…..……...

Prescan ………………………………….…..……….

TITLE

PAGE

System Info ………………….……….….…………..

Device Info ………………………….….…………...

Load Default………………………..…….….………

Update Firmware…………………………….….…...

Save…………………………………………………...

14. Account Management ……………………………......

15. AutoCopy……………………………………………..

16. Shutdown……..…………………………….….….......

Trouble Shooting ………………………………………..........

Error Code…………………………………………………….

- 1 -

Welcome!

Our duplicator is a reliable, high performance, high speed,

standalone manual tower duplicator. With its professional industrial

design and simple beginner user interface, it will make your

duplicating experience easier than ever.

******************************************************

Before you start:

Before you start using this duplicator, please read the following to

ensure proper operation:

1. Important Notice:

The type of duplicator you purchase will determine the type of discs

you are able to copy. For example, if you purchased a CD only

duplicator, then you will only be able to copy onto recordable CD

formats. If you purchased a DVD duplicator, then you can copy on

to recordable DVD and CD formats. If you purchased a Blu-Ray

duplicator, then you can copy onto recordable Blu-Ray, DVD, and

CD formats. If you have a Blu-Ray capable duplicator, the term

Blu-Ray can be substituted for CD or DVD within the text of this

user manual.

2. Duplicator Limitations:

The duplicator will not copy any CD, DVD, or Blu-Ray disc that

have Copy Protection encoded inside. Typically, the movies you

purchase or rent from the store will contain copy protection.

In addition to the copy protection limitation, the duplicator cannot

copy across formats. This means that you cannot copy a DVD

master onto a recordable CD. In addition, you cannot copy the same

formats if the discs have different maximum capacity limitations.

This means that you cannot copy a single layer DVD or Blu-Ray

onto a double/dual layer DVD or Blu-Ray or vice versa. The

recordable blanks must be the same format and maximum capacity

as the master disc you intend toduplicate.

- 2 -

3. Temperature Warning:

If the duplicator was stored in a location where the temperature

dropped below 32°F (0°C) within the past 24 hours, please leave the

duplicator in a warm room with temperatures at least 65°F (19°C)

for 4 hours prior to powering it on for the first time. Failure to do so

may cause irreparable harm and prevent the duplicator from

functioning.

4. External Connection Warning:

If you have an external connection installed in your duplicator, you

will see the USB/Firewire sticker(s) on your writer front drive

panel(s). In order to operate the duplicator solely as a standalone

unit (no connection to the computer), you have to make sure all of

the USB/Firewire connection(s) are off. If by any chance, the

USB/Firewire connection(s) are on, please refer to “Setup Guide:

Setup IEEE USB 2.0 / 1394 Firewire device(s)”

5. Maintenance:

It is very important to operate and keep the duplicator in a dust free,

clean environment since dust is the number 1 killer for CD/DVD

recording devices. Failure to do so may severely damage your

duplicator. We strongly suggest you place an Air Cleaner next to the

duplicator and constantly use the Air Duster (Can Air) to clear off

any dust on the surface of the duplicator.

Do not try to use the Air Duster to clean the

duplicator while the reader/writer trays are open. In

doing so, you may inadvertently blow dust into the

recording device and damage the recording device.

6. Proper Shutdown:

To avoid possible system failures, you need to shutdown the

duplicator properly. To shutdown the duplicator, you need to press

“>>” button to “16. Shutdown” and follow instructions on the screen

to shutdown the duplicator properly. Turning off your duplicator

without performing this function will increase the risk of damaging

- 3 -

your duplicator.

- 4 -

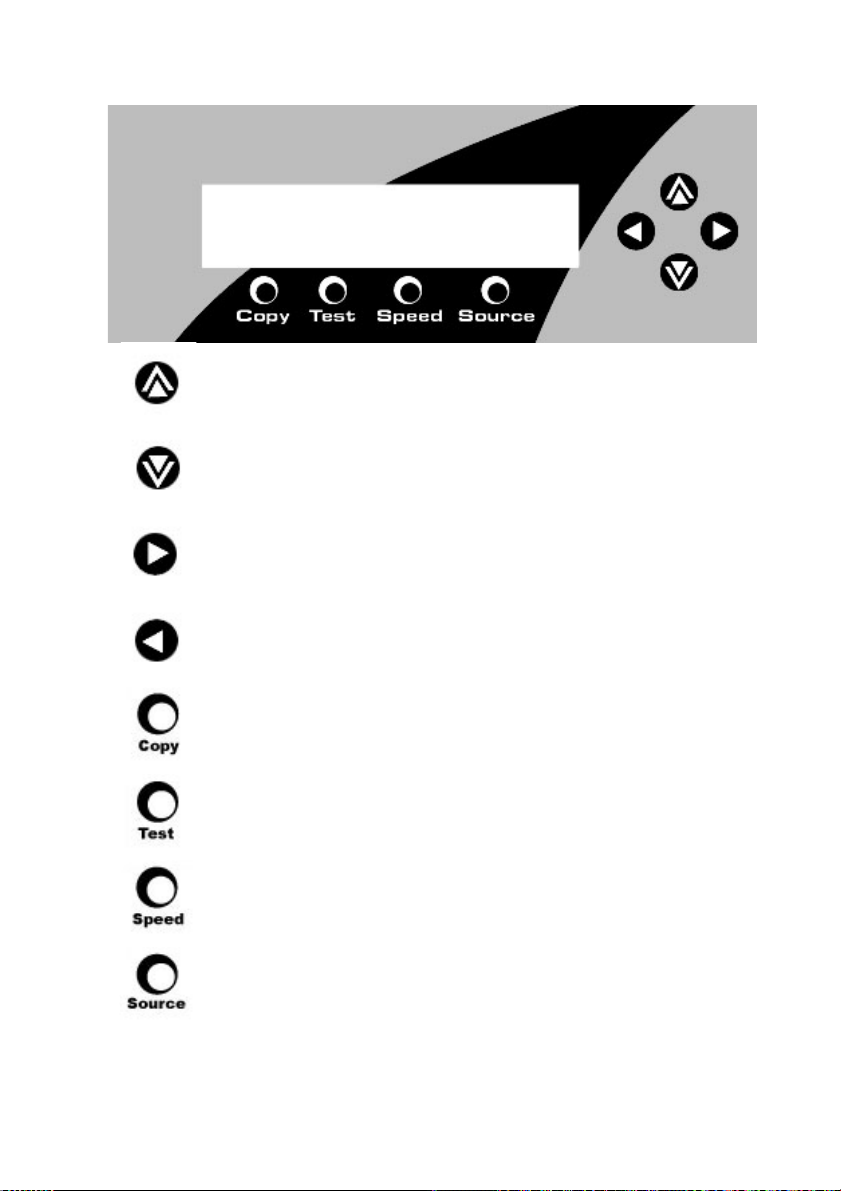

LCD Front Panel

The below image is for reference only. Your key assignment and appearance may differ.

: Up (Menu/Option Scroll Up)

: Down (Menu/Option Scroll Down)

: Forward; Enter; OK; Execute the function

: Backward; Escape; go back to the previous function

: Shortcut to make a copy

: Shortcut to make simulation of copying process

: Shortcut to change the duplication speed

: Shortcut to change your master reading source

- 5 -

Tutorial Guide:

I. Make Disc-to-Disc Copies

This process will copy your master disc into several blank discs

simultaneously. However, due to its simultaneous nature, a good

conditioned master disc and lower recording speed is necessary

for high success rate and good quality duplications.

When you turn on your duplicator, after it has booted up, you

should see the following signifying your duplicator is ready.

1. Make sure the Master Reading Source is set to the 1st

Tray (Reading Tray).

It is very important to make sure that your current Master

Reading Source is the top tray in order to avoid unnecessary

error messages. To check the Master Reading Source, please

do the following:

a. Use UP or DOWN arrow buttons to navigate to the

following screen.

b. Press “>>” to enter Select Source Menu and you shall

see the following:

DUPLICATOR 1.00

1. COPY

DUPLICATOR 1.00

8. Select Source

Drive 1 Port 1.0

Pioneer DVD-ROM

- 6 -

Make sure it is located at “Drive 1”. If not, then you need to

press the UP or DOWN navigation button to search for it.

c. Press “>>” to submit your selection.

2. Go back to “COPY” Menu.

a. Use UP or DOWN arrow button to navigate to the following

screen:

3. Start the Copy Process.

a. Now, please insert your master disc and your blank discs into

the corresponding tray(s) and press “>>” button to enter

COPY menu. You will see the duplicator mode menu like

below:

Now, you have been given two choices:

•Load and Copy

•On the Fly

For detail information, please review “Tutorial Guide XII:

Introduction to Duplication Mode.”

Once you have decided which mode you would like to run,

press UP or DOWN arrow button until your desired mode is

displayed and press “>>” button to confirm.

DUPLICATOR 1.00

1. COPY

Duplication Mode:

Load and Copy
