BASIC OPERATION INSTRUCTIONS
GC2 Controller
ACN# 088 609 661
TM
GC2 Controller www.pridemobility.com
WARNING! An authorized Pride Provider or a qualified
technician must perform the initial setup of this product
and must perform all of the instructions in this manual.
The symbols below are used throughout this owner’s manual and on the
controller to identify warnings and important information. It is very impor-
tant for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/
situation. Failure to follow designated procedures can
cause either personal injury, component damage, or
malfunction. On the product, this icon is represented as a
black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as
specified. Failure to perform mandatory actions can cause
personal injury and/or equipment damage. On the product,
this icon is represented as a white symbol on a blue dot
with a white border.
PROHIBITED! These actions are prohibited. These actions
should not be performed at any time or in any
circumstances. Performing a prohibited action can cause
personal injury and/or equipment damage. On the product,
this icon is represented as a black symbol with a red circle
and a red slash.
Copyright © 2009
Pride Mobility Products Corporation
INFMANU3785/Rev C/October 2009
NOTE: These instructions are compiled from the latest specifications and
product information available at the time of publication. We reserve the
right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and expla-
nations in this manual and the product you have purchased. The latest/
current version of this manual is available on our website.
SAFETY GUIDELINES
088 609 661
www.pridemobility.com GC2 Controller
TABLE OF CONTENTS
LABEL INFORMATION ....................................................................4
INTRODUCTION .................................................................................5
GC2 CONTROLLER ...........................................................................7
PRECAUTIONARY GUIDELINES ...............................................7
OPERATING THE GC2 CONTROLLER .................................. 11
CONTROLLER COMMUNICATION CONNECTOR .............14
LOCK MODE .......................................................................................14
SLEEP MODE .....................................................................................15
THERMAL ROLLBACK ..................................................................15
FAULT CODES ..................................................................................16
CARE AND MAINTENANCE ........................................................17
WARRANTY ........................................................................................17
GC2 Controller www.pridemobility.com

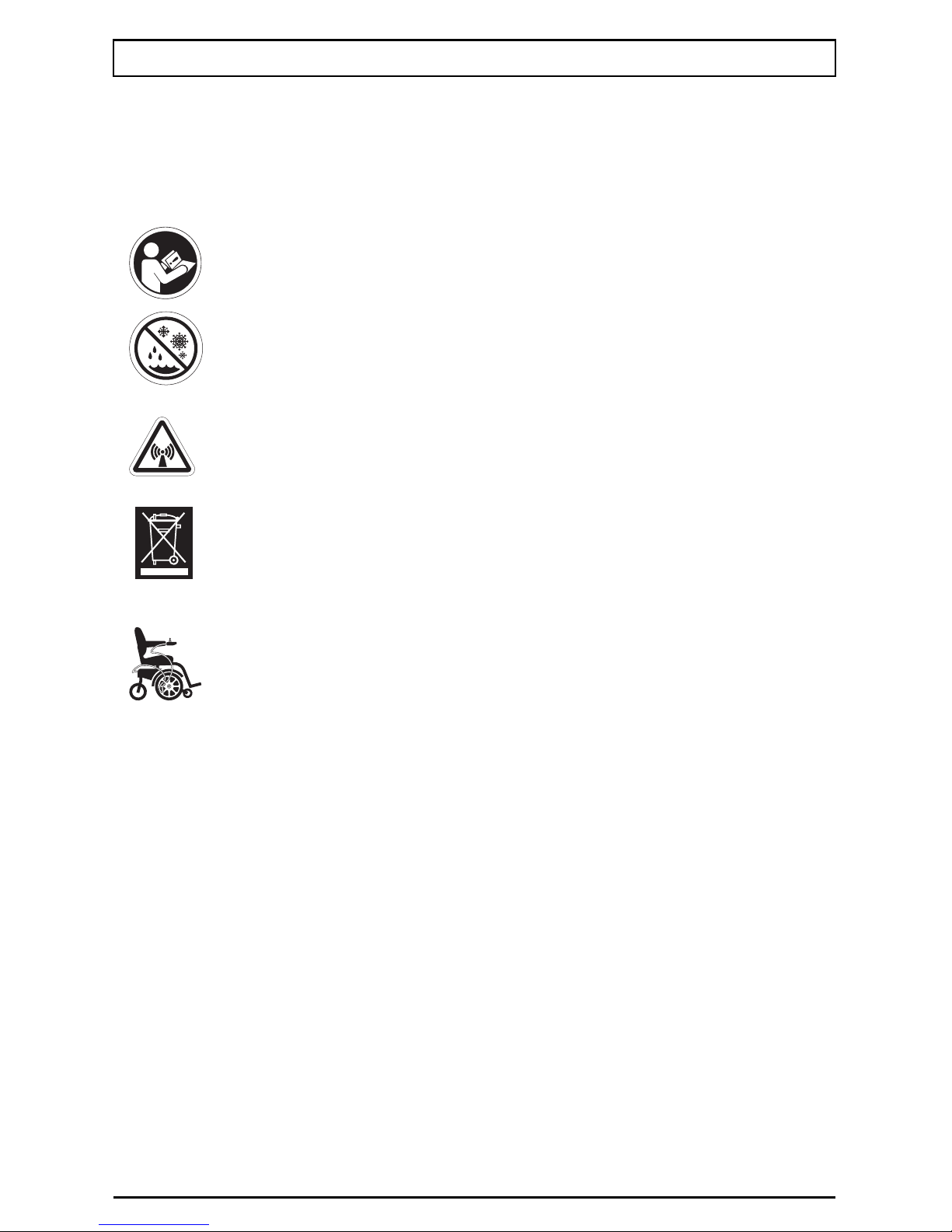

LABEL INFORMATION
Read and follow the information in the owner’s manual.
Avoid exposure to rain, snow, ice, salt, or standing water
whenever possible. Maintain and store in a clean and dry
condition.
EMI-RFI — This product has been tested and passed at an
immunity level of 20 V/m.
Disposal and recycling — Contact your authorized Pride
Provider for information on proper disposal and recycling of
your Pride product and its packaging.
Use correct tie-down points for controller harness to
prevent the harness from getting caught in the drive tires,
pinched in the seat frame, or damaged when passing
through doorways.
PRODUCT SAFETY SYMBOLS
The symbols below are used on the controller to identify warnings, manda-
tory actions, and prohibited actions. It is very important for you to read and
understand them completely.
Basic Operation Instructions 5
www.pridemobility.com GC2 Controller
INTRODUCTION
WELCOME to Pride Mobility Products Corporation (Pride). The product
you have purchased combines state-of-the-art components with safety,
comfort, and styling in mind. We are confident that the design features will
provide you with the conveniences you expect during your daily activities.
Understanding how to safely operate and care for this product should bring
you years of trouble-free operations and service.
Read and follow all instructions, warnings, and notes in this manual before
attempting to operate your product for the first time. You must also read all
instructions, warnings, and notes contained in any supplemental
instructional booklets for the controller, front riggings, and/or seating
system that accompanied your power chair before initial operation. Your
safety depends upon you, as well as your provider, caretaker, or healthcare
professional, in using good judgement.
This manual is to be used in addition to the power base owner’s manual that
came with your power chair. If there is any information in this manual which
you do not understand, or if you require additional assistance for setup or
operation, please contact your authorized Pride Provider. Failure to follow
the instructions, warnings, and notes in this manual and those located
on your Pride product can result in personal injury and/or product
damage and will void Pride’s product warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change,
alter, or modify this product or remove or render inoperable or unsafe any
guards, shields, or other safety features of this product; fail, refuse, or
neglect to install any retrofit kits from time to time provided by Pride to
enhance or preserve the safe use of this product.
INFORMATION EXCHANGE
We want to hear your questions, comments, and suggestions about this
manual. We would also like to hear about the safety and reliability of your
new Pride product, and about the service you received from your authorized
Pride Provider. Please notify us of any change of address, so we can keep
you apprised of important information about safety, new products, and new
options that can increase your ability to use and enjoy your Pride product.
6 Basic Operation Instructions
GC2 Controller www.pridemobility.com
NOTE: If you ever lose or misplace your product registration card or your
copy of this manual, contact us and we will be glad to send you a new one
immediately.
My authorized Pride Provider is:
Name:
Address:
Phone Number:
Purchase Date:
Basic Operation Instructions 7
www.pridemobility.com GC2 Controller
GC2 CONTROLLER
The GC2 controller is a fully-programmable, modular electronic controller
system that allows you to operate your power chair. It is designed to allow
the user to have complete control over chair movement and speed.
The controller has been pre-programmed to meet a typical user’s needs. The
program is set using either a personal computer with software provided by
the controller manufacturer or with a hand-held programmer, also provided
by the controller manufacturer.
WARNING! The controller program can affect speed,
acceleration, deceleration, dynamic stability, and braking.
If it is programmed incorrectly or outside of the safe limits
as determined by your healthcare professional, it can
create a dangerous situation. Only the power chair
manufacturer, an authorized representative of the
manufacturer, or a trained service technician should
program the controller.
PRECAUTIONARY GUIDELINES
Before operating the GC2 controller, please read the following. These
guidelines are provided for your benefit and will aid you in the safe opera-
tion of the control system.
Turn off the power to the controller when transferring to or from your
power chair.
Follow all of the procedures and heed the warnings as explained in your
power chair owner’s manual.
8 Basic Operation Instructions
GC2 Controller www.pridemobility.com
Electromagnetic and Radio Frequency Interference (EMI/RFI)
WARNING! Laboratory tests have shown that
electromagnetic and radio frequency waves can have an
adverse effect on the performance of electrically-powered
mobility vehicles.
Electromagnetic and Radio Frequency Interference can come from sources
such as cellular phones, mobile two-way radios (such as walkie-talkies),
radio stations, TV stations, amateur radio (HAM) transmitters, wireless com-
puter links, microwave signals, paging transmitters, and medium-range
mobile transceivers used by emergency vehicles. In some cases, these waves
can cause unintended movement or damage to the control system. Every
electrically-powered mobility vehicle has an immunity (or resistance) to
EMI. The higher the immunity level, the greater the protection against EMI.
This product has been tested and has passed at an immunity level of 20 V/m.
WARNING! Be aware that cell phones, two-way radios,
laptops, and other types of radio transmitters may cause
unintended movement of your electrically-powered
mobility vehicle due to EMI. Exercise caution when using
any of these items while operating your mobility vehicle
and avoid coming into close proximity of radio and TV
stations.
WARNING! The addition of accessories or components to
the electrically-powered mobility vehicle can increase the
susceptibility of the vehicle to EMI. Do not modify your
power chair in any way not authorized by Pride.
WARNING! The electrically-powered mobility vehicle itself
can disturb the performance of other electrical devices
located nearby, such as alarm systems.
NOTE: For further information on EMI/RFI, go to the Resource Center
on www.pridemobility.com. If unintended motion or brake release occurs,
turn your power chair off as soon as it is safe to do so. Call Pride or your
authorized Pride Provider to report the incident.
Basic Operation Instructions 9
www.pridemobility.com GC2 Controller
GC2 Controller Features
Figure 1 provides information on the GC2 components and connections.
Use this diagram to familiarize yourself with the function and location of
each component before using the GC2 controller.
The following functions are available with the GC2 controller:
Joystick Control
The joystick is used to control the direction and speed of the power
chair.
Speed Adjustment
The user can increase or decrease the maximum speed of the power
chair.
Sleep Mode
This feature is designed to preserve battery charge and can be disabled
through programming.
Thermal Rollback
A safety feature designed to prevent the power chair from overheating
and causing damage to the motors or controller.
10 Basic Operation Instructions
GC2 Controller www.pridemobility.com
Joystick
A multi-functional tool used
to control speed and
direction.
Speed Dial
Turn to increase or decrease
maximum speed.
Battery Condition Meter
Series of five colored LEDs
which display the battery
condition and fault codes.
On/Off Key
Press to power on or off the
power chair and controller.
Horn Key
Activates a warning horn.
Off-board Charger/
Programming Port
Used to charge or program
the power base.
Figure 1. GC2 Components and Connections
