JAZZY

*INFMANU4480* Product Serial #

600 ES

Jazzy 600 ES

www.ActiveForever.com | [email protected]

p: 1-800-377-8033 | f: 602-296-0297

SAFETY GUIDELINES

Pride Mobility Products Corp.

INFMANU4480/Rev B/June 2013

Authorized Pride Provider:

Address:

Phone Number:

Purchase Date:

NOTE: This owner’s manual is compiled from the latest specifications and product information available at

the time of publication. We reserve the right to make changes as they become necessary. Any changes to our

products may cause slight variations between the illustrations and explanations in this manual and the product

you have purchased. The latest/current version of this manual is available on our website.

NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.

NOTE: The Jazzy 600 ES and its components are not made with natural rubber latex. Consult with the man-

ufacturer regarding any after-market accessories.

WARNING! An authorized Pride Provider or a qualified technician must perform the initial setup

of this power chair and must perform all of the procedures in this manual.

The symbols below are used throughout this owner’s manual and on the power chair to identify warnings and

important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated

procedures can cause either personal injury, component damage, or malfunction. On the

product, this icon is represented as a black symbol on a yellow triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform mandatory

actions can cause personal injury and/or equipment damage. On the product, this icon is

represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at any time

or in any circumstances. Performing a prohibited action can cause personal injury and/or

equipment damage. On the product, this icon is represented as a black symbol with a red circle

and red slash.

INTENDED USE

The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated

position that have the capability of operating a powered wheelchair.

Quick Reference Information

Jazzy 600 ES 3

\I. INTRODUCTION ...................................................................................................................................4

II. SAFETY .....................................................................................................................................................5

III. YOUR POWER CHAIR ........................................................................................................................7

IV. ASSEMBLY ............................................................................................................................................11

V. COMFORT ADJUSTMENTS ...........................................................................................................15

VI. BATTERIES AND CHARGING ......................................................................................................21

VII. CARE AND MAINTENANCE ..........................................................................................................25

CONTENTS

LANGUAGE USAGE

This owner’s manual is intended for distribution in all English-speaking countries where Pride Power Chairs are

sold. We have chosen to compose this manual using language and spelling common to the USA. Since we recog-

nize that not all English-speaking countries use the same words or spellings, please refer to the following chart for

some common word variations that may be encountered throughout this manual.

Table 1. Word Variations

USA Variation USA Variation USA Variation

asphalt tarmac backward(s) rearward(s) center centre

color colour cord lead curb kerb

elevator lift meter metre provider dealer; agent

sidewalk pavement tire tyre trunk boot

turn signal turn indicator yard grounds wrench spanner

caster castor pocketbook handbag

counterclockwise

anticlockwise

authorized authorised path footpath

path

bridleway

labor labour

4 Jazzy 600 ES

I. INTRODUCTION

SAFETY

WELCOME to Pride Mobility Products (Pride). The power chair you have purchased combines state-of-the-art

components with safety, comfort, and styling in mind. We are confident that these design features will provide

you with the conveniences you expect during your daily activities. Once you understand how to safely operate

and care for your power chair, it should give you years of trouble free operation and service.

Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power chair

for the first time. You must also read all instructions, warnings, and notes contained in any supplemental instruc-

tional booklets for the controller, front riggings, and/or seating system that accompanied your power chair before

initial operation. Your safety depends upon you, as well as your provider, caretaker, or healthcare professional in

using good judgement.

If there is any information in this manual which you do not understand, or if you require additional assistance for

setup or operation, please contact your authorized Pride Provider. Failure to follow the instructions in this

manual and those located on your power chair can lead to personal injury and/or damage to the power

chair, including voiding the warranty.

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change, alter, or modify this product or

remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or

neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the safe use of this

product.

SHIPPING AND DELIVERY

Before using your power chair, make sure your delivery is complete as some components may be individually

packaged. If you do not receive a complete delivery, please contact your authorized Pride Provider immediately.

Where damage has occurred during transport, either to the packaging or content, please contact the delivery com-

pany responsible.

USA: Canada:

Pride Mobility Products Corporation Pride Mobility Products Company

Attn.: Customer Care Department 5095 South Service Road

182 Susquehanna Avenue Beamsville, Ontario

Exeter, PA 18643-2694 Canada

[email protected] L0R 1B3

United Kingdom: Australia:

Pride Mobility Products Ltd. Pride Mobility Products Australia Pty. Ltd.

32 Wedgwood Road 20-24 Apollo Drive

Bicester, Oxfordshire OX26 4UL Hallam, Victoria 3803

UK Australia

NOTE: If you ever lose or misplace your copy of this manual, contact us and we will be glad to send you a new

one immediately.

Jazzy 600 ES 5

Power chair information label

Manufactured in

Read and follow the information in the owner’s manual.

II. SAFETY

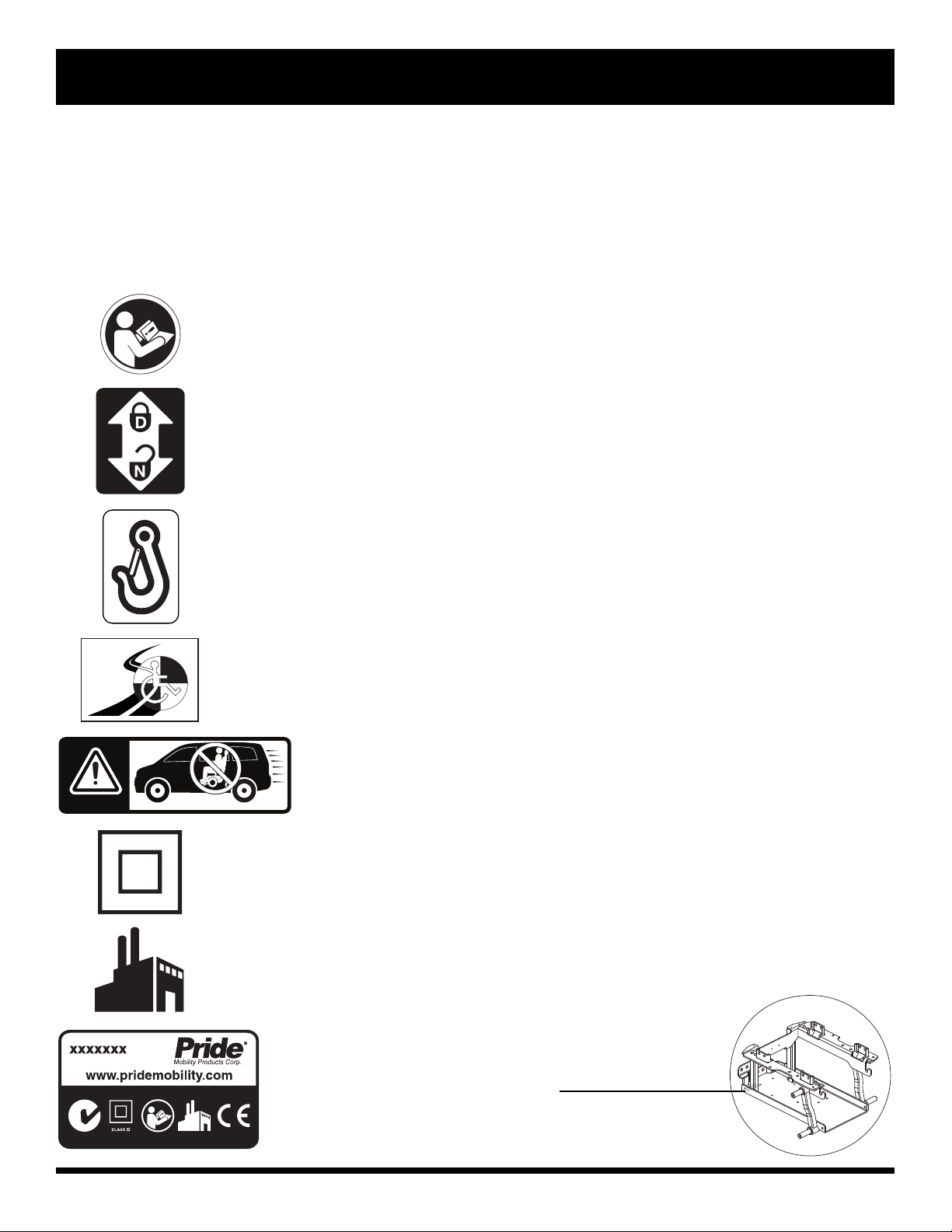

PRODUCT SAFETY SYMBOLS

The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions.

It is very important for you to read and understand them completely.

NOTE: There are more warnings identified and explained in the Consumer Safety Guide that is included with

your power chair. Please become familiar with all the warnings and safety information found in the Consumer

Safety Guide and refer to this resource often.

Unlocked and in freewheel mode.

Locked and in drive mode.

Place unit on level ground and stand to one side when changing from drive mode to

freewheel mode or freewheel mode to drive mode.

Class II Equipment

Indicates power chair securement points.

Indicates that power chair, with similarly labeled seating system, conforms to ANSI/

RESNA WC/Vol. 4, Section 19 for transport of an occupied power chair in a motor

vehicle.

Indicates that power chair with a similar label is not rated for occupied

transit.

MAIN FRAME

6 Jazzy 600 ES

II. SAFETY

GENERAL GUIDELINES

MANDATORY! Do not operate your new power chair for the first time without completely reading

and understanding this owner’s manual.

Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an

extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final

selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power

chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,

physical therapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted the

power chair to the user and has assisted the prescribing healthcare professional and/or the authorized Pride Pro-

vider in the instruction process for the use of the product.

There are certain situations, including some medical conditions, where the power chair user will need to practice

operating the power chair in the presence of a trained attendant. A trained attendant can be defined as a family

member or care professional specially trained in assisting a power chair user in various daily living activities.

As you begin using your power chair during daily activities, you will probably encounter situations in which you

will need some practice. Simply take your time and you will soon be in full and confident control as you maneuver

through doorways, on and off of elevators, up and down ramps, and over moderate terrain.

Below are some precautions, tips, and other safety considerations that will help you become accustomed to oper-

ating your power chair safely.

Pre-Ride Safety Check

Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check

before each use to make sure your power chair operates smoothly and safely.

Perform the following inspections prior to using your power chair:

Check for proper tire inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on each

tire if equipped with pneumatic tires.

Check all electrical connections. Make sure they are tight and not corroded.

Check all controller connections to the power base. Make sure they are secured properly.

Check the brakes. See VII. “Care and Maintenance.”

Check battery charge. See VI. “Batteries and Charging.”

Ensure the manual freewheel levers are in drive mode before sitting on the power chair.

NOTE: If you discover a problem, contact your authorized Pride Provider for assistance.

Jazzy 600 ES 7

III. YOUR POWER CHAIR

THE JAZZY 600 ES POWER CHAIR

Your power chair has two main assemblies: the seat assembly and the power base assembly.

See figure 1.

Typically,

the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake

assemblies, two drive wheels, four caster wheels, two batteries, and wiring harnesses.

See figures 1, 2, and 3.

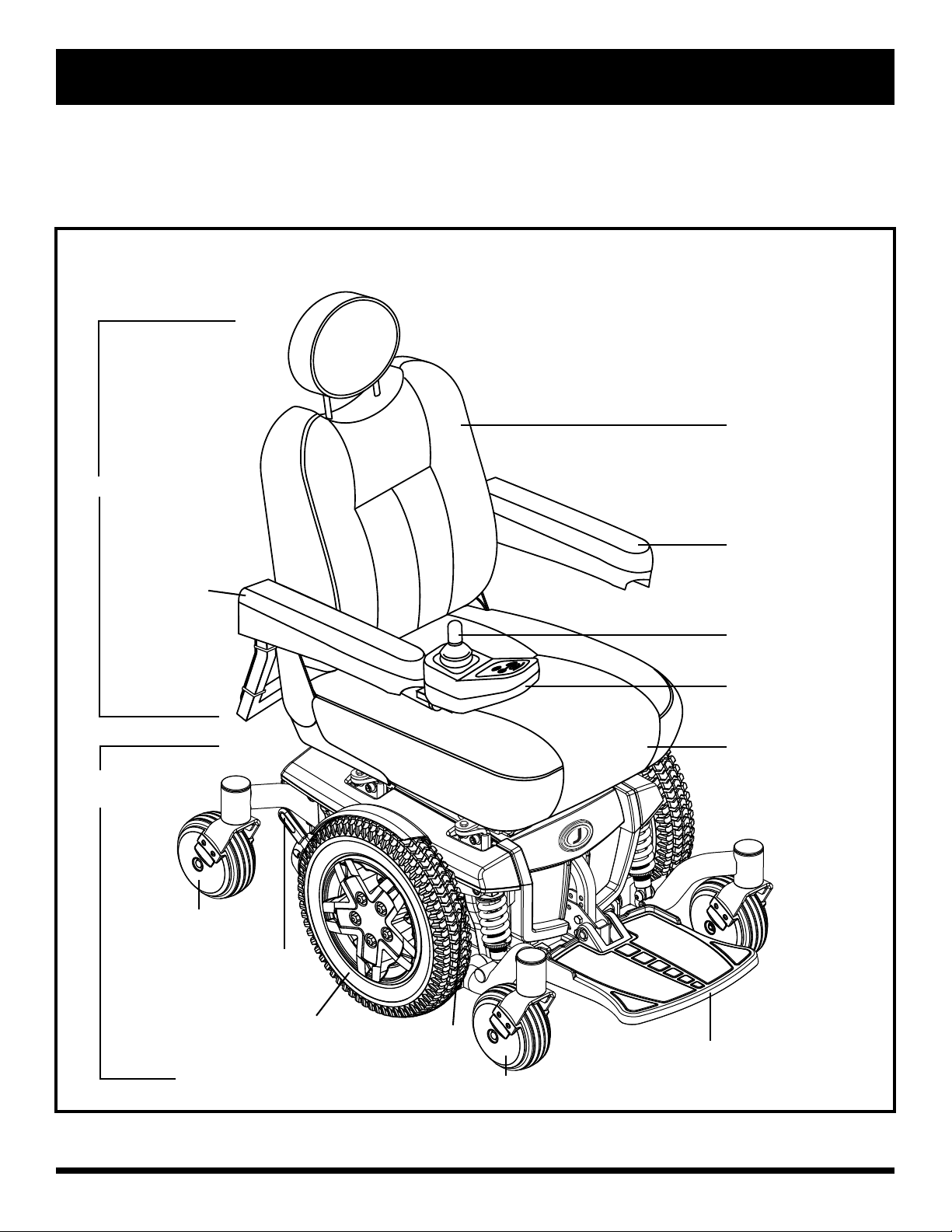

Figure 1. The Jazzy 600 ES Power Chair

SEATBACK

DRIVE WHEEL

CASTER WHEEL

POWER BASE

ASSEMBLY

SEAT ASSEMBLY

JOYSTICK

FRONT RIGGING

(FOOT PLATFORM SHOWN)

SEAT BASE

CONTROLLER

CASTER WHEEL

MANUAL FREEWHEEL LEVER

ARMREST

SPRING SHOCK/

GAS DAMPER

LOCATION

8 Jazzy 600 ES

III. YOUR POWER CHAIR

PROHIBITED! The spring tension on your power chair was factory set to meet the needs of the

demographic majority of users. Do not adjust the tension of any spring on your power chair.

Electrical Components

The electrical components consist of the controller assembly, the batteries, and the motors. The batteries, motors,

and controller power module (if equipped) are located on the power base assembly. The controller is located on

the seat assembly. Connectivity between the controller and the motors, batteries, and the battery charger is pro-

vided by one or more wiring harnesses. See figure 3.

Controller Harness Connector: The controller harness connector is where the controller plugs into the power

base. Each controller uses a different type of harness. Regardless of which type of controller is used, the harness

must be secured to the seat assembly and not allowed to drag on the floor.

Motor Connectors: This is where the controller connects to the motors.

Battery Connector: This is where the controller connects to the batteries.

Controller Power Module: This enables the controller to communicate with the batteries and the motors.

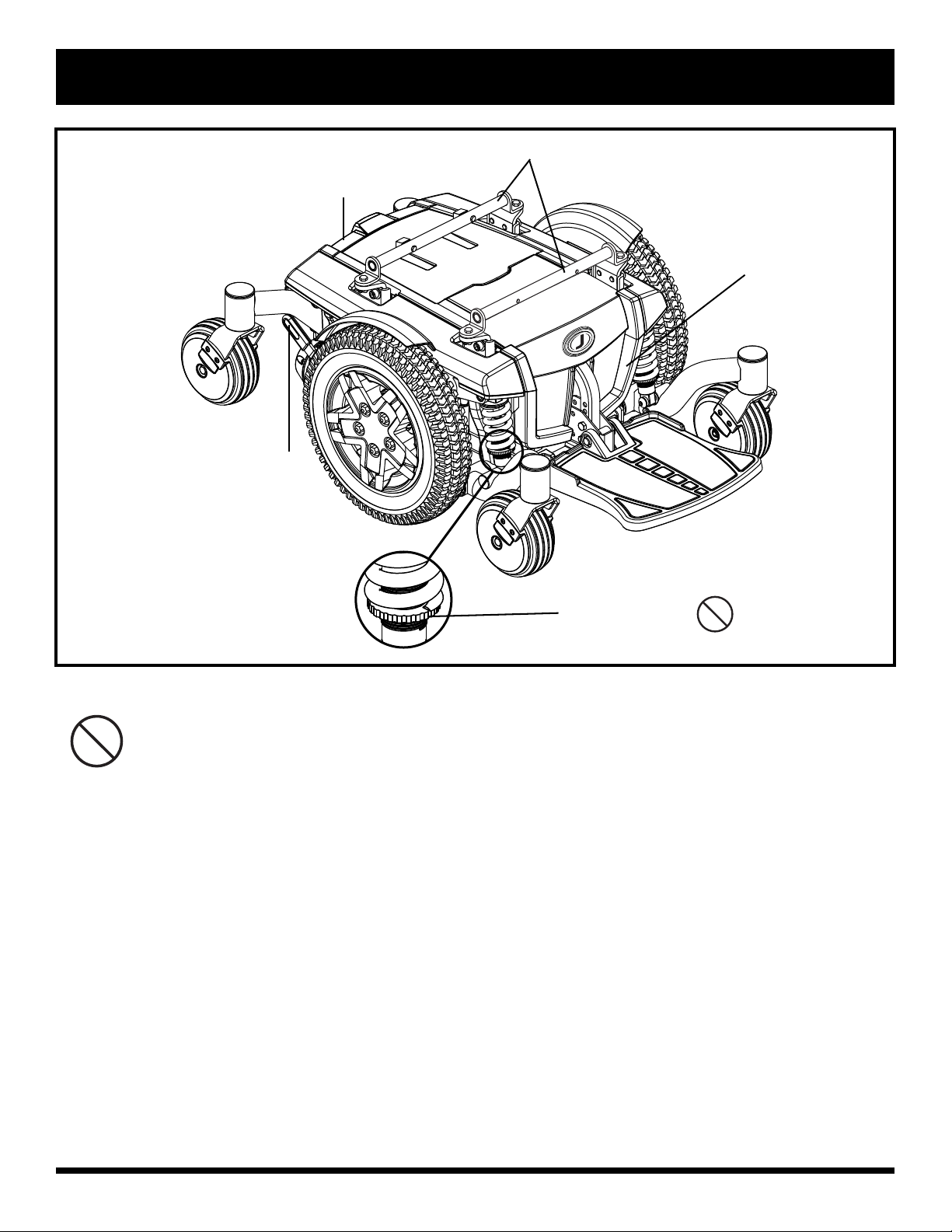

Figure 2. The Jazzy 600 ES Power Base

MANUAL FREEWHEEL

LEVER

TRAPEZE BARS

FRONT COVER

REAR SHROUD

SUSPENSION SPRING

Jazzy 600 ES 9

III. YOUR POWER CHAIR

Main Circuit Breaker (located on the rear main frame): The main circuit breaker is a safety feature built into

your power chair. When the batteries and the motors are heavily strained (e.g., from excessive loads), the main

circuit breaker trips to prevent damage to the motors and the electronics. If the circuit trips, allow your power chair

to “rest” for approximately one minute. Next, push in the circuit breaker button, turn on the controller, and con-

tinue normal operation. If the main circuit breaker continues to trip repeatedly, contact your authorized Pride

Provider.

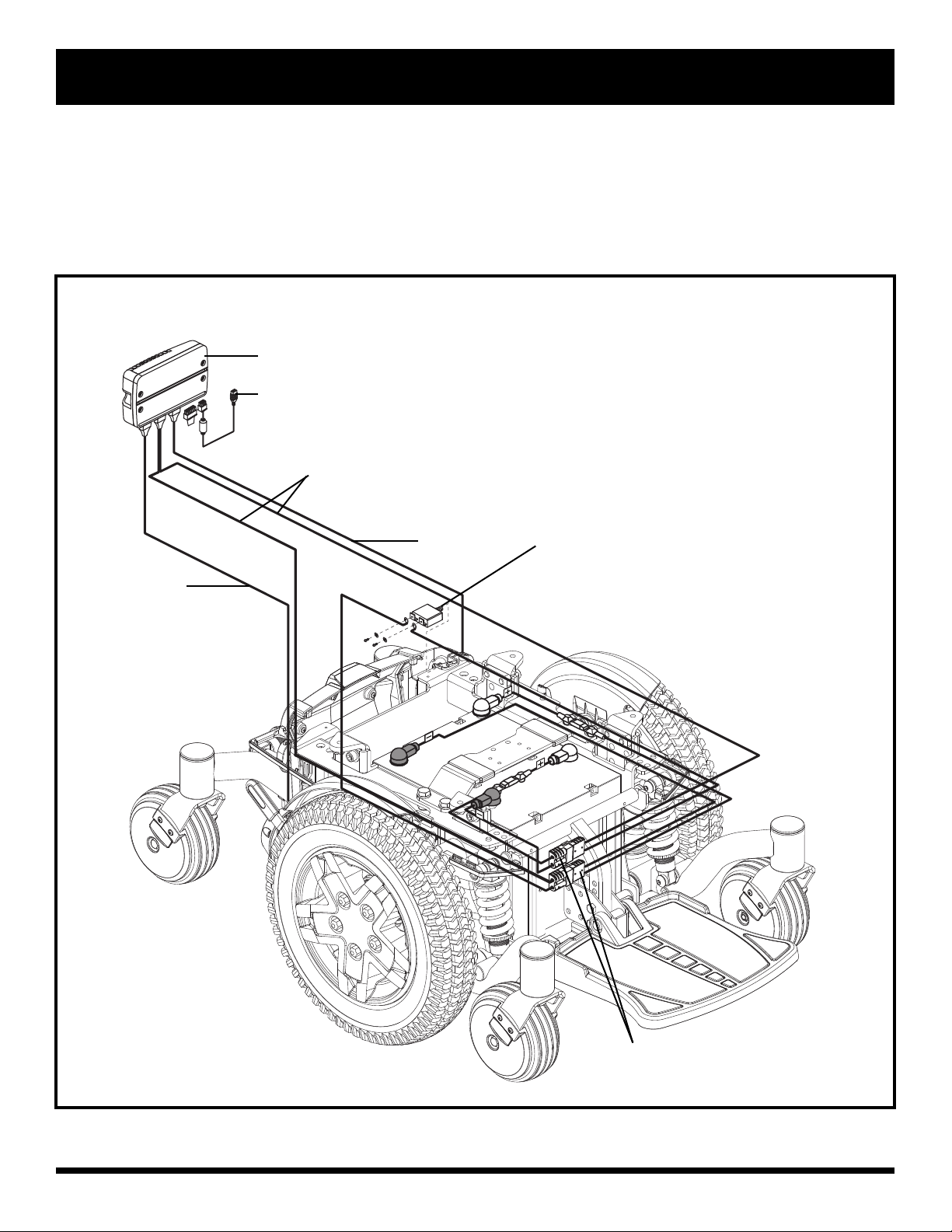

Figure 3. Jazzy 600 ES Electrical Components

QUICK RELEASE

BATTERY CONNECTORS

MAIN CIRCUIT

BREAKER

CONTROLLER POWER MODULE

TO MOTOR

CONNECTOR

CONTROLLER CONNECTOR

TO MOTOR

CONNECTOR

TO BATTERY

CONNECTORS

10 Jazzy 600 ES

III. YOUR POWER CHAIR

Manual Freewheel Levers

For your convenience, your power chair is equipped with a manual freewheel lever mounted on each motor. The

levers allow you to disengage the drive motors and maneuver the chair manually.

WARNING! Do not use the power chair while the drive motors are disengaged! Do not

disengage the drive motors when the power chair is on an incline, as the unit could

roll on its own! Only engage the freewheel mode when on a level surface.

WARNING! It is important to remember that when your power chair is in freewheel

mode, the braking system is disengaged.

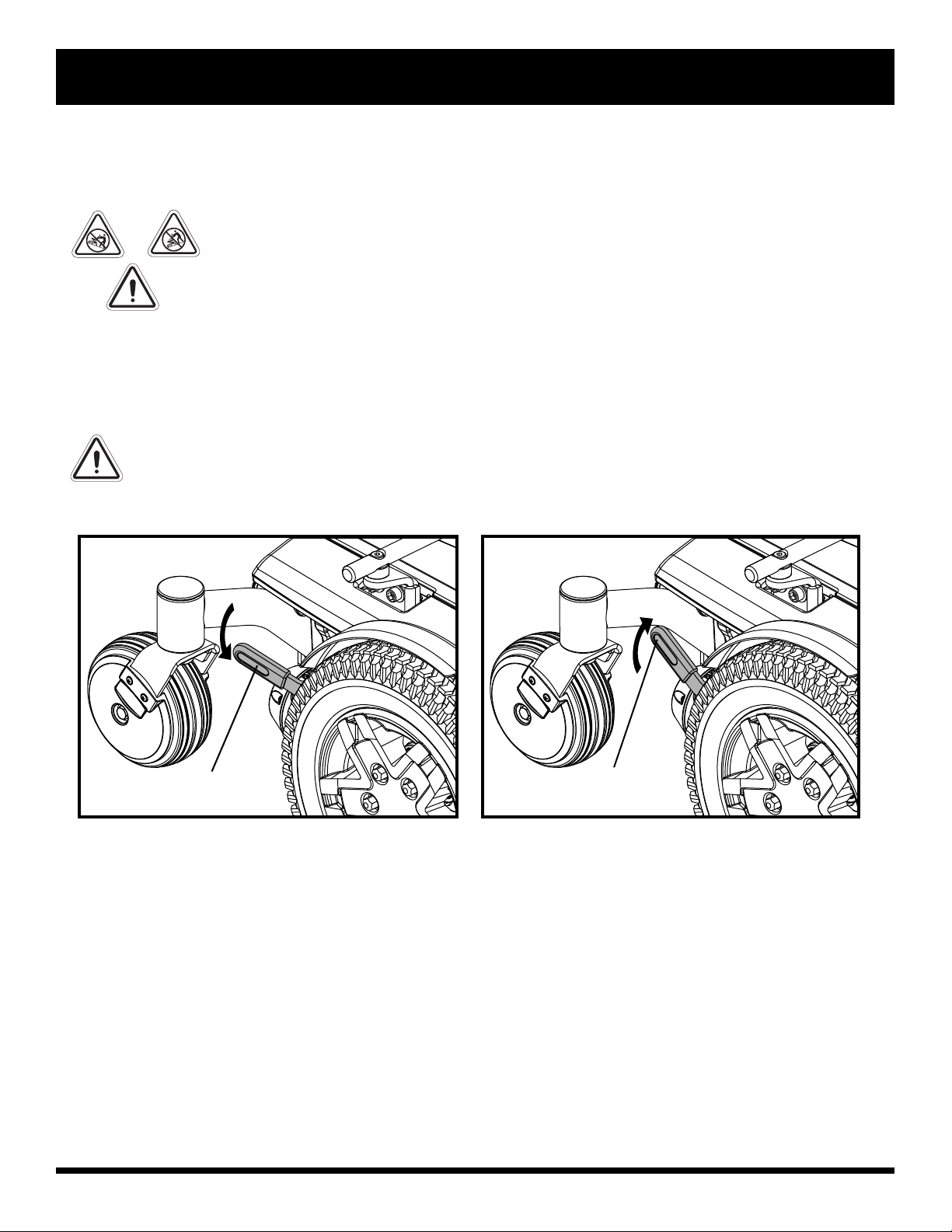

To operate the manual freewheel levers:

1. Push down both manual freewheel levers for freewheel mode (drive motor disengaged). See figure 4.

2. Pull up both manual freewheel levers for drive mode (drive motor engaged). See figure 5.

WARNING! Avoid applying excessive force to the manual freewheel levers.

WARNING! Do not use your foot to operate the manual freewheel levers. Do not stand on the

manual freewheel levers. Applying excessive force to the manual freewheel levers may result in

damage to the freewheel levers, motors, and brakes.

WARNING! Do not use the freewheel lever handles as tie-down points to secure this product.

Figure 5. Drive Mode (Drive Engaged)Figure 4. Freewheel Mode (Drive Disengaged)

MANUAL FREEWHEEL LEVER MANUAL FREEWHEEL LEVER

Otros manuales para Jazzy 600 ES

Tabla de contenidos

Otros manuales de Scooter de Pride Mobility

Pride Mobility

Pride Mobility KOLJA ELITE Manual de usuario

Pride Mobility

Pride Mobility Ultimate 3 Manual de usuario

Pride Mobility

Pride Mobility Victory XL Manual de usuario

Pride Mobility

Pride Mobility Legend SC3000 Manual de usuario

Pride Mobility

Pride Mobility CELEBRITY X Manual de usuario

Pride Mobility

Pride Mobility Victory ES9 Manual de usuario

Pride Mobility

Pride Mobility Go-Go Elite Traveller SC40LR Manual de usuario

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manual de usuario

Pride Mobility

Pride Mobility LEGEND CLASSIC XL-8 Manual de usuario

Pride Mobility

Pride Mobility VICTORY SERIES Manual de usuario

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter Manual de usuario

Pride Mobility

Pride Mobility TRAVEL SCOOTER Series Manual de usuario

Pride Mobility

Pride Mobility Destiny Manual de usuario

Pride Mobility

Pride Mobility GO-GO ELITE TRAVELLER Plus Manual de usuario

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter Manual de usuario

Pride Mobility

Pride Mobility SC3450 Manual de usuario

Pride Mobility

Pride Mobility Go-Go Ultra X Manual de usuario

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manual de usuario

Pride Mobility

Pride Mobility Travel Pro Manual de usuario

Pride Mobility

Pride Mobility PMV5000 Manual de usuario

Pride Mobility

Pride Mobility COLT PURSUIT Manual de usuario

Pride Mobility

Pride Mobility Mini Crosser Manual de usuario

Pride Mobility

Pride Mobility Victory XL-8 Manual de usuario

Pride Mobility

Pride Mobility Rally SC151 Manual de usuario

Manuales populares de Scooter de otras marcas

TEKTRO

TEKTRO CHEETAH Manual de usuario

Douglas

Douglas Vespa Sprint Guía de instalación

PLAYTIVE

PLAYTIVE AS-2448 Manual de usuario

Ebinger

Ebinger DONKEY XL Manual de usuario

Flyer

Flyer Mountain Guía del usuario

BackCountry eBikes

BackCountry eBikes Storm Manual de usuario

equipmed

equipmed FreeRoam II Manual de usuario

Yoto

Yoto Lion Manual de usuario

WESTHILL BIKES

WESTHILL BIKES LINK Manual de usuario

BAnff

BAnff eProdigy series Manual de usuario

Winther

Winther 475 Manual de usuario

Jetson

Jetson JBZL17 Manual de usuario

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manual de usuario

Carrera

Carrera impel Manual de usuario

Afikim

Afikim Superlight SL-3 Manual de usuario

CareCo

CareCo ZOOM Manual de usuario

Douglas

Douglas Vespa G.S. Manual de usuario

Gazelle

Gazelle with BOSCH System Manual de usuario
