Pride Mobility Colt Twin Manual de usuario

COLT TWIN

SAFETY GUIDELINES

PrideMobilityProductsLtd.

INFMANU3753/RevA/July2008

088 609 661

NOTE: This owner’s manual is compiled from the latest specifications and product information avail-

able at the time of publication. We reserve the right to make changes as they become necessary. Any

changes to our products may cause slight variations between the illustrations and explanations in this

manual and the product you have purchased. The latest/current version of this manual is available on

our website.

Pleasefilloutthefollowinginformationforquickreference:

Pride Dealer:________________________________________________________________________

Address:___________________________________________________________________________

PhoneNumber:__________________________

PurchaseDate:___________________________ SerialNumber:_______________________________

WARNING! An authorised Pride Dealer or qualified technician must perform the initial

setup of this scooter and must perform all of the procedures in this manual.

Thesymbolsbelowareusedthroughoutthisowner'smanualandonthescootertoidentifywarningsandimportant

information.Itis veryimportantforyou toreadthemandunderstandthemcompletely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow

designated procedures can cause either personal injury, component damage or malfunction.

On the product, this icon is represented as a black symbol on a yellow triangle with a

black border.

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause personal injury and/or equipment damage. On the product,

this icon is represented as a white symbol on a blue dot.

PROHIBITED! These actions are prohibited. These actions should not be performed at any

time or in any circumstances. Performing a prohibited action can cause personal injury

and/or equipment damage. On the product, this icon is represented as a black symbol with

a red circle and a red slash.

Colt Twin www.pridemobility.com

CONTENTS

I. INTRODUCTION......................................................................................................................... 4

II. SAFETY......................................................................................................................................... 5

III. YOUR SCOOTER...................................................................................................................... 19

IV. BATTERIES AND CHARGING ............................................................................................ 24

V. OPERATION............................................................................................................................... 31

VI. COMFORT ADJUSTMENTS................................................................................................ 33

VII. DISASSEMBLY AND ASSEMBLY..................................................................................... 36

VIII.BASIC TROUBLESHOOTING ............................................................................................. 38

IX. CARE AND MAINTENANCE ................................................................................................ 40

X. WARRANTY................................................................................................................................43

APPENDIX I - SPECIFICATIONS ............................................................................................... 44

4www.pridemobility.com Colt Twin

I. INTRODUCTION

SAFETY

Welcome to Pride Mobility Products Ltd. (Pride).The product you have purchased combines state-of the-art

componentswithsafety,comfortand stylinginmind.Weareconfident thedesignfeatureswillprovide youwith

theconveniencesyouexpectduringyourdailyactivities.Understandinghowtosafely operate and care for this

productshouldbringyouyears of trouble freeoperationandservice.

Readandfollowallinstructions,warningsand notesinthismanualand allotheraccompanyingliterature before

attemptingtooperate this product for thefirst time.Inaddition,yoursafetydepends upon you, as well asyour

dealer,carer orhealthcareprofessionalin usinggoodjudgement.

Ifthereisanyinformation in this manual whichyoudonotunderstandorifyou require additional assistance for

setuporoperation, please contact your authorised PrideDealer.Failuretofollowtheinstructions,warnings

andnotesinthismanualandthoselocatedonyourPrideproductcanresultinpersonalinjuryorproduct

damageandwillvoidPride’sproductwarranty.

PURCHASER’S AGREEMENT

Byaccepting deliveryofthisproduct,youpromisethatyouwillnotchange,alteror modifythisproductorremove

orrenderinoperable orunsafeanyguards,shields orothersafetyfeaturesof thisproduct;fail,refuse orneglectto

installanyretrofitkitsfromtime to time providedbyPridetoenhanceorpreservethesafe use of this product.

SHIPPING AND DELIVERY

Beforeusingyourscooter,make sure your delivery iscompleteassomecomponentsmaybeindividuallypack-

aged.Ifyoudo notreceiveacompletedelivery,please contactyourauthorisedPrideDealer immediately.Where

damagehasoccurredduring transport, either to the packaging or content,please contactthe deliverycompany

responsible.

INFORMATION EXCHANGE

Wewanttohear your questions, commentsandsuggestionsaboutthismanual.Wewouldalsoliketohearabout

thesafetyandreliabilityofyournewscooterandabouttheserviceyoureceivedfromyourauthorisedPrideDealer.

Pleasenotifyusofany changeofaddress,sowecankeepyouapprisedofimportantinformationaboutsafety,new

productsandnewoptionsthatcanincreaseyourabilitytouse and enjoy your scooter.Pleasefeelfreetocontact

usattheaddress below:

PrideMobilityProductsLtd.

32 Wedgwood Road

Bicester,Oxon OX26 4UL

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

Colt Twin www.pridemobility.com

II. SAFETY

PRODUCT SAFETY SYMBOLS

Thesymbolsbelowareusedonthescootertoidentifywarnings,mandatory actions and prohibited actions. It is

veryimportantforyou toreadandunderstandthemcompletely.

Pinch/Crush points created during assembly.

Corrosive chemicals contained in battery.

EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m.

Do not lift the mobility vehicle while seated in it.

Explosive conditions exist!

Read and follow the information in the owner’s manual.

6www.pridemobility.com Colt Twin

II. SAFETY

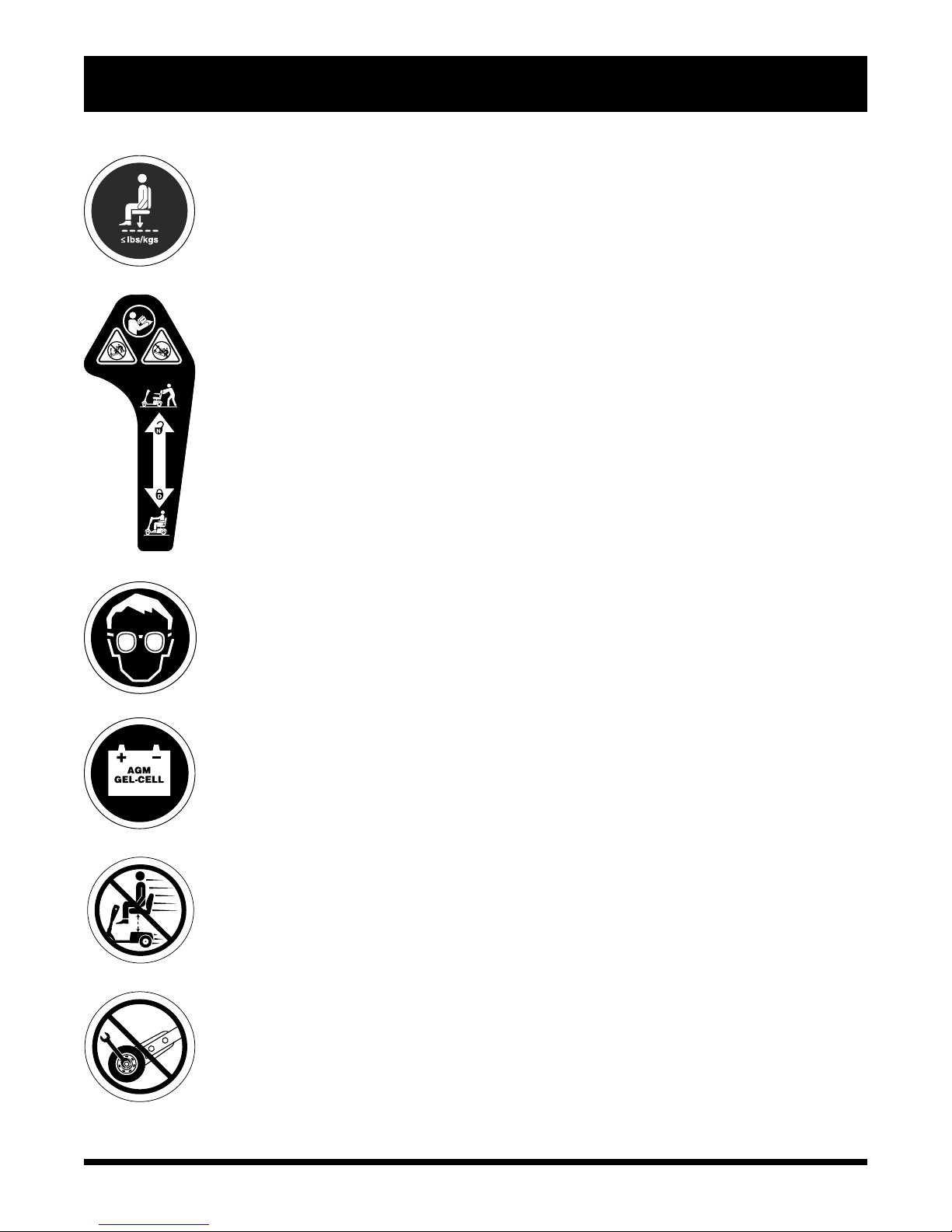

Maximum seating weight.

Place unit on level ground and stand to one side when changing from drive mode

to freewheel mode or freewheel mode to drive mode.

Locked and in drive mode.

Unlocked and in freewheel mode.

Do not remove anti-tip wheels.

Wear safety goggles.

Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive

conditions.

Do not raise or lower the power seat while the scooter is in motion.

Do not place the scooter in freewheel mode on a decline or incline.

Colt Twin www.pridemobility.com

II. SAFETY

Do not use a cell phone, walkie/talkie, laptop or other radio transmitter while

operating.

Avoid exposure to rain, snow, ice, salt or standing water whenever possible. Maintain

and store in a clean and dry condition.

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug

access.

Do not connect an extension lead to the AC/DC converter or the battery charger.

Keep tools and other metal objects away from battery terminals. Contact with

tools can cause electrical shock.

Do not allow unsupervised children to play near the scooter while the batteries are

charging.

Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and

new batteries. Always replace both batteries at the same time.

8www.pridemobility.com Colt Twin

II. SAFETY

Battery charger for indoor use only.

Disposal and recycling - Contact your authorised Pride Dealer for information on

proper disposal and recycling of your Pride product and its packaging.

Contains Lead.

Keep your hands away from the tyres when driving. Be aware that loose fitting

clothing can become caught in drive tyres.

Colt Twin www.pridemobility.com

II. SAFETY

GENERAL

MANDATORY! Do not operate your new scooter for the first time without completely reading

and understanding this owner’s manual.

Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an

extensive variety of products to best fit the individual needs of the scooter user. Please be aware that the final

selection and purchasing decision regarding the type of scooter to be used is the responsibility of the scooter

user,who is capable ofmaking suchadecisionand his/her healthcare professional (i.e., medicaldoctor,physi-

caltherapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted the

scootertotheuserandhasassisted the prescribing healthcare professional and/or theauthorisedPrideDealerin

theinstructionprocessfortheuseoftheproduct.

There are certain situations, including some medical conditions, where the scooter user will need to practice

operatingthescooterinthepresence ofatrainedattendant.Atrainedattendantcan bedefinedasa familymember

orcareprofessionalspeciallytrained inassistinga scooteruserinvariousdailylivingactivities.

Asyoubeginusing yourscooterduringdailyactivities, you willprobablyencountersituationsin which youwill

needsomepractice.Simplytakeyourtimeandyouwillsoonbeinfulland confident control as you maneouver

throughdoorways,onandofflifts,upand down ramps and over moderate terrain.

Belowaresomeprecautions, tips andothersafetyconsiderationsthatwill help youbecomeaccustomedtooper-

atingthescooter safely.

MODIFICATIONS

Pridehas designed and engineered yourscootertoprovidemaximum mobility and utility.However,underno

circumstancesshouldyoumodify,add, remove ordisableanyfeature,partor function of yourscooter.

WARNING! Do not modify your scooter in any way not authorised by Pride. Do not use

accessories if they have not been tested or approved for Pride products.

REMOVABLE PARTS

WARNING! Do not attempt to lift or move your scooter by any of its removable parts,

including the armrests, seat or shroud.

PRE-RIDE SAFETY CHECK

Gettoknowthefeelofyourscooteranditscapabilities.Priderecommendsthatyouperformasafetycheckbefore

eachusetomakesureyourscooteroperatessmoothlyand safely.

10 www.pridemobility.com Colt Twin

II. SAFETY

Performthefollowinginspectionspriorto using yourscooter:

!Checkforproper tyre inflation. Maintain but do not exceedthepsi/bar/kPaairpressureratingindicatedon

eachtyreif equippedwithpneumatictyres.

!Checkallelectricalconnections.Makesuretheyaretightand not corroded.

!Checkallharnessconnections.Makesuretheyaresecuredproperly.

!Check the brakes.

!Checkbatterycharge.

Ifyoudiscoveraproblem,contactyour authorised Pride Dealer for assistance.

TYRE INFLATION

If your scooter is equipped with pneumatic tyres, you should check or have the air pressure checked at least

onceaweek.Properinflationpressureswillprolongthelifeofyourtyresandhelpensurethesmoothoperation

of your scooter.

WARNING! It is critically important that the psi/bar/kPa air pressure rating indicated on

the tyre be maintained in pneumatic tyres at all times. Do not underinflate or overinflate

your tyres. Low pressure may result in loss of control and overinflated tyres may burst.

Failure to maintain the psi/bar/kPa air pressure rating indicted on the pneumatic tyres at

all times may result in tyre and/or wheel failure.

WARNING! Inflate your scooter tyres from a regulated air source with an available pressure

gauge. Inflating your tyres from an unregulated air source could overinflate them, resulting

in a burst tyre.

WEIGHT LIMITATIONS

Yourscooterisrated foramaximumweight capacity. Refertothespecifications tableforinformation.

MANDATORY! Stay within the specified weight capacity for your scooter. Exceeding the

weight capacity voids your warranty. Pride will not be held responsible for injuries and/or

property damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your scooter. Carrying passengers on your scooter

may affect the centre of gravity, resulting in a tip or a fall.

NOTE: If the tyres on your scooter list the psi rating only, use the following conversion formulas to

find the bar or kPa rating: bar = psi x 0.06895; kPa = psi x 6.89476.

INCLINE INFORMATION

Moreand more buildings have rampswithspecifieddegreesof inclination, designed for easyandsafeaccess.

Somerampsmayhaveturning switchbacks (180-degree turns)thatrequireyoutohavegoodcornering skills on

yourscooter.

!Proceedwithextremecautionasyouapproachthedowngradeofaramporotherincline.

!Takewide swings with your scooteraroundanytightcorners. If you do that, thescooter’s rearwheelswill

followawidearc,notcutthecornershort and not bump into or get hunguponanyrailingcorners.

!Whendrivingdownaramp,keepthescooter’sspeed adjustment set to the slowest speed setting to ensure a

safelycontrolleddescent.

!Avoidsuddenstopsandstarts.

Tabla de contenidos

Otros manuales de Scooter de Pride Mobility

Pride Mobility

Pride Mobility Colt Series Manual de usuario

Pride Mobility

Pride Mobility Celebrity XL deluxe Manual de usuario

Pride Mobility

Pride Mobility Dash Manual de usuario

Pride Mobility

Pride Mobility Go-Go Ultra X Manual de usuario

Pride Mobility

Pride Mobility Legend XL Manual de usuario

Pride Mobility

Pride Mobility COLT PURSUIT Manual de usuario

Pride Mobility

Pride Mobility Hurricane Manual de usuario

Pride Mobility

Pride Mobility Jazzy Elite ES Manual de usuario

Pride Mobility

Pride Mobility Shuttle Manual de usuario

Pride Mobility

Pride Mobility raptor series Manual de usuario

Pride Mobility

Pride Mobility Victory XL Manual de usuario

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter Manual de usuario

Pride Mobility

Pride Mobility Celebrrity XL Manual de usuario

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manual de usuario

Pride Mobility

Pride Mobility CELEBRITY DELUXE Manual de usuario

Pride Mobility

Pride Mobility Mini Crosser Manual de usuario

Pride Mobility

Pride Mobility Celebrity DX Manual de usuario

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter Manual de usuario

Pride Mobility

Pride Mobility Legend XL Manual de usuario

Pride Mobility

Pride Mobility v10 Manual de usuario

Pride Mobility

Pride Mobility scooter Manual de usuario

Pride Mobility

Pride Mobility Ranger Manual de usuario

Pride Mobility

Pride Mobility Go Go ES Manual de usuario

Pride Mobility

Pride Mobility VICTORY SERIES Manual de usuario

Manuales populares de Scooter de otras marcas

TEKTRO

TEKTRO CHEETAH Manual de usuario

Douglas

Douglas Vespa Sprint Guía de instalación

PLAYTIVE

PLAYTIVE AS-2448 Manual de usuario

Ebinger

Ebinger DONKEY XL Manual de usuario

Flyer

Flyer Mountain Guía del usuario

BackCountry eBikes

BackCountry eBikes Storm Manual de usuario

equipmed

equipmed FreeRoam II Manual de usuario

Yoto

Yoto Lion Manual de usuario

WESTHILL BIKES

WESTHILL BIKES LINK Manual de usuario

BAnff

BAnff eProdigy series Manual de usuario

Winther

Winther 475 Manual de usuario

Jetson

Jetson JBZL17 Manual de usuario

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manual de usuario

Carrera

Carrera impel Manual de usuario

Afikim

Afikim Superlight SL-3 Manual de usuario

CareCo

CareCo ZOOM Manual de usuario

Douglas

Douglas Vespa G.S. Manual de usuario

Gazelle

Gazelle with BOSCH System Manual de usuario
