Intended Use

The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a

seated position that have the capacity of operating a scooter.

NOTE: This owner’s manual is compiled from the latest speciﬁcations and product information

available at the time of publication. We reserve the right to make changes as they become

necessary. Any changes to our products may cause slight variations between the illustrations

and explanations in this manual and the product you have purchased.The latest/current version

of this manual is available on our website.

NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.

NOTE: This product meets IPX4 classiﬁcation (IEC 60529).

NOTE: The product and its components are not made with natural rubber latex. Consult with the

manufacturer regarding any after-market accessories.

WARNING! Avoid abrupt maneuvers at excessive speed. It is recommended that you operate the

scooter at the slowest speed until you become familiar with scooter controls and operation.

WARNING! An authorized Pride Provider or qualiﬁed technician must perform the initial setup of

this scooter and must perform all of the procedures in this manual.

The symbols below are used throughout this owner’s manual and on the scooter to identify warnings

and important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated

procedures can cause either personal injury, component damage, or malfunction. On the product,

this icon is represented as a black symbol on a yellow triangle with a black border.

MANDATORY! These actions should be performed as speciﬁed. Failure to perform mandatory

actions can cause personal injury and/or equipment damage. On the product, this icon is

represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited.These actions should not be performed at any time or

in any circumstances. Performing a prohibited action can cause personal injury and/or equipment

damage. On the product, this icon is represented as a black symbol with a red circle and red slash.

SAFETY GUIDELINES

Raptor 3

CONTENTS

I. SAFETY ............................................................................................................. 4

II. YOUR SCOOTER ................................................................................................ 7

III. BATTERIES AND CHARGING .......................................................................... 14

IV. OPERATION ......................................................................................................20

V. COMFORT ADJUSTMENTS...............................................................................22

VII. BASIC TROUBLESHOOTING ............................................................................24

VIII. CARE AND MAINTENANCE ............................................................................. 26

4 Raptor

Does not meet ISO 7176-19 standards for occupied transport in a motor vehicle.

When traveling in a motor vehicle, do not sit in your scooter.

Manufactured in.

Fully charge batteries before operating.

Remove key from an unattended scooter.

Read and follow the information in the owner’s manual.

I. SAFETY

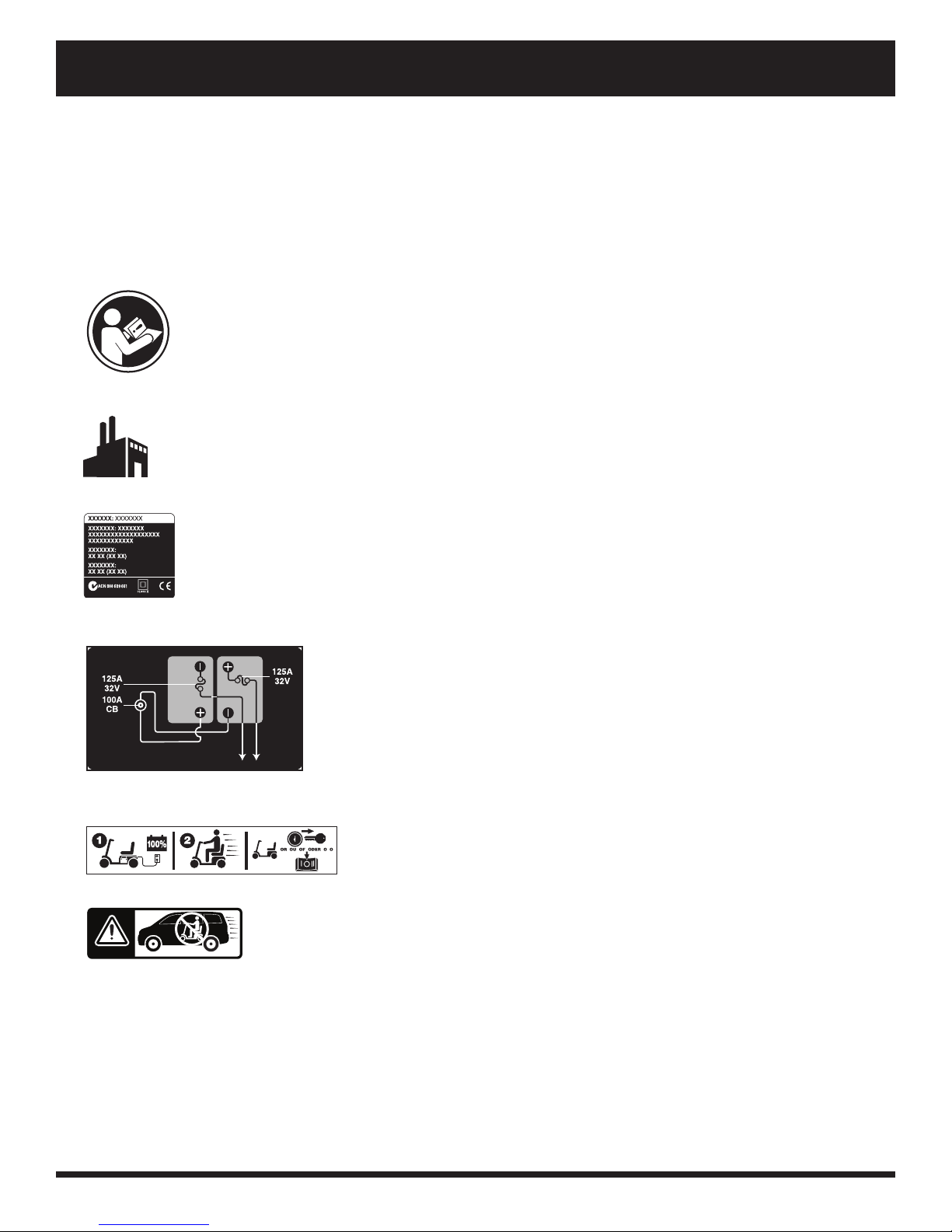

PRODUCT SAFETY SYMBOLS

The symbols below are used on the scooter to identify warnings, mandatory actions, and prohibited

actions. It is very important for you to read and understand them completely.

NOTE: There are more warnings identiﬁed and explained in the Consumer Safety Guide that is

included with your scooter. Please become familiar with all the warnings and safety information

found in the Consumer Safety Guide and refer to this resource often.

Scooter information label.

Battery Set Conﬁguration:

+ = Positive (Red) Terminal Post

- = Negative (Black) Terminal Post

Connect Red wires to Red Positive (+) Terminal Posts.

Connect Black wires to Black Negative (-) Terminal Posts.

Raptor 5

I. SAFETY

GENERAL

MANDATORY! Do not operate your new scooter for the ﬁrst time without completely reading and

understanding this owner’s manual and the Consumer Safety Guide.

Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. We provide an

extensive variety of products to best ﬁt the individual needs of the scooter user. Please be aware that

the ﬁnal selection and purchasing decision regarding the type of scooter to be used is the responsibility

of the scooter user, who is capable of making such a decision.

The contents of this manual are based on the expectation that a mobility device expert has properly

ﬁtted the scooter to the user.

There are certain situations, including some medical conditions, where the scooter user will need to

practice operating the scooter in the presence of a trained attendant. A trained attendant can be deﬁned

as a family member or care professional specially trained in assisting a scooter user in various daily

living activities.

As you begin using your scooter during daily activities, you will probably encounter situations in which

you will need some practice. Simply take your time and you will soon be in full and conﬁdent control as

you maneuver through doorways, on and off elevators, up and down ramps, and over moderate terrain.

Additional general information can be found on the supplemental information sheets and booklets

included in your Owner’s Package. Please fully read and review the information, and keep it readily

available for future reference.

Below are some precautions, tips, and other safety considerations that will help you become accustomed

to operating the scooter safely.

PRE-RIDE SAFETY CHECK

Get to know the feel of your scooter and its capabilities. We recommend that you perform a safety check

before each use to make sure your scooter operates smoothly and safely.

Perform the following inspections prior to using your scooter:

Check the condition of the tires. Make sure they are not damaged or excessively worn.

Check to ensure all tires are inﬂated to the proper psi/bar/kPa air pressure rating.

Check all electrical connections. Make sure they are tight and not corroded.

Check all harness connections. Make sure they are secured properly.

Check the brakes to ensure they operate properly.

Check the battery condition meter to ensure the batteries are fully charged.

Ensure the manual freewheel lever is in drive mode before sitting on the scooter.

If you discover a problem, contact your authorized Pride Provider for assistance. Please refer to the

Contact Information insert in your Owner’s Package.

6 Raptor

I. SAFETY

BRAKING INFORMATION

Your scooter is equipped with these powerful brake systems:

Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to

the center/stop position.

Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop or

when power is removed from the system for any reason.

Handbrake: This lever provides you with emergency stopping power. See II. “Your Scooter.”

Raptor 7

II. YOUR SCOOTER

TILLER CONSOLE

The tiller console houses all controls needed to drive your scooter, including the throttle control lever,

forward-reverse switch, hi-low switch, and the handbrake. See ﬁgure 1.

PROHIBITED! Do not expose the tiller console to moisture. In the event that the tiller console does

become exposed to moisture, do not attempt to operate your scooter until the tiller console has

dried thoroughly.

1. LCD Screen

2. Handbrake

3. Parking Brake

4. High Beam/Low Beam Switch

5. Turn Signal Switch

6. Left Turn Signal Position

7. Turn Signal Off Position

8. Right Turn Signal Position

9. Horn Buttons

10. Key Switch

11. Mirror

12. Throttle Control

13. Hi-Low Switch

14. Forward-Reverse Switch

15. Lights Switch

16. Full Lights Position

17. Running Lights Position

18. Lights Off Position

Figure 1. Tiller Console

17 1816

IDENTIFICATION KEY

8 Raptor

II. YOUR SCOOTER

Hi-Low Switch

This switch toggles the scooter’s speed between HIGH and LOW.

Press the Hi-Low switch to the “H” position to set the speed adjustment to High.

Press the Hi-Low switch to the “L” position to set the speed adjustment to Low.

Forward-Reverse Switch

This switch controls the driving direction of your scooter.

Press the Forward-Reverse switch to the “F” position to drive forward.

Press the

Forward-Reverse

switch to the “R” position to drive in reverse.

Throttle Control Lever

This lever allows you to control the forward speed and the reverse speed of your scooter up to the

maximum speed you preset with the High-Low switch. The throttle control lever is located on the right

handgrip. See Figure 1.

Place your right hand on the right handgrip and your left hand on the left handgrip.

Use your thumb to press the throttle control downward in order to control the speed of movement.

Release the throttle completely to bring the scooter to a complete stop.

Release the throttle control lever and allow your scooter to come to a complete stop before switching

between forward and reverse. When the throttle control lever is completely released, it automatically

returns to the “stop” position and engages your scooter’s brakes.

Handbrake Lever

This lever provides you with emergency stopping power. When in motion, release the throttle control

lever and gently squeeze the handbrake lever to come to a stop. Be advised that using the handbrake

lever to stop may cause the scooter to stop abruptly.

NOTE: When the handbrake lever is engaged, your scooter’s rear brake lights will activate only

when the key is in the key switch and turned to the ON position.

WARNING! The handbrake is intended for use only as an emergency brake and/or parking brake.

Parking Brake

To engage the parking brake, squeeze the handbrake lever, then press the parking brake lever toward

the handbrake to latch it in place. Squeeze the handbrake lever to release the parking brake when ready

to resume movement.

NOTE: When the parking brake is engaged, your scooter will not operate.

Horn Buttons

These buttons activate a warning horn.Your scooter must be powered up for the horn to be operational.

Do not hesitate to use the warning horn when doing so may prevent accident or injury.

NOTE: When the horn button is pressed, the scooter’s blinker lights ﬂash once as a hazard.

Raptor 9

II. YOUR SCOOTER

IDENTIFICATION KEY

1. Speed

2. Battery Condition Indicator

3. Odometer/Tripometer

Figure 2. LCD Screen

LCD SCREEN

The LCD screen offers easily intuited feedback information. See ﬁgure 2.

Turn Signal Buttons

Switch the turn signal button in the appropriate direction to activate it. The turn signal lights will ﬂash

on your scooter.

After toggling the turn signal switch, it will return to the center neutral position.

Press down on the turn signal button in the neutral position to ensure that the turn signal deactivates

after 10 to 15 seconds.

NOTE: The turn signals are timed to shut off after 10 to 15 seconds only after the turn signal

button has been pressed in the center position. If this button is not pressed, the turn signal will

remain on.

Lights Switch

The lights switch offers both a running light and a full light option.

To activate the scooter’s running lights, switch the headlights activation switch to the center position.

The tail lights and the low front light will turn on.

To activate the full lights, switch the headlights activation switch to the far left position. In addition to

the low light and tail lights, the headlight will engage.

To turn the lighting system off, switch the activation switch back to the far right position.

High Beam/Low Beam Switch

When the Lights Switch is in the full light position, your scooter will engage the high beam or the low

beam headlight.

Switch the High Beam/Low Beam Switch up to engage the high beam, or down to engage the low beam.

WARNING! Scooter users are required to use their lights when visibility is restricted—day or night.

10 Raptor

II. YOUR SCOOTER

Off-board Charger Port

The off-board charger power cord, when plugged into

the charger power cord receptacle and a standard

electrical outlet, charges the scooter’s batteries. See

ﬁgure 3. The off-board charger port will be located

at the front of the rear shroud, below the seat. See

ﬁgure 4.

Charger Power Cord Receptacle

The 3-pin end of the charger power cord plugs into the

receptacle.There is a protective rubber ﬂap that, when

pressed into place, ﬁts over the receptacle to shield it

from dirt, debris, moisture, or damage.

Electrical System Fuses

Your scooter is equipped with a series of electrical

system fuses, which help protect the off-board

charging system, key switch, and lighting system from

receiving an overload of electrical current. These fuses

are located in a compartment within the rear shroud,

below the seat.

NOTE: Keep all electrical areas clean and free of

moisture and foreign material.

Figure 4. Off-board Charger Port

IDENTIFICATION KEY

Speed Indicator

The LCD Screen displays your current traveling speed. The Hi-Low setting determines the maximum

scooter speed. When set to Low, the speed will be half of the maximum speed at the Hi setting.

Battery Condition Indicator

When the key is turned to the “on” position, the LED indicator gives an approximate reading of battery

strength.

Odometer/Tripometer

When the key is turned to the “on” position, The LCD Screen will initially display the odometer, or total

distance traveled, before resetting to zero and displaying the tripometer.

NOTE: Speed indicator and odometer/tripometer may not reﬂect actual speed and distance

traveled.

1. Off-board Charger Port

Figure 3. Off-board Battery Charger

XLR

Tabla de contenidos

Otros manuales de Scooter de Pride Mobility

Pride Mobility

Pride Mobility Legend XL Manual de usuario

Pride Mobility

Pride Mobility CELEBRITY X Manual de usuario

Pride Mobility

Pride Mobility Victory ES9 Manual de usuario

Pride Mobility

Pride Mobility Elite Traveller Series INFINFB2039 Guía

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manual de usuario

Pride Mobility

Pride Mobility Celebrity DX Manual de usuario

Pride Mobility

Pride Mobility CELEBRITY X Manual de usuario

Pride Mobility

Pride Mobility VICTORY SPORT Manual de usuario

Pride Mobility

Pride Mobility Go-Go Elite traveller Manual de usuario

Pride Mobility

Pride Mobility Legend XL Manual de usuario

Pride Mobility

Pride Mobility CELEBRITY X Manual de usuario

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter Manual de usuario

Pride Mobility

Pride Mobility Hurricane Manual de usuario

Pride Mobility

Pride Mobility Legend 4-Wheel Scooter Manual de usuario

Pride Mobility

Pride Mobility Travel Pro Manual de usuario

Pride Mobility

Pride Mobility COLT XL8 Manual de usuario

Pride Mobility

Pride Mobility Legend Manual de usuario

Pride Mobility

Pride Mobility Colt Series Manual de usuario

Pride Mobility

Pride Mobility CELEBRITY DELUXE Manual de usuario

Pride Mobility

Pride Mobility Go-Go Elite Traveller SC40LR Manual de usuario

Pride Mobility

Pride Mobility Wrangler Manual de usuario

Pride Mobility

Pride Mobility VICTORY SERIES Manual de usuario

Pride Mobility

Pride Mobility Go-Go Series Manual de usuario

Pride Mobility

Pride Mobility Revo Sport Manual de usuario

Manuales populares de Scooter de otras marcas

TEKTRO

TEKTRO CHEETAH Manual de usuario

Douglas

Douglas Vespa Sprint Guía de instalación

PLAYTIVE

PLAYTIVE AS-2448 Manual de usuario

Ebinger

Ebinger DONKEY XL Manual de usuario

Flyer

Flyer Mountain Guía del usuario

BackCountry eBikes

BackCountry eBikes Storm Manual de usuario

equipmed

equipmed FreeRoam II Manual de usuario

Yoto

Yoto Lion Manual de usuario

WESTHILL BIKES

WESTHILL BIKES LINK Manual de usuario

BAnff

BAnff eProdigy series Manual de usuario

Winther

Winther 475 Manual de usuario

Jetson

Jetson JBZL17 Manual de usuario

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manual de usuario

Carrera

Carrera impel Manual de usuario

Afikim

Afikim Superlight SL-3 Manual de usuario

CareCo

CareCo ZOOM Manual de usuario

Douglas

Douglas Vespa G.S. Manual de usuario

Gazelle

Gazelle with BOSCH System Manual de usuario

Pride Mobility raptor series Manual de usuario

Manuales populares de Scooter de otras marcas
