S34P User Manual

INCLUDES MODEL : S34P AND S19P

Manufactured by Heartway, distributed by Pride Mobility

WARNING: Please read the user manual before operating this scooter

Manufactured By:

Heartway Medical Products Co., Ltd.

No.6, Road 25, Taichung Industrial Park,

Taichung, Taiwan 408

TEL:886-4-23580357

FAX:886-4-23590786

Distributed By:

Pride Mobility Products, Corp.

182 Susquehanna Ave

Exeter, PA 18643-2694

USA

SAFETYSYMBOLS

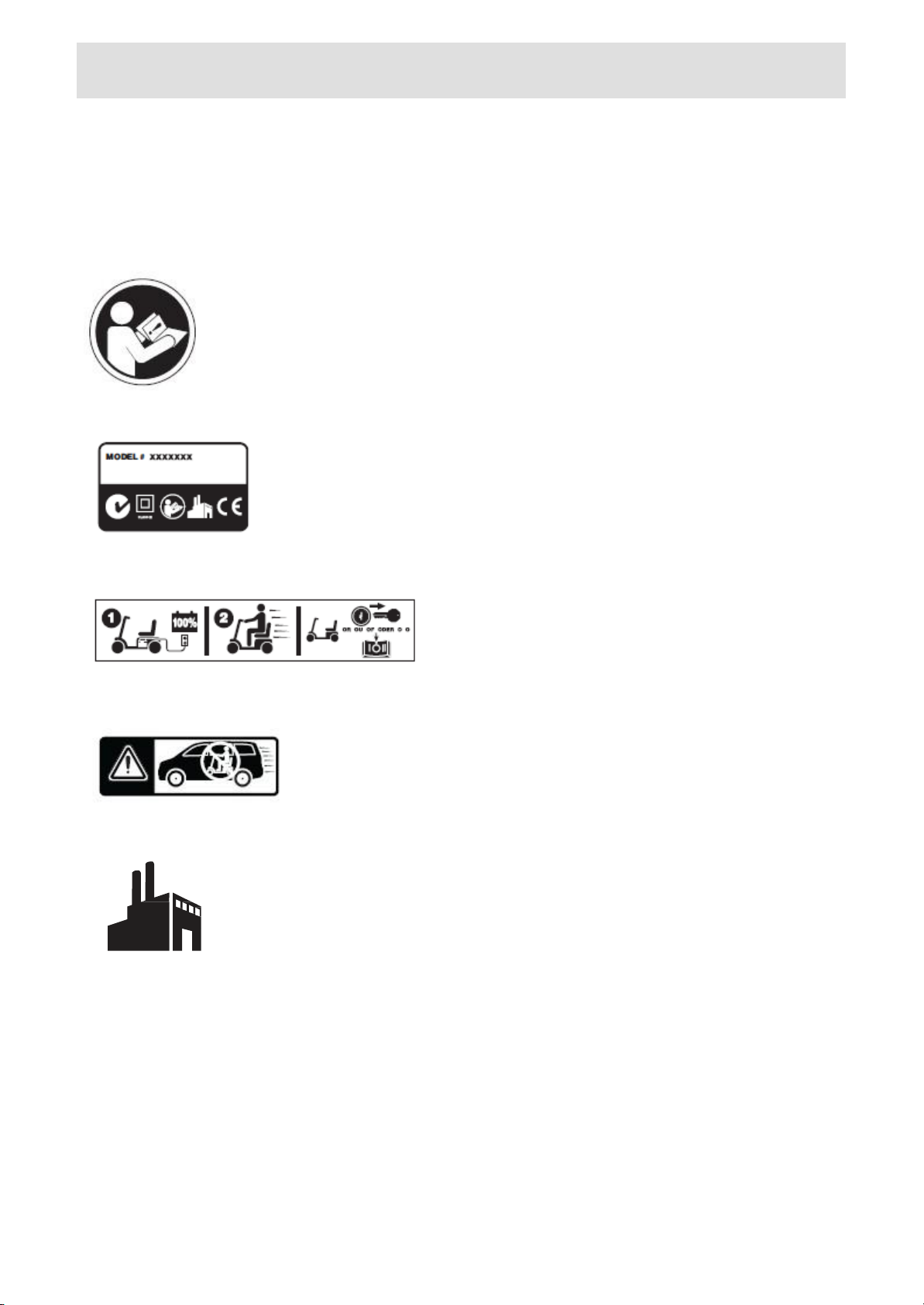

PRODUCT SAFETY SYMBOLS

The

symbols

below are used on the

Travel Scooter

to identify warnings,

mandatory actions,

and

prohibited actions. It is very important for you to read and understand them completely.

Read and follow the information in the owner’s manual.

Scooter information label.

Fully charge batteries before operating.

Remove key from an unattended Travel Scooter.

Does not meet ISO 7176-19 standards for occupied transport in a

motor vehicle. When travelling in a motor vehicle, do not sit in your

Travel Scooter.

Manufactured in.

SAFETYINSTRUCTION

Do not allow unsupervised children to play near

this equipment while the batteries are charging.

Never operate the scooter while you are under

the influence of alcohol.

Never use electronic radio transmitters such as

walkie-talkies, or cellular phones.

Make sure that there are no obstacles behind

you while reversing your scooter.

Do not make a sharp turn or a sudden stop while

riding your scooter.

Do not ride your scooter in traffic.

Do not attempt to climb curbs greater than

limitation show on Technical Specification

Do not leave your hands and legs off the

scooter when driving.

Do not ride your scooter during snow in order to

avoid accident on slippery road.

Warning –Don’t operate your scooter for the first time without completely reading and

understanding this user manual.

1. Don’t operate scooter on public streets and roadways. Be aware that it may be difficult for

traffic to see you when you are seated on the scooter. Obey all local pedestrian traffic rules.

Wait until your path is clear of traffic, and then proceed with extreme cautions.

2. To prevent injury to yourself or others, always ensure that the power is switched off when

getting on or off of the scooter.

3. Always check that the drive wheels are engaged (drive mode) before driving. Do not switch off

the power when the scooter is still moving forward. This will bring the chair to an extremely

abrupt stop.

4. Do not use this product or any available optional equipment without first completely reading

and understanding these instructions. If you are unable to understand the warnings, cautions or

instructions, contact a healthcare professional, the dealers or technical supports before

attempting to use this equipment, otherwise, injury or damage may occur.

5. There are certain situations, including some medical conditions, where the scooter user will

need to practice operating the scooter in the presence of a trained attendant. A trained

attendant can be defined as a family member or care professional especially trained in assisting

a scooter user in various daily living activities. Consult with your physician if you are taking any

medication that may affect your ability to operate your scooter safely.

6. Do not attempt to lift or move a power scooter by any of its removable parts including the

armrests, seats or shrouds. Personal injury and damage to the power chair may result.

7. Never try to use your scooter beyond its limitations as described in this manual.

8. Please do not sit on your scooter while it is in a moving vehicle.

9. Keep your hands away from the wheels (tires) while driving scooters. Be aware that loose fitting

clothing can become caught in the drive tires.

10. Consult your physician if you are taking prescribed medication or if you have any certain physical

limitations. Some medications and limitations may impair your ability to operate scooters in a

safe manner.

11. Be aware when the drive mode is unlocked or locked.

12. Don’t remove anti-tipper if there is any-tipper equipped with the scooter.

13. Contact with tools can cause electrical shock and do not connect an extension cord to the

AC/DC converter or the battery charger.

14. When climbing an incline, don’t drive at an angle up the face of the incline. Drive your scooter

straight up the incline. This greatly reduces the possibility of a tip or a fall.

15. Don’t climb a slope steeper than the scooter’s limitation.

16. Don’t attempt to have your scooter proceed backward down any step, curb or other obstacle.

This may cause the scooter to fall or tip.

17. Always reduce your speed and maintain a stable center of gravity when cornering sharply. Don’t

corner sharply when driving scooters at higher speeds.

18. Operating in rain, snow, salt, mist conditions and on icy or slippery surfaces may have an

adverse affect on the electrical system.

19. Never sit on your scooter when it is being used in connection with any type of lift or elevation

product. Your scooter is not designed with such use in mind and any damage or injury incurred

from such use is not the responsibility of the manufacturer.

20. Surfaces of the power scooter that can come into direct contact with the occupant’s skin and/or

assistant’s skin during normal use and that are within occupant reach shall not exceed 41 °C.

The motor surface can reach temperatures greater than 41°C after driving. Do not touch these

parts when disassembling the scooter or wait until the motor is cooled down.

21. The programming of the controller shall only be carried out by personnel, which is authorized by

his manufacturer. A wrong programming can result in safety hazards for the occupant!

22. If the power scooter is switched off while driving on the horizontal at maximum speed at 7 km/h,

it will come to a stop with the maximum stopping distance of 1.2 m. Please consider this

distance when driving.

23. Drive-wheel needs to be switched to engaged-mode while transporting the power scooter with

a car or airplane.

24. Surface temperatures can increase when exposed to external sources of heat.

Modifications

The manufacturer has designed and engineered power scooters to provide maximum utility. However, under no

circumstances should you modify, add, remove, or disable any part or function of your power scooter. Personal

injury and damage to the power chair may result.

Do not modify your power scooter in any way not authorized by the manufacturer. Do not use

accessories if they have not been tested or approved for this products.

Inspections prior to using your power scooter:

1. If equipped with pneumatic tires, please check for proper tire inflations.

2. Please check all electrical connections and make sure they are tight and not corroded.

3. Please check all harness connections and make sure they are secured properly.

4. Please check the brakes.

Weight limitation.

1. Please refer to the specifications table for weight capacity information. Power scooter is rated for a

maximum weight capacity of 250 lbs.

2. Stay within the specified weight capacity for your scooter. Exceeding the weight capacity voids your

warranty. The manufacturer or distributor will not be held responsible for injuries or property damage

resulting from failure to observe weight limitations.

3. Don’t carry passengers on scooters. Carrying passengers on scooter may affect the center of gravity,

resulting in a tip or a fall.

Tire

inflation

1. If your scooter is equipped with pneumatic tires, it is necessary to check the air pressure at least one time a

week.

2. Proper inflation pressures will prolong the life your tires and ensure the smooth operation while riding.

3. Do not under-inflate or over-inflate your tires. It is critically important that 30-25 psi (2-2.4bar) tire

pressure be maintained in pneumatic tires at all times.

4. Inflating your tires from an unregulated air source could over-inflate them, resulting in a burst tire.

Temperature

1. Some of the parts of the power scooter are susceptible to change in temperature. The controller can only

operate in temperature that ranges between -25°C ~ 50

2. At extreme low temperatures, the batteries may freeze, and your power scooter may not be able to operate.

In extreme high temperatures, it may operate at slower speeds due to a safety feature of the controller that

prevents damage to the motors and other electrical components.

ELECTROMAGNETIC

INTERFERENCE(EMI)

The rapid development of electronics, especially in the area of communications, has saturated our environment with

electromagnetic (EM) radio waves that are emitted by television, radio and communication signals. These EM wave are

invisible and their strength increases as one approach the source. All electrical conductors act as antennas to the EM

signals and, to varying degrees, all power wheelchairs and scooters are susceptible to electromagnetic interference (EMI).

The interference could result in abnormal, unintentional movement and/or erratic control of the vehicle. The

United States

Food and Drug Administration (FDA) suggests that the following statement be incorporated to the user’s manual

for all power scooter like the S34P. Power scooters may be susceptible to electromagnetic interference (EMI), which is

interfering electromagnetic energy emitted from sources such as radio stations, TV stations, amateur radio (HAN)

transmitter, two-way radios, cellular phones and alarm systems of shops. The interference (from radio wave sources) can

cause the power scooter to release its brakes, move by itself or move in unintended directions. It can also permanently

damage the powered scooter’s control system. The intensity of the EM energy can be measured in volts per meter

(V/m).Each powered scooter can resist EMI up to a certain intensity. This is called “immunity level”. The higher the

immunity level the greater the protection. At this time, current technology is capable of providing at least 20 V/m of

immunity level, which would provide useful protection against common sources of radiated EMI.

Following the warnings listed below should reduce the chance of unintended brake release or powered scooter

movement that could result in serious injury:

1. Do not turn on hand-held personal communication devices such as citizens band (CB) radios and cellular phones

while the powered scooter is turned on.

2. Be aware of nearby transmitters such as radio or TV stations and try to avoid coming close to them.

3. If unintended movement or brake release occurs, turn the powered scooter off as soon as it is safe.

4. Be aware that adding accessories or components, or modifying the powered scooter, may make it more susceptible

to interference from radio wave sources (Note: It is difficult to evaluate the effect on the overall immunity of the

powered scooter).

5. Report all incidents of unintended movement or brake release to the powered scooter manufacturer, and note

whether there is a radio wave source nearby.

TURN OFF YOUR POWERED SCOOTER AS SOON AS POSSIBLE WHEN EXPERIENCING THE FOLLOWING:

Unintentional

scooter movements

Unintended

or uncontrollable direction.

Unexpected

brake release

The FDA has written to the manufacturers of power scooters asking them to test new products to be sure they provide a

reasonable degree of immunity against EMI. The FDA requires that a powered wheelchair should have an immunity level

at least 20 V/m, which provides a reasonable degree of protection against more common sources of EMI. The higher the

immunity level the greater the protection. Your powered scooter has an immunity level of 20 V/m which should protect

against common sources of EMI. Warning: The scooter itself can disturb the performance of the electromagnetic fields

such as emitted by alarm systems of shops.

TECHNICAL SPECIFICATIONS

MODEL

S34P

WEIGHT CAPACITY

115 KG (250 lbs)

SEAT: TYPE/SIZE

16" Fish-on

DRIVE WHEEL

200mmx50mm(8"x2")

FRONT CASTER (WHEEL)

180mmx40mm(7"x1.6")

REAR CASTER (ANTI-TIPPER)

YES

MAX SPEED

6 KM/H

BATTERY SPECIFICATIONS

24V 11.5Ah Li-Polymer / 12V 12AHX 2 pcs

BATTERY RANGE

20km (Lithium) / 15 Km (Lead acid)

CHARGER TYPE

2.5Amp,110/240 Volt, Li-ION Charger

CONTROLLER TYPE

S-DRIVE 45Amp

MOTOR TYPE

4-Pole 270W

WEIGHT: W/ BATTERY

56 lbs(with Li-ion), 70lbs(with sealed lead acid)

WEIGHT: W/O BATTERY

51.4 lbs

TURNING RADIUS

820mm

SUSPENSION

INDEGO SUSPENSION

LENGTH

930mm

WIDTH

485mm

HEIGHT

945mm

Folded Size

750mm*485mm*450mm

SEAT WIDTH

410mm

SEAT HEIGHT

320mm

SEAT DEPTH

330mm

BACK HEIGHT

360mm

WHEEL BASE

695mm

GROUND CLEARANCE

60mm

FOOTRESTS

420mm

The scooter travelling range depends on the road

conditions, battery quality and tire pressure

Max Safe Slope: 6 Degree

JUSTMENT

It is very easy to assemble your S34P scooter. Please follow the procedure below.

S34P power scooter has aluminum alloy body and can be easily folded to fit in the car for transportation.

Simple Steps to open and close your scooter

How to open your scooters

1) Pull the red lever on the left side of the scooter by the seat to release the lock

2) Unfold the scooter by pushing the tiller forward

3) Lock the scooter onto the open position by pulling the seat up and pushing the tiller forward until

a click sound is heard.

How to close your scooters

1) Pull the red lever on the floorboard of the scooter to release the lock.

2) Fold the seat backrest down and then fold the tiller downward

3) Lock the scooter onto the closed position by pushing the tiller down until a lock is heard.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Ayuda a la movilidad de Pride Mobility

Pride Mobility

Pride Mobility Jazzy 610 Series Manual de usuario

Pride Mobility

Pride Mobility Meuris Manual de usuario

Pride Mobility

Pride Mobility Go-Go Elite traveller Manual de usuario

Pride Mobility

Pride Mobility Jazzy Select Traveller Manual de usuario

Pride Mobility

Pride Mobility Victory XL-3 Manual de usuario

Pride Mobility

Pride Mobility SilverStar SilverBoom 300 Manual de usuario

Pride Mobility

Pride Mobility Jazzy 1122 Manual de usuario

Pride Mobility

Pride Mobility Jet 12 Manual de usuario

Pride Mobility

Pride Mobility TRAVEL SCOOTER Series Manual de usuario

Pride Mobility

Pride Mobility SilverStar Exterior Lift System Manual de usuario

Pride Mobility

Pride Mobility Knock-Down Lift Chair KD Manual de usuario

Pride Mobility

Pride Mobility Jazzy Select Manual de usuario

Pride Mobility

Pride Mobility KIT2008618 Manual del propietario

Pride Mobility

Pride Mobility Vista Manual de usuario

Pride Mobility

Pride Mobility PATHRIDER 140 XL Manual de usuario

Pride Mobility

Pride Mobility SilverStar Mobility Exterior LIft Manual de usuario

Pride Mobility

Pride Mobility SilverStar Wheelchair/Scooter Lift Manual de usuario

Pride Mobility

Pride Mobility Jazzy Elite ES Manual de usuario

Pride Mobility

Pride Mobility PURSUIT Manual de usuario

Pride Mobility

Pride Mobility Power Tote P-100 Manual de usuario

Pride Mobility

Pride Mobility QUEST Manual de usuario

Pride Mobility

Pride Mobility Go-Go Ultra X Manual de usuario

Pride Mobility

Pride Mobility INFMANU1773 Instrucciones de montaje

Pride Mobility

Pride Mobility CELEBRITY X Manual de usuario

Manuales populares de Ayuda a la movilidad de otras marcas

Alber

Alber Scalamobil iQ Manual de usuario

Ferno

Ferno CCT-PX Manual de usuario

HEPRO

HEPRO Gripo Manual de usuario

Otto Bock

Otto Bock Pheon 3R62 Manual de usuario

NRS Healthcare

NRS Healthcare M11090 Manual de usuario

Medline

Medline MDS86835DSHEC Guía de instalación

Guldmann

Guldmann Twin Turner II Manual de usuario

Drive

Drive ROOMBA Manual de usuario

Gate

Gate Balder Manual de usuario

Decon wheel

Decon wheel TNS Notos Manual de usuario

ExoAtlet

ExoAtlet ExoAtlet-II Manual de usuario

Invacare

Invacare Storm Series Manual de instrucciones

Rhythm Healthcare

Rhythm Healthcare B3800F Manual de usuario

AMF-BRUNS

AMF-BRUNS PROTEKTOR Manual de usuario

Drive DeVilbiss Healthcare

Drive DeVilbiss Healthcare OTTER Manual de usuario

Rhythm Healthcare

Rhythm Healthcare C500U Manual de usuario

Lumex

Lumex RJ4200A Manual de usuario

Rebotec

Rebotec Jumbo Manual de usuario
