Prestigio P171 Manual de usuario

Prestigio P171

Eng

3www.prestigio.biz

U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY

INTERFERENCE STATEMENT

INFORMATION TO THE USER

NOTE: This equipment has been tested and found to comply with the limits for a Class

B digital device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference

in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to

radio communications.

However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet of a circuit different from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for assistance.

Changes or modication not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Connecting of peripherals requires the use of grounded shielded signal cables.

P171_eng.indd 16.10.2003, 0:362

Eng

3www.prestigio.biz

1. Introduction

This manual contains instructions for installing and operating 17” LCD Monitor.

17” LCD Monitor is a highly ergonomic color display unit.

• 17" viewable XGA LCD

• High quality screen re-scaling capability

• 100-240V AC input voltage

• VESA DPMS (Display Power Management Signaling)

• VESA DDC1/2B compatibility

• Advanced digital On-Screen-Display controls

• Fast and accurate auto adjustment

• Most advanced image scaling

• Supporting VESA Flat Panel Monitor Physical Mounting Interface

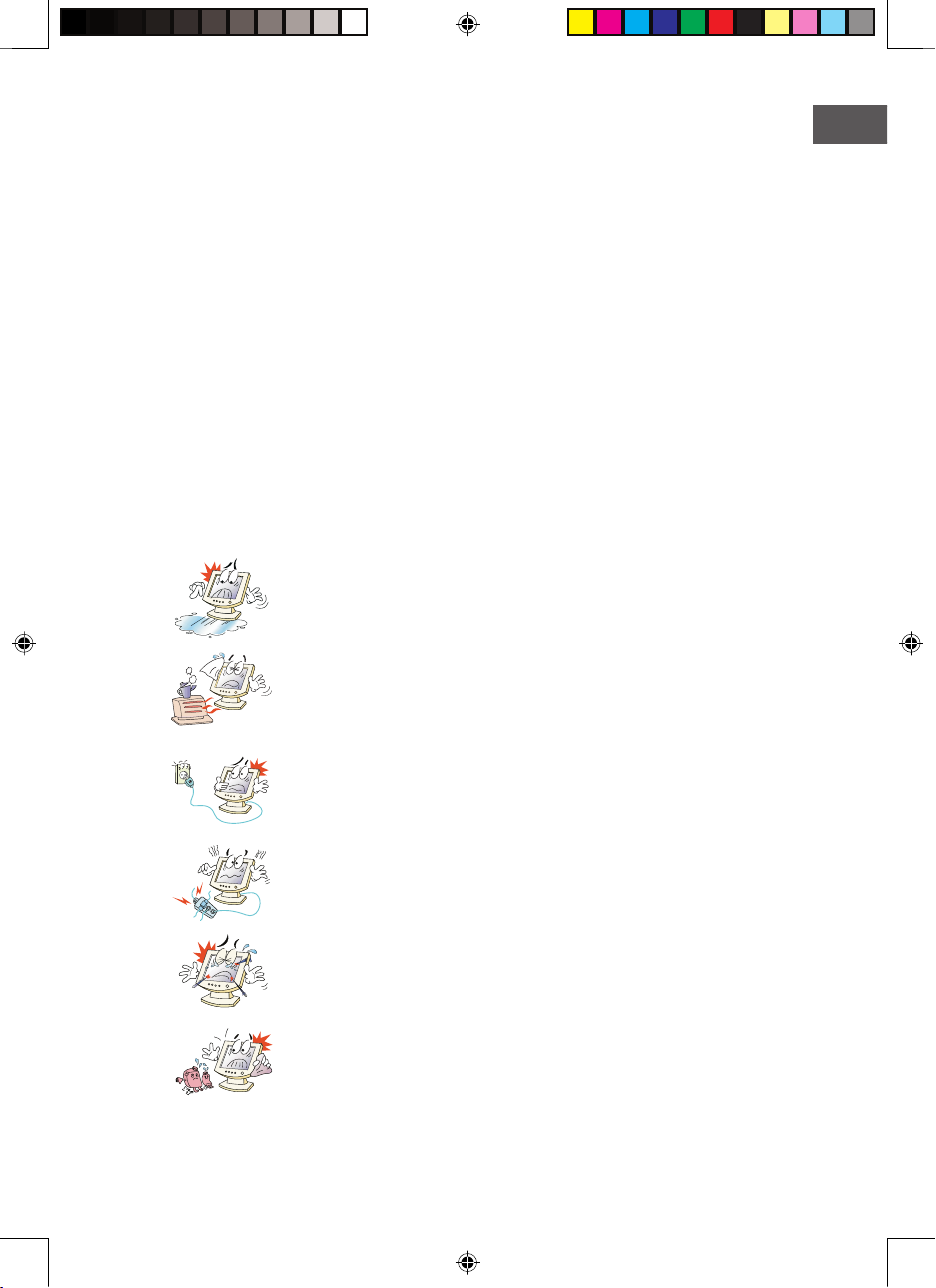

2. Safety Information

This Monitor has been engineered and manufactured to assure your safety. You can prevent

serious electrical shock and other hazards by keeping in mind the following:

Do not place anything wet on the monitor or the power cord. Never

cover the ventilation openings with any material and never touch them

with metallic or inflammable materials.

Avoid operating the monitor in extreme heat, humidity or areas af-

fected by dust.

• Temperature : 5~35°C • Humidity : 30~80RH

Be sure to turn the monitor off before plugging the power cord into

the socket. Make sure that the power cord and the other cords are

securely and rightly connected.

Overloaded AC outlets and extension cords are dangerous, as are

frayed power cords and broken plugs, which may cause electric shock

or fire. Call your service technician for replacement.

Do not use sharp tools such as a pin or a pencil near the monitor, as

they may scratch the LCD surface.

Do not use a solvent, such as benzene, to clean the monitor, as it will

damage the LCD surface.

P171_eng.indd 16.10.2003, 0:363

Eng

4 www.prestigio.biz

Eng

5www.prestigio.biz

Cleaning and Maintenance

• To avoid risk of electric shock, do not disassemble the display unit cabinet. The unit

is not user-serviceable. Remember to unplug the display unit from the power outlet

before cleaning.

• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not use

thinner or benzene, abrasive cleaners or compressed air.

• Do not wipe the screen with a cloth or sponge that could scratch the surface.

• To clean your antistatic screen, use water and a special microfiber screen cleaning

tissue used in optical lens cleaning, or lightly dampen a soft, clean cloth with water or

a mild detergent.

• If the instructions above do not help in removing stains, contact an authorized service

agent.

3. Installing the monitor

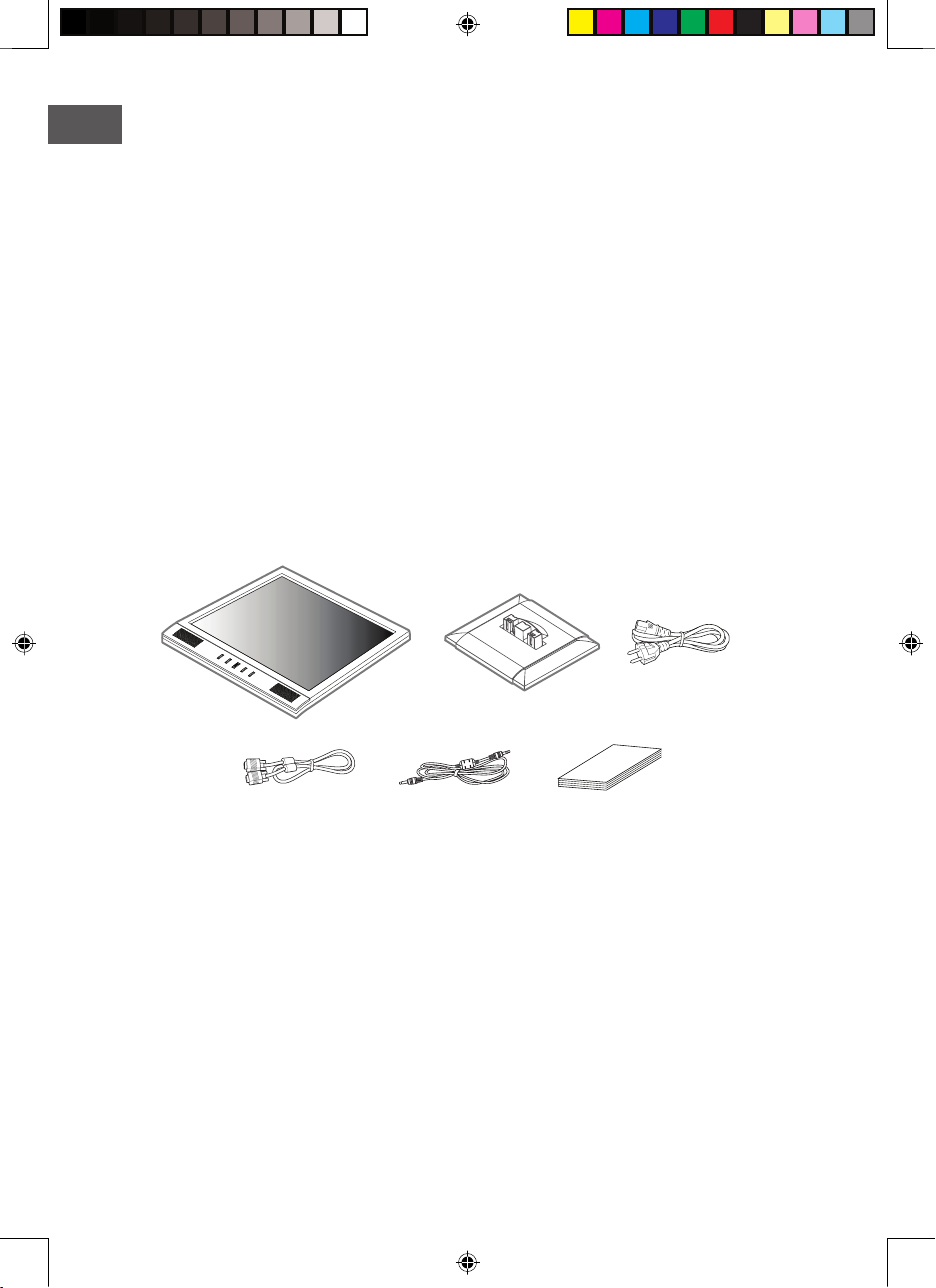

3-1. Packing List

The following items should be found in the packaging.

Above power cord can be changed upon different voltage areas. Please contact your

dealer if anything is missing or damaged.

Other power cord except the cord packed in the product or longer than 3m may affect

EMC of the product in operating condition.

Signal Cable

Main Unit Body Stand Base

Audio Cable User’s Guide

Power Cord

P171_eng.indd 16.10.2003, 0:364

Eng

4 www.prestigio.biz

Eng

5www.prestigio.biz

3-2. Instructions to Install the Stand

Install the stand according to the following instructions on a flat surface.

1. Place the main unit body with screen face down and flip open the folded Stand Post

at 90 degree angle.

2. Engage the Base to the Stand Post by pressing down gently in right position (If installed

correctly you will hear a click sound).

3. Pull the installed base open to bring the main body unit to stand.

3-3. Selecting a suitable location

• Place the monitor at least 30cm from other electrical or heat-emitting equipment and

allow at least 10cm on each side for ventilation.

• Place the monitor in a position where no light shines directly onto or is reflected on

the screen.

• To reduce eye strain, avoid installing the display unit against a bright background

such as a window.

• Position the monitor so that the top of the screen is no higher than eye level.

• Position the monitor directly in front of you at a comfortable reading distance (around

45 to 90cm).

Before you start cabling your monitor, check that the power is off on all units.

To avoid any possibility of electric shock, always connect your equipment to properly

earthed outlets.

P171_eng.indd 16.10.2003, 0:365

Eng

6 www.prestigio.biz

Eng

7www.prestigio.biz



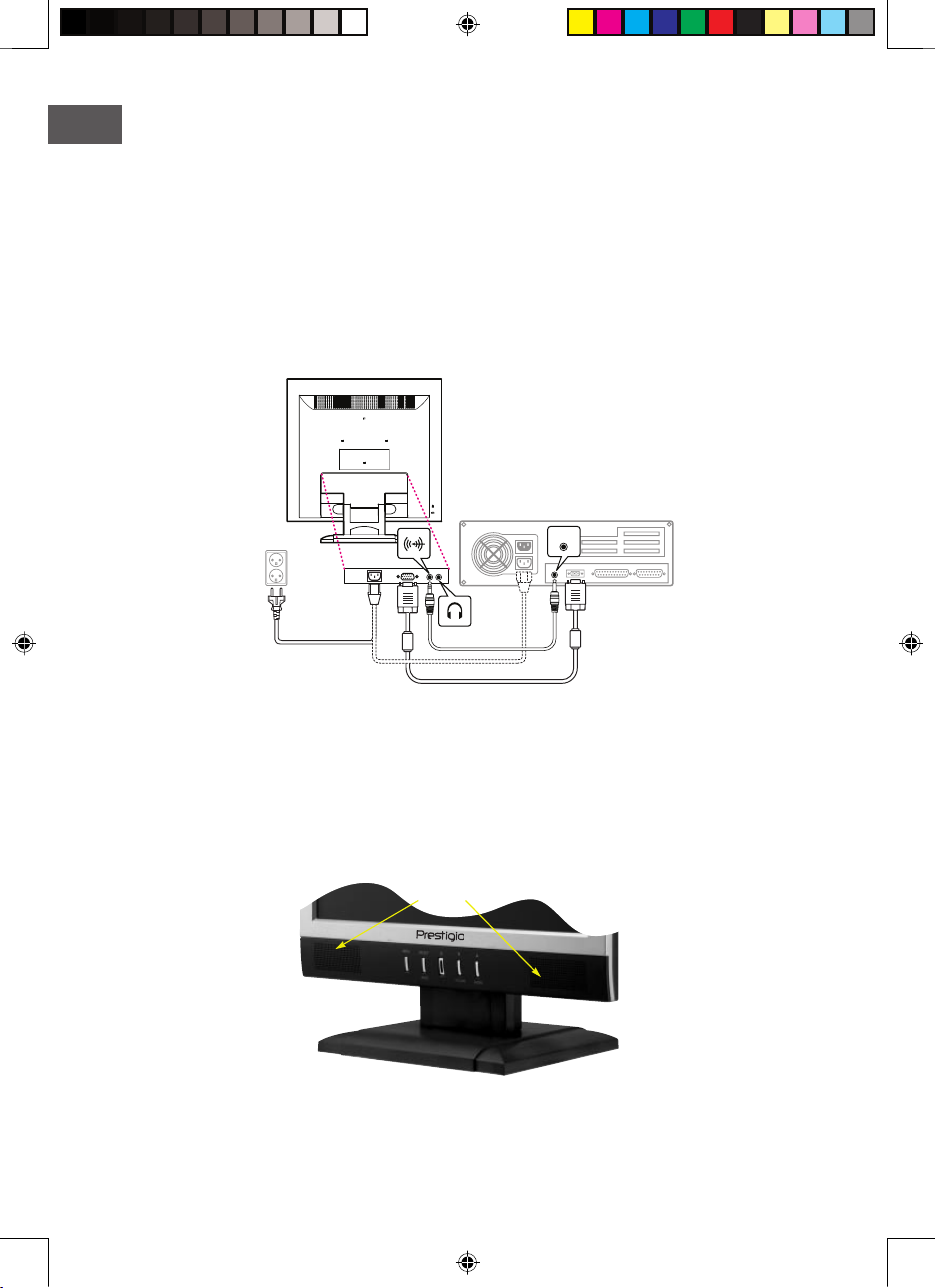

3-4. Connecting the monitor

1. Insert the 15-pin signal cable connector into the 15-pin VGA connection on your

computer and screw it down.

2. Plug the power cord connection to connection on the monitor.

3. Plug the other end of the power cord to your computer's main supply or to a 100V-

240V earthed electrical outlet.

4. Turn on the monitor using the power switch and check that the power LED is on. If not,

repeat steps 1,2,3 and 4 or refer to the Troubleshooting section of this guide.

5. Turn on the power to the computer. The picture will appear within about 10 seconds.

Adjust the picture to obtain optimum picture quality. See section Adjusting the picture

in this guide for more information.

Audio system

This monitor has an audio system including two micro loudspeakers. Each of two micro

loudspeakers has an 2Wrms (max.) output power. This system also supports a headphone

output jack.

When this monitor is turned on, audio is always set up as off mode.

Please use AUDIO direct access button on the front cover or On Screen Display to put

audio on.

Speaker

P171_eng.indd 16.10.2003, 0:366

Eng

6 www.prestigio.biz

Eng

7www.prestigio.biz

3-5. Setting the refresh rate

Follow the instructions below to set your refresh rate in Windows 98/ME/XP/2000.

1. Go to the configuration window (Start-Settings-Configuration window).

2. Double click on the ‘Display’ icon.

3. Click on the ‘Settings’ tab.

4. Click on the ‘Advanced’ button.

5. Click on ‘Adapter’ and select 60Hz from the list.

6. Click on ’Apply’ to accept the selected value.

Preset Timing Table

If the signal from the system isn't equal to the preset timing mode, adjust the mode with

reference to the user guide of videocard because the screen may not be displayed.

The recommended setting is a resolution of 1024x768 and a refresh rate of 60Hz.

Horizontal

Frequency

31.5 KHz

37.5 KHz

37.9 KHz

46.9 KHz

48.4 KHz

56.5 KHz

60.0 KHz

63.9 KHz

80.0 KHz

Refresh Rate

70 Hz

60 Hz

75 Hz

60 Hz

75 Hz

60 Hz

70 Hz

75 Hz

60 Hz

75 Hz

No.

Resolution

720 x 400

640 x 480

800 x 600

1024 x 768

1280 x 1024

P171_eng.indd 16.10.2003, 0:367

Eng

8 www.prestigio.biz

Eng

9www.prestigio.biz

3-6. User’s Environment

Recommended Ergonomic User’s Environment

• Viewing angle of the monitor should be between 0~20 degree.

Kensington Security (Locking) Slot

• This display unit supports a Kensington-type security device to secure your monitor.

Kensington lock is not included.

• To purchase and install the Kensington locking device, please refer to the following

contact information.

* Kensington Technology Group

· Address :

2000 Alameda de las Pulgas 2F san mateo,

California 94403-1289

· Tel : +1 650 572 2700

· Fax : +1 650 572 9675

· Web-site : www.kensington.com

P171_eng.indd 16.10.2003, 0:368

Eng

8 www.prestigio.biz

Eng

9www.prestigio.biz

Ergotron, Inc.

- Address : Ergotron Europe

Kuiperbergweg 50 1101 AG

Amsterdam The Netherlands

- Tel : +3 1 20 696 60 65

· Fax : +3 1 20 609 04 59

· E-mail : info.eu@ergotron.com

VESA MOUNTING

• This display unit supports VESA FPMPMI standard for 100mmx100mm screw mounting

by giving 4 screw holes inside the base stand of the unit.

• To buy VESA Flat Panel Monitor Mounting Devices, please contact following infor-

mation.

Only M4 x12 size screw should be used for proper mounting.

(Using wrong size screw may cause damages to the device)

Desk Mount

Wall Mount

P171_eng.indd 16.10.2003, 0:369

Eng

10 www.prestigio.biz

Eng

11www.prestigio.biz

4. Adjusting the picture

You can adjust the screen display by using the buttons located below the screen.

4-1. Using the On Screen Display

1. Push the MENU button to call the OSD to the screen. The resolution and frequency

are displayed at the top of the menu box for your information.

2. Push the or button to choose the item you want to adjust. The selected item

is highlighted.

3. Push the SELECT button to adjust the highlighted item.

4. Use the or button to adjust the selection.

5. Push the MENU button to return to the previous menu if you are in a submenu.

6. The display unit automatically saves the new settings in 1 second after your last ad-

justments and the menu disappears. You can also push the MENU button to make the

menu disappear.

4-2. Direct access buttons

AUTO ADJUST

At first display a full screen such as Window's back ground. Push the button SELECT (AUTO)

to adjust the shape of screen automatically.

VOLUME

Use the button to select the volume adjustment.

Adjust with or button.

AUDIO

Push the button to choose audio on or off.

P171_eng.indd 16.10.2003, 0:3610
