Prestigio P177 Manual de usuario

3PRESTIGIO P177

ENG

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of

the FCC Rules.These limits are designed to provide resonable protection against radio frequency interference in a resi-

dential installation.This equipment generates,uses,and can radiate radio frequency energy.If not installed and used in

accordance with the instructions, it may cause interference to radio communications.However, there is no guarantee

that intereference will not occur in a particular installation.If this equipment does cause interference to radio or televi-

sion reception (this can be determined by turning this equipment off and on),the user is encouraged to try to correct

the interference by one or more of the following measures:

· Reorient or relocate the receiving antenna.

· Increase the separation between this equipment and the receiver.

· Connect this equipment to an outlet on a circuit different from which the receiver is connected to.

· Consult the dealer or an experienced radio/TV technician for help.

Caution:

To comply with the limits for an FCC Class B computing device, always use the shielded signal cord supplied with this

unit.

Caution to the user:

The Federal Communications Commission warns the user that changes or modifications to the unit not expressly ap-

proved by the party responsible for compliance could void the user’s authority to operate the equipment.

4PRESTIGIO P177

ENG

INTRODUCTION

Congratulations for purchasing model Prestigio P177, a high performance 17-inch color TFT LCD monitor. The P177

monitor provides flicker-free and color images at optional resolutions.Through this user guide,we will introduce you

step-by-step all the features,functions and technical specifications of the LCD monitor.Surely you will have a refreshing

experience working with the monitor.

FEATURES

The P177 is a 17-inch TFT LCD monitor that is intelligent, microprocessor-based and ergonomically designed display,

compatiblewith most analogRGB (Red,Green,Blue) display standards,includingPS/V,PS/2,optional for AppleMacintosh

Centris,Quadra,and Macintosh II family signals.The LCD monitor is capable of displaying crisp and vibrant color graph-

ics with VGA,SVGA,SXGA,XGA (non-interlaced), and most Macintosh compatible color video cards.

· The monitor is able to properly function even in case of upgrade video cards or software because of the wide auto-

scanning compatibility range without requiring to buy a new monitor.

· The internal microprocessor digitally controls auto-scanning.For horizontal scan frequencies between 30 KHz and 81

KHz,and vertical scan frequencies between 55 Hz and 76 Hz.In each frequency mode,the microprocessor-based

circuitry allows the monitor to function at the precision-of a fixed frequency.

· The resident memory allows for storing factory default settings and also additional user adjustment parameters.

· The maximum resolution achievable is SXGA (1280 x 1024),best suited for Windows applications

· The compact and sleek cabinet design saves lot of your desk space and makes your desk look neat and tidy.

· The monitor is also compliant with the most stringent environmental scheme of TCO 99.In this scheme,no environ-

mental harmful substances are used during the entire manufacturing process.

5PRESTIGIO P177

ENG

UNPACKING

Please check the following items are present when you unpack the box,and save the packing materials in case you will

need to ship or transport the monitor in future.

· LCD Monitor

· AC Power Cord · Audio Cable

· User Manual

6PRESTIGIO P177

ENG

Attaching / Removing the Base

SCREEN POSITION ADJUSTMENT

In oder to optimize the best viewing position,you can adjust the tilt of the monitor by using both of your hands to hold

the edges of the monitor as shown in the figure below.The monitor can be adjusted to 30 degrees up or 5 degrees down

as indicated by arrow below.

Install:

Align the four hooks on the bottom of the monitor with

the corresponding slots on the bottom of the base.

Remove:

Depress the hook as indicated first before removing the

base and follow the arrow direction to remove it.

7PRESTIGIO P177

ENG

CONNECTING THE POWER CORD

· Check first to make sure that the power cord you use is the correct type required for your area.

· This monitor has a universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area.

No user-adjustment is required.

· Plug one end of the power cord to the AC Inlet,plug another end to a proper AC outlet.

· For unit using at 220/240 V AC (outside of U.S.):

Use a Cord Set consisting of H05VV-F cord and plug rated 10 A, 250V.The cord set should have the appropriate safety

approvals for the country in which the equipment will be installed.

SAFETY PRECAUTION

· Avoid placing the monitor, or any other heavy object,on the power cord to prevent it from fire or electrical shock.

· Do not expose the monitor to rain,excessive moisture,or dust to avoid fire or shock hazard.

· Do not cover the slots or openings of the monitor for proper heat dissipation.Always put the monitor in a place where

there is adequate ventilation.

· Avoid placing the monitor against a bright background or where sunlight or other light sources may reflect on the face

of the monitor.Place the monitor just below eye level.

· Handle with care when transporting the monitor.

· Refrain from giving shock or scratch to the screen, as screen is fragile.

CLEANING YOUR MONITOR

Please carefully follow the below guidelines when cleaning the monitor.

· Always unplug the monitor before cleaning.

· Use a soft cloth to wipe the screen and cabinet front and sides.

· Apply a small quantity of alcohol to a soft cloth to clean the monitor screen, if requires more than dusting.

8PRESTIGIO P177

ENG

PRESET MODES

To reduce the need for adjustment for different modes,the monitor has default setting modes that are most commonly

used as given in the table below. For optimum adjustment, the user is suggested to perform the Auto Setup under

Windows“Full Screen”pattern.When none of the mode is matched,the user can store their preferred modes in the user

modes.The monitor is capable of storing up to 9 user modes.The only condition to store as a user mode is the new

display information must have 1 KHz difference for horizontal frequency or 1 Hz for vertical frequency or the sync signal

polarities are different from the default modes.

Mode Resolution H.Freq.(KHz) Band Width (MHz) Polarity

1 VGA 720 x 400 70 Hz 31.47 28.322 - +

2 VGA 640 x 480 60 Hz 31.47 25.175 - -

3 MAC 640 x 480 66 Hz 35.00 32.24 - -

4 VESA 640 x 480 72 Hz 37.86 31.5 - -

5 VESA 640 x 480 75 Hz 37.50 31.5 - -

6 VESA 800 x 600 56 Hz 35.16 36 + +

7 VESA 800 x 600 60 Hz 37.88 40 + +

8 VESA 800 x 600 75 Hz 46.88 49.5 + +

9 VESA 800 x 600 72 Hz 48.08 50 + +

10 MAC 832 x 624 75 Hz 49.72 57.283 - -

11 VESA 1024 x 768 60 Hz 48.36 65 - -

12 VESA 1024 x 768 70 Hz 56.48 75 - -

13 VESA 1024 x 768 75 Hz 60.02 78.75 + +

14 VESA 1280 x 1024 60 Hz 64 108 + +

15 VESA 1280 x 1024 75 Hz 80 135 + +

16 VESA 1152 x 864 75 Hz 67.5 108 + +

17 VESA 1280 x 960 60 Hz 60 108 + +

9PRESTIGIO P177

ENG

POWER SAVING

The monitor will be driven into“Power Saving”mode by the control signal from the display controller,as indicated by

the amber-color power LED.

State Power Consumption LED Light

ON Normal Green

ActiveOFF <3 W Amber

The power saving states will be kept until a control signal has been detected or the keyboard or mouse is activated.The

recovery time from Active OFF state back to ON state is around 5 seconds.

DDC

To make your installation easier,the monitor is able to Plug and Play with your system if your system also supports DDC

protocol.The DDC (Display Data Channel) is a communication protocol through which the monitor automatically in-

forms the host system about its capabilities,for example,supported resolutions and corresponding timing.The monitor

supports DDC2B standard.

10 PRESTIGIO P177

ENG

INSTALLATION

To install the monitor to your host system,please follow the steps as given below:

Steps

1. Connect Video Cable

a.Make sure both the monitor and computer are powered-OFF.

b. Connect the video cable to the computer.

2. Connect power cord

Connect the power cord to the monitor,then to a properly grounded AC outlet.

3. Connect the Audio cable.

4. Power-ON Monitor and Computer

Power-ON the monitor first,then power-ON the computer.

This sequence is very important.

5.If the monitor still does not function properly,please refer to the troubleshooting section to diagnose the problem.

11PRESTIGIO P177

ENG

USER CONTROLS

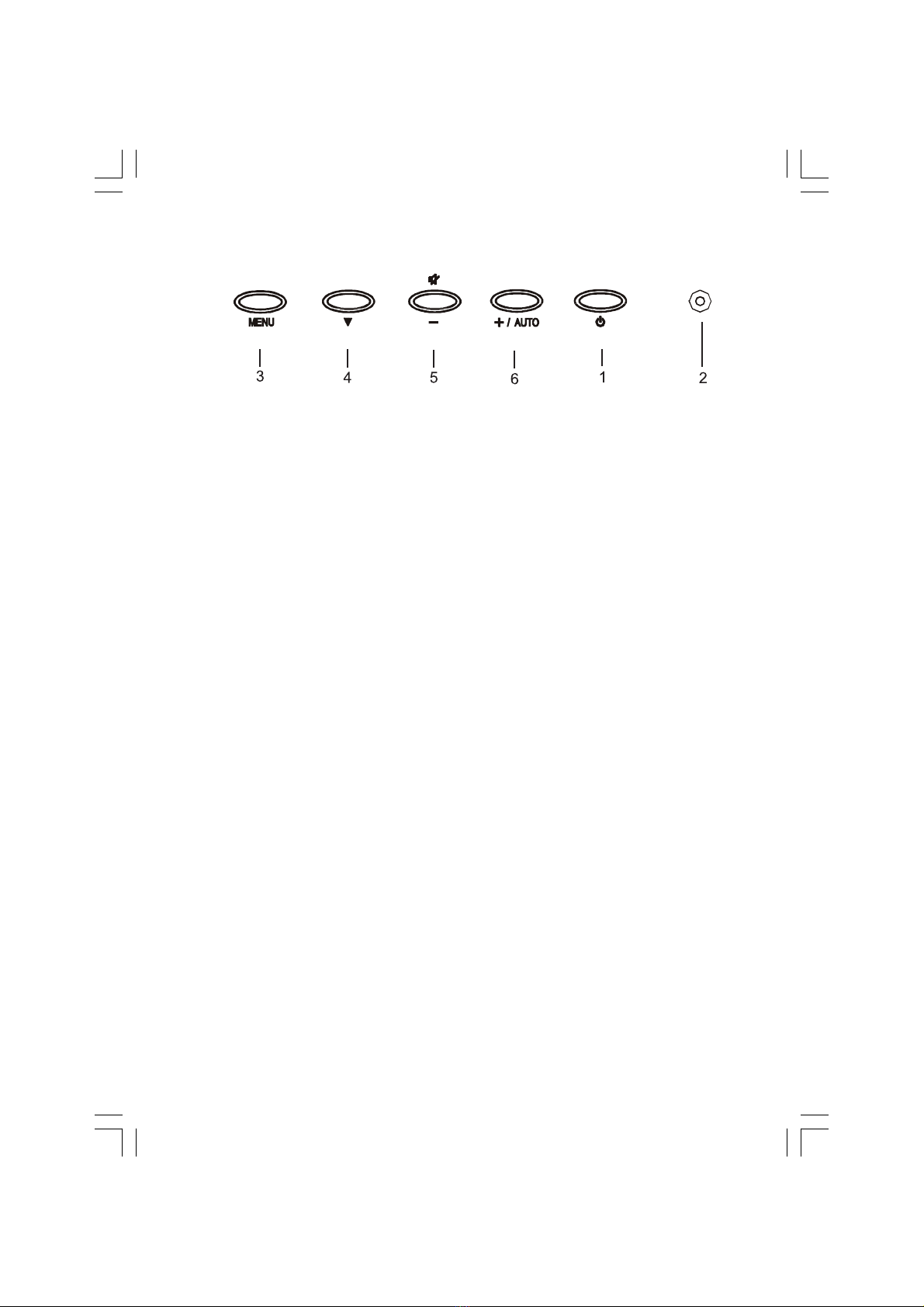

Front Panel Controls

1. Power Switch:To turn ON or OFF the power.

2. Power LED: Lights up to indicate the power is turned ON.

3. Select MENU:To exit and enter OSD menu.

4. Select DOWN:To move downward in the OSD Item.

5. -:To decrease the value of the parameter in the OSD, which has been selected for adjustment.

-:Choose the previous OSD MENU page.

MUTE:Act as Audio Mute hot key when OSD is not displayed.

6. +:To increase the value of the parameter in the OSD, which has been selected for adjustment.

+:Choose the next OSD MENU page.

AUTO: Act as AUTO adjustment hot key when OSD is not displayed.
