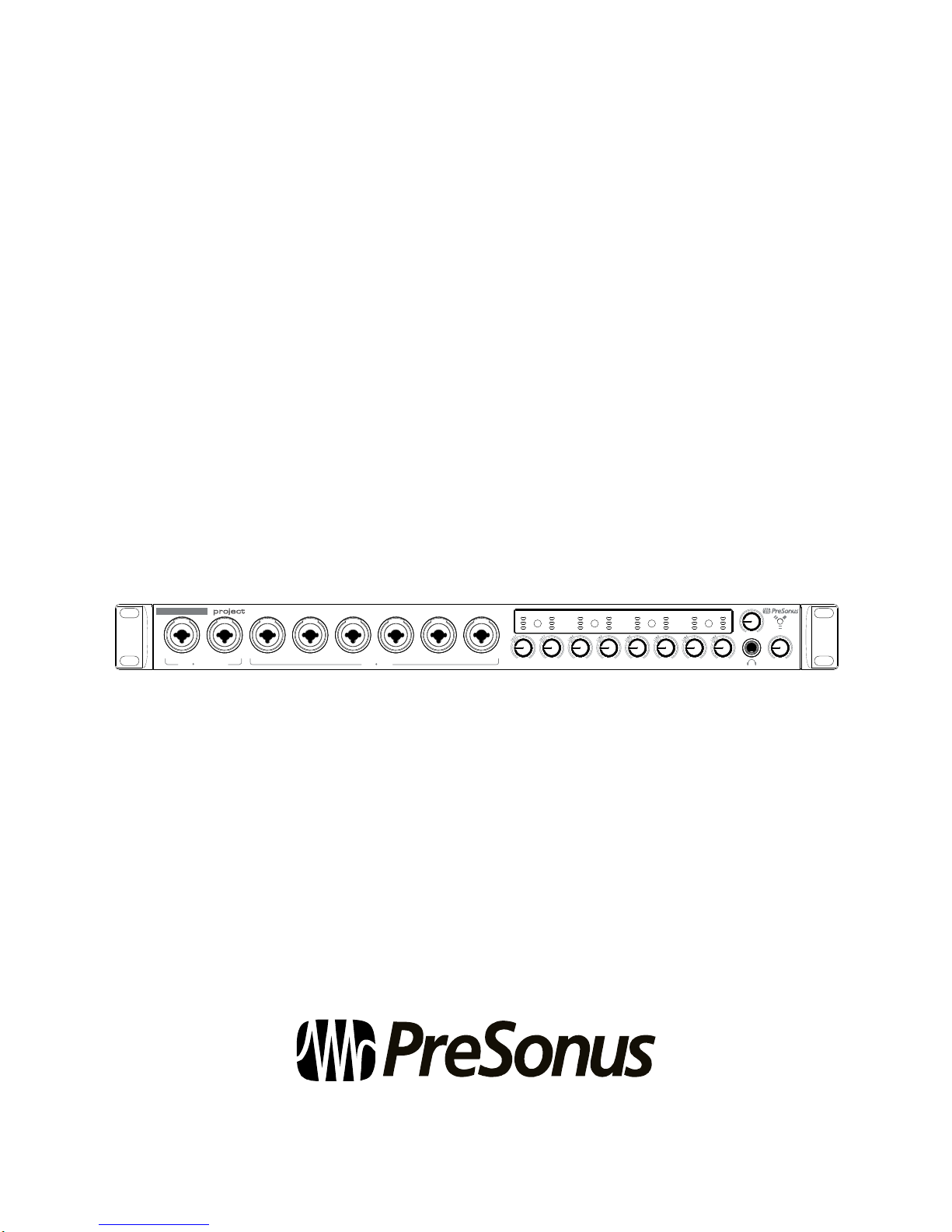

PRESONUS Recording Interface w/ Eight Microphone Preamplifiers Version... Manual de usuario

FIRESTUDIO

PROJECT

24-bit/96k Recording Interface

w/ Eight Microphone Preamplifiers

User’s Manual

Version 1.0

60+20-20 060+20-2 0 060+20-2 0 060+20-20 060+20-2 0 060+30-10 060+30-10 010-80

111

1234

60+20-2 0 0

5678

Phones

Main

Mic Instrument

Mic Line

345678

FIRESTUDIO

™

0dB

-6dB

-40dB

0dB

-6dB

-40dB

0dB

-6dB

-40dB

3/ 4

48V

5/ 6

48V

7/ 8

48V

1/ 2

48V

12345678

PRESONUS LIMITED WARRANTY

PreSonus Audio Electronics Inc. warrants this product to be free of defects in material and workmanship for a

period of one year from the date of original retail purchase. This warranty is enforceable only by the original

retail purchaser. To be protected by this warranty, the purchaser must complete and return the enclosed

warranty card within 14 days of purchase. During the warranty period PreSonus shall, at its sole and absolute

option, either repair or replace, free of charge, any product that proves to be defective on inspection by

PreSonus or its authorized service representative. To obtain warranty service, the purchaser must first call or

write PreSonus at the address and telephone number printed below to obtain a Return Authorization Number

and instructions of where to return the unit for service. All inquiries must be accompanied by a description of

the problem. All authorized returns must be sent to the PreSonus repair facility postage prepaid, insured and

properly packaged. PreSonus reserves the right to update any unit returned for repair. PreSonus reserves the

right to change or improve the design of the product at any time without prior notice. This warranty does not

cover claims for damage due to abuse, neglect, alteration or attempted repair by unauthorized personnel, and is

limited to failures arising during normal use that are due to defects in material or workmanship in the product.

Any implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are

limited in duration to the length of this limited warranty. Some states do not allow limitations on how long an

implied warranty lasts, so the above limitation may not apply to you. In no event will PreSonus be liable for

incidental, consequential or other damages resulting from the breach of any express or implied warranty,

including, among other things, damage to property, damage based on inconvenience or on loss of use of the

product, and, to the extent permitted by law, damages for personal injury. Some states do not allow the

exclusion of limitation of incidental or consequential damages, so the above limitation or exclusion may not

apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from

state to state. This warranty only applies to products sold and used in the United States of America. For

warranty information in all other countries please refer to your local distributor.

PreSonus Audio Electronics, Inc.

7257 Florida Blvd.

Baton Rouge, LA 70806

www.PreSonus.com

TABLE OF CONTENTS

1 OVERVIEW

1.1 Introduction ........................................................................................................................................... 3

1.2 Features ................................................................................................................................................ 4

1.3 What is in the Box ................................................................................................................................. 5

1.4 System Requirements ............................................................................................................................. 6

2 OPERATION

2.1 Quick Start Up ....................................................................................................................................... 7

2.1.1 Installation in Microsoft Windows .................................................................................................. 7

2.1.2 Installation in Mac OS X ................................................................................................................ 8

2.1.3 Cubase LE – Device Setup .............................................................................................................. 9

2.1.4 Cubase LE – Creating a Project .................................................................................................... 11

2.2 Sample Hookup Diagram ..................................................................................................................... 13

2.3 Microphones ........................................................................................................................................ 14

2.3.1 Condenser .................................................................................................................................... 14

2.3.2 Dynamic ...................................................................................................................................... 14

2.3.3 USB and other types .................................................................................................................... 14

2.4 Using The Preamp Output and Line Input as an Insert .......................................................................... 15

3 CONTROLS & CONNECTIONS

3.1 PreSonus FireControl Software ............................................................................................................ 16

3.1.1 FireControl Application Icon ........................................................................................................ 16

3.1.2 FireControl Master Section .......................................................................................................... 17

3.1.3 FireControl Mixer ........................................................................................................................ 18

3.1.3 FireControl Menus ....................................................................................................................... 20

3.2 Front Panel Layout .............................................................................................................................. 21

3.3 Back Panel Layout ............................................................................................................................... 24

4 TECHNICAL INFORMATION

4.1 Troubleshooting ................................................................................................................................... 26

4.2 Specifications ...................................................................................................................................... 27

OVERVIEW

3| PreSonus 2007

1.1 INTRODUCTION

Thank you for purchasing the PreSonus FireStudio Project. PreSonus Audio Electronics has designed the

FireStudio Project utilizing high-grade components to ensure optimum performance that will last a lifetime.

Loaded with 24-bit 96K converters, eight PreSonus X-MAX microphone preamplifiers and Cubase LE 48-track

music production software, the FireStudio Project is ready to go out of the box for professional quality computer

recording. All you need is a computer with FireWire connection, a few microphones and cables along with your

instruments and you are ready to record!

We encourage you to contact us at 225-216-7887 with any questions or comments you may have regarding your

PreSonus FireStudio Project. PreSonus Audio Electronics is committed to constant product improvement, and

we value your suggestions highly. We believe the best way to achieve our goal of constant product improvement

is by listening to the real

experts

, our valued customers. We appreciate the support you have shown us through

the purchase of this product.

We suggest you use this manual to familiarize yourself with the features, applications and correct connection

procedure for your FireStudio Project before trying to connect it to your computer. This will hopefully alleviate

any unforeseen issues that you may encounter during installation and set up.

Thank you, once again, for buying our product, and we hope you enjoy your FireStudio Project!

60+20-2 0 060+20-20 060+20-20 060+20-20 060+20-2 0 060+30-10 060+30-10 010-80

111

1234

60+20-2 0 0

5678

Phones

Main

Mic Instrument

Mic Line

345678

FIRESTUDIO

™

0dB

-6dB

-40dB

0dB

-6dB

-40dB

0dB

-6dB

-40dB

3/ 4

48V

5/ 6

48V

7/ 8

48V

1/ 2

48V

12345678

OVERVIEW

4| PreSonus 2007

1.2 FEATURES

The FireStudio Project is a powerful and affordable computer recording system complete with everything needed

for real-world recording applications. The FireStudio Project comes complete with eight high-quality PreSonus

X-MAX microphone preamps, S/PDIF and MIDI I/O, rock solid drivers, expandability, as well as a plethora of

music recording and production software.

The FireStudio Project includes PreSonus ProPak Software Suite with Cubase LE 4 and over 2 GB of plug-ins,

drum loops and samples – giving you everything you need for professional music recording and production.

Summary of features

•High-speed FireWire (IEEE 1394)

•24-bit / 96 kHz sampling rate

•8 Class A X-MAX microphone preamps

•28 simultaneous inputs and outputs (10 discrete i/o)

•Balanced send/return on channels 1 & 2

•S/PDIF I/O, MIDI I/O

•Built-in zero-latency DSP mixer

•PreSonus FireControl software

•Cubase LE 4 Music Production Software included

•PreSonus ProPak Software Suite (over 2 GB of plug-ins, loops and samples)

•OS X and Windows compatible

OVERVIEW

5| PreSonus 2007

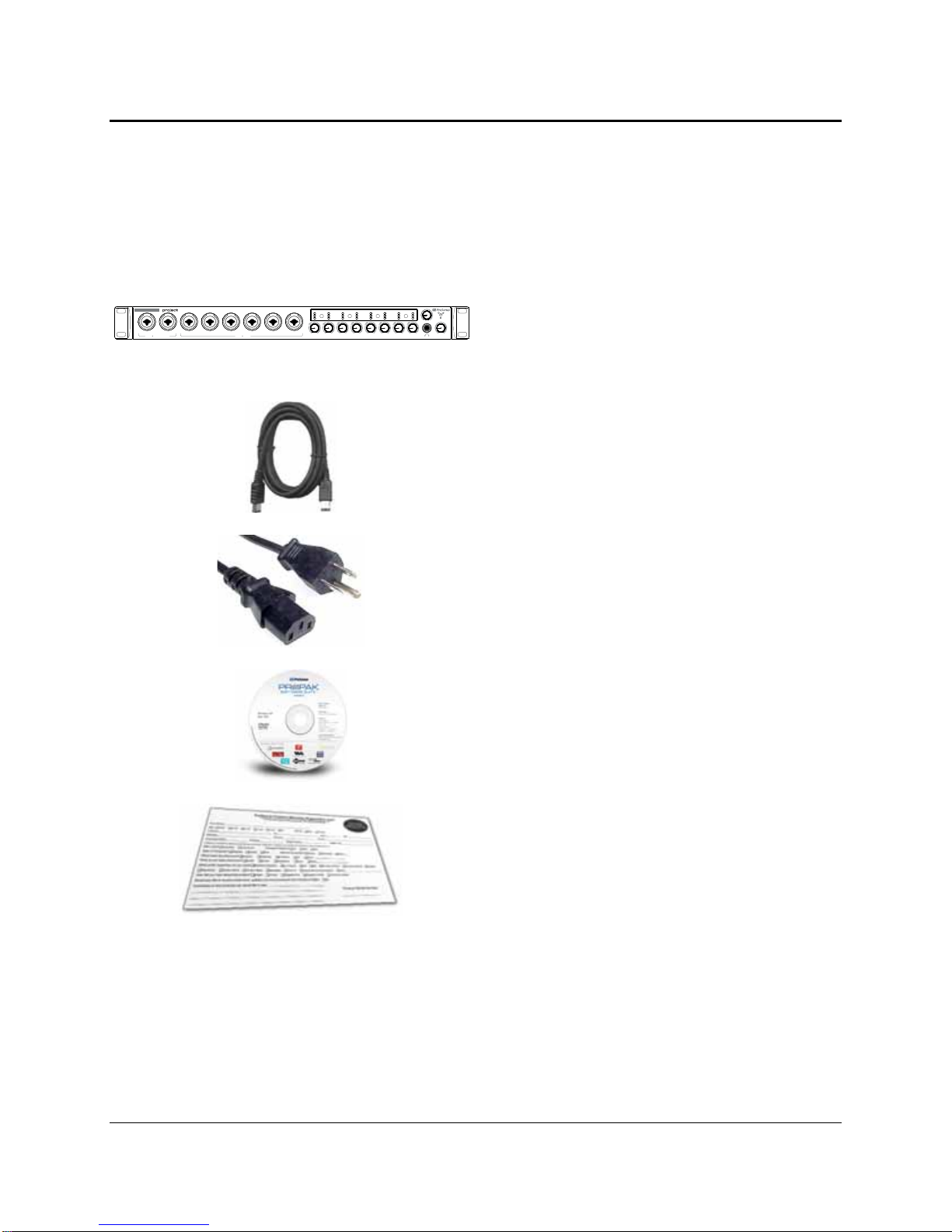

1.3 WHAT IS IN THE BOX

Your FireStudio Project package contains the following:

•FireStudio Project Recording Interface

•6’ 6-pin to 6-pin FireWire cable

•6’ Standard IEC Power Cable

•Software installation discs:

oPreSonus FireStudio Project

Installation Drivers

oCubase LE 4

oProPak Software Suite

•PreSonus Warranty Card

60+20-2 0 060+20-2 0 060+20-20 060+20-20 060+20-2 0 060+30-10 060+30-10 010-80

111

1234

60+20-20 0

5678

Phones

Main

Mic Instrument

Mic Line

345678

FIRESTUDIO

™

0dB

-6dB

-40dB

0dB

-6dB

-40dB

0dB

-6dB

-40dB

3/ 4

48V

5/ 6

48V

7/ 8

48V

1/ 2

48V

12345678

OVERVIEW

6| PreSonus 2007

1.4 SYSTEM REQUIREMENTS

Below are the minimum computer system requirements for your FireStudio Project.

Macintosh

•OS: Mac OS X 10.4.x or later

•Computer: Apple Macintosh series with FireWire 400 port

•CPU/Clock: PowerPC G4/1 GHz or higher (Intel/Dual 1 GHz recommended)

•Memory (RAM): 512 MB (1 GB or more recommended)

Windows

•OS: 32-bit Microsoft Windows Vista or XP (with at least SP1)

•Computer: Windows compatible computer with FireWire 400 port.

•CPU/Clock: Pentium or AMD with 1 GHz or higher (Dual 1 GHz recommended)

•Memory (RAM): 512 MB (1 GB or more recommended)

NOTE: The speed of your processor, amount of RAM and size & speed of your hard drives will greatly affect the

overall performance of your recording system. A more powerful system (faster processor with more RAM)

allows for lower latency (signal delay) and better overall performance.

OPERATION

7| PreSonus 2007

2.1 QUICK START UP

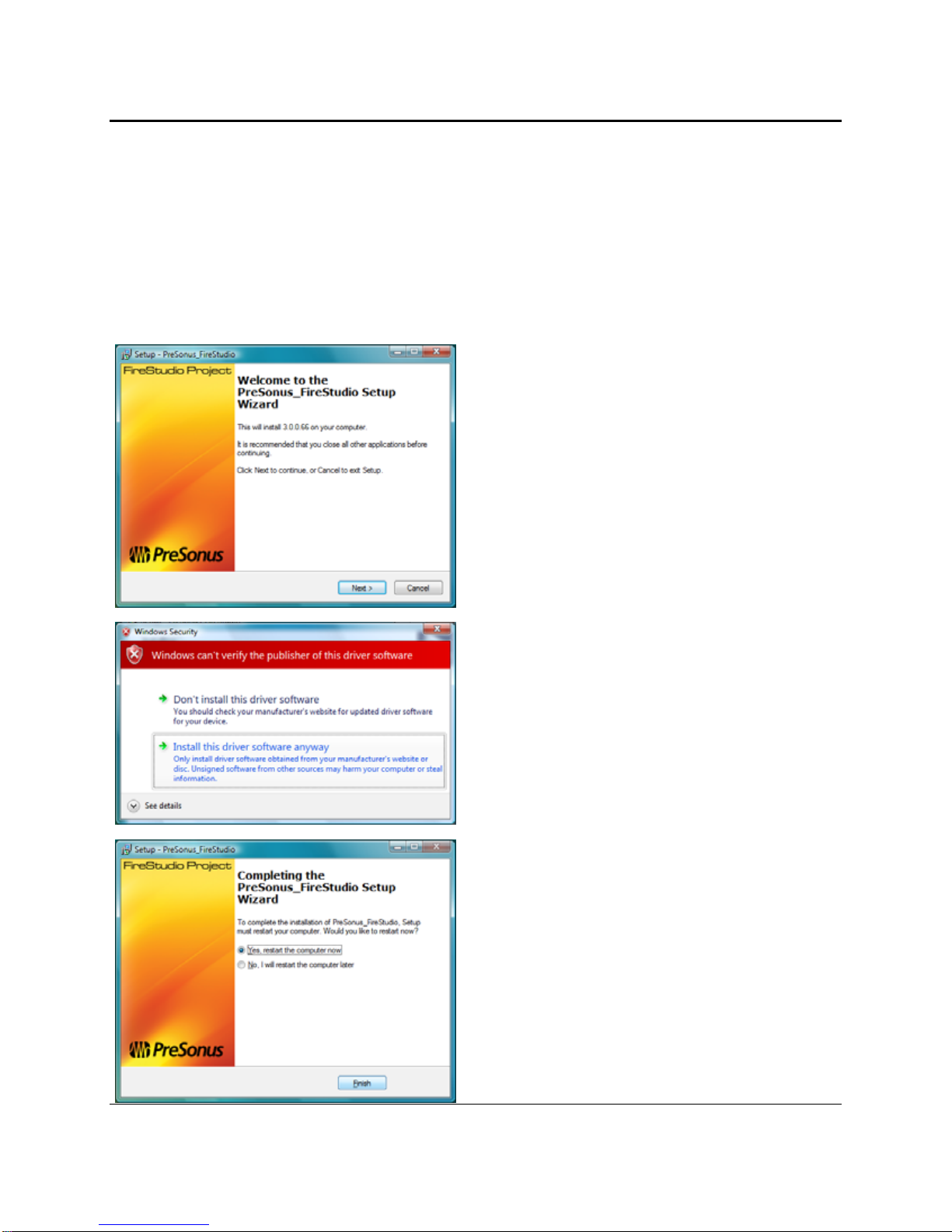

2.1.1 Installation in Microsoft Windows

After inserting the Installation CD into your CD-ROM drive, the FireStudio Project installer will take you

through each step of the installation process. Please read each message carefully – ensuring especially you

do not connect your FireStudio Project early.

1) The FireStudio Project Installer was written to

be as simple and easy-to-follow as possible.

Please read each message carefully to ensure the

FireStudio Project is properly installed.

Before continuing the FireStudio Project

Installation Setup, please close all multimedia

applications and disconnect your FireStudio

Project from your computer.

2) If you see any Windows Security alerts, click

“Install this driver software anyway” (Vista) or

“Continue anyway” (XP).

3) Before rebooting your computer, ensure the

FireStudio Project is connected to your

computer. If a Found New Hardware wizard

appears, follow the recommended steps, then

restart your computer.

After rebooting your computer, when the sync

light remains solid blue, your FireStudio Project

is synced to your computer and ready to use!

OPERATION

8| PreSonus 2007

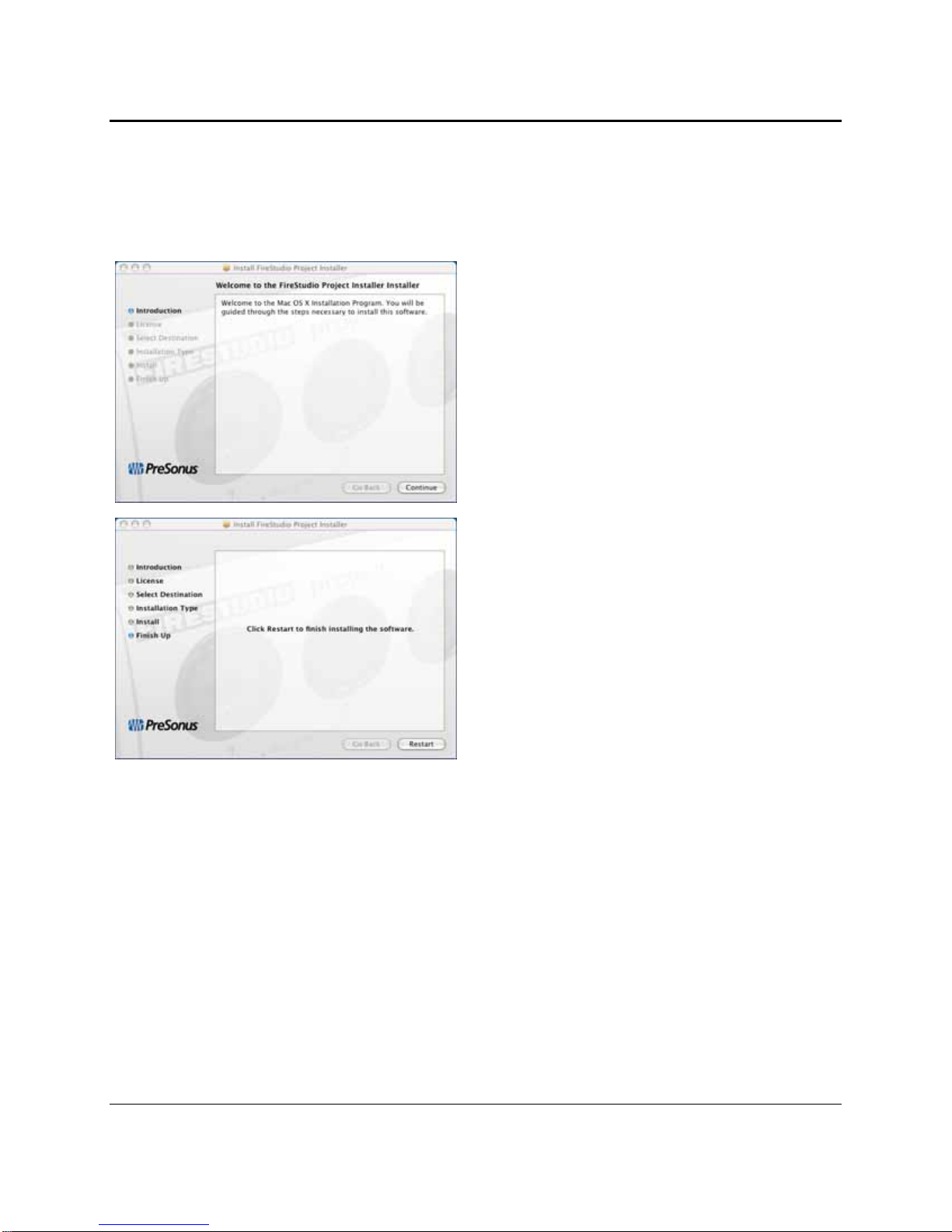

2.1.2 Installation in Mac OS X

After inserting the Installation CD into your disc drive, browse the disc and run the FireStudio Project

installer, which will take you through each step of the installation process.

1) The FireStudio Project Installer was written to

be as simple and easy-to-follow as possible.

Please read each message carefully to ensure the

FireStudio Project is properly installed.

2) After rebooting your computer, connect your

FireStudio Project to your computer via the

included FireWire cable. When the sync light

remains solid blue, your FireStudio Project is

synced to your computer and ready to use!

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de grabación de PRESONUS

PRESONUS

PRESONUS FIREPOD Instrucciones de funcionamiento

PRESONUS

PRESONUS Revelator io44 Manual de usuario

PRESONUS

PRESONUS Studio 1810c Manual de usuario

PRESONUS

PRESONUS CL 44 Manual de usuario

PRESONUS

PRESONUS FIRESTUDIO MOBILE - SCHEMA Manual de usuario

PRESONUS

PRESONUS AudioBox 22VSL Manual de usuario

PRESONUS

PRESONUS Studio 1824 Manual de usuario

PRESONUS

PRESONUS FIRESTUDIO PROJECT - V2.0 Manual de usuario

PRESONUS

PRESONUS BLUEMAX - Manual de usuario

PRESONUS

PRESONUS AudioBox GO Manual de usuario

PRESONUS

PRESONUS TubePre V2 Manual de usuario

PRESONUS

PRESONUS FIRESTUDIO LIGHTPIPE - V2.0 Manual de usuario

PRESONUS

PRESONUS GTX 44 Manual de usuario

PRESONUS

PRESONUS Firestudio Project Manual de usuario

PRESONUS

PRESONUS FIRESTUDIO LIGHTPIPE - V2.0 Guía

PRESONUS

PRESONUS Revelator io24 Manual de usuario

PRESONUS

PRESONUS FIRESTUDIO - V 3.0 Manual de usuario

PRESONUS

PRESONUS AudioBox GO Manual de usuario

PRESONUS

PRESONUS GTX 44 Manual de usuario

PRESONUS

PRESONUS Studio 6/8 Manual de usuario

PRESONUS

PRESONUS Revelator io24 Manual de usuario

PRESONUS

PRESONUS FIRESTUDIO LIGHTPIPE - V2.0 Manual de usuario

PRESONUS

PRESONUS AudioBox Stereo Manual de usuario

PRESONUS

PRESONUS Firestudio Project Guía de inicio rápido

Manuales populares de Equipo de grabación de otras marcas

KV2 Audio

KV2 Audio 500 Series Manual de usuario

Robotics Technologies

Robotics Technologies microBus-Cam II Manual de usuario

Seca

Seca 460 Manual de usuario

Cognex

Cognex MVS-8000 Series Manual de usuario

Mect

Mect MPNC006 Series Manual de usuario

Bad Caf

Bad Caf THE LEASH Manual de usuario

Strymon

Strymon NIGHTSKY Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manual de usuario

Tews Technologies

Tews Technologies TPMC465 Manual de usuario

Honeywell

Honeywell Excel 50 Manual de usuario

SeaLevel

SeaLevel COMM+8.LPCI Manual de usuario

Arturia

Arturia AUDIOFUSE STUDIO Manual de usuario

Rukra

Rukra RK-1240 Manual de usuario

Samson

Samson SCOM Manual de usuario

Dynacord

Dynacord DPS260 Manual de usuario

Nice

Nice Core Manual de usuario

Pyle Pro

Pyle Pro PSS8 Manual de usuario

RF-System

RF-System TinyGate Manual de uso y cuidado
