Premier Mounts PSD-VHSA Manual de usuario

PROJECTOR MOUNT MODEL

PSD-VHSA

INSTALLATION MANUAL

VISIT US AT WWW.PREMIERMOUNTS.COM

3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888

- 2 -

oSafety & precautions

oPSD-VHSA diagrams

oInstalling the height adapter (PP-SPA) adapter

oMeasurements

oSecuring the back plate

This adjustable-height tabletop stand allows you to configure your plasma display either horizontally or vertically (on PSM series only). It mates directly with

any of our PSM Series flat wall mounts. Constructed of dual heavy-gauge steel with a unique laser cut solid base plate, this adapter is both attractive and

sturdy. It supports a heavy display at its center of gravity. Our floor stands DO NOT include mounts. You will need to order the appropriate PSM or CTM

series mount for your plasma in order to complete the system.

Contents

Introduction

- 3 -

The floor or tabletop structure must be capable of supporting at least five (5) times the weight of plasma display. If not, the floor or tabletop

must be reinforced. Proper installation procedure by qualified personnel as outlined in the installations instructions must be adhered to.

Failure to do so could result in serious personal injury

The entire installation instructions should be fully read and understood, including all of the safety symbols and safety precautions, before

innin

installation. The installation instructions should be read, understood and followed to prevent personal in

or propert

dama

Keep these installation instructions in an easily accessible location for future reference.

Indicates that the power plug is to be disconnected from

the power outlet.

Safety precautions must be taken at all times.

Contact Premier Mounts for an

uestions

Warning and caution in general

A suitable floor or tabletop must always support the weight or load of the plasma. Always confirm the weight load of the installation

structure before installing the PSD-VHSA stand.

Do not install in locations where there is vibration, movement or danger of impact. Failure to do so could result in plasma cracking or

tipping over from the floor or tabletop causing damage to the plasma and injury.

Do not install near heater, fireplace, direct sunlight or air conditioning or any other source of direct heat energy. Failure to do so may

result in damage to the plasma display.

At least two qualified people should always perform the installation work. Injury and damage can result from dropping or mishandling

the plasma display.

Safety & Precautions

WARNING: Safety precaution measures must be practiced at all times during the installation of this product. Use proper safety gear and tools for the

installations

rocedure to

revent

ersonal in

or dama

e to the

lasma dis

s or

lasma mounts.

- 4 -

29.020

4.374

2.375

0.448

160°

75°

4.374

21.103

6.499

12.998

1.500

14.522

25.747

Ø2.000

Ø0.250

6.000

4.500

3.023

Ø2.375

Side Front

Top

A 2" Tubing

B Cable access point

C PP-SPA Height adapter

D Base plate

E Table top mounting points

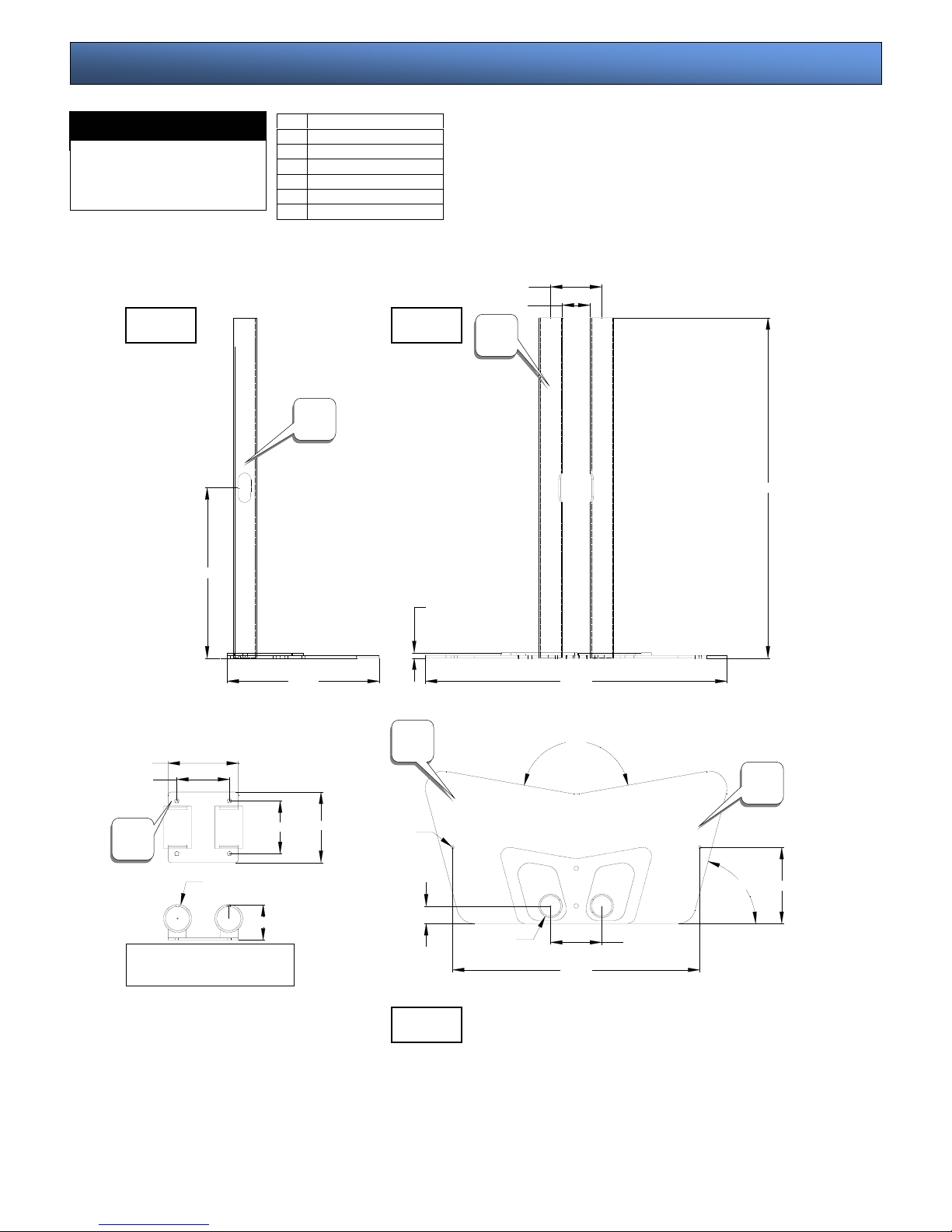

Mount Diagrams

PSD-VHSA

MATERIAL:

4 (ga) P & O base plate &

2" (dia) tubing

COLOR: Sinterflex

PP-SPA adapter

- 5 -

Step 1

NOTE: Refer to the PSM or CTM series installation instructions to secure the mounting bracket to the plasma display.

Set the PSD-VHSA on the floor and loosely install the PP-SPA adapter over the tubes flat side facing out, attach the two (2) M8 x 10 socket head screws to the

adapter and slowly drop it to all the way until it touches the base. See figure 1.

WARNING: Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could

result in serious personal injury and possible damage to the plasma display.

Step 2

Choose the proper location for the PSD-VHSA and make sure that the location is weight suitable (see warnings). Using (commercially available) suitable hardware

depending on you installation environment the two holes found on the base may be used if needed to fasten the stand to the surface. See figure 2.

(2) M8 x 10 hex

head screws

PP-SP

ter

Suitable hardware

(commercially available)

Getting the plasma ready

Allen wrench

Base

Suitable surface

(see warning)

Base

PP-SP

ter

- 6 -

Step 4

CAUTION: The plasma display is vary heavy two people are required to lift the plasma and secure it to the stand.

The flowing diagrams show the CTM and PCM series systems.

PSM-Series: Raise the plasma display with the mounting bracket secured to the plasma display and insert the four (4) tab openings from the PSM mount to the four (4) receiving tabs

found on the PDB-UWFB back plate slide the plasma down, right and down again to lock the mounts together. Make sure all tab openings are interlocked with the receiving tabs before

letting go of the plasma. Secure the brackets with the two (2) M6 x 12 (mm) Phillip screws (supplied).

CTM-Series: Raise the plasma display with the left and right brackets secured to the plasma and insert the bottom and top hooks from the mounting arms to the top and bottom rods found

on the CTM back plate. Secure the mounting arms with the two (2) M6 x 12 Safety knobs (supplied).

CAUTION: The safety knobs MUST be used failure to do so may result in damage to the plasma or personal injury. See fig 4,5,6.

Step 3

With the plasma display inverted measure and find the center of the plasma display. Measure from the top of the base plate to the center of the PP-SPA and lock the height by

tightening the two (2) M8 socket head screws (supplied) to the poles.

Allen wrench

Measuring tape

Measuring the plasma

Base plate

Suitable surface

(see warning)

Plasma Measuring tape

PP-SPA

Adapter

Installing the wall plates

PP-SPA

Adapter

CTM

Back plate

PDB-UWFB

Back plate

PP-SPA

Adapter

M10 bolts & flat

washers

M10 bolts & flat

washers

- 7 -

EXAMPLE PLASMA FOR ILLUSTRATION PURPOSES ONLY

PSM

Series

CTM

Series

Plasma mounting

bracket

Plasma

PDB-UWFB

Back plate

Mount

interlocking

Plasma

Plasma mounting

bracket

PDB-UWFB

Back plate

(2) M6 x 12

Phillip screws

PP-SPA

Adapter

Plasma

Mounting

brackets

CTM

Back plate

(2) M6 x 12

Safety knobs

(2) M6 x 12

Safety knobs

(2) M6 x 12

Phillip screws

CAUTION: The plasma display is

vary heavy two people are

required to lift the plasma and

secure it to the stand

CAUTION: The mounts must have

all four (4) tabs engaged and

erl

interlocked.

Receiving

(4) Tabs

openings

CAUTION: Secure the two (2) M6 x 12

Philli

screws to secure both brackets.

Thank you for choosing PREMIER MOUNTS for your installation needs.

If you have any questions please contact PREMIER MOUNTS information is

shown on the front of this page.

Note: Make sure to recheck all

hardware for proper tightness

and security.

EXAMPLE PLASMA FOR ILLUSTRATION PURPOSES
