Premier Mounts EST150 Manual de usuario
Single-Stud Short-Throw Projector Wall Mount
Model: EST150
9530-011-021-01
INSTALLATION INSTRUCTIONS
NORTH AMERICA
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada
Phone: 1-800-368-9700
Fax: 1-800-832-4888
Other Locations
Phone: (001) 714-632-7100
Fax: (001) 714-632-1044
EUROPE
Unit 3, The Moorings Business Park, Channel Way
Longford, Coventry, CV6 6RH, UK
Phone: +44 (0)24 7664 4105
Fax: +44 (0)24 7664 4165
EST150
Page 2 Visit the Premier Mounts website at http://www.premiermounts.com Installation Instructions
Table of Contents
PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR
PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR
MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION
OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR
MODIFICATIONS.
SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER
SAFETY GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.
At least two qualied people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling the
projector.
If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud nder is
recommended.
Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no electrical wires in
wall. Cutting/drilling into an electrical line may cause serious injury.
This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.
Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact
Contact Premier Mounts with any questions
(800) 368-9700
PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND COMPLETELY UN-
DERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP
THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.
Make sure there are no water lines inside the wall where the mount is to be located. Cutting/drilling into a water line may cause severe water
damage to the mounting surface.
Weight Capacity
Maximum projector weight: 25 lbs. THE WALL STRUCTURE MUST BE CAPABLE OF HOLDING FIVE
(5) TIMES THE WEIGHT OF THE PROJECTOR. IF NOT, THEN THE
WALL STRUCTURE MUST BE REINFORCED.
Warning Statements
Heading 1
Weight Capacity 2
Warning Statements 2
Installation Tools 3
Parts List 3
Features 4
Determining the Installation Height 5
Wood Stud Installation 6
Throw Distance Calculation 8
Projector Installation 8
Attaching the Mount Carriage 9
Multiple Mounting Point Installation 10
Single Mounting Point Installation 12
Attaching the Mount Carriage to the Projector Arm 13
Cable Routing (Optional) 14
Securing the Projector (Optional) 14
Mount Adjustment 15
Technical Specications 15
Warranty 16
Disclaimer 16
EST150
Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com Page 3
Projector Arm
(Qty 1)
Mount Carriage
(Qty 1)
Phillips Screwdriver
⅛˝ Drill Bit Electronic Stud Finder
Drill Level
Parts List
Installation Tools
The following tools may be required depending upon your particular installation. They are not included.
Make sure your Premier Mounts product has the following hardware and components before beginning installation. If
there are parts missing and/or damaged, stop the installation and call Premier Mounts at (800) 368-9700.
EST150 Hardware
M2.5 x 8mm
Security Screw (Qty 4)
M2.5 x 10mm
Security Screw (Qty 4)
M3 x 16mm
Security Screw (Qty 4)
M3 Flat Washer
(Qty 4)
M4 x 12mm
Security Screw (Qty 4)
M5 x 10mm
Security Screw (Qty 3)
M5 x 12mm
Security Screw (Qty 4)
M6 x 12mm Security
Screw (Qty 4)
#14 x 2” Wood Screw
(Qty 2)
¼-20 x 5/16″ Security
Screw (Qty 1)
M5 Security Wrench
(Qty 1)
Barrel Cap
(Qty 4)
Projector Arm
Cover Plate (Qty 1)
EST150
Page 4 Visit the Premier Mounts website at http://www.premiermounts.com Installation Instructions

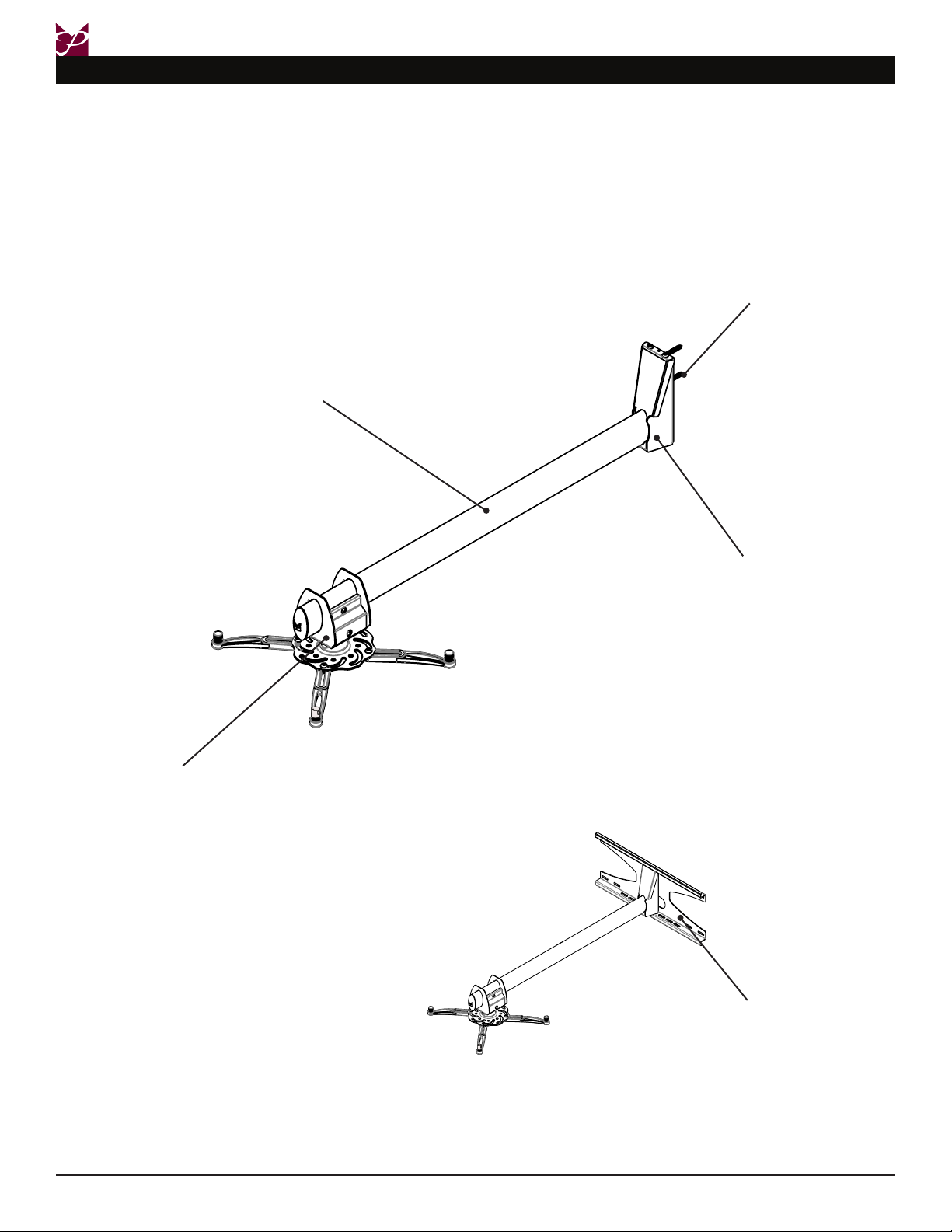

Features
The Single-Stud Short-Throw Projector Wall Mount (EST150) is a simple and elegant tool for mounting a wide variety
of short-throw projectors. Its design allows you to use the same mount even if you need to replace the projector with a
different model. Unique features include a mount carriage that easily slides along the projector arm for quick screen size
adjustments, integrated cable management, and Lock-It™ security screws and barrel for enhanced security.
EST-WP (Optional)
The optional EST-WP wall plate
allows for mounting to 12” or 16”
dual studs. The back plate also
allows lateral shift after installation.
Radial Glide®
Up to 6°of smooth adjustment
in any direction.
Projector Adjustment
Position the projector anywhere along
the projector arm.
Cable Routing
Discreetly manage signal
and power cables through
the projector arm.
Single Stud
Mounts rmly to a
single wood stud.
EST150
Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com Page 5
1) Measure distance from center of lens to the top of the mount carriage (C).
2) Add the distance from the ground to the top of the screen (A). Add the projector manufacturers recommended
offset from the projector manual (B). Add the measurement from Step 1 (C), and then add the mounting screw
offset (D) to the total.
(Example: A + B + C + D = ?)
3) Add the measurements to determine the mounting height mark. Place a mark at the top of the total calculated
height measurement starting from the ground up. This height mark will determine your mounting points.
Refer to the projectors User’s Manual to determine the offset of the projector lens to the top of the
screen/whiteboard (B).
Lens
Mount Carriage
Projector
In order to determine the installation height and throw distance, the mount carriage must be mounted
to the projector.
Top of Screen
Mark
Legend
A - Distance from ground to the top of the
screen/whiteboard (viewable area).
B - Manufacturers recommended offset
measurement. This measurement will
be listed in the Users Manual.
C - Center of the lens to the top of the
projector bracket.
D - If single-stud EST150, add 5.14˝ to
the calculated total.
This total distance will be the location for the
lower mounting point.
Proceed to the “Wood Stud Installation”
section.
Ground
Determining the Installation Height
D
EST150
Page 6 Visit the Premier Mounts website at http://www.premiermounts.com Installation Instructions
THE EXACT CENTER OF THE STUD MUST BE LOCATED FOR CORRECT AND SAFE INSTALLATION.
Use an electronic stud nder (not supplied) to
locate the center of the stud that is in the wall.
Wood Stud
Stud nder
Height
Mark
(from page 5)
Wood Stud
Marking
Projector
Arm
Do NOT over-tighten lag bolts when attaching the mount to the wall. Improper installation may result in personal
injury or damage to property.
Wood Stud Installation
Mounting Point
Mark
Step 1
Step 2
Use a pencil to mark the rst mounting point, just
above your height mark (from page 5).
Step 3
1) Use the level to make sure the projector arm is level
from side to side.
2) Place the projector arm’s second mounting hole over
the rst mounting point mark, then use a pencil to
mark the upper mounting point.
Two (2) mounting points must be used.
EST150 Installation
EST150
Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com Page 7

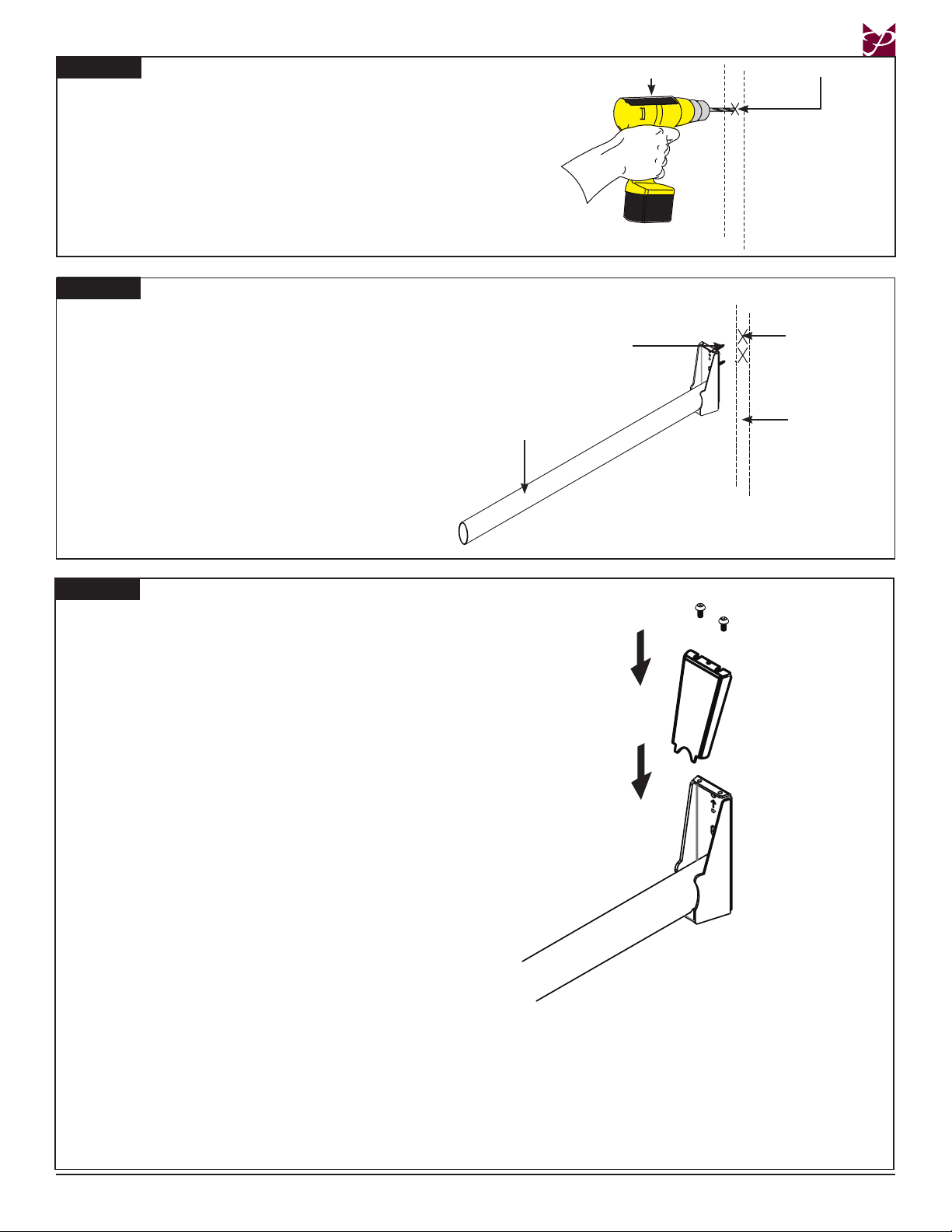

After the pilot holes have been drilled, use
two (2) #14 x 2˝ wood screws to mount the projector
arm to the wooden stud.
Step 5
Once the mounting points have been marked, use a
⅛˝ drill bit and portable drill to drill the pilot holes.
Drill Marking
Step 4
Wood Stud
Marking
Projector
Arm
#14 x 2” Wood Screw
Step 6
Use two (2) M5 x 10mm security screws to attach the
projector arm cover plate to the projector arm.
Wood stud not shown
Go to the “Throw Distance Calculation” section on
page 10.
EST150
Page 8 Visit the Premier Mounts website at http://www.premiermounts.com Installation Instructions
Please review the Operator’s Manual that came packaged with your projector before attaching the upper
mounting bracket. The correct throw distance (the distance from the projector to the screen) must be
determined prior to mounting the projector.
1) Refer to the projectors User’s Manual to
determine the distance from the lens to
the front of the screen (X).
2) Measure the distance from the front of
the lens to the center of the projector (Y).
3) Measure the distance from the wall to the
face of the whiteboard/screen (Z).
4) Add all measurements (X + Y + Z) to
determine projector placement on the
arm assembly. This measurement
will determine where the center of the
mount bracket will be located on the
arm assembly. Please make note of this
measurement.
Front Lens
Rear Lens
Calculations
X = Manufacturers recommended
throw distance
Z = Distance from wall to face of
whiteboard/screen
Front Lens Throw Distance =
(X + Y + Z)
Rear Lens Throw Distance =
(X - Y + Z)
Throw Distance Calculation
The EST150 can be also used as
a wall-mounted standard projector mount as
well as a short throw projector mount. Align
the projector facing the opposite direction
from the wall plate to project the image
across the room. Please take into account
the projectors throw capabilities prior to
mounting in the projector opposite direction.
Proceed to the “Projector Installation” section.
Projector Installation
Locate the mounting points on the bottom of the projector
(see arrows).
Proceed to the “Attaching the Mount Carriage” section.
Attaching the Projector to the Mount Carriage
EST150
Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com Page 9
Attaching the Mount Carriage
Selecting the Mounting Hardware
1) Insert a small straw or toothpick into the threaded inserts
found on the bottom or top of the projector.
2) Use a pencil to mark the depth of the threaded insert on the
small straw or toothpick.
3) Mark the straw or toothpick 1/8” above the depth of the
threaded insert, as shown in Figure 1.
4) Insert the small straw or toothpick into the remaining
threaded inserts to compare and verify their depth using the
straw or toothpick’s 1/8” allowance mark.
5) Locate the correct diameter screw for the threaded insert.
If the screw you selected is longer than the 1/8”
allowance mark on the small straw or toothpick, as shown
in Figure 2 and Figure 3, do not use this screw. The
screw length must not bypass the mark.
6) Test each size of the screws provided. The correct screws
should thread easily into the mounting point and not pull out
when tension is applied.
Does your projector have multiple mounting points or a
single mounting point?
If your projector has multiple mounting points,
proceed to the “Multiple Mounting Point
Installation” section.
If your projector has a single mounting point, skip to
the “Single Mounting Point Installation” section
on page 14.
Small Straw or Toothpick
Small Straw
or Toothpick
Small Straw
or Toothpick
Marking the 1/8”
Allowance
Depth Plus 1/8” Allowance
Mark
Depth Plus 1/8” Allowance
Mark
EST150
Page 10 Visit the Premier Mounts website at http://www.premiermounts.com Installation Instructions
Step 2
1) Attach the mounting legs to the projector using the
corresponding mounting hardware.
Do not tighten the mounting hardware at this time.
Multiple Mounting Point Installation
Step 1
1) Locate the projector’s mounting points.
2) Position the mounting legs on the projector.
The mounting legs are pre-installed. Depending on the
requirements of your projector, you may remove one of
the mounting legs.
The number and placement of mounting
points on projectors varies between projector
manufacturers. Refer to you projector’s technical
specications for the number and location of the
mounting points on your specic projector.
Step 3
1) If the mounting legs need to be leveled, rotate the
leveling barrels to level the mounting bracket.
2) To raise the mounting legs, rotate the leveling barrel
clock-wise. To lower the mounting leg, rotate the
leveling barrel counter clock-wise.
Raise or lower each of the mounting legs, by
rotating the leveling barrels, until all of the mounting
legs are at an equal height.
• Lower the mounting leg by rotating the leveling
barrel counter-clockwise.
• Raise the mounting legs by rotating the leveling
barrel clockwise.
3) When the desired position is achieved, tighten the
mounting screws to the projector and then tighten the
hex head leg screws with the M5 Allen wrench.
Screws shown for illustration
purposes only.
Mount carriage not shown.
Tabla de contenidos
Otros manuales de Accesorios para proyectores de Premier Mounts
Premier Mounts
Premier Mounts POLARIS MAG Manual de usuario
Premier Mounts
Premier Mounts CPD10WALLARM Manual de usuario
Premier Mounts
Premier Mounts Universal Short-Throw Projector Arm UNI-STB Manual de usuario
Premier Mounts
Premier Mounts PBC- UMW Manual de usuario
Premier Mounts
Premier Mounts Low-Profile Dedicated Projector Mount... Manual de usuario
Premier Mounts
Premier Mounts PSD-VHSA Manual de usuario
Premier Mounts
Premier Mounts Polaris Universal Projector Mount MAG Manual de usuario
Premier Mounts
Premier Mounts FTP Manual de usuario
Premier Mounts
Premier Mounts PBC-FCTA Manual de usuario
Premier Mounts
Premier Mounts PDS-004 Manual de usuario
Premier Mounts
Premier Mounts PDS-LAT Manual de usuario
Premier Mounts
Premier Mounts Nova-EXT Manual de usuario
Premier Mounts
Premier Mounts Low-Profile Dedicated Projector Mount... Manual de usuario
Premier Mounts
Premier Mounts Low-Profile Universal Projector Mount... Manual de usuario
Premier Mounts
Premier Mounts MAG-Ext Manual de usuario
Premier Mounts
Premier Mounts PP-STKR Manual de usuario
Premier Mounts
Premier Mounts PBC-UMS Manual de usuario
Premier Mounts
Premier Mounts PDS-023 Manual de usuario
Premier Mounts
Premier Mounts PDS-010 Manual de usuario
Premier Mounts
Premier Mounts Universal Projector Mount PBL-UMS Manual de usuario
