Prem-I-Air EH0539 Manual de usuario
EH0539
9000 BTU DC Inverter Window Air Conditioner
with Remote Controller & Timer
Important
These instructions should be read carefully and left with the user of
the product for future reference.
Before Use
You must inspect the appliance including its cable and plug for any
signs of damage. If the product is damaged, DO NOT use it and
contact your supplier immediately.
Product Safety
- This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning the use of the appliance
in a safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children
without supervision.
- Do not cover.
- Do not use on a boat, in a caravan or at other similar locations.
- Do not use in bathrooms or similar wet locations.
- Do not place on soft surfaces.
- Do not place a mains lead beneath a carpet or rug.
- Do not submerge the unit in water.
- Do not place the unit close to heat-generating devices or near
flammable and dangerous materials.
- Never put your fingers or objects into the intake or discharge
ducts.
- Do not sit or stand on the unit.
- If the power supply cord is damaged it must be replaced by the
manufacturer or a qualified service agent.
- The item must be used in a room greater than 4m squared.
Regulatory Information
Safety, health and environmental regulations specific to gas R32
Labelling in accordance to Regulation EC 1272/2008
Hazard Pictograms
GHS02 GHS04
Signal Word :Danger
Hazard Statements
H220 Extremely Flammable Gas
H280 Contains gas under pressure, may explode if heated
Precautionary Statements
P210 Keep away from heat/sparks/open flames/hot surfaces- No
smoking
P377 Leaking gas fire: Do not extinguish unless can be stopped
safely
P381 Eliminate all ignition sources if safe to do so
P410 Protect from sunlight
P403 Store in a well ventilated place.
P501 Dispose of contents/container in accordance with local/reginal/
National regulations.
Installation
This item must be installed by a qualified refrigeration engineer.
A FULL SITE SURVEY MUST BE CARRIED OUT PRIOR TO INSTALLATION.
It is the responsibility of the installer to ensure the suitability of both the product
for the installation and the installation location for the product.
Notes

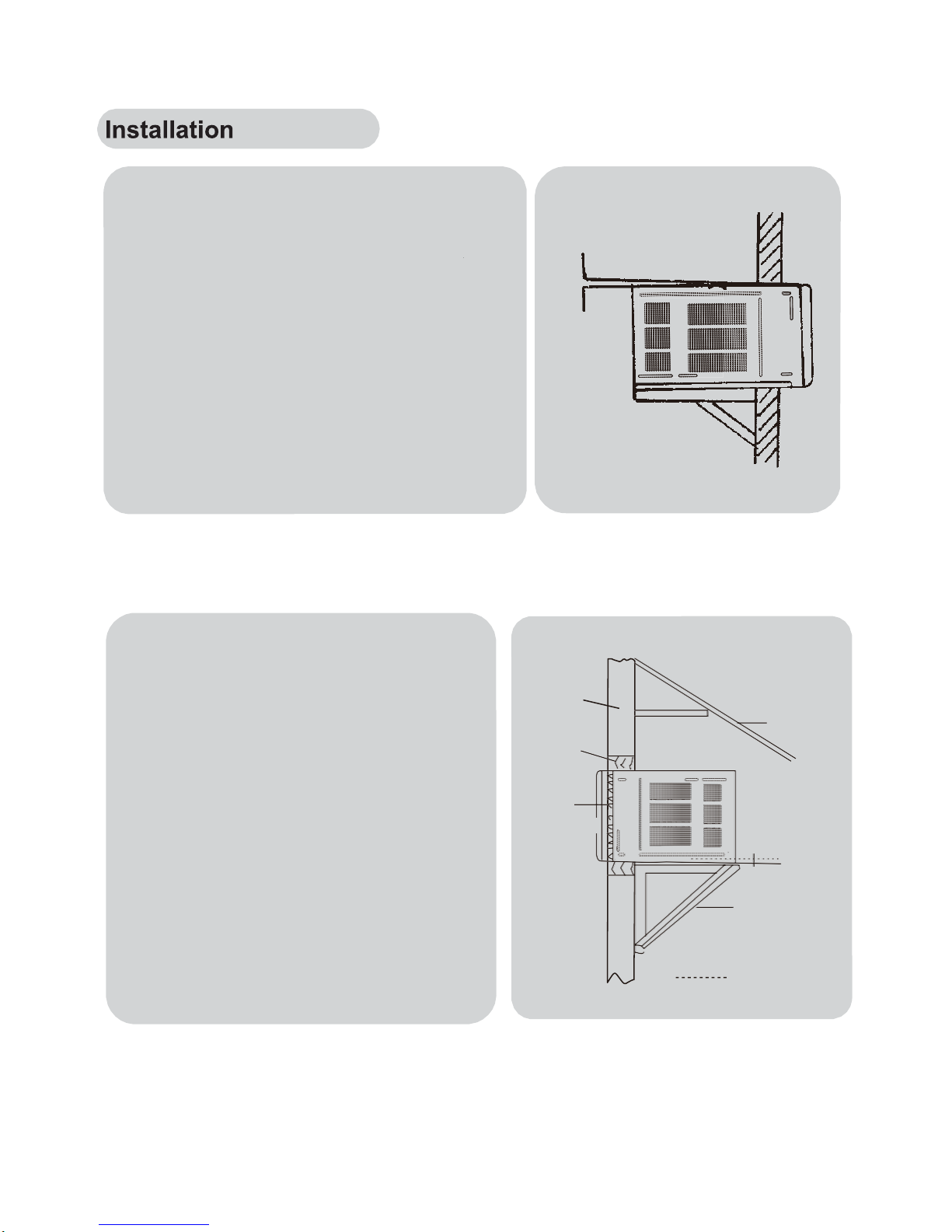

The minimum safe distances must be observed when deciding on the installation
location. See diagram below.
The product should be installed away from other heat sources or direct sunlight.
The product should be installed with observance to the product safety information.
The cut-out hole should be slightly bigger than the size of the unit. Due to slight
changes in size, please ensure the unit is measured at the time of fitting.
The distance of any obstruction from
the window unit inside should be
upper 300mm, lower 1500mm, left
500mm, right 500mm, front
1500mm.
Guide:
1) Remove the sticker from the front panel.
2) Put the unit into the installation hole.
Horizontal line
6~10mm
Use a sunshade board to stop items
being dropped on to the unit and also
to reduce exposure to direct sunshine.
Wall
Sunshade
board
Wooden
frame
Rubber
plate
6~10mm
Support
Horizontal line
●When installing the unit, it should be
slanted slightly down to the back to
avoid vibration (as per the diagram)
●The unit must be supported using
appropriate brackets.
Drain water :
The drainhose is not included in this product.
The drainpan is included in this product.
Slide out the chassis from the cabinet.
Install the drain pan to the corner of the cabinet with 2 screws.
Connect the drain hose to the outlet on the drain pan bottom.
Slide the chassis into its original place in the cabinet.
Partsidentification
Cabinet
(behind the
front intake
grille)
Front intake
grille
Air inlet
louvre
Remote
control
panel
Air direction adjustment
positioning the vane to discharge the air upwards,
downwards or straight out.
Remote control operationprocedure
ON/OFF button
MODE button
+/- button
FAN button
SWING button
SLEEP button
TIMER button
Introduction for icons on display screen
Timer on Timer off Sending signal
Auto operation
cool operation
dry operation
fan operation
heatoperation
swingoperation
sleepoperation
lock
set speed
Set temperature Set time
1
3
4
2
5
6
7
Introduction for buttons on remote control
Note:
●This is a universal remote control for all models in this series. Not all the
functions on the control may be on your unit. Please check before using.
●When the power isconnected and the unit is in standby mode you can operate
the air conditioner
with this remote control.
●Pressing a button on the remote control will cause the sending icon to flash.
The unit will bleep after receiving this instruction.
1 ON/OFF button
Press this button to turn unit on/off.
2 MODEbutton
Pressing this button once can select your required mode circularly as below (the
corresponding icon " " will be lit up after the mode is selected):
●When selecting auto mode, air conditioner will operate automatically according to
ambient temperature. Set temperature can't be adjusted and won't be displayed
either. Press FAN button to adjust fan speed.
●When selecting cool mode, air conditioner will operate under cool mode. Then
press + or- buttonto adjust set temperature. Press FANbutton toadjustfanspeed.
●When selecting dry mode, air conditioner will operate at low fan speed under dry
mode. In dry mode, fan speed can't be adjusted.
●When selecting fan mode, air conditioner will operate in fan mode only. Then
press FAN button to adjust fan speed.
3+ / - button
●Pressing + or - button once will increase or decrease set temperature by 1°F(or
°C).
Hold + or - button for 2s, set temperature on remote controller will change
quickly.
Release the button after your required set temperature is reached.
●When setting Timer On or Timer Off , press + or - button to adjust the time.(See
TIMER Button for setting details)
AUTO COOL DRY FAN
Introduction for buttons on remote controller
4
FANbutton
Pressing this button can select fan speed circularly as: AUTO, SPEED 1 ( ),
SPEED 2 ( ) , SPEED 3 ( ), SPEED 4 ( ) (unavailable in this air conditioner.
Speed 4 is the same with speed 3.).
SPEED 1 (equals to low fan speed)
SPEED 2 (equals to mid fan speed)
SPEED 3 (equals to high fan speed) SPEED 4 (equals to high fan speed)
Note:
●UnderAuto speed, air conditioner will select proper fan speed automatically
according to ambient temperature.
●Fan speed can't be adjusted under Dry mode.
5
SWING button
Press this button to turn on left & right air swing.
6
SLEEP button
Under Cool mode, press this button to turn on Sleep function. Press this button to
cancel Sleep function. Under Fan, Dry and Auto mode, this function is unavailable.
7
TIMER button
●
When unit is on, press this button to set Timer Off. T-OFF and H icon will be
blinking. Within 5s, press + or - button to adjust the time for Timer Off. Pressing
+or - button once will increase or decrease the time by 0.5h. Hold + or - button
for
2s, time will change quickly. Release the button after your required set time
is
reached. Then TIMER button to confirm it. T-OFF and H icon will stop
blinking.
●
When unit is off, press this button to set Timer On. T-ON and H icon will be
blinking. Within 5s, press + or - button to adjust the time for Timer On. Pressing
+or - button once will increase or decrease the time by 0.5h. Hold + or - button
for
2s, time will change quickly. Release the button after your required set time
is
reached. Press TIMER button to confirm it. T-ON and H icon will stop
blinking.
●Cancel Timer On/Off: If Timer function is set up, press TIMER button once to
review the remaining time. Within 5s, press TIMER button again to cancel this
function.
