Prem-I-Air ACS16E Manual de usuario

IMPORTANT

Please read these instructions carefully before use.

Page 2

Important safety instructions

BS Plug Wiring Instruction

Technical Specification

Energy Saving Advice

Component Layout

Control Panel Operation

Use Of Control Panel

Control of Airflow Direction

Disconnecting The Refrigerant Line

Mounting The Outdoor Unit

Installing The Carbon Filters

Maintenance

End Of Season Storage

Troubleshooting

Service & Warranty

Page 3

1. Transport & store the unit in an upright position only. Leave it in

an upright position for at least 3 hours before first use.

2. Always place the unit on an even, level surface.

3. An opening in a window or wall is required to accommodate the

exhaust hose to expel the hot air.

4. Make sure the unit is connected to an earthed power supply of the

correct rating. (Refer to the rating label located at the back of the

unit).

5. The unit will cool when the room temperature is between

18°C~32°C depending on the thermostat setting.

6. Operate this unit in an ambient temperature of 32°C or lower.

7. Do not operate the unit with a damaged power cord or plug, after

it malfunctions, has been dropped or damaged. If the power cord

is damaged it must be replaced by the manufacturer or a qualified

service engineer to avoid a hazard.

8. DO NOT use this unit for functions other than those described in

this instruction manual.

9. DO NOT tilt the unit.

10. DO NOT cover or obstruct the appliance’s inlet and outlet grilles.

11. Your air conditioner has been designed to be used only in the

home, office and similar conditions and should not be used for

any other purpose.

12. Never unplug the air conditioner while it is working, this could

damage the electronic circuits.

13. DO NOT use the appliance in a wet room, such as a bathroom or

laundry room to avoid the risk of shock.

14. DO NOT sit or place articles on the appliance.

15. DO NOT use the appliance with wet or damp hands.

16. DO NOT let chemical substances come into contact with the

appliance.

17. DO NOT use the appliance in the presence of inflammable

substances or vapours such as alcohol, insecticides, petrol, etc.

18. DO NOT use the plug to start and stop the appliance.

19. ALWAYS use the control panel to start and stop the unit.

20. ALWAYS keep an air path of at least 50cm from walls, furniture or

curtains.

21. ALWAYS turn off the appliance when it is not in use and remove

the mains plug from the socket outlet.

Page 4

22. ALWAYS turn the unit off and remove the mains plug before

cleaning, carrying out maintenance or moving location.

23. Avoid the use of adapter plugs, multiple sockets and /or extension

leads. If their use is necessary, ensure they conform to current

safety standards.

24. Do not pull the electrical cable or place it near a source of heat:

always unroll it completely to avoid dangerous overheating. If the

supply cord becomes damaged, the service agent or a similarly

qualified person must replace it, in order to avoid a hazard.

25. The filter must be used with the product at all times, when

removing it for clearing always turn the unit off and unplug the

mains plug from the socket.

For those who are not aware of the danger that might occur from

the usage of an electrical appliance, they should use the product

under guidance and supervision.

Page 5

Wiring Instructions: Should it be necessary to change the plug

please note the wires in the mains lead are coloured in accordance

with the following code: BLUE - NEUTRAL

BROWN - LIVE

GREEN AND YELLOW - EARTH

As the colours of the wires in the mains lead of this appliance may not

correspond with the coloured markings identifying the terminals in your

plug, proceed as follows:

1. The BLUE wire is the NEUTRAL and must be connected to the

terminal which is marked with the letter Nor coloured BLACK.

2. The BROWN wire is the LIVE and must be connected to the terminal

which is marked with the letter Lor coloured RED.

3. The GREEN/YELLOW is the EARTH and must be connected to the

terminal which is marked with the letter Eor or coloured GREEN

OR GREEN/YELLOW.

4. Always ensure that the cord grip is positioned and fastened correctly.

If a 13A (BS 1363) fused plug is used it must be fitted with a 13A fuse. If in

doubt consult a qualified electrician.

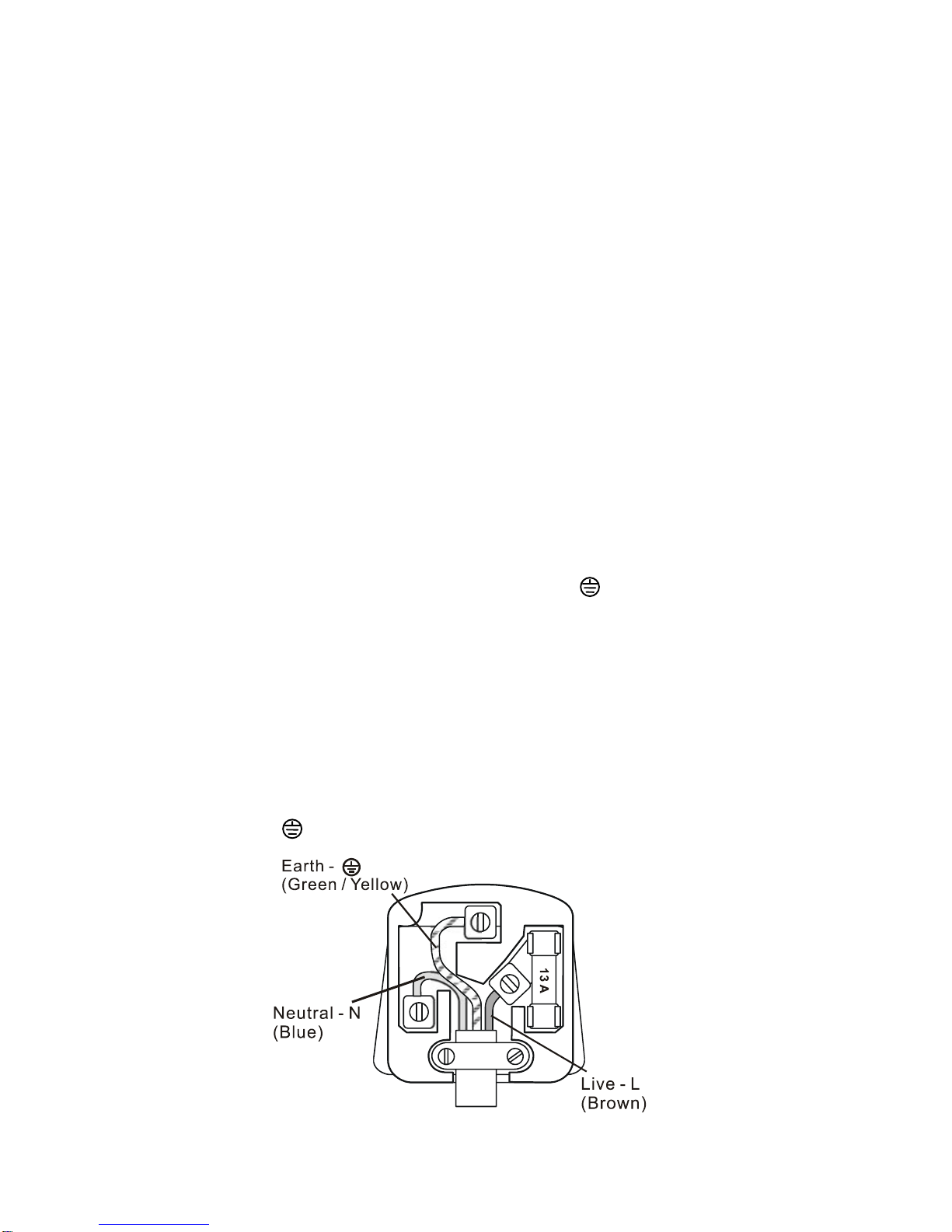

Wiring for a 13 Amp Plug (BS1363)

Please note. The Earth Terminal is marked with the letter Eor

Earth Symbol

Page 6

Model no. ACS16E

Power supply 220-240V/ 50Hz / 1 phase

Cooling capacity 16000BTU/hr, 4039Kcal/hr,

4689watts

Heating capacity 16000BTU/hr, 4039Kcal/hr, 4689watts

Power / Ampere consumption for

cooling 1750W/ 7.5A

Power / Ampere consumption for

heating 1280W/ 5.8A

Max. airflow volume (indoor unit) 750 m3/h

Humidity removal capacity 53L/day

Compressor Rotary

Refrigerant R-407C

Refrigerant load* 1.25Kg

Fan speed 3

Timer 1 ~ 12 hours

Working temperature Indoor unit: 18 ~ 32oC

Outdoor unit: 21 ~ 43oC

Indoor unit 35 kg

Net weight Outdoor unit 13 kg

Indoor unit 360 x 590 x 757 mm

Size Outdoor unit 500 x 310 x 525 mm

Length of connection tube 3 m

Recommended room size 28m2

* For models with heat function only.

Measuring condition for above is:

Cooling – Indoor: RT27oC, RH60%

Outdoor: RT35oC, RH50%

Heating - Indoor: RT20oC, RH60%

Outdoor: RT7oC, RH85%

Page 7

1. Do not locate the air conditioner where furniture or

other objects can obstruct the airflow.

2. Keep blinds/curtains closed during the warmest part

of the day.

3. Close the fireplace damper, floor and/or wall grilles, so

cool air does not escape through the chimney or

ductwork.

4. Keep the filters clean.

5. Avoid opening doors frequently.

6. Each person present in a room provides between 100

& 150Watts of heat, consequently, the more people

there are in the room, the less effective the unit will be

in cooling.

7. Set the unit to maximum cooling and high-speed

ventilation for the initial start up and then adjust the

unit to a comfortable setting.

1. Cool air outlet

2. Control panel

3. Connection tube

4. Handle

5. Casters

6. Outdoor unit handle

7. Exhaust air outlet

Page 8

14. Active Carbon filter

15. Outdoor unit mounting bracket

16. Spanners

17. Remote control

18. Bag containing screws & washers

9. Cable storage

10. Power cable

compartment

11. Power cable

12. Filter

13. Filter

1. Auto mode indicator 2. Cooling mode indicator

3. Fan mode indicator 4. Heating mode indicator*

5. Low fan speed indicator 6. Medium fan speed indicator

7. High fan speed indicator 8. Timer operation indicator

9. Room temperature indicator 10. Water FULL indicator

11. Set temperature indicator 12. Sleep function indicator

13. UV & ion indicator* 14. UV & Ion selector*

15. Sleep function selector 16. Temperature UP selector

17. Temperature DOWN selector 18. LCD read out

19. Power ON/OFF 20. Timer

21. Fan speed selector 22. Mode selector

* For models fitted with these functions only

Page 9

Page 10

All function below can be carried out using the infrared remote

control

Turning ON/OFF

1. Press the ON/OFF button and the unit will start automatically. If the

ambient temperature is: -

 higher than 23oC, the unit will work in cooling mode.

 higher than 20oC but below or equal to 23oC, the unit will work in

fan only mode.

 below 20oC, the unit will work in heating function (This is for

cooling & heating models only).

2. Indicator LED’s of the functions in progress come on at the same time.

NOTE The display window shows the ambient room temperature from

0oC to 50oC

3. To turn the unit off, press ON/OFF button again.

Setting Mode / Functions

Press MODE button to select required working mode: Automatic, Cooling,

Fan or Heating, (Heating is only available for heating & cooling models.)

The indicator LED of your selected mode illuminates.

Setting temperature

1. Press the 'Temperature up' or 'Temperature down' button to regulate

the temperature you require.

2. The display window will show the temperature you set as you press

'Temperature up' or 'Temperature down' button. Otherwise, it will

always show the ambient temperature.

3. The pre-setting temperature of this machine is: 24oC for cooling, 20oC

for heating.
