Precisa LT SERIES Guía de referencia
SWISS MADE
Brief instructions / Kurzanleitung / Courte notice d‘utilisation / Instrucciones breves Precisa Gravimetrics AG
SERIES LT
!"!!#!!
$% !"!!#!!
& '()
)(**+++(
,
(-.)
English
3
Series 321
Table of contents
1. Introduction .....................6
2. Safety precautions..........6
3. Technical data.................7
4. Starting up .......................8
4.1 Choice of a suitable location.. 8
4.2 Unpacking the balance ........... 8
4.3 Assembling the balance.......... 9
4.4 Under-floor weighing ............ 10
4.5 Levelling the balance............. 11
4.6 Calibrating the balance ......... 11
5. Key functions................. 12
6. Overview of menus .......13
6.1 Menu control.......................... 13
6.2 Configuration menu............... 14
6.3 Application menu................... 15
7. Key menus ..................... 16
7.1 Tare menu .............................. 16
7.1.1 Taring the balance..............................16
7.1.2 Other functions ..................................16
7.2 Mode menu ............................ 17
7.2.1 Switch to an activated application or
back to weighing mode......................17
7.2.2 Other functions .................................17
7.3 Print menu .............................. 18
7.3.1 Print individual value / report..............18
7.3.2 Other functions .................................18
Series 321
4
DANGER
Warning of a possible danger which can lead to death or serious physical injuries.
GEFAHR
Warnung vor einer möglichen Gefahr, welche zum Tod oder zu schweren Körperverletzungen führen kann.
DANGER
Avertissement d‘un danger possible qui peut entraîner la mort ou de graves blessures.
PELIGRO
Advertencia ante un posible peligro que puede provocar la muerte o lesiones personales graves.
WARNING
Warning of a possibly dangerous situation which can lead to less severe injuries or damage.
VORSICHT
Warnung vor einer möglicherweise gefährlichen Situation, welche zu leichten Körperverletzungen oder Sachschäden führen kann.
PRUDENCE
Avertissement d‘une situation potentiellement dangereuse qui peut entraîner des blessures légères ou des dommages matériel.
CUIDADO
Advertencia ante una posible situación de peligro que puede provocar lesiones personales leves o daños materiales.
NOTE
Tips and important rules on the correct operation of the balance.
HINWEIS
Tipps und wichtige Regeln zum korrekten Arbeiten mit der Waage.
REMARQUE
Conseils et règles importantes pour travailler de manière conforme avec la balance.
NOTA
Consejos y reglas importantes para el correcto manejo de la balanza.
Series 321
5
6
5
3
2
1
4
4
MENU
0/T 0/T
esc
ins
clr
13 14
21 22 23 24
16
17
18
19
20
15
987
6
Series 321
1. Introduction
There are various models in the 321 Series. These brief instructions describe the balance with windshield. If you
are using a less complex model, the descriptions of elements that are not included can be skipped.
These brief instructions are intended as an initial overview and are an extract from the original operating instruc-
tions. The brief instructions must be available at all times at the workstation. More detailed descriptions can be
found in the original operating instructions, which can be downloaded from our website.
You should read the original operating instructions in full to ensure that you make the best possible use of your
balance.
2. Safety precautions
– When the balance is used in environments with increased safety requirements, the relevant precautions must be taken.
– The balance must only be operated with a fault-free power supply unit.
– Before connecting the power supply unit, ensure that the operating voltage specified on the power supply unit matches the
mains supply.
– The balance must only be operated with the power supply unit supplied.
– If safe operation of the balance is not possible, it must be disconnected from the power supply and secured against unin-
tentional use.
English
7
Series 321
3. Technical data
Casing dimensions W x D x H for: - Readability 0.1 mg
- Readability 1 mg
- Readability > 1 mg
228 x 381 x 345 mm
228 x 381 x 124 mm
228 x 381 x 90 mm
Net weight: - Readability 0.1 mg
- Readability 1 mg
- Readability > 1 mg
6.6 kg
5.5 kg
5.6 kg
Weighing range for each model
(see details on nameplate)
120 g to 10 200 g
Allowable ambient conditions
(for calibratable balances, see details on the nameplate)
5 °C to 40 °C
Allowable relative humidity 25 % - 85 %, non-condensing
Mains connection (19) 90 V - 264 V, 47 Hz - 63 Hz
Power consumption 18 W, 12 V DC, 1.5 A
Data transfer connection (17 and 18) RS 232/V24 interface,
USB type B (device)
Tab. 2
Technical data
8
Series 321
4. Starting up
4.1 Choice of a suitable location
– Solid, firm and low-vibration, horizontal base
– No direct sunlight
– No draft
– Ambient temperature: 5 °C - 40 °C
– Relative humidity (non-condensing): 25 % - 85 %
4.2 Unpacking the balance
NOTE
Retain the original packaging in order to avoid damaging the balance during shipping or transport and to enable
the balance to be stored in ideal conditions when out of use for long periods.
• Carefully unpack the balance.
English
9
Series 321
4.3 Assembling the balance
CAUTION
Before connecting the device to the mains, be sure that the operating voltage stated on the device and on the
power adaptor agrees with the local mains voltage. Do not touch any key during the following start-up sequence
until after about 3 seconds an acoustic signal sounds.
• Place the dust protection cover on the balance.
• Install the draft shield (1).
• Place the balance pan holder in position and add
the weighing pan (2).
• Insert the supplied power supply unit into the
socket (9) on the back of the balance.
AM
C, D, G
10
Series 321

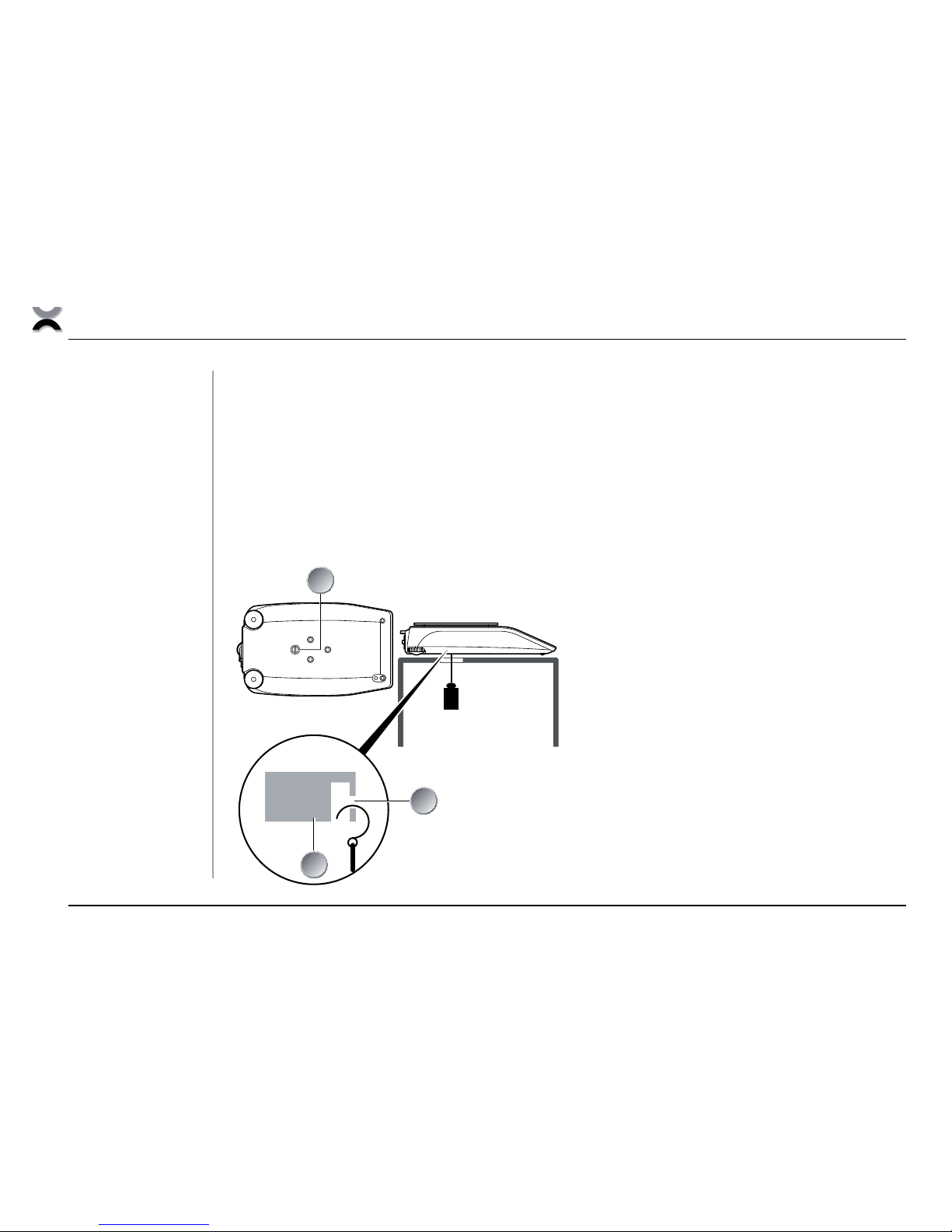

4.4 Under-floor weighing
For weighing objects which, because of their size or shape, cannot be put in or on the balance.
• Remove the screw (10) on the underside of the balance.
• Place the balance over an opening.
• Hang the hook for under-bench weighing, to which the object can be secured, into the aperture (12) of the
metal casting (11).
kg
12
11
10 10 Screw
11 Metal casting
12 Aperture
