INDEX

1. SAFETYAND WARNINGS……………………………………………………………………………………

2. INSTRUCTIONS………………………………………………………………………………………………

3.APPEARANCE…………………………………………………………………………………………………

4.INSTALLATION…………………………………………………………………………………………………

5. SETUPAND CONFIGURATION ………………………………………………………………………………

6.OPERATION MENU ……………………………………………………………………………………………

7. DMX PROTOCOL………………………………………………………………………………………………

8.SIGNS ON THE TOUCH SCREEN ……………………………………………………………………………

9.ERROR MESSAGES ……………………………………………………………………………………………

10.TECHNICAL DATA ……………………………………………………………………………………………

11.CIRCUIT DIAGRAM …………………………………………………………………………………………

12.COMPONENT ORDER CODES………………………………………………………………………………

The following items are supplied with the projector and please check:

Name

Quantity

Unit

Remark

G clamp

Pcs

XLR connector

Set

Male and female

Safety cord

Pcs

User manual

QR Code

Ω clamp

Pcs

Optional

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change

without notice. Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the

course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any

consequence arising from them.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are

in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer and

do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.

Any future technical changes are not subject to further notice.

Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from

the delivery date but the light source is not within the warranty.

1. SAFETYAND WARNINGS

NOTE

Before a projector’s installation, power-on, operation and maintenance, please carefully read

the safety information hereinafter!

The following safety signs are used in the user manual.

Warning

User

Manual

Electrical

shock

Goggles

Protective

Gloves

Flames

High

Temperature

● When unpacking , check if there is transportation damage before using the projector. Should there be any

damage caused by transportation, consult your dealer and do not use it.

●The manufacture is not responsible for loss caused by the user not following the manual or changing the

projector as he/she likes.

●Please be noted that the damage caused by changing the projector at will is not warranted.

● Do not hesitate to contact the dealer or the manufacturer if any questions or advice.

● The projector is for indoor use only, IP20.

● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do

not allow contact with water or any other liquids.

●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while

being operated.

●The projector is only intended for installation, operation and maintenance by qualified personnel. And the

operation must strictly follow the procedures in the manual.

●The projector is not for a user for any replacements and the user shouldn't open the projector for repair and

maintenance.

●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned..

●Do not connect this device to any type of dimmer pack.

●If the lamp, lens and screen protective cover of the a lighting fixture have obvious damage, i.e., to the extent

that it hurts the performance like cracking or deformation. Please stop use it and replace them with the original

parts, otherwise its performance will be compromised.

● For the location of a lighting fixture, it shouldn’t be seen in the distance of less than 4 meters.

●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a

projector while covers(housing)are off .

●Keep the lamp clean and do not touch it with bare hands.

●While operating it, wear protective items.

●Any electrical connection must be carried out by a qualified person .

●Before installation, please confirm the voltage supplied matches what is required for the projector.

●Each projector must be properly earthed and installed as per related electrical standards.

●Do not use power cord with its insulator damaged and connect the power cord with other cables.

●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully or

by pulling the power cable.

●All power cords must conform to related safety and regulations.

●While being operated, the projector should not be under rains or in humidity.

●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other

electrical parts’ life will be shortened .

●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord

supplied through the safety cord holes for safety support.

●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from

power mains.

●.After stable operation under normal ambient temperature ,the temperature of the external surface of the

housing of the LED lighting fixture (the surface of the heat sink) is 65℃at maximum after the stable running.

●.While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not

mean the projector has some defects.

●While a lighting fixture works properly under normal ambient temperature, the maximum temperature of the

external surface of the control device (The integrated control device means the external surface of the housing of

the lighting fixtures electric chamber)allowed is 65 Celsius degrees.

●Do not mount the projector directly on inflammable surface.

●Do not project the beam straightly on combustible items and the minimum distance between the projector

and illuminated items is 10m.

●A projector should be installed with good ventilation and the minimum distance between the projector and

walls is 50cm.At the same time, please ensure the fans and air inlets and outlets are workable.

●The product meets The General Technical Requirements and Standards for Recycle and Use Of

ExpiredAppliance and Electronic Products.

●When the product meets disposal standards and needs to be disposed, a client needs to dispose and recycle it.

2. INSTRUCTIONS

●CLEANINGAND MAINTENANCE

If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the

projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the

projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved,

restart the projector.

The accumulation of oil, smoke and dust on the lens will compromise the light output and cooling efficiency. Cleaning a

projector is very necessary to ensure a reliable use of it. Cooling fans need to be cleaned every 15 days. Internal lens, reflector and

hot mirror need to be cleaned periodically to optimize light output. Use plastic\rubber fiber and fur (non-metallic) tools for

cleaning.And the tools can’t scratch or deform the heat sink.

Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning

work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean

and do not touch optical parts with bare hands.

●Before any maintenance and cleaning, please ensure the projector is off the power.

●Only qualified person is allowed to do maintenance.

●During maintenance and before maintenance, the projector must be off power.

●To avoid sunlight or other light penetrating into the head via the front lens, resulting in high temperature internally

causing damages to the projector. Before power-off, please use Tilt channel to move the head and make it facing

downward.

● Do not use alcohol or other organic solvent to clean the housing to avoid damage.

●Do not use any solvent with chemical elements to clean color filters or hot mirror.

●LUBRICATION

To ensure smooth movement of gobos and zoom and focus lens, it’s advised rotators’ bearings and 2 sliding bars for zoom and

focus lens be lubricated every 2 months. High quality and high temperature lubricant/grease is advised..

●TROUBLESHOOTING

PROBLEM

ACTION

The projector can’t be switched on

Check if the fuse is burned

Check if the power cord is connected well

Check if the switching power supply is bad or not connected well. A

professional technician is required for the repair

Check if the control board is connected well. .A professional technician

is required for the repair

The projector can be switched on , but the LED

lamp’s brightness can’t be controlled

Check if the LED driver board is connected well. A professional

technician is required for the repair

The projector can be switched on normally, but

not controlled by the DMX controller

Make sure that the fixture’s start address is right

Replace or repair the XLR signal cable.

The beam is not bright and its brightness

decreases sharply

Make sure the fans are working well or fans and their shields are not blocked

bydust.

Makesure that the internal opticsisclean.

The project image appears to have a halo

Carefully clean the LED lamp, optical lenses and other components.

Heavily Defective Beam

Check if lens are in good condition(not cracked)

Clean dust or grease on the lens.

3. APPEARANCE

BASE

ARM

HEAD

4. INSTALLATION

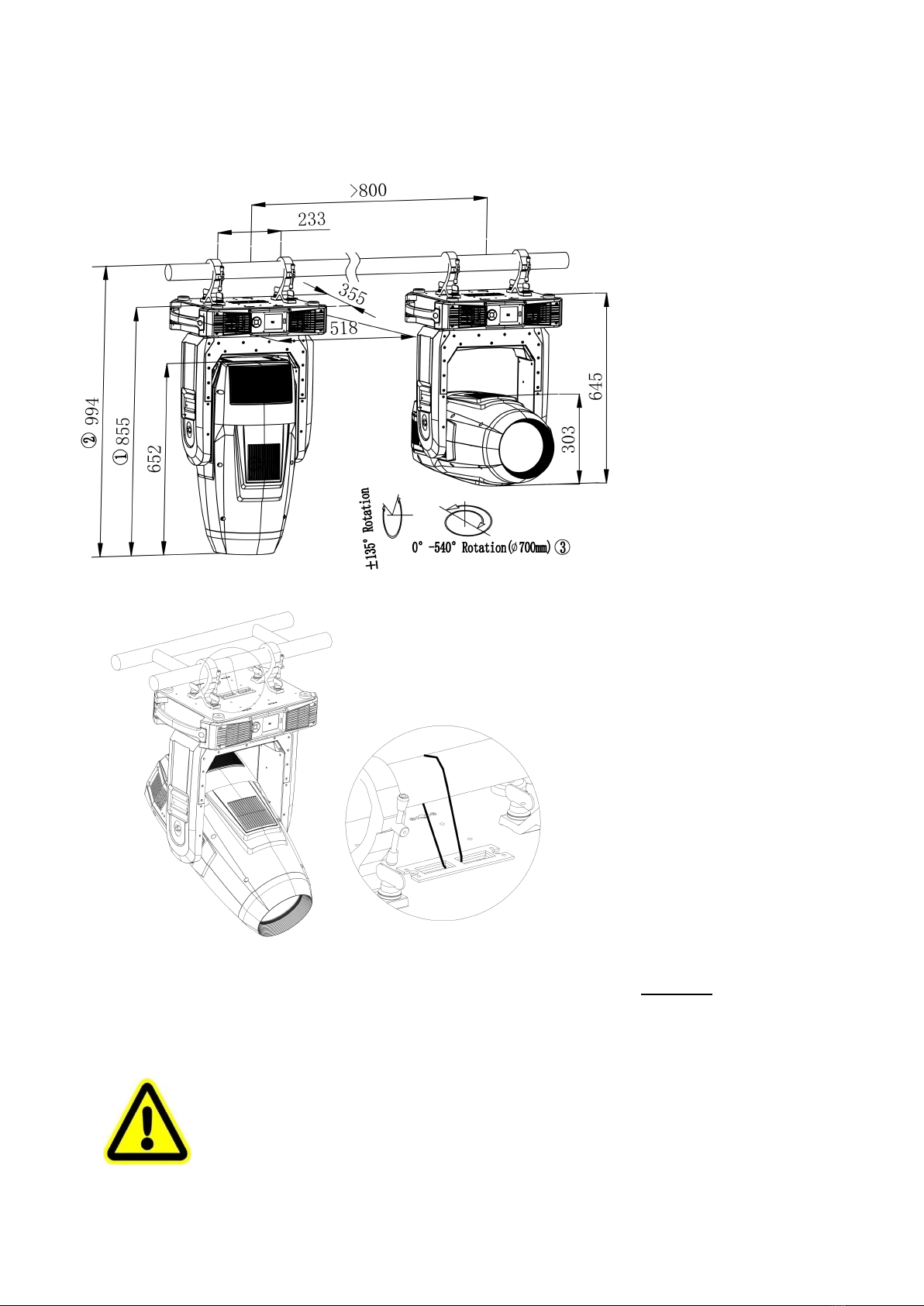

●RIGGING

During transportation, please lock the projector well; Before the use of projector please unlock the head. It’s forbidden to run the

projector without unlock Pan and Tilt

Take 2 clamps and 1 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to

each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of

the base as shown above) Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.

Always ensure that the structure that you are going to mount the projector is secure and is strong enough to support the weight of the

fixture.

WARNING:

●The projector MUST be lifted or carried by the HANDLES instead of clamps.

●.For safety the safety cord should afford 10 times the Projector’s weight.

●.For safety, it should not be hung by its sides.

CLAMP

SAFETY

CORD

WARMING

Please run safety cord through

the safety hole circled in the

diagram for safety

Note：

1. Distance between feet and top of the

head

2. Distance between mounting bar and

top of the head

3. Fixture rotating diameter（minimum

spacing between fixtures）

●POWER CONNECTIONS

Connect the power cord as follows:

L (live) =brown

E (earth) =yellow/green

N (neutral) =blue

Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each

projector be connected with power separately so that they may be individually switched on and off.

●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in

accordance with the standards concerned.

●If any questions about the electrical installation, do not continue but consult a qualified electrician.

●The lighting fixture is with waterproof power socket, it should be equipped with same IP rating power

plug.

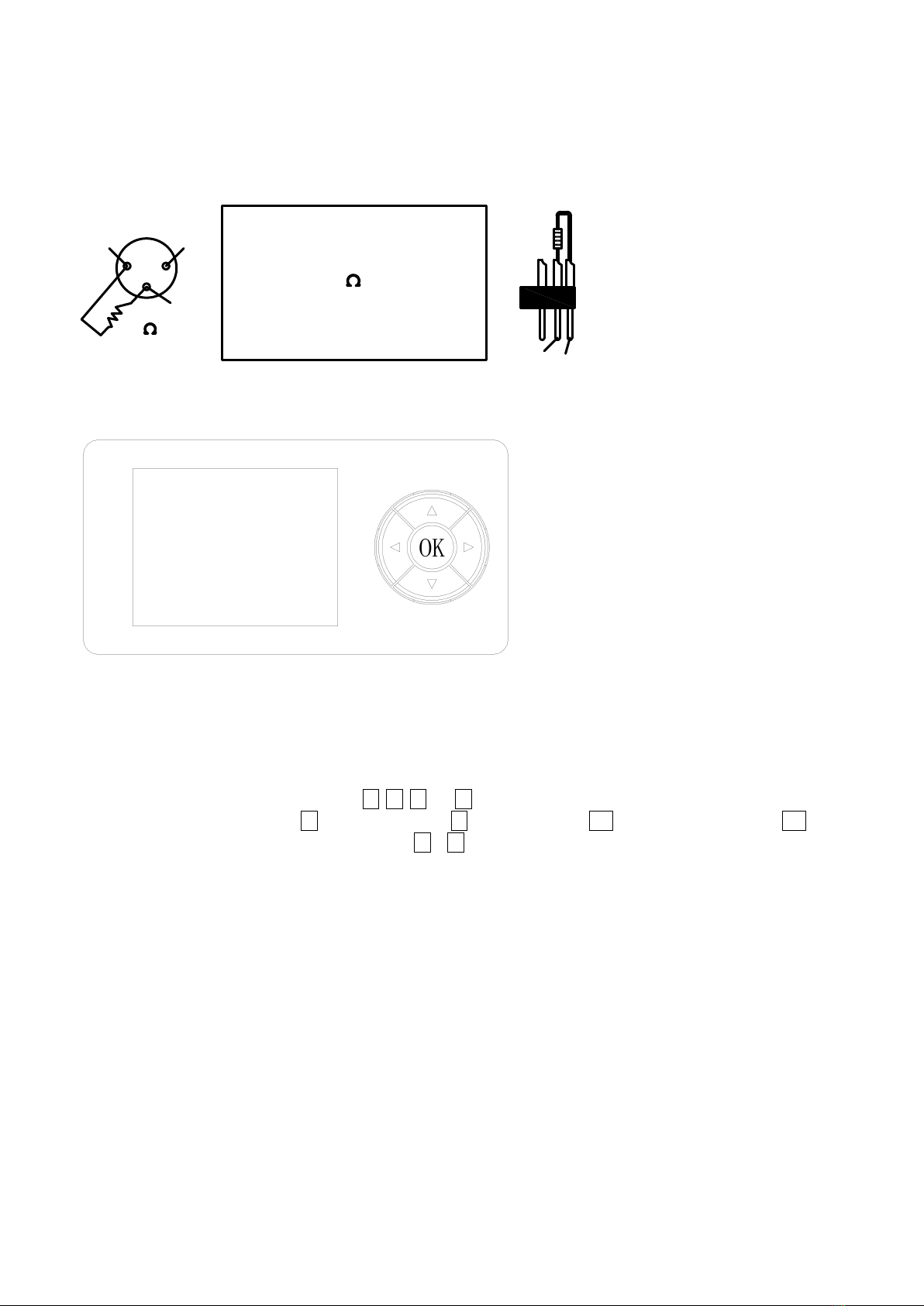

●DMX CONTROLCONNECTION

Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with

each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the

projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.

Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets

mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol

DMX512 (1990).

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second

fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX

terminator as shown in the figure below.

●DMX TERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents

electrical noise from disturbing and corrupting the DMX control signals.

The DMX terminator is simply an XLR connector with a 120(ohm) resistor connected across pins 2 and 3, which is then plugged

into the output socket on the last projector in the chain.The connections areillustrated below

120

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor

across pins 2 and 3 in an XLR plug

and insert into the DMX out socket

on the last unit in the chain.

PIN 3

PIN 2

5. SETUPAND CONFIGURATION

●FRONT PANELOPERATION

The configuration and start address can be set conveniently via push button and color touch screen.

To view or change its setup, touch any white area of the screen or push the key OK for more than 3 seconds to unlock the

display(While only on battery, push OK key). After the unlocking, push ► key to enter into function menus. Each main menu has its

submenus and each submenu has a specific function. For details, please see the “OPERATION MENU” with following

the 6th point..

1. In the page of function setup, push any key of ◄, ►, ▲ and ▼ or icon for the function desired.

2. At 2nd ,3rd and 4th level menus, key ◄ means ESCAPE, key ► won’t function, key OK means ENTER. Push key OK to

save any changes o enter into submenus. Push key ▲or ▼ to change numbers(plus or minus) or tap any item required

for changes.

Push the left key or shortcut key X to go back to the upper level menu. If none pushed, the system will go back to initial display

automatically.

Shortcut keys: after the interface of FUNCTION MENU, the upper part is with menus for many functions. On the right, there are 4

shortcut keys, which are ←,→,lamp control or English/Chinese menus.

●DMX STARTADDRESS

Each projector must be given a DMX start address so that the correct projector responds to the correct control signals.This DMX start

address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the

controller. The projector has 3 DMX modes. There are short mode ,standard mode and extended mode. For example standard mode

has 42 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 043, No. 3 projector’s address 085, No. 4

projector’s address107, and so on.

Launch the projector. Press key OK more than 3seconds to unlock the display. After the unlocking, push key ► to enter into menus.

After selecting the sign of DMX setting, push OK key or tap the screen directly and select DMX address at 2nd level menus.

Push key▲ or▼ or tap sign < or > to set the number desired.

Push OK key to confirm.

Push key◄ and it will return to the upper menu

The projector has wireless control function with wireless receiver module and antenna for remote control.

The setup of it is below:

1. Enter into the projector’s menu. Select the menu “Config Settigns” via the keys of ▲ and ▼

2. Select DMX control Mode---- Wireless First (Note: Do not select XLR ONLY). The DMX wireless control

function is activated.

Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it, Press

“Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns.

●STAND-ALONE MODE

Operate the projector without connecting with a controller, enable the master mode through the operation panel, the

projector will run in Stand-Alone mode automatically.

DMX address can be set at any number within 512.

●MASTER/SLAVE MODE

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,

connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second

fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the

last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.

StartAddresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’and Slaves’operation mode can

be set accordingly.

After Powered on, the group will run in Master/Slave Mode

6. OPERATION MENU

1st

LEVEL

2nd LEVEL

3rd LEVEL

4th LEVEL

5th LEVEL

Address

DMX Address

1-475（

Short Mode）

1-471（Standard Mode）

1-456（

Extended Mode）

IP Address

Default IPAddress

2.X.X.X /10.X.X.X

Custom IPAddress

X.X.X.X

SubNet Mask

X.X.X.X

ArtNet

ArtNet Universe

0-255

sACN Universe

1-63999

Reset

Total Reset

Really Reset?

Confirm/ Cancel

Pan&Tilt Reset

Really Reset?

Confirm/ Cancel

Colour System Reset

Really Reset?

Confirm/ Cancel

Gobo Reset

Really Reset?

Confirm/ Cancel

Zo.Fo.Fr.Pr. Reset

Really Reset?

Confirm/ Cancel

Other Reset

Really Reset?

Confirm/ Cancel

Config

Settings

DMX Channel Mode

Short Mode 38CH

Standard Mode 42CH

Extended Mode 57CH

View Selected Mode

Strobe

…..

Signal Select

XLR Only

XLR First

Wireless Only

Wireless First

Wireless In/XLR Out

Artnet Only

Artnet In/XLR Out

sACN Only

sACN In/XLR Out

Loss of DMX

Normal time out

Hold last Value

Display Config

Display Mode

Off After Delay

OnAlways

Display Invert

Invert OFF

Invert ON

InvertAuto

Language Setting

English

Chinese

Touch screen calibration

XXX

Temperature Unit

Celsius Degree

Fahrenheit Degree

Un-Link Wireless

Really Un-Link?

Confirm/ Cancel

Defaults

Restore Defaults?

Confirm/ Cancel

Option

Settings

Pan/Tilt Settings

Pan DMX Invert

OFF/ ON

Tilt DMX Invert

OFF/ ON

Pan Tilt Swap

OFF/ ON

XYFeedback

OFF/ ON

Pan/Tilt mode

Speed/Time

Invert Settings

Iris Invert

OFF/ ON

Zoom Invert

OFF/ ON

CMYInvert

OFF/ ON

CTO Invert

OFF/ ON

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Luminaria de PR Lighting

PR Lighting

PR Lighting AQUA MARINE 580 BEAM Manual de usuario

PR Lighting

PR Lighting THEATRE COLOUR LT Manual de usuario

PR Lighting

PR Lighting XLED 2007 BEAM PR-8123 Manual de usuario

PR Lighting

PR Lighting LS 90 Logo Manual de usuario

PR Lighting

PR Lighting XL WASH 1200 PR-2905 Manual de usuario

PR Lighting

PR Lighting ARC LED 1572 Manual de usuario

PR Lighting

PR Lighting XR330 BWS Manual de usuario

PR Lighting

PR Lighting XRLED 700-WBWS Manual de usuario

PR Lighting

PR Lighting PR-2735 Manual de usuario

PR Lighting

PR Lighting LS 150 Water Manual de usuario

PR Lighting

PR Lighting AQUA LED 1700 FRAMING Manual de usuario

PR Lighting

PR Lighting XR 1700 Wash Manual de usuario

PR Lighting

PR Lighting XR440 BWS Manual de usuario

PR Lighting

PR Lighting AQUA 350E BWS Manual de usuario

PR Lighting

PR Lighting JNR-8154B Manual de usuario

Manuales populares de Luminaria de otras marcas

Emos

Emos CLASSIC ZY1431T Manual de usuario

Westinghouse

Westinghouse Outdoor Lighting Fixture Manual de usuario

Hedler

Hedler C 12 silent Manual de usuario

Blizzard Lighting

Blizzard Lighting Puck: CSI Manual de usuario

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manual de usuario

Lightmaxx

Lightmaxx Shaft 5R Manual de usuario

Triarch

Triarch 31083 Manual de usuario

Philips

Philips 32614 Series Manual de usuario

IKEA

IKEA TIVED Manual de usuario

Lightolier

Lightolier LP200 Manual de usuario

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manual de usuario

Martin

Martin MAC 250 Krypton Manual de usuario

Cooper Lighting

Cooper Lighting Halo L3232E Manual de usuario

Stageline

Stageline ODW-2410RGBW Manual de usuario

Light Sky

Light Sky Tornado Series Manual de usuario

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manual de usuario

Lightolier

Lightolier Lytespan 83ED17S Manual de usuario

Lightolier

Lightolier Calculite CS8226 Manual de usuario
